REMOVAL AND INSTALLATION

DRIVER SEAT CONTROL UNIT

Exploded View

INFOID:0000000005515442

Refer to

SE-105, "Exploded View"

.

Removal and Installation

INFOID:0000000005515443

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the driver seat (1). Refer to

SE-112, "Removal and

Installation"

.

2.

Remove the mounting nut (A).

3.

Remove driver seat control unit (2).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when replacing control unit. Refer to

ADP-8, "ADDI-

TIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description"

.

JMJIA1449ZZ

ADP-210

< REMOVAL AND INSTALLATION >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Exploded View

INFOID:0000000005515444

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000005515445

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the instrument driver lower panel. Refer to

IP-13,

"Removal and Installation"

.

2.

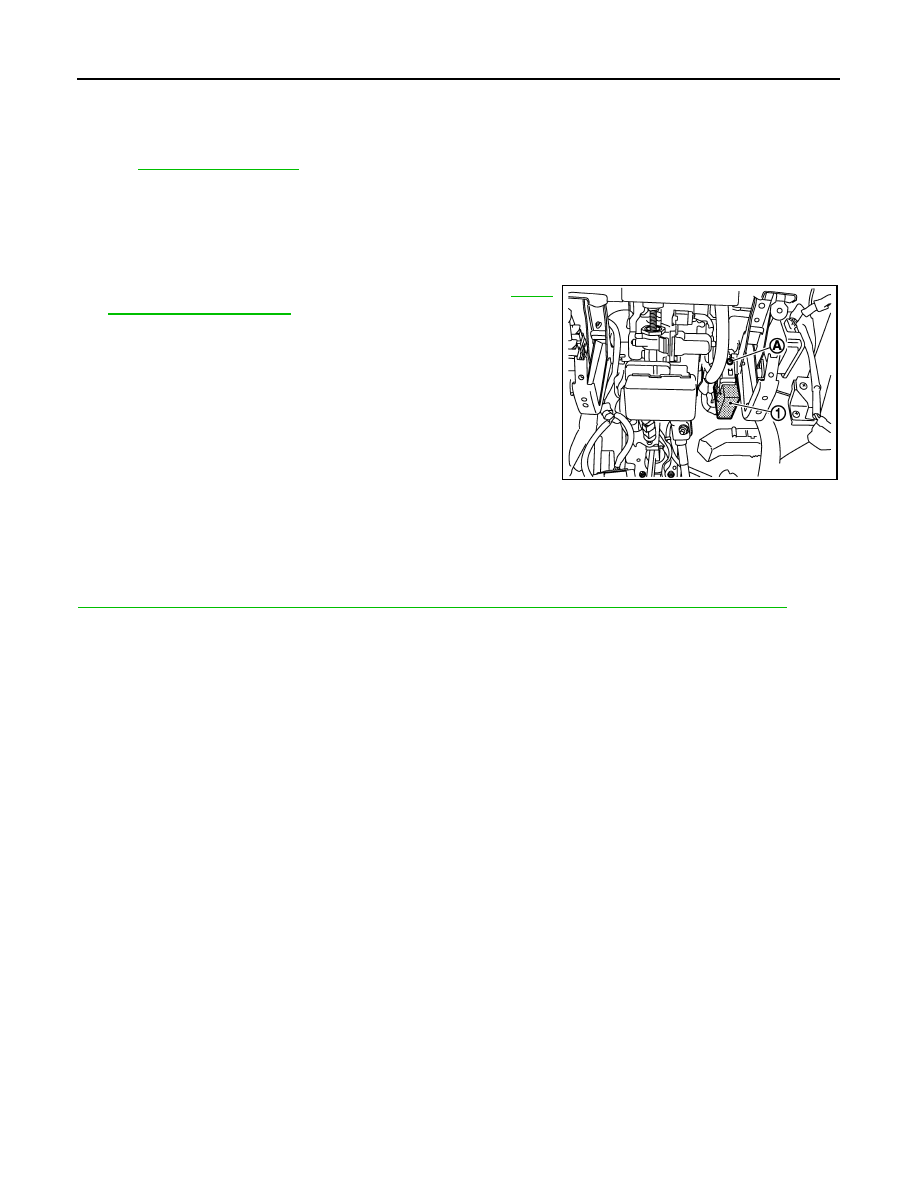

Remove the screws (A).

3.

Remove automatic drive positioner control unit (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

JMJIA1388ZZ

SEAT MEMORY SWITCH

ADP-211

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SEAT MEMORY SWITCH

Exploded View

INFOID:0000000005515446

Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

.

Removal and Installation

INFOID:0000000005515447

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the seat memory finisher (1). Refer to

INT-12, "FRONT

DOOR FINISHER : Removal and Installation"

.

2.

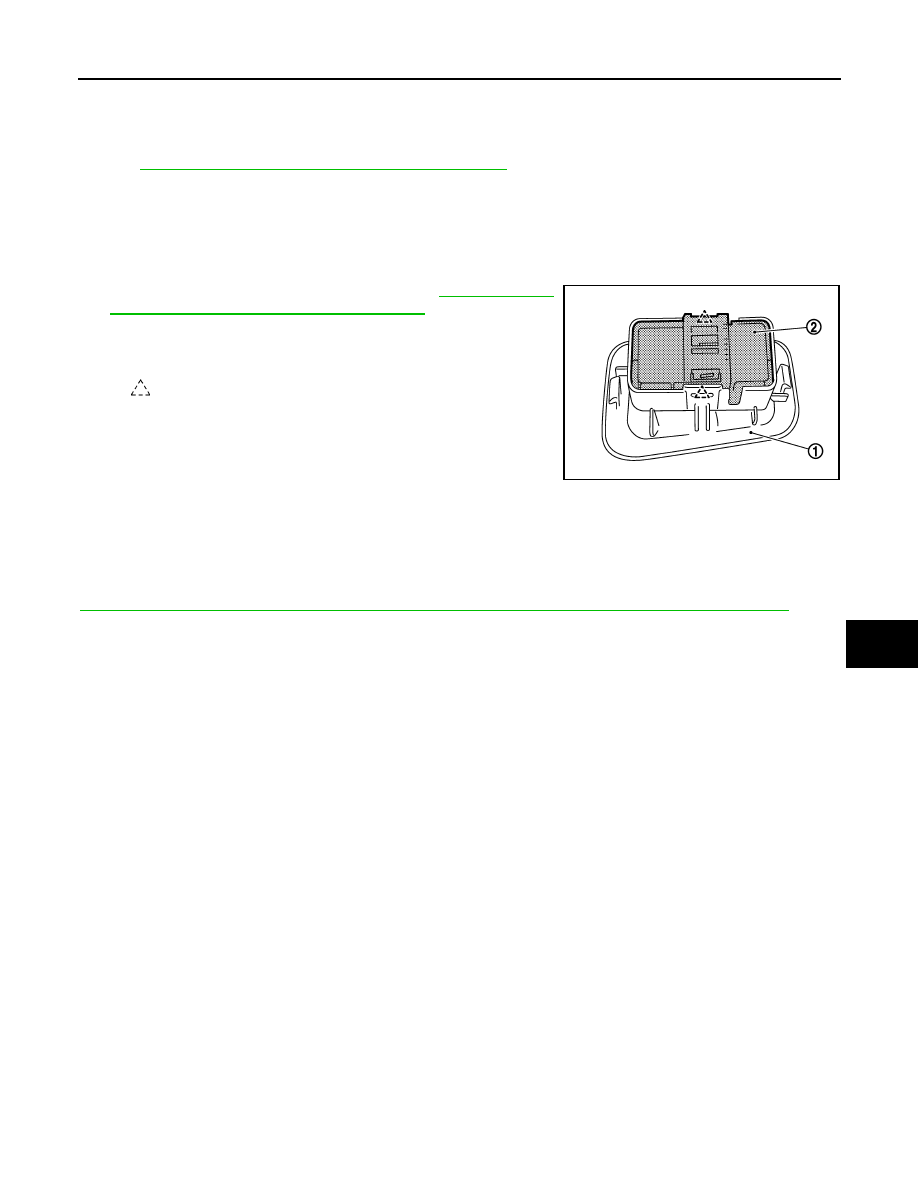

Press pawls and remove seat memory switch (2) from seat
memory finisher (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

:

Pawl
