HEADLINING

INT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

- BOSE AUDIO WITH NAVIGATION LHD MODELS. Refer to

AV-469, "Feeder Layout"

.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• As for guide, first install the sun-visor holder (LH and RH) and then the rear hidden clips at the back

side of headlining.

• Be careful not to bend the headlining when installing.

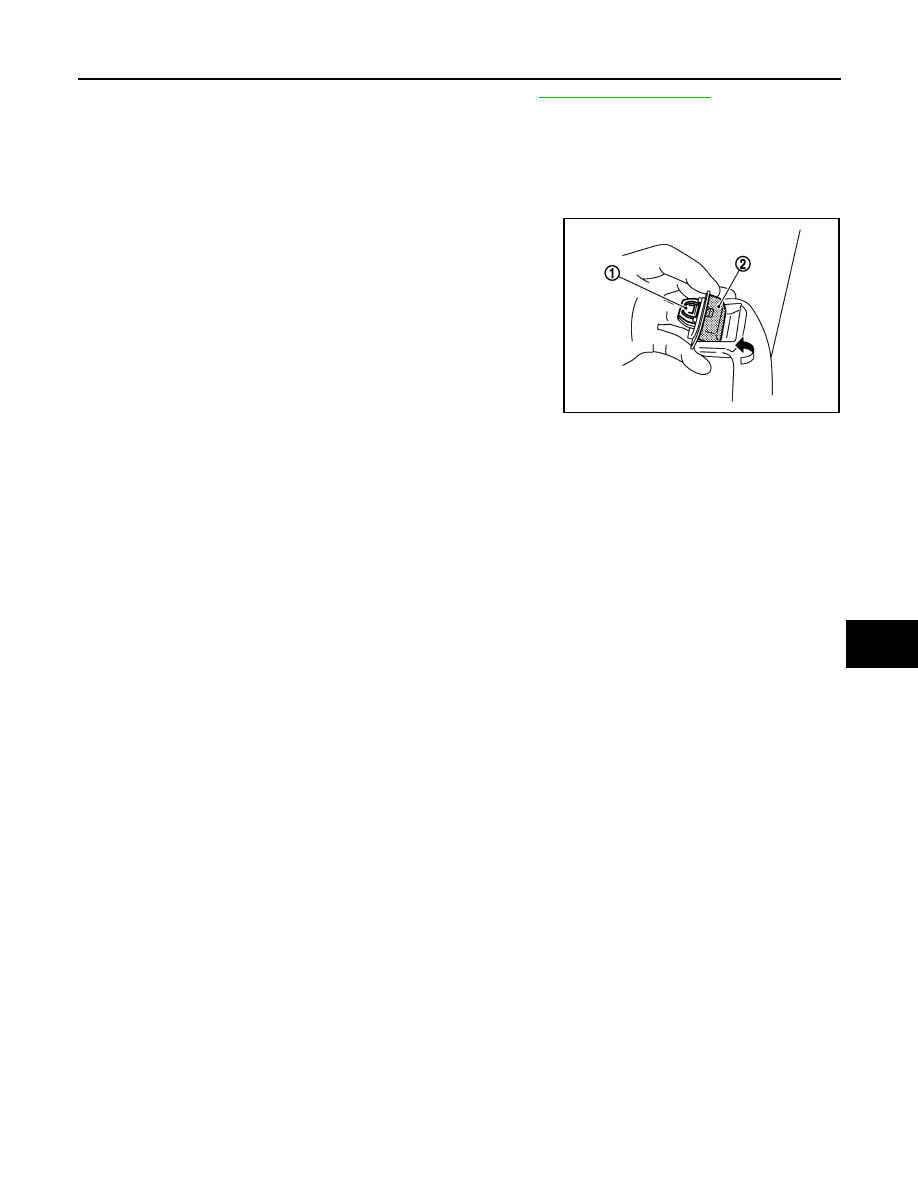

• When installing assist grip, install metal clip (1) to assist grip

clip (2), and then install to the vehicle body.

JMJIA3623ZZ

INT-34

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR TRIM

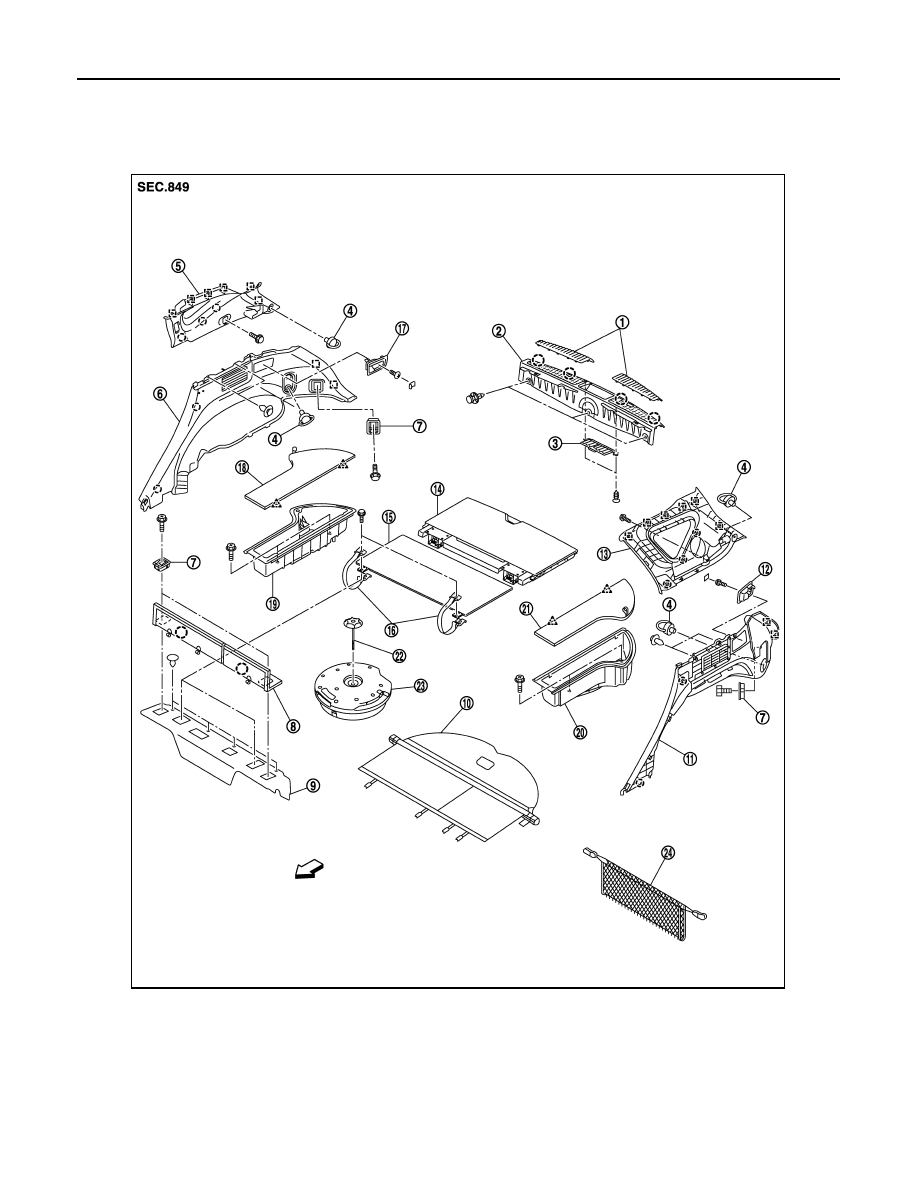

Exploded View

INFOID:0000000009720376

1.

Rear plate ornament (LH/RH)

2.

Luggage rear plate

3.

Luggage rear plate cap

4.

Trunk net hook

5.

Luggage side upper finisher RH

6.

Luggage side lower finisher RH

7.

Rear rope hook

8.

Luggage floor front finisher

9.

Luggage mask

10. Tonneau cover assembly

11. Luggage side lower finisher LH

12. Seatback control lever escutcheon

LH

13. Luggage side upper finisher LH

14. Luggage floor center finisher (rear)

15. Luggage floor center finisher (front)

JMJIA2586ZZ

LUGGAGE FLOOR TRIM

INT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation

INFOID:0000000009720377

REMOVAL

LUGGAGE FLOOR CENTER FINISHER (FRONT) AND LUGGAGE FLOOR CENTER FINISHER (REAR)

1.

Fully open back door.

2.

Remove tonneau cover assembly.

3.

Remove the net.

4.

Remove luggage floor finisher (LH and RH).

5.

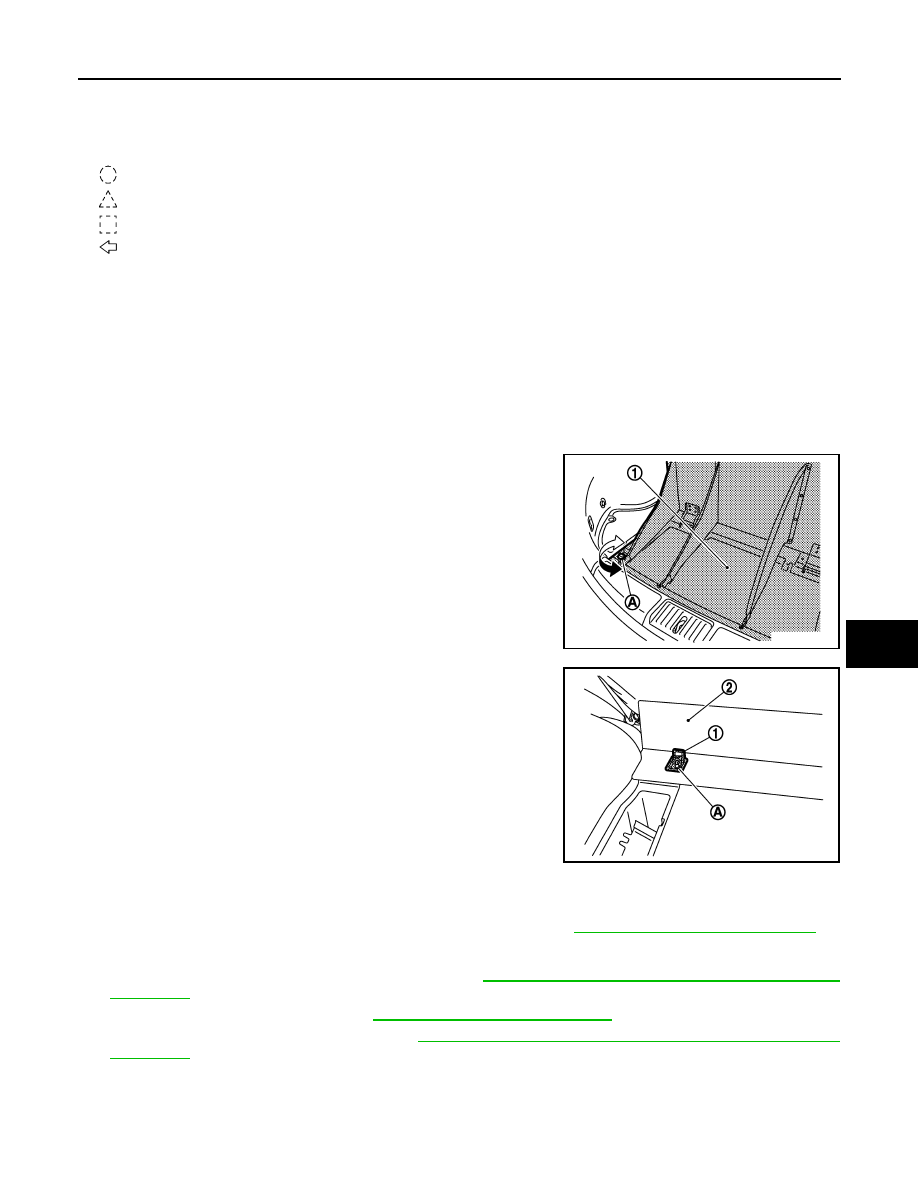

Open luggage floor center finisher (rear) (1), turn clip (A) as
shown in the figure, and then remove the luggage floor center
finisher (rear).

6.

Remove rear rope hook (1) fixing bolts (A) form the luggage floor
front finisher (2) and then remove luggage floor front finisher.

7.

Remove both of luggage floor center finisher (front) fixing bolts, and then remove the luggage floor center
finisher (front).

8.

Remove the woofer.(BOSE audio with navigation models) Refer to

AV-455, "Removal and Installation"

.

LUGGAGE SIDE UPPER FINISHER

1.

Remove rear seat belt anchor bolt (upper). Refer to

SB-13, "SEAT BELT RETRACTOR : Removal and

Installation"

.

2.

Remove rear body side welt. Refer to

INT-20, "Removal and Installation"

.

3.

Remove back door weather-strip. Refer to

DLK-336, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

.

4.

Remove tonneau cover assembly.

5.

Remove trunk net hook.

6.

Remove luggage side upper finisher fixing bolt.

16. Belt assembly

17. Seatback control lever escutcheon

RH

18. Luggage floor finisher RH

19. Luggage floor spacer RH

20. Luggage floor spacer LH

21. Luggage floor finisher LH

22. Clamp

23. Woofer

24. Net

: Clip

: Pawl

: Metal clip

: Vehicle front

JMJIA1408ZZ

JMJIA2730ZZ

INT-36

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

7.

Remove luggage side upper finisher clips and metal clips with remover tool.

8.

Remove luggage side upper finisher from the body side panel.

LUGGAGE SIDE LOWER FINISHER

1.

Remove rear seat belt outer anchor fixing bolts. Refer to

SB-12, "SEAT BELT RETRACTOR : Exploded

View"

.

2.

Remove luggage rear plate.

3.

Remove the luggage side upper finisher.

4.

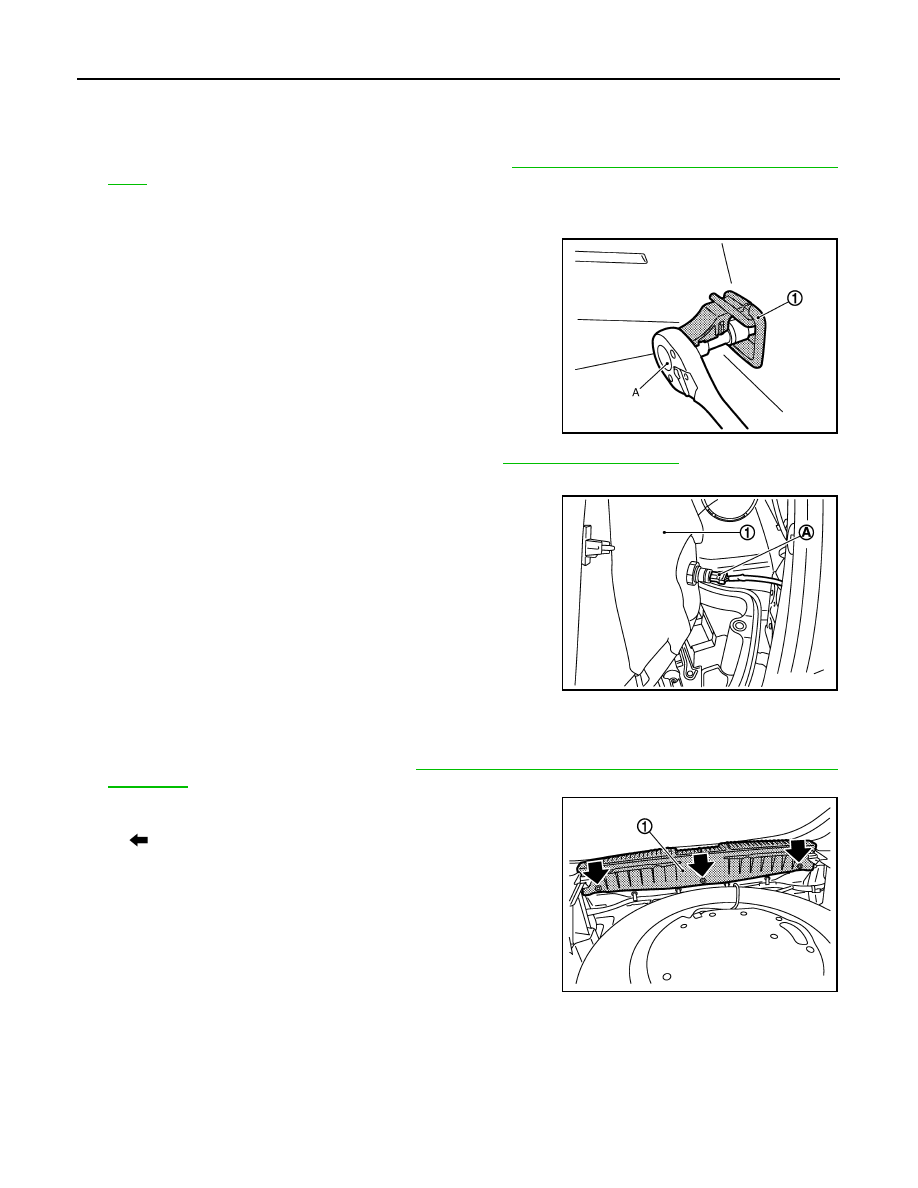

Disengage rear rope hook mounting bolt caps, remove rear rope
hook mounting bolts with socket wrench (A), and then remove
rope hooks (1) (LH/RH).

5.

Remove the seatback control lever escutcheon. Refer to

SE-107, "Exploded View"

.

6.

Remove luggage side lower finisher fixing clip with remover tool.

7.

Pull the luggage side lower finisher (1) to disengage the clips
and metal clips, then disconnect the luggage room power socket
harness connector (A).

8.

Remove luggage side lower finisher.

LUGGAGE REAR PLATE

1.

Remove back door weather-strip. Refer to

DLK-336, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

.

2.

Remove luggage rear plate (1) fixing clips with remover tool.

3.

Hold both sides of luggage rear plate, pull upwards to remove.

JMJIA0617ZZ

JMJIA1398ZZ

: Clip

JMJIA1400ZZ
