FLOOR TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

6.

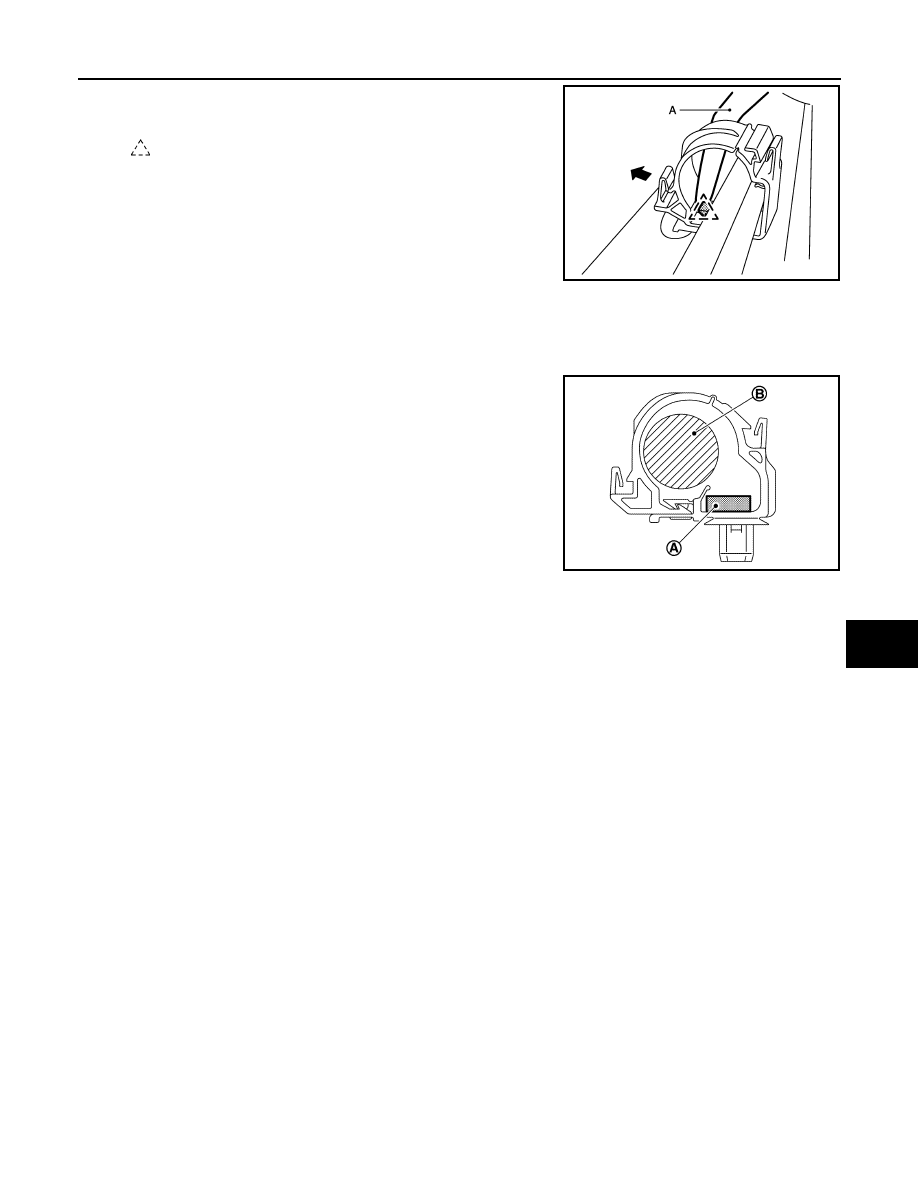

Disengage pawl using a remover tool (A) and open the harness
protector.

7.

Remove floor carpet.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When inserting floor carpet assembly (A) into harness clip,
always check that floor carpet assembly is hooked to harness
clip normally. Otherwise, carpet may be misaligned after instal-
lation when it is stepped on.

: Pawl

JMJIA4396ZZ

B

:  Harness

JMJIA6569ZZ

INT-26

< REMOVAL AND INSTALLATION >

HEADLINING

HEADLINING

NORMAL ROOF

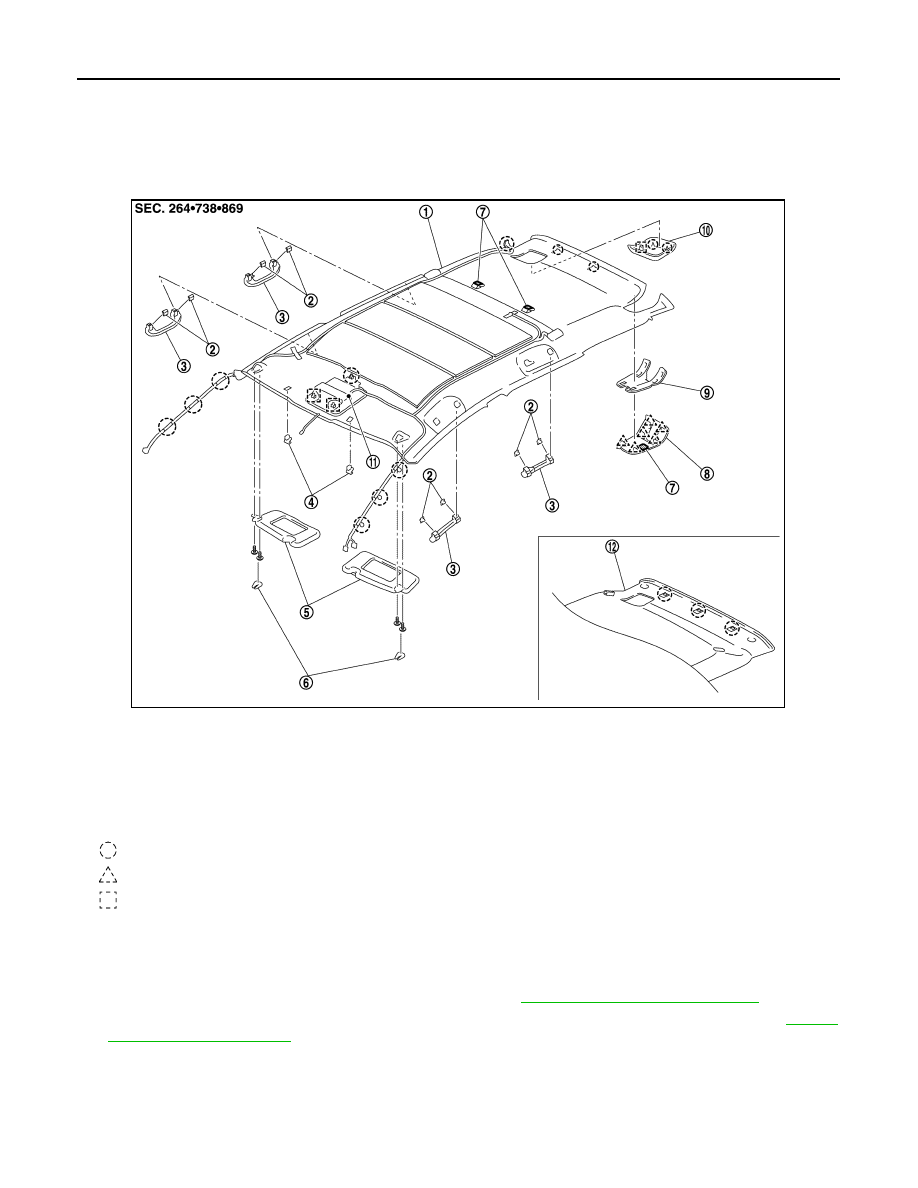

NORMAL ROOF : Exploded View

INFOID:0000000009720372

NORMAL ROOF : Removal and Installation

INFOID:0000000009720373

REMOVAL

1.

Remove luggage side upper finisher (LH and RH). Refer to

INT-35, "Removal and Installation"

.

2.

Remove front pillar garnish (LH and RH) and center pillar upper garnish (LH and RH). Refer to

INT-20,

"Removal and Installation"

.

1.

Headlining assembly (with auto back
door)

2.

Assist grip cap

3.

Assist grip

4.

Sun-visor holder

5.

Sun-visor assembly

6.

Sun-visor cover

7.

Dual-lock fastener

8.

Auto back door finisher

9.

Auto back door plate

10. Rear center seat belt cover

11.

Map lamp assembly

12. Headlining assembly (without auto

back door)

: Clip

: Pawl

: Metal clip

JMJIA6883ZZ

HEADLINING

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

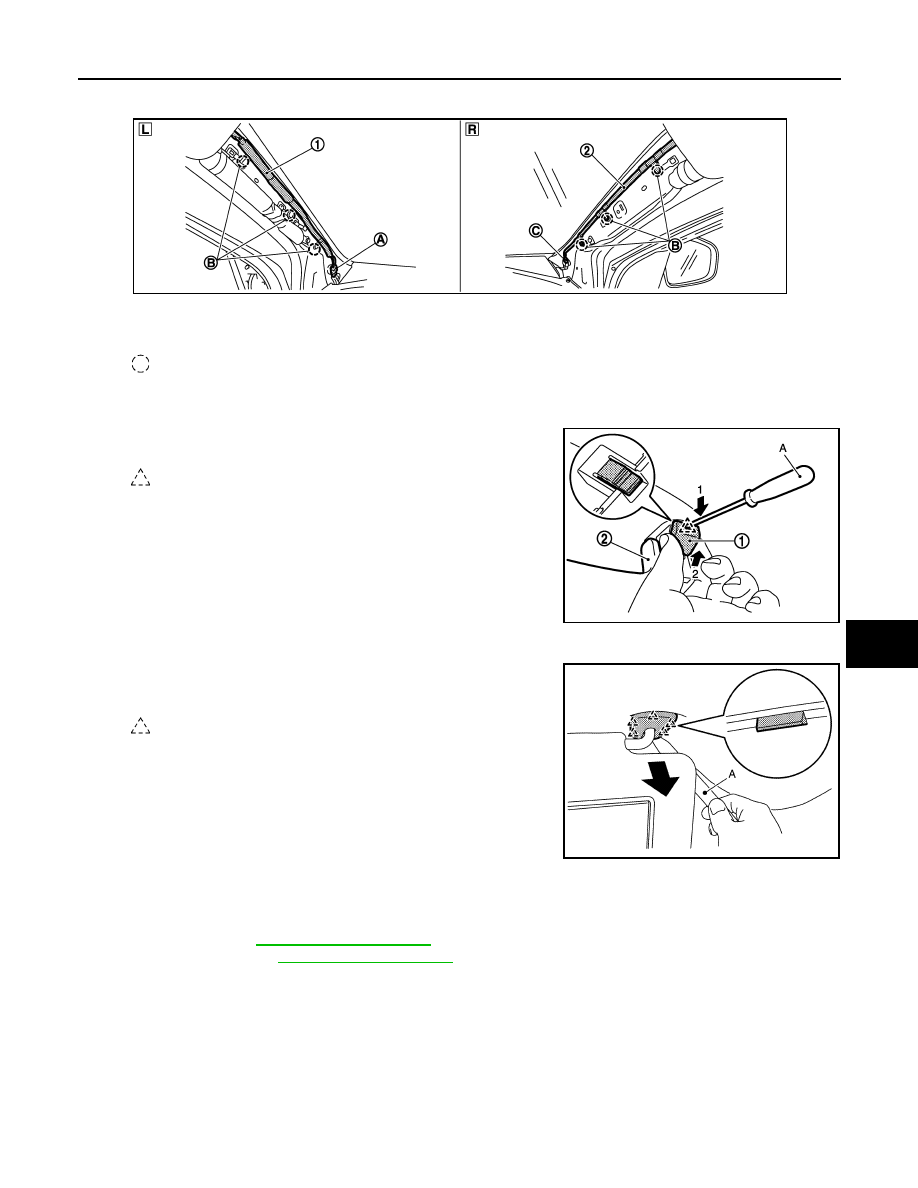

3.

Disconnect roof harness (1) connectors (A), the antenna feeder (2) harness connector (C) and the clips
(B).

4.

Remove all assist grips.

a.

Disengage pawl of assist grip clip (1) using a remover tool (A).
Slide assist grip clip forward and remove it.

b.

Slide assist grip (2) forward and remove it.

5.

Remove sun-visor assembly (LH and RH).

a.

Disengage sun-visor cover fixing pawls using a remover tool (A),
and then remove sun-visor cover.

b.

Remove sun-visor assembly fixing screws.

c.

Disconnect harness connector, and then remove sun-visor assembly.

6.

Disconnect inside mirror and rain sensor harness connector.
• with ADP: Refer to

MIR-70, "Exploded View"

.

• without ADP: Refer to

MIR-93, "Exploded View"

.

L: Left side of vehicle

R: Right side of vehicle

: Clip

JMJIA2760ZZ

: Pawl

JMJIA4398ZZ

: Pawl

JMJIA4910ZZ

INT-28

< REMOVAL AND INSTALLATION >

HEADLINING

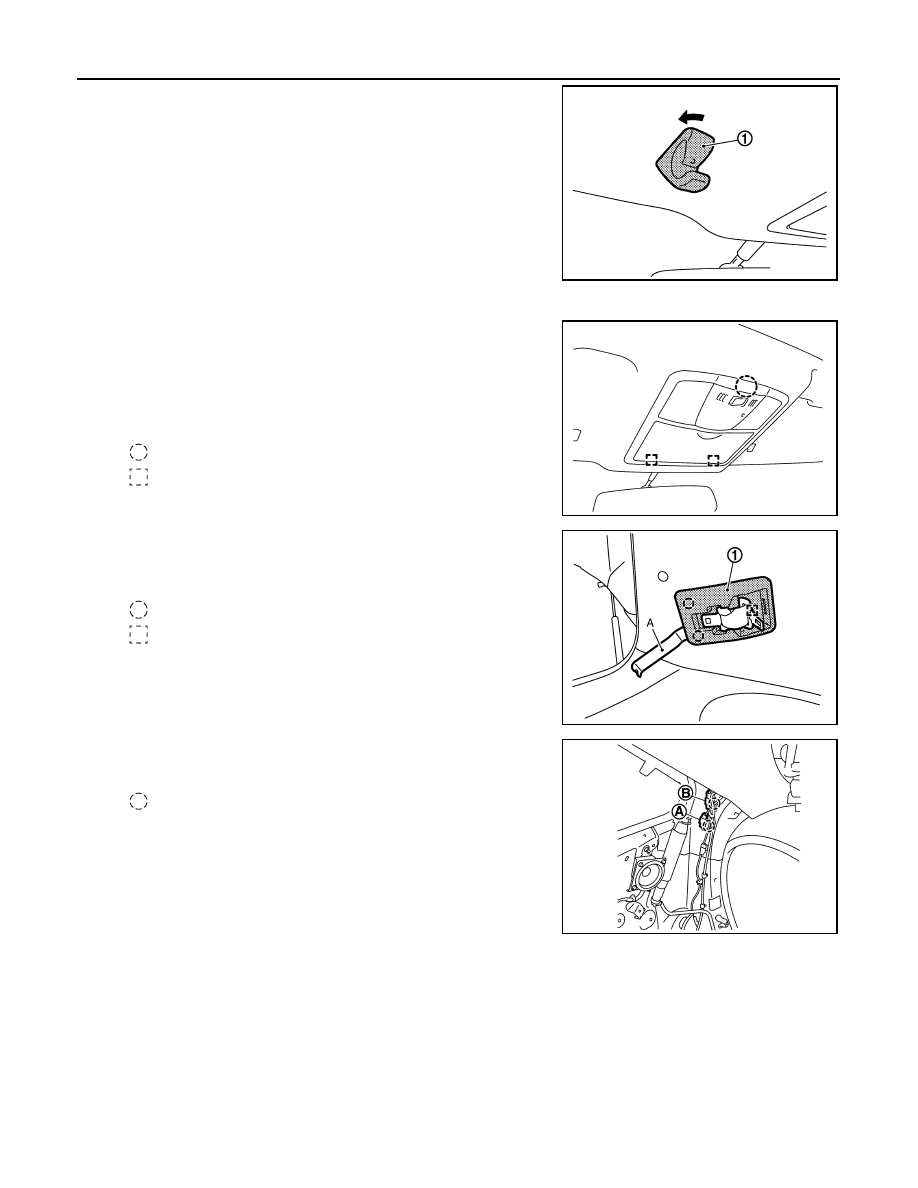

7.

Rotate 90

°

 degrees and remove sun-visor holder (1) (LH and

RH).

8.

Recline front seat back to facilitate the headlining removal.

9.

Pull the map lamp assembly toward and disengage clip and
metal clips.

CAUTION:

Map lamp assembly is crimped from the back of headlining.
Remove it by disengaging the crimped area of back of map
lamp assembly after removing headlining from the vehicle.

10. Disengage rear center seat belt cover (1) fixing clips and metal

clip using a remover tool (A), then remove rear center seat belt
cover (1).

11. Disconnect the antenna feeder harness connectors (A), (B), and

clips.

12. Using remover tool, remove headlining hidden clip at the back side of headlining.

13. Peel dual-lock fastener.

JMJIA0098GB

: Clip

: Metal clip

JMJIA6885ZZ

: Clip

: Metal clip

JMJIA1009ZZ

: Clip

JMJIA6279ZZ
