REAR DOOR FINISHER : Removal and Installation

INFOID:0000000009720367

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth before remove.

REMOVAL

1.

Fully open rear door window.

2.

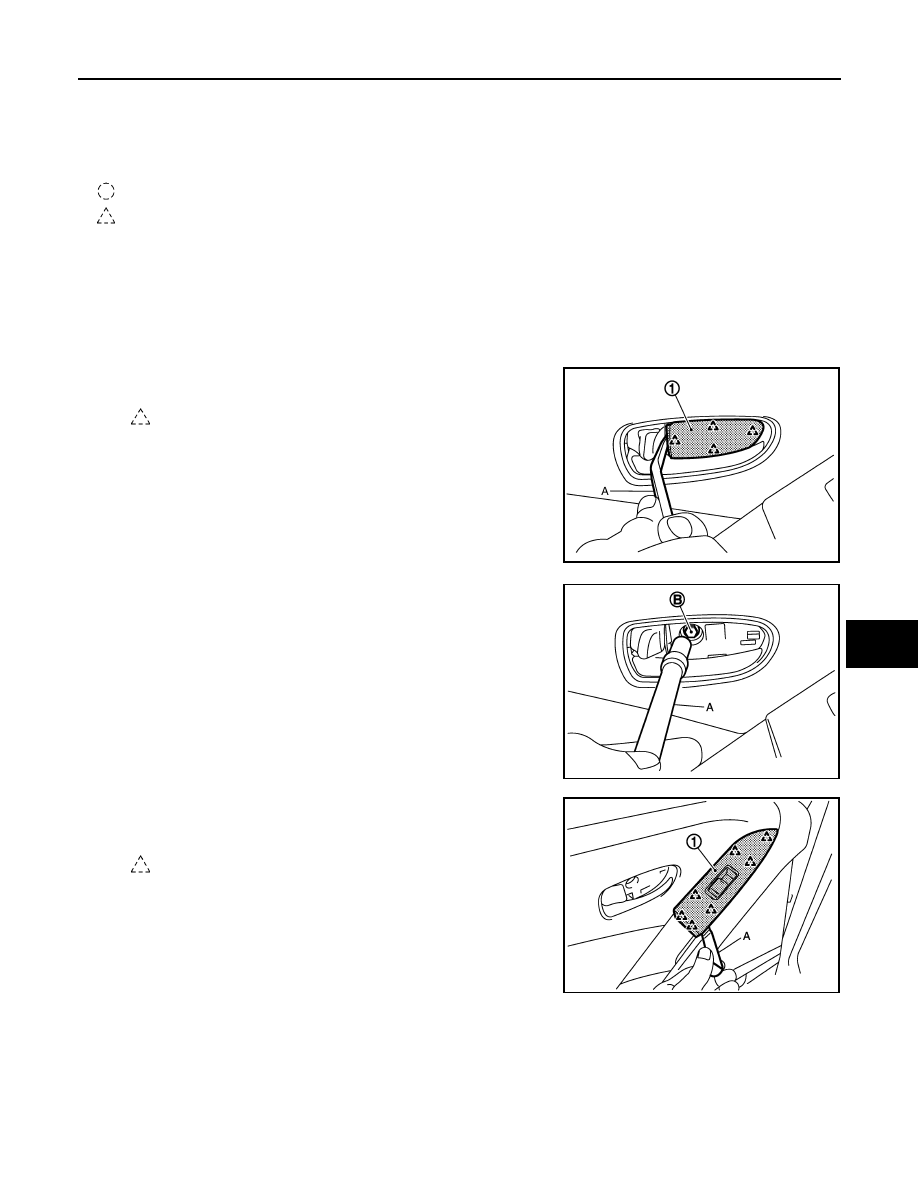

Remove inside handle escutcheon (1) with remover tool (A).

3.

Remove bolt (B) located behind the inside handle escutcheon
with tool (A).

4.

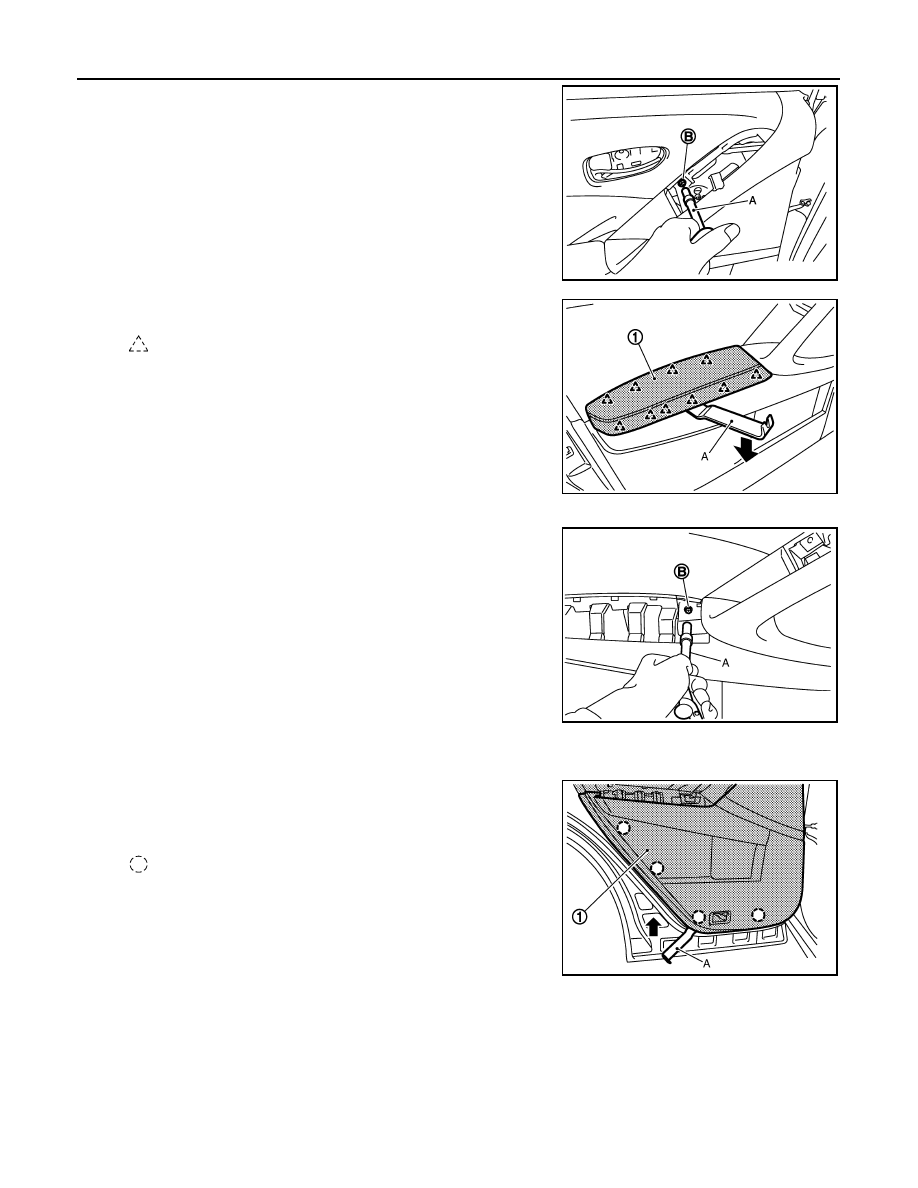

Disengage the power window switch finisher (1) fixing pawls
with a remover tool (A).

5.

Disconnect power window switch connector, and then remove power window switch finisher.

1.

Inside handle escutcheon

2.

Step lamp

3.

Power window switch finisher

4.

Rear door finisher

5.

Rear door inside handle

6.

Rear heated seat switch finisher

7.

Rear door panel

8.

Rear door inside seal

9.

Armrest finisher

10. Power window switch

: Clip

: Pawl

: Pawl

JMJIA1350ZZ

JMJIA1351ZZ

: Pawl

JMJIA1361ZZ

INT-18

< REMOVAL AND INSTALLATION >

DOOR FINISHER

6.

Remove bolt (B) located behind power window switch finisher
with tool (A).

7.

Remove armrest finisher (1) with remover tool (A).

8.

Remove bolt (B) located behind armrest finisher with tool (A).

9.

Remove rear heated seat (LH/RH) switch finisher with remover tool, and then disconnect the harness
connectors. (With rear heated seat switch)

10. Insert remover tool (A) between door finisher and door panel to

disengage door finisher mounting clips, starting from the bottom
and working to the top.

11. Pull up rear door finisher and pull out.

JMJIA1354ZZ

: Pawl

JMJIA1355ZZ

JMJIA1356ZZ

: Clip

JMJIA1360ZZ

DOOR FINISHER

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

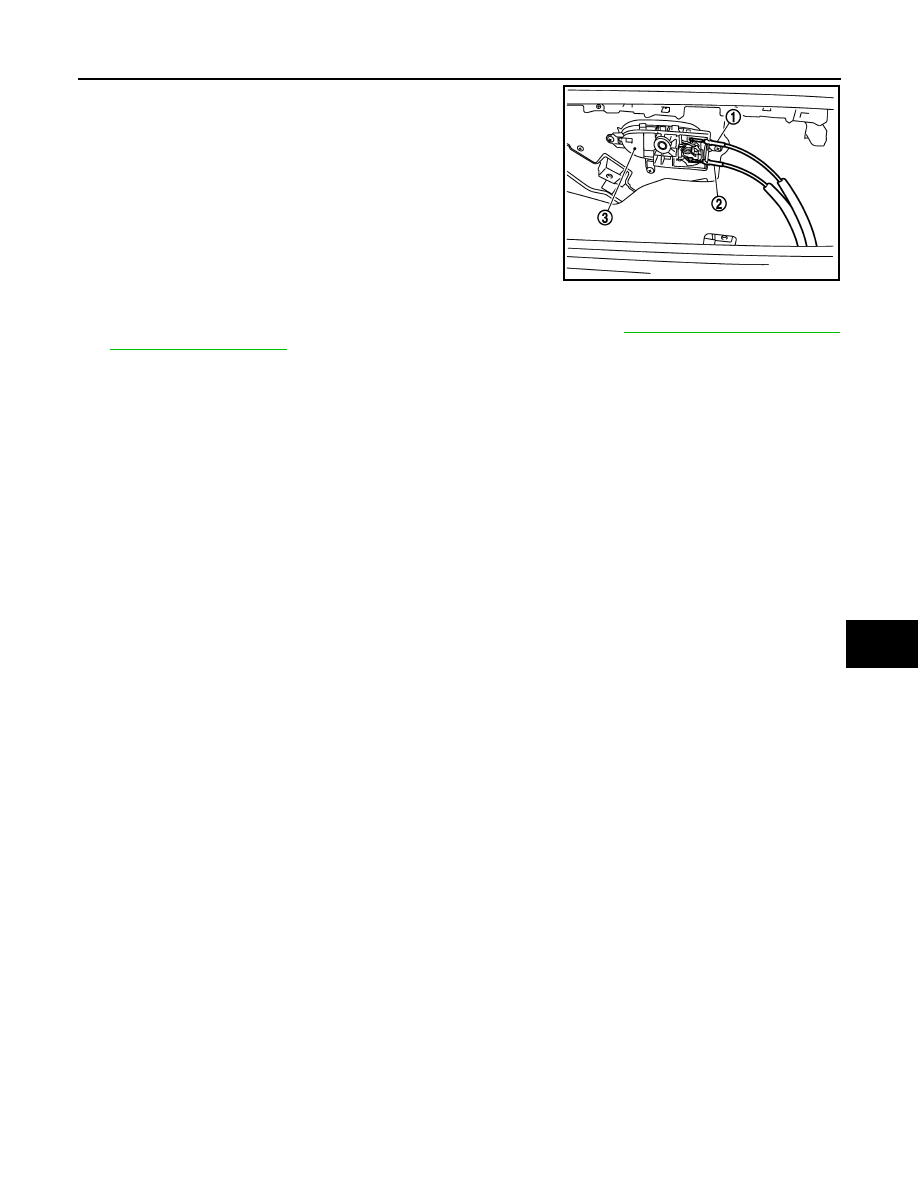

12. Disconnect lock knob cable (1) and inside handle cable (2) from

rear door inside handle (3).

13. Remove rear door finisher.
14. Remove the inside handle after removing rear door finisher. Refer to

DLK-348, "INSIDE HANDLE :

Removal and Installation"

.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

JMJIA1359ZZ

INT-20

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

BODY SIDE TRIM

Exploded View

INFOID:0000000009720368

Removal and Installation

INFOID:0000000009720369

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.
• Fabric upholstered parts are easily damaged. Be careful while performing work and storing parts.
• Be careful not to pull out clips forcibly. Otherwise, vehicle body may be deformed.

REMOVAL

FRONT PILLAR GARNISH

1.

Remove front body side welt partially.

2.

Remove front pillar garnish.

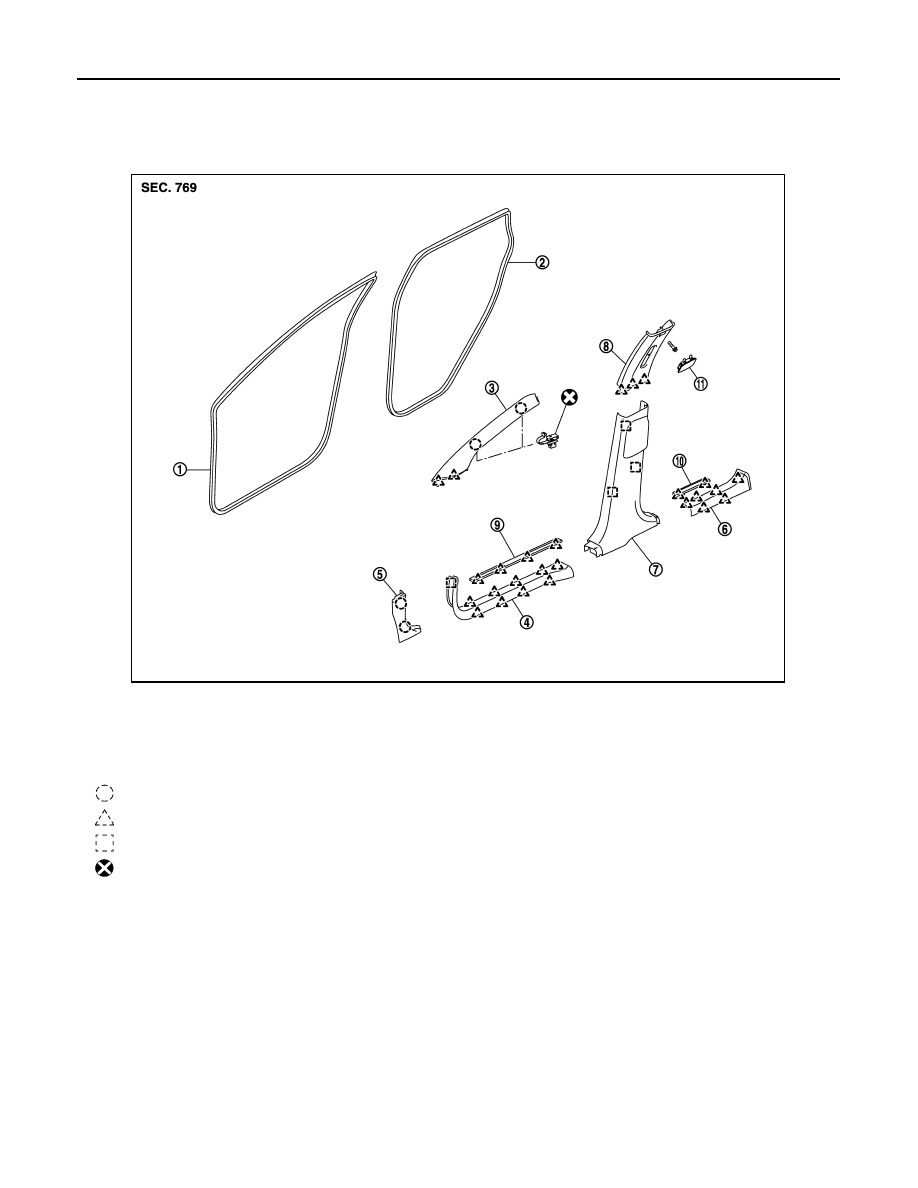

1.

Front body side welt

2.

Rear body side welt

3.

Front pillar garnish

4.

Front kicking plate (inner)

5.

Dash side finisher

6.

Rear kicking plate (inner)

7.

Center pillar lower garnish

8.

Center pillar upper garnish

9.

Front kicking plate (outer)

10. Rear kicking plate (outer)

11. Center pillar upper cap

: Clip

: Pawl

: Metal clip

: Always replace after every disassembly.

JMJIA1363ZZ
