DOOR OUTSIDE LOWER MOLDING

DOOR OUTSIDE LOWER MOLDING

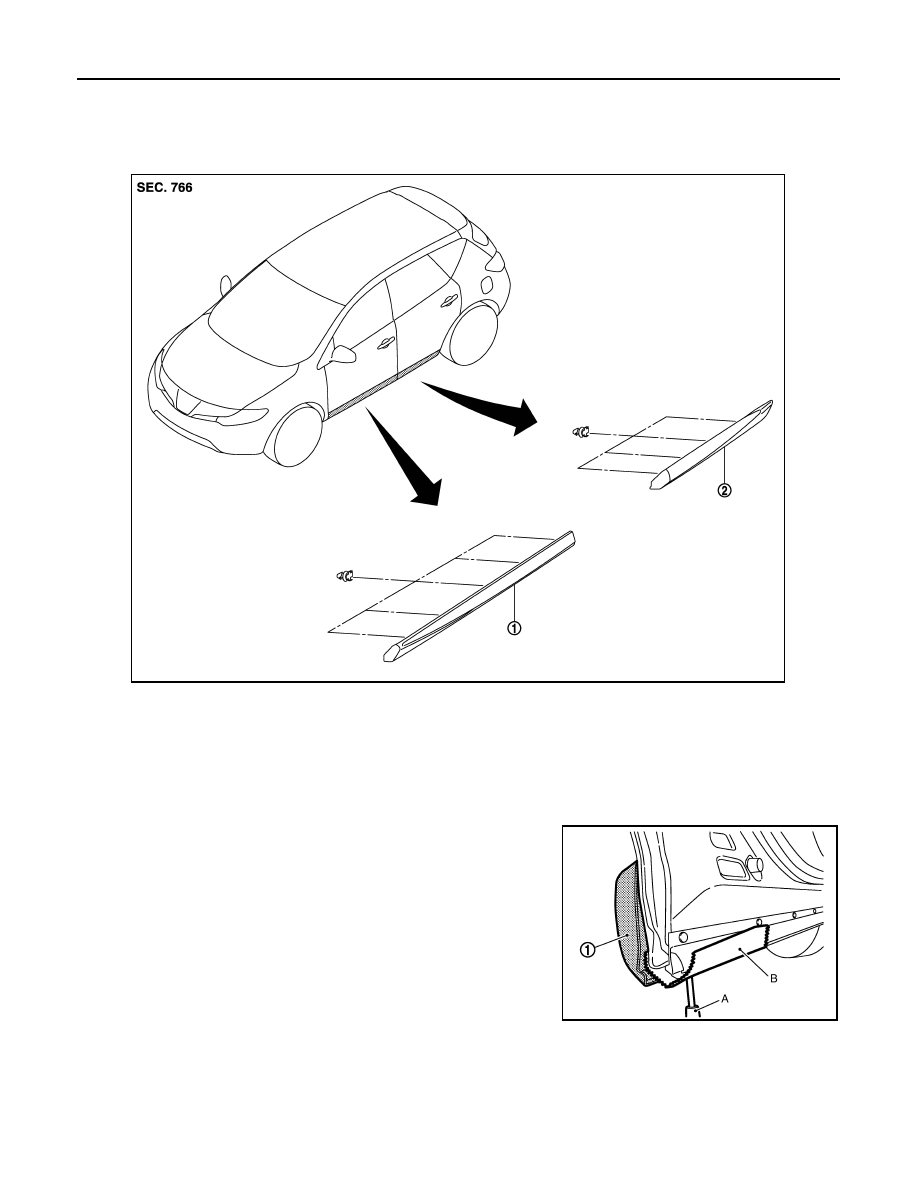

Exploded View

INFOID:0000000009720591

Removal and Installation

INFOID:0000000009720592

REMOVAL

FRONT DOOR OUTSIDE LOWER MOLDING

1.

Using a remover tool (A), disengage the clips from the front door
outside lower molding (1) by starting from the rear.

CAUTION:

• Apply a protective tape (B) on the door to protect the

painted surface from damage.

• Disengage the clips slowly and carefully.
• Never pull the front door outside lower molding.

2.

Remove front door outside lower molding.

REAR DOOR OUTSIDE LOWER MOLDING

1.

Front door outside lower molding

2.

Rear door outside lower molding

JMKIA2027ZZ

JMKIA1631ZZ

DOOR OUTSIDE LOWER MOLDING

EXT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

1.

Using a remover tool (A), disengage the clips from the rear door
outside lower molding (1) by starting from the rear.

CAUTION:

• Apply a protective tape (B) on the door to protect the

painted surface from damage.

• Disengage the clips slowly and carefully.
• Never pull the front door outside lower molding.

2.

Remove rear door outside lower molding.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When installing, check visually the door outside lower molding and the clips, then replace then with

new parts if they have been damaged.

• When installing door outside lower molding, check that clips are securely fitted in panel holes on

body, and then press them in.

JMKIA1632ZZ

EXT-40

< REMOVAL AND INSTALLATION >

DOOR PARTING SEAL

DOOR PARTING SEAL

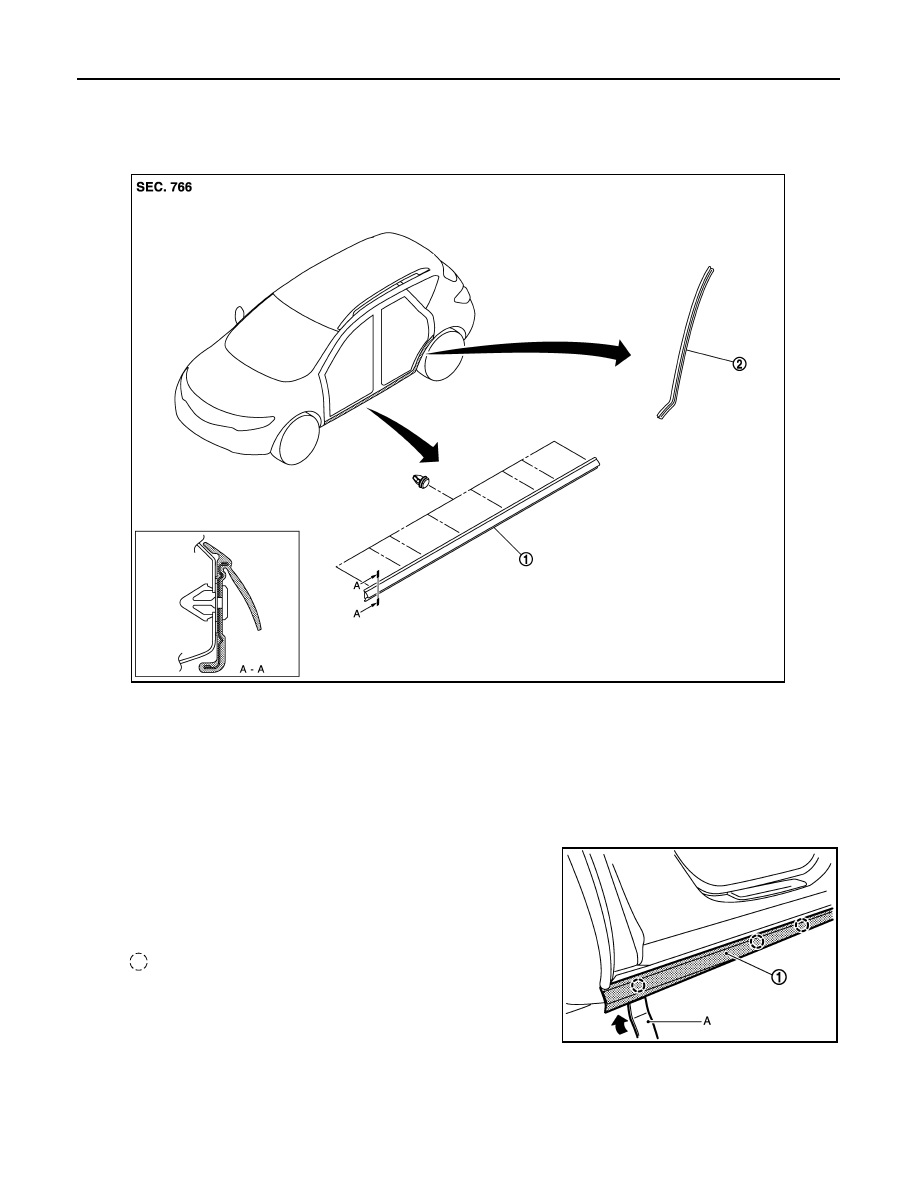

Exploded View

INFOID:0000000009720593

Removal and Installation

INFOID:0000000009720594

REMOVAL

DOOR PARTING SEAL

1.

Fully open front door.

2.

Using a remover tool (A), disengage the clips from the door part-
ing seal (1).

CAUTION:

• Disengage the clips slowly and carefully.
• Never pull the door parting seal strongly.

3.

Remove front door parting seal.

REAR DOOR PARTING SEAL

1.

Fully open rear door.

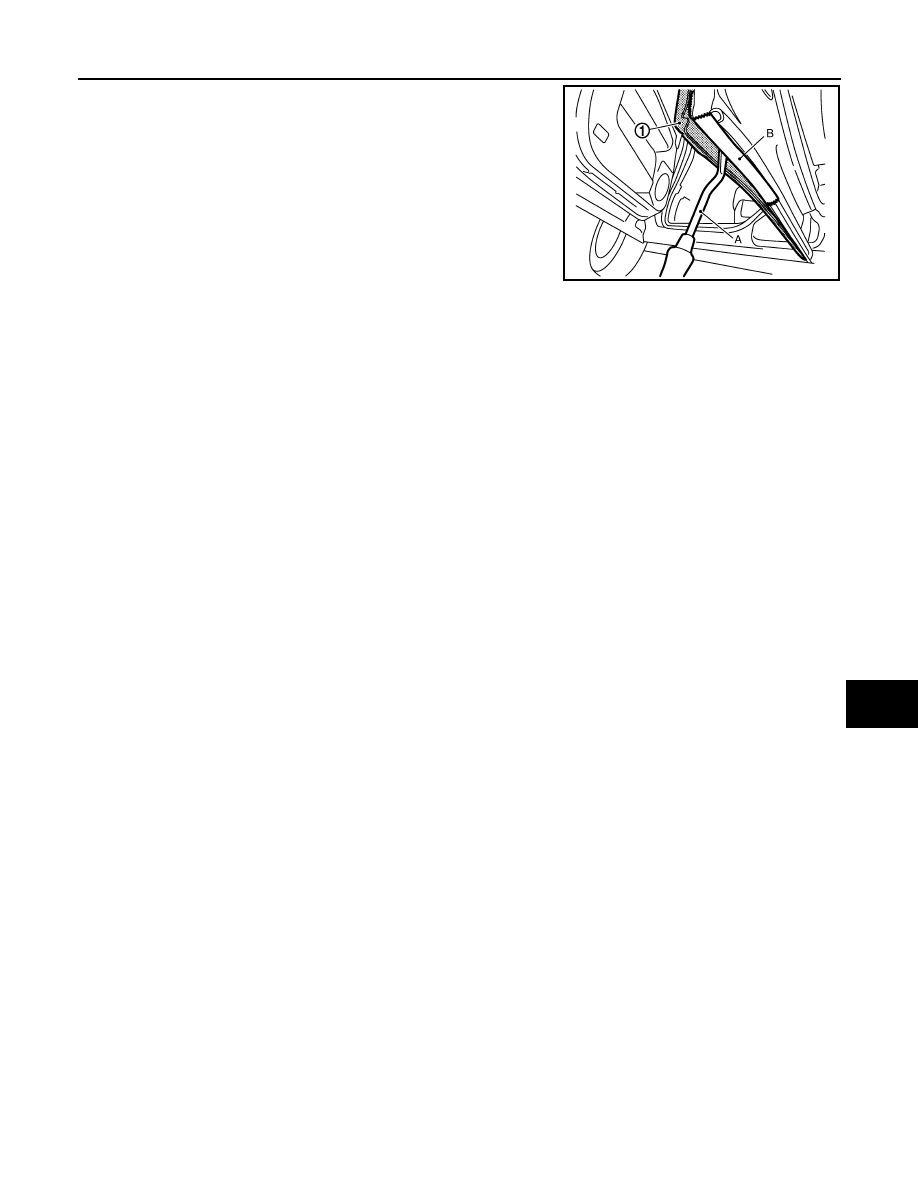

1.

Door parting seal

2.

Rear door parting seal

JMKIA2028ZZ

: Clip

JMKIA2029ZZ

DOOR PARTING SEAL

EXT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

2.

Remove rear door parting seal.
Pull back rear door parting seal (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When installing, check visually the door parting seal and the clips, then replace them with new parts

if they have been damaged.

• When installing door parting seal, check that blind clips are securely fitted in panel holes on body,

and then press them in.

JMKIA2030ZZ
