EXT-30

< REMOVAL AND INSTALLATION >

FLOOR SIDE FAIRING

FRONT UNDER COVER

1.

Remove front under cover mounting clips.

2.

Remove front under cover.

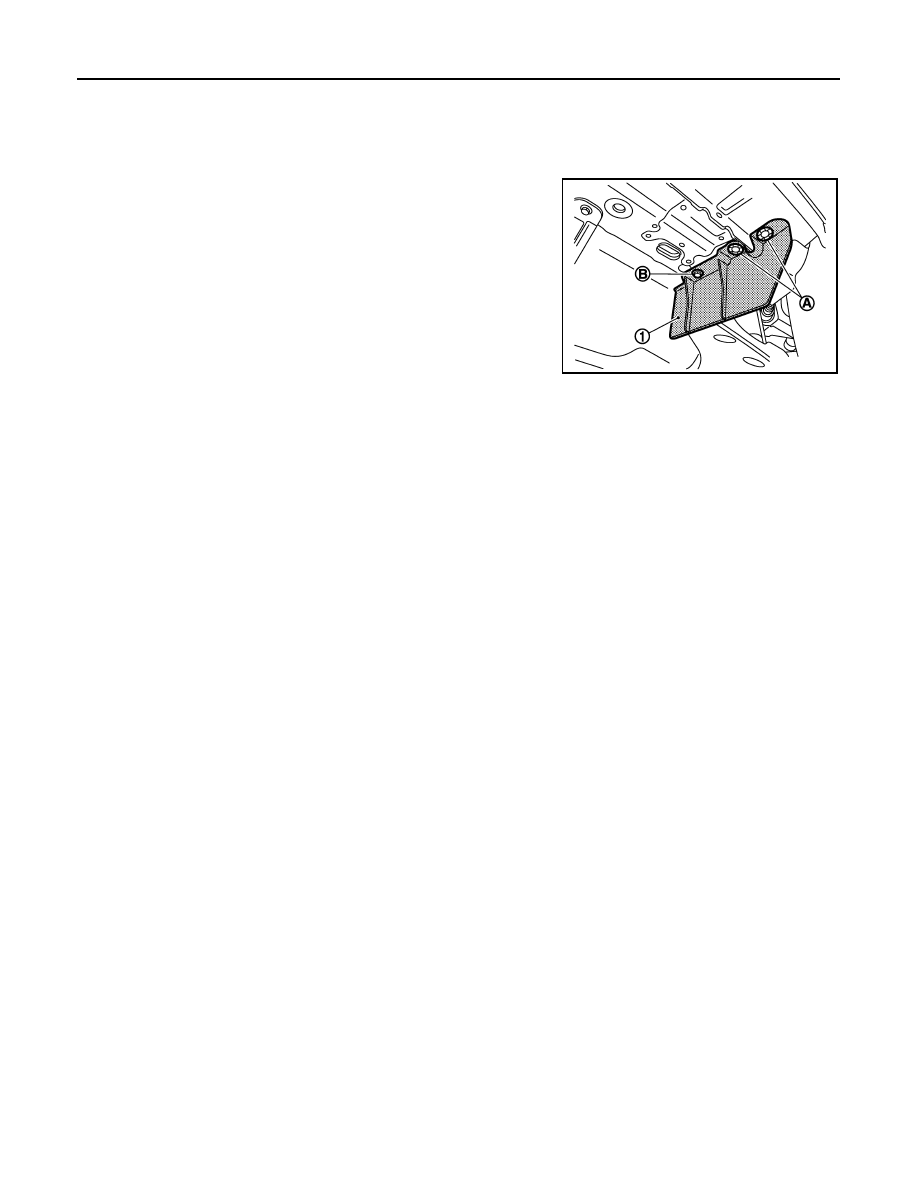

WIND DEFLECTOR

1.

Remove wind deflector (1) fixing clips (A) and bolt (B).

2.

Remove wind deflector.

INSTALLATION

Install in the reverse order of removal.

JMKIA2012ZZ

ROOF RAIL

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

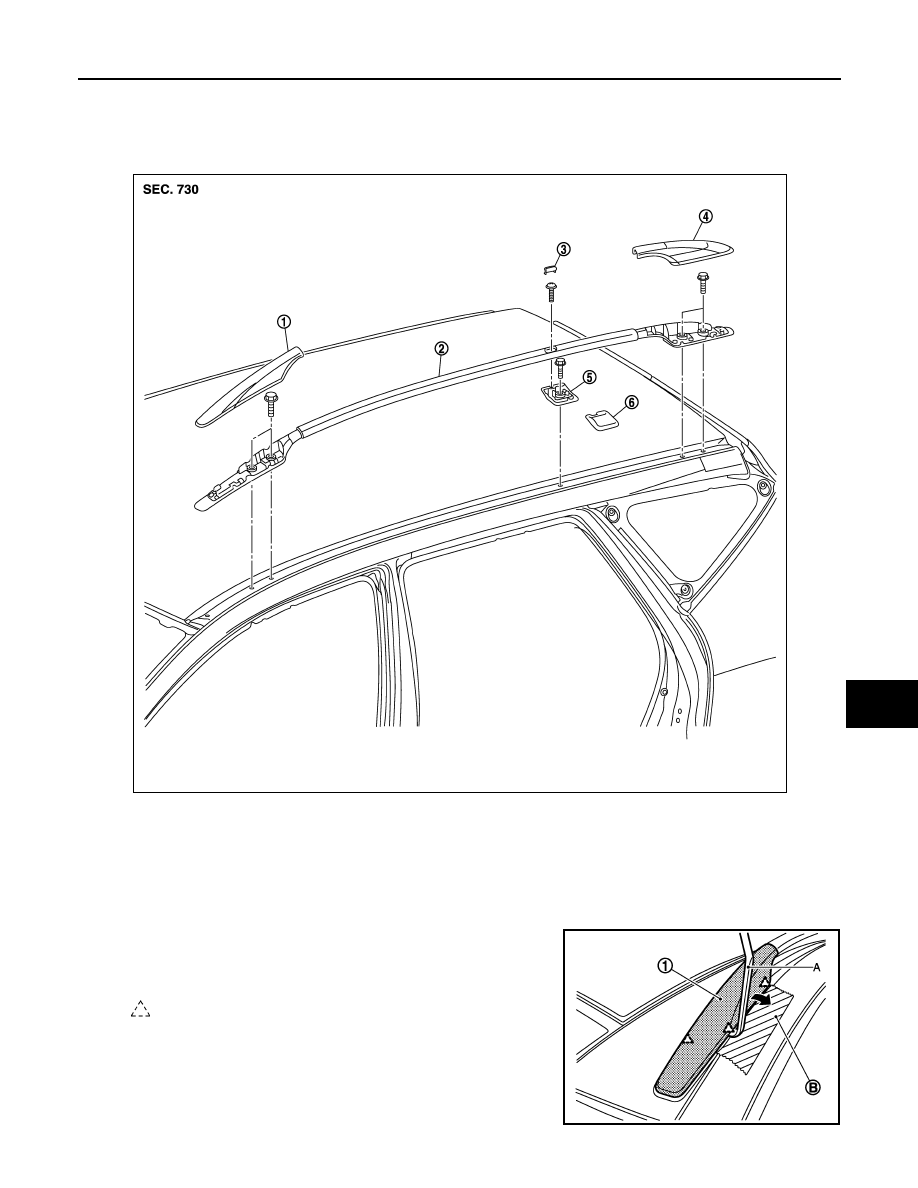

ROOF RAIL

Exploded View

INFOID:0000000009720583

Removal and Installation

INFOID:0000000009720584

REMOVAL

1.

Remove front roof rail cover (1) with remover tool (A).

CAUTION:

Apply protective tape (B) around the roof rail.

1.

Front roof rail cover

2.

Roof rail assembly

3.

Center roof rail cover

4.

Rear roof rail cover

5.

Center leg assembly

6.

Center leg cover

JMKIA2013ZZ

: Pawl

JMKIA2014ZZ

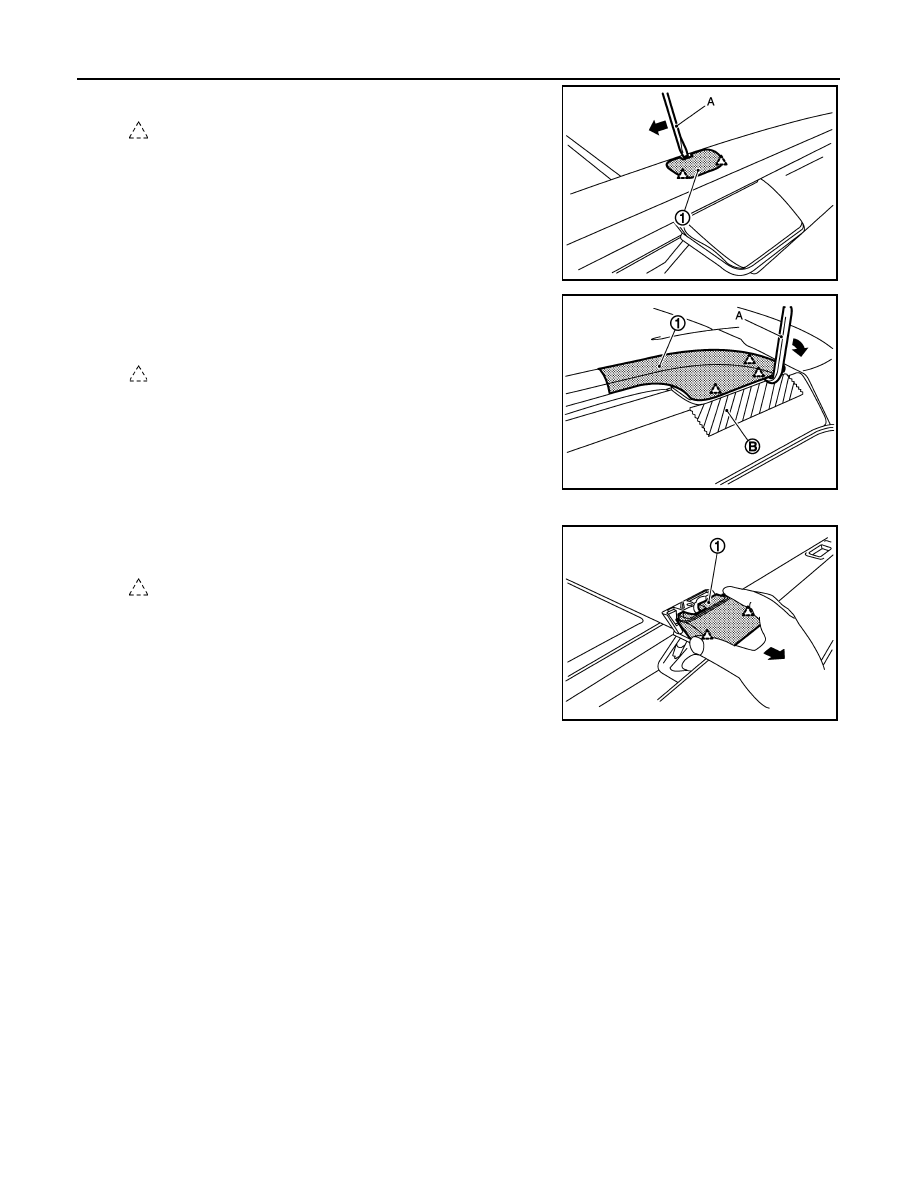

EXT-32

< REMOVAL AND INSTALLATION >

ROOF RAIL

2.

Remove center roof rail cover (1) with remover tool (A).

3.

Remove rear roof rail cover (1) with remover tool (A).

CAUTION:

Apply protective tape (B) around the roof rail.

4.

Remove roof rail mounting bolts, and then remove roof rail assembly.

5.

Pull to the side, disengage pawls and remove center leg cover
(1).

6.

Remove roof rail center leg assembly mounting bolt, and then remove roof rail center leg assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA2015ZZ

: Pawl

JMKIA2016ZZ

: Pawl

JMKIA2017ZZ

ROOF SIDE MOLDING

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

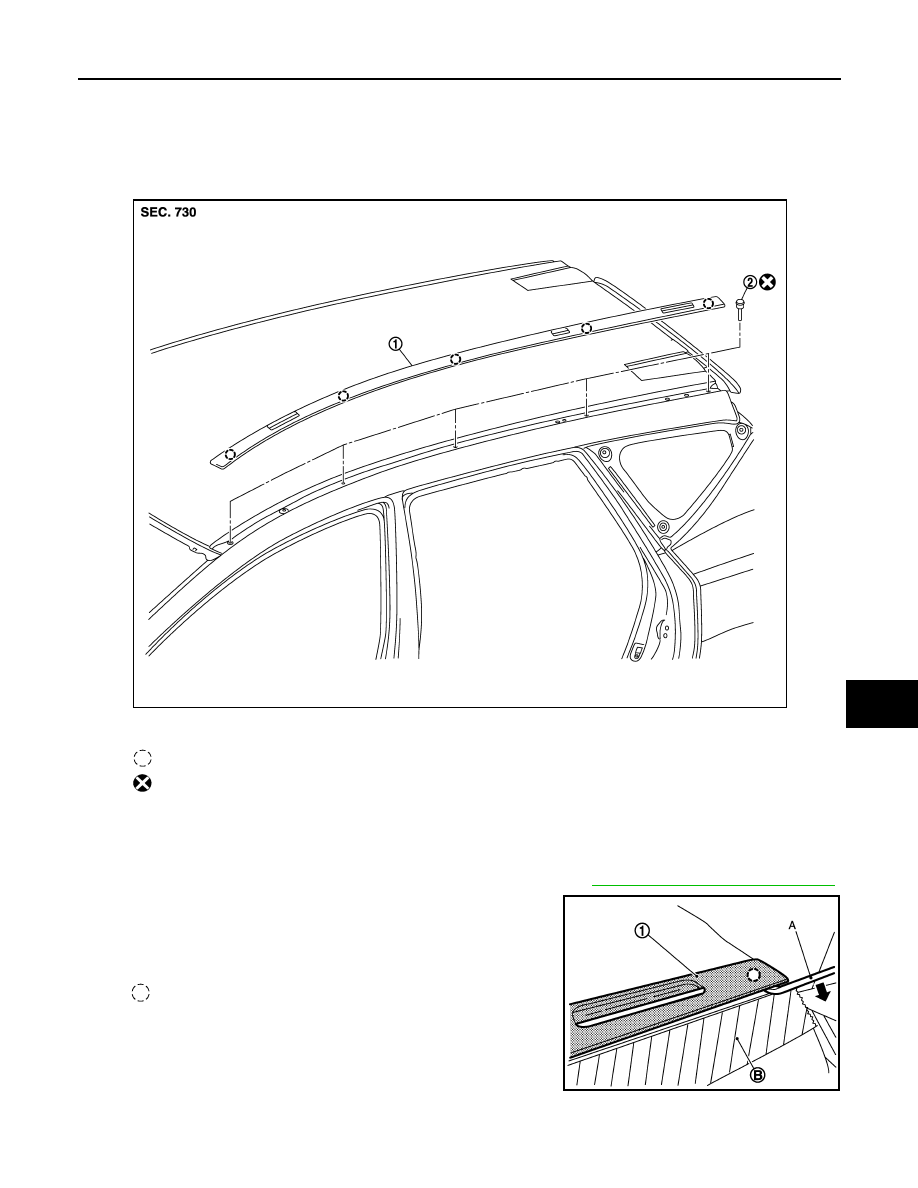

ROOF SIDE MOLDING

NORMAL ROOF

NORMAL ROOF : Exploded View

INFOID:0000000009720585

NORMAL ROOF : Removal and Installation

INFOID:0000000009720586

REMOVAL

1.

Remove roof rail assembly and roof rail center leg assembly. Refer to

EXT-31, "Removal and Installation"

.

2.

Disengage roof side molding (1) fixing clips with remover tool
(A).

CAUTION:

Apply protective tape (B) around the roof side molding.

INSTALLATION

Install in the reverse order of removal.

1.

Roof side molding

2.

Roof side molding clip

: Clip

: Always replace after every disassembly.

JMKIA2018ZZ

: Clip

JMKIA2019ZZ
