EXT-26

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR

FENDER PROTECTOR

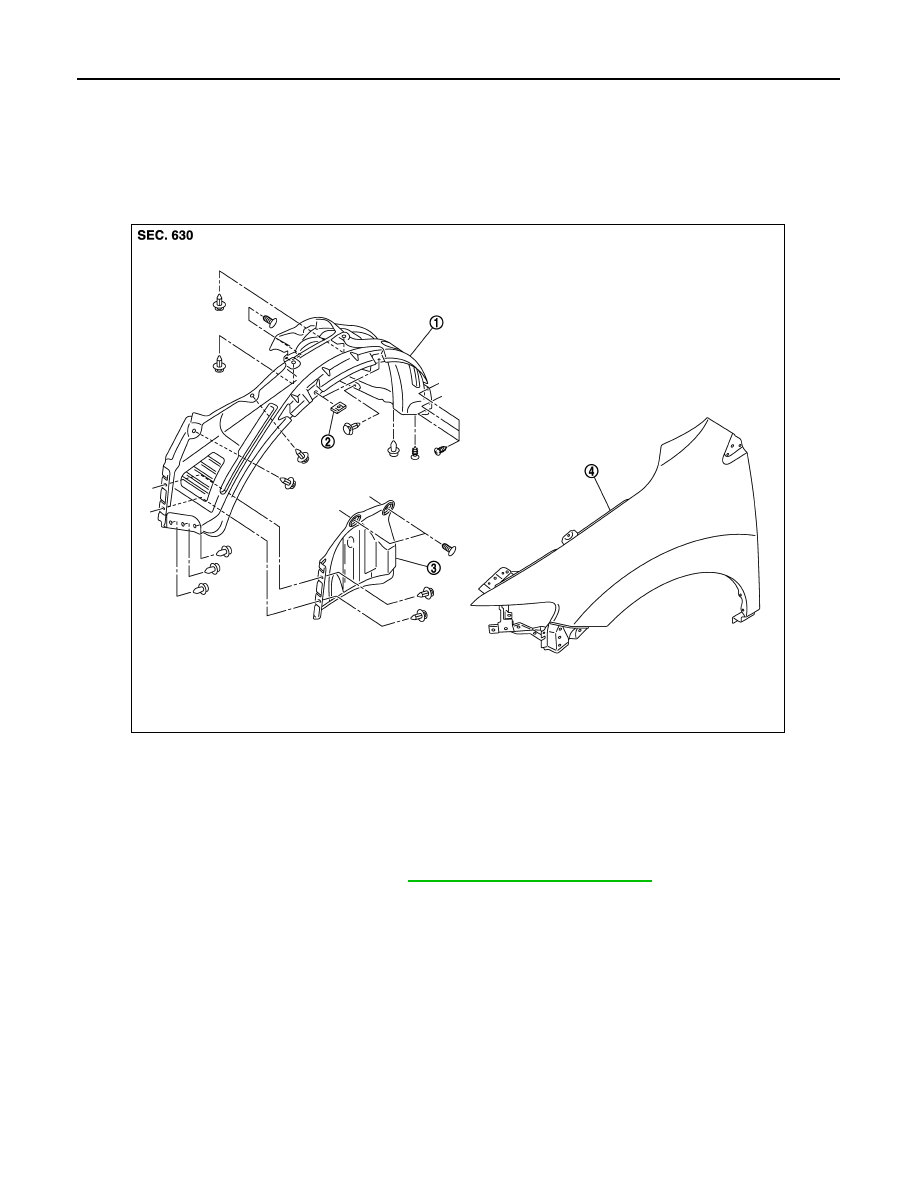

FENDER PROTECTOR : Exploded View

INFOID:0000000009720575

FENDER PROTECTOR

FENDER PROTECTOR : Removal and Installation

INFOID:0000000009720576

REMOVAL

1.

Remove front mudguard (LH/RH). Refer to

EXT-28, "Removal and Installation"

.

2.

Remove splash guard fixing clips and then remove splash guard.

3.

Remove front fender protector fixing clips.

4.

Release front fender protector upper fixing clip downward, and then remove front fender protector.

INSTALLATION

Install in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

1.

Fender protector

2.

Fender clip

3.

Splash guard

4.

Front fender

JMKIA1986ZZ

FENDER PROTECTOR

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

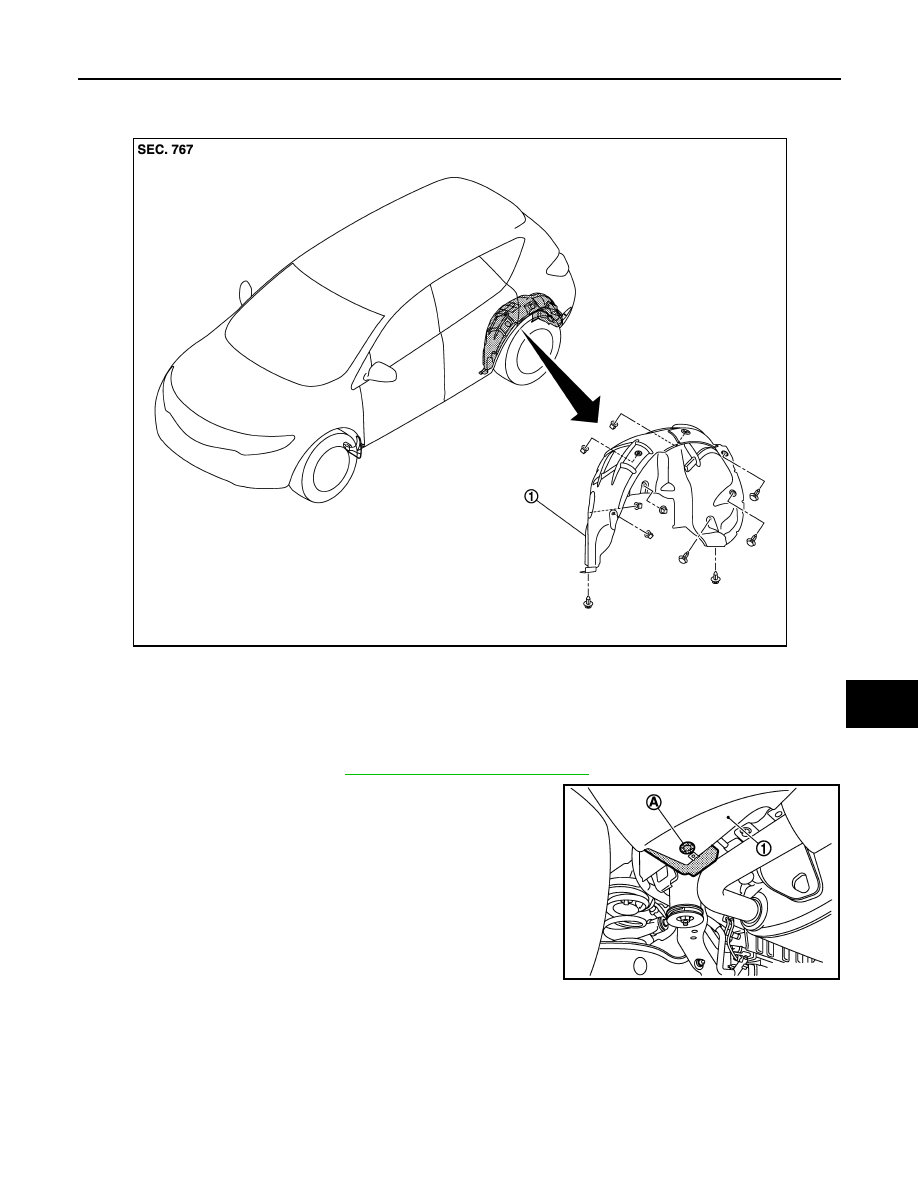

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000009720577

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000009720578

REMOVAL

1.

Remove rear mudguard. Refer to

EXT-28, "Removal and Installation"

.

2.

Remove clip (A) of rear bumper fascia (1).

3.

Remove rear wheel house protector fixing clips.

4.

Remove rear wheel house protector fixing plastic nuts and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.

1.

Rear wheel house protector

JMKIA1987ZZ

JMKIA1988ZZ

EXT-28

< REMOVAL AND INSTALLATION >

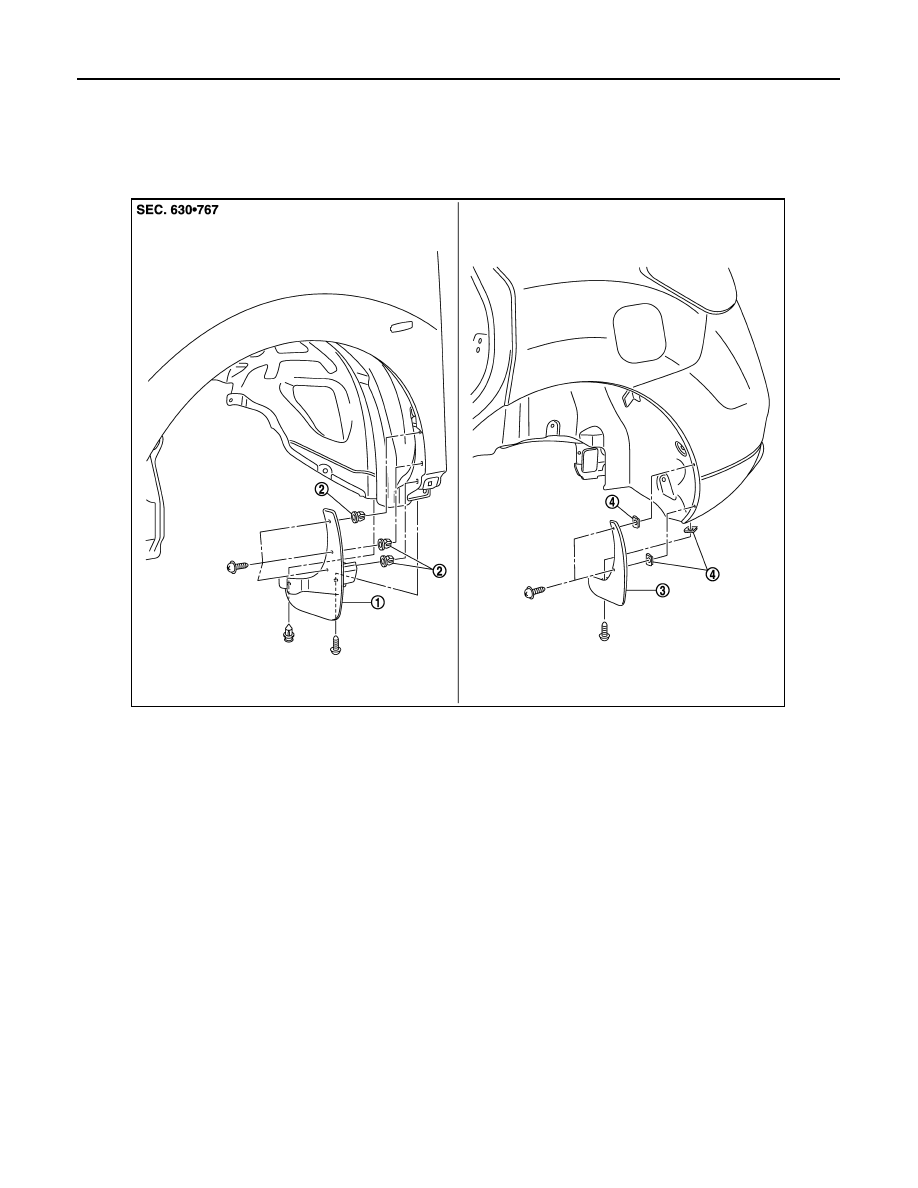

MUDGUARD

MUDGUARD

Exploded View

INFOID:0000000009720579

MUDGUARD

Removal and Installation

INFOID:0000000009720580

REMOVAL

FRONT MUDGUARD

1.

Remove front mudguard fixing screws.

2.

Remove front mudguard fixing clip.

3.

Remove front mudguard.

REAR MUDGUARD

1.

Remove rear mudguard fixing screws.

2.

Remove rear mudguard.

INSTALLATION

Install in the reverse order of removal.

1.

Front mudguard

2.

Grommet

3.

Rear mudguard

4.

J-nut

JMKIA1989ZZ

FLOOR SIDE FAIRING

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

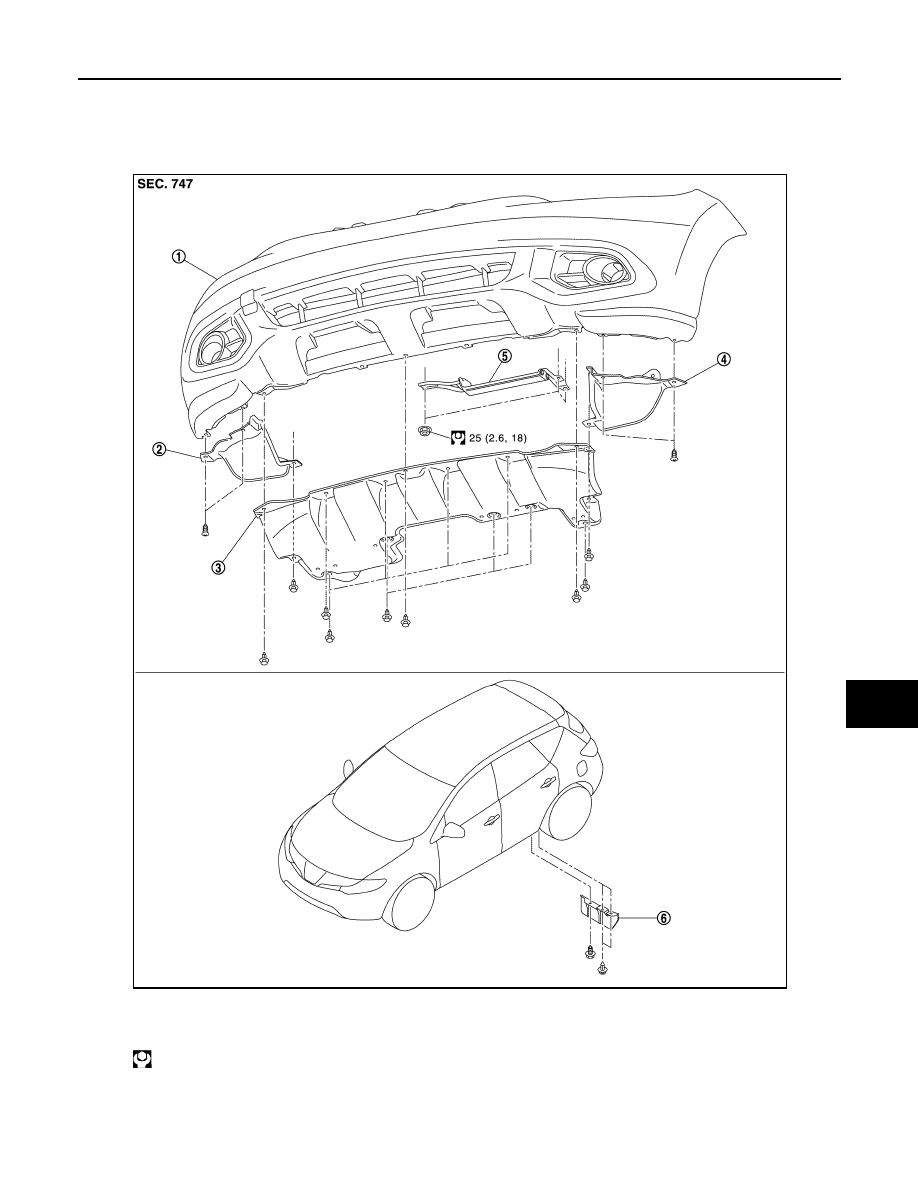

FLOOR SIDE FAIRING

Exploded View

INFOID:0000000009720581

Removal and Installation

INFOID:0000000009720582

REMOVAL

1.

Bumper fascia assembly

2.

Bumper lower finisher RH

3.

Front under cover

4.

Bumper lower finisher LH

5.

Air lower guide

6.

Wind deflector

: N·m (kg-m, ft-lb)

JMKIA6537GB
