Nissan Murano. Manual - part 751





EXT-42

< REMOVAL AND INSTALLATION >

DOOR SASH COVER

DOOR SASH COVER

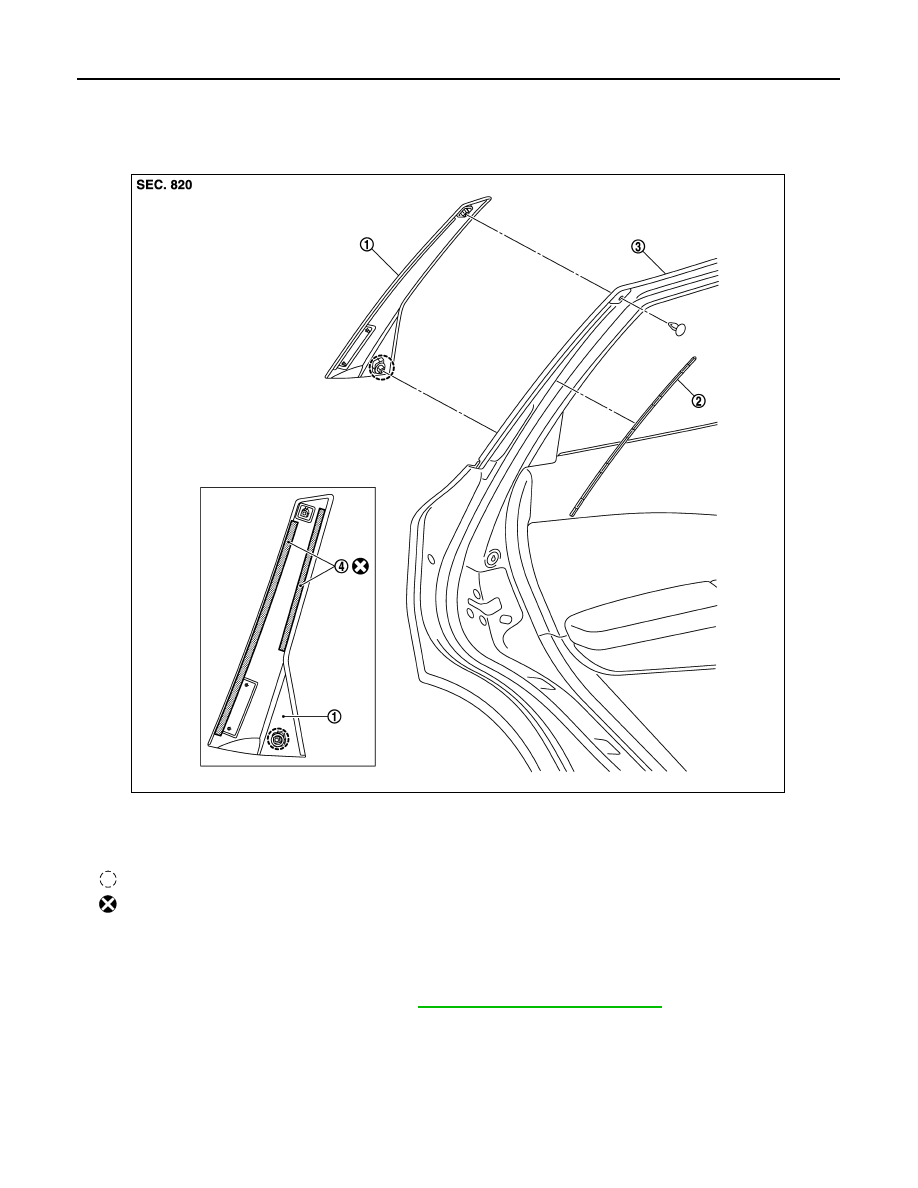

Exploded View

INFOID:0000000009720595

Removal and Installation

INFOID:0000000009720596

REMOVAL

1.

Remove rear door outside molding. Refer to

EXT-36, "Removal and Installation"

.

1.

Rear door sash cover

2.

Rear door sash molding

3.

Rear door assembly

4.

Double-faced adhesive tape
[t: 1.2 mm (0.047 in)]

: Clip

: Always replace after every disassembly.

JMKIA2031ZZ

DOOR SASH COVER

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

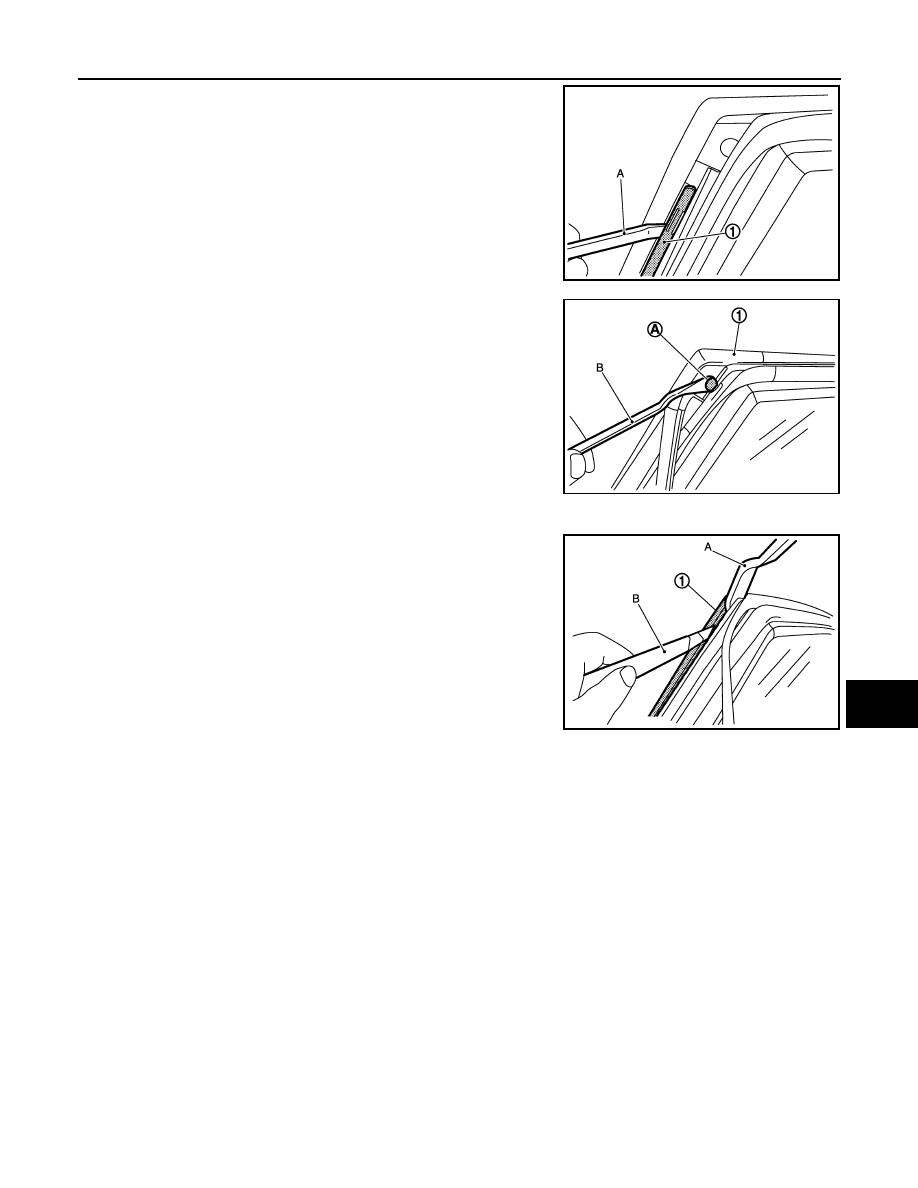

2.

Remove rear door sash molding (1) with remover tool (A).

3.

Remove rear door weather-strip (1) fixing clip (A) with remover
tool (B).

4.

Release roof portion of rear door weather-strip.

5.

Release roof portion of glass run.

6.

Release rear door sash cover connection between rear door
panel and cover (1), using a remover tool (A) and cutter knife
(B), and take off double-faced adhesive tape.

CAUTION:

Never use a material for remover tool (A) which could dam-
age door panel.

7.

Remove rear door sash cover fixing clips, and then remove rear door sash cover.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Replace double-faced adhesive tape on back of cover with a new tape if rear door sash cover is

reused.

• Never let air between contact surfaces when installing.
• Remove double-faced adhesive tape remaining on door panel and back of cover using double-faced

adhesive tape remover when removing rear door sash cover.

• Install after cleaning adhesive parts of door side and back of rear door sash cover.
• To secure contact, do not wash vehicle within 24 hours after installation.

JMKIA2032ZZ

JMKIA2033ZZ

JMKIA2034ZZ

FAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

FAX

A

B

FAX

N

O

P

CONTENTS

FRONT AXLE

2WD

SYMPTOM DIAGNOSIS  ...............................

3

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

3

NVH Troubleshooting Chart  ......................................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

FOR USA AND CANADA ............................................

4

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ............................
..

4

FOR USA AND CANADA : Precautions for Drive
Shaft ........................................................................
..

4

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal  .....................................
..

5

FOR MEXICO  ..............................................................

5

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" .................................................
..

5

FOR MEXICO : Precautions for Drive Shaft  .............

5

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal  ...........................................................
..

6

PREPARATION ............................................

7

PREPARATION ...................................................

7

Special Service Tool  .................................................

7

Commercial Service Tool  ..........................................

8

PERIODIC MAINTENANCE ..........................

9

FRONT WHEEL HUB AND KNUCKLE  ..............

9

Inspection ..................................................................

9

FRONT DRIVE SHAFT .......................................

10

Inspection ................................................................

10

REMOVAL AND INSTALLATION  ...............

11

FRONT WHEEL HUB AND KNUCKLE  ............

11

Exploded View .........................................................

11

Removal and Installation  .........................................

11

Inspection ................................................................

12

FRONT DRIVE SHAFT BOOT  ..........................

13

Exploded View .........................................................

13

WHEEL SIDE  .............................................................

14

WHEEL SIDE : Removal and Installation  ................

14

TRANSAXLE SIDE  ....................................................

17

TRANSAXLE SIDE : Removal and Installation  .......

17

Inspection ................................................................

17

FRONT DRIVE SHAFT  .....................................

18

Exploded View .........................................................

18

LEFT SIDE  .................................................................

19

LEFT SIDE : Removal and Installation  ....................

19

RIGHT SIDE  ...............................................................

20

RIGHT SIDE : Removal and Installation ..................

20

WHEEL SIDE  .............................................................

21

WHEEL SIDE : Disassembly and Assembly  ...........

22

TRANSAXLE SIDE  ....................................................

23

TRANSAXLE SIDE : Disassembly and Assembly

....

23

Inspection ................................................................

28

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

29

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

29

Wheel Bearing  .........................................................

29

Drive Shaft ...............................................................

29

AWD

SYMPTOM DIAGNOSIS  ..............................

30

FAX-2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ............................

30

NVH Troubleshooting Chart  ...................................

30

PRECAUTION .............................................

31

PRECAUTIONS  .................................................

31

FOR USA AND CANADA  .........................................

31

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ..........................
.

31

FOR USA AND CANADA : Precautions for Drive
Shaft ......................................................................
.

31

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal ....................................
.

32

FOR MEXICO  ............................................................

32

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" ................................................
.

32

FOR MEXICO : Precautions for Drive Shaft  ...........

32

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal ..........................................................
.

33

PREPARATION ...........................................

34

PREPARATION  .................................................

34

Special Service Tool  ...............................................

34

Commercial Service Tool  .......................................

35

PERIODIC MAINTENANCE ........................

36

FRONT WHEEL HUB AND KNUCKLE  .............

36

Inspection ...............................................................

36

FRONT DRIVE SHAFT  ......................................

37

Inspection ...............................................................

37

REMOVAL AND INSTALLATION ..............

38

FRONT WHEEL HUB AND KNUCKLE .............

38

Exploded View  ........................................................

38

Removal and Installation .........................................

38

Inspection ................................................................

39

FRONT DRIVE SHAFT BOOT  ..........................

40

Exploded View  ........................................................

40

WHEEL SIDE .............................................................

41

WHEEL SIDE : Removal and Installation  ...............

41

TRANSAXLE SIDE ....................................................

44

TRANSAXLE SIDE : Removal and Installation .......

44

Inspection ................................................................

44

FRONT DRIVE SHAFT ......................................

45

Exploded View  ........................................................

45

LEFT SIDE .................................................................

46

LEFT SIDE : Removal and Installation  ...................

46

RIGHT SIDE  ..............................................................

47

RIGHT SIDE : Removal and Installation  .................

47

WHEEL SIDE .............................................................

49

WHEEL SIDE : Disassembly and Assembly ...........

49

TRANSAXLE SIDE ....................................................

50

TRANSAXLE SIDE : Disassembly and Assembly ...

50

Inspection ................................................................

54

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

55

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

55

Wheel Bearing  ........................................................

55

Drive Shaft  ..............................................................

55
