Install the spare wheel clamp reinforcement (replacement part) to the rear floor rear (replacement part) to
install it to the vehicle.

View A: Before installing rear seat back support

1.

Rear seat back support

Unit: mm (in)

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

z

Rear floor rear

z

Spare tire clamp bracket

z

Spare wheel clamp reinforcement

JSKIA1095GB

BRM-42

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

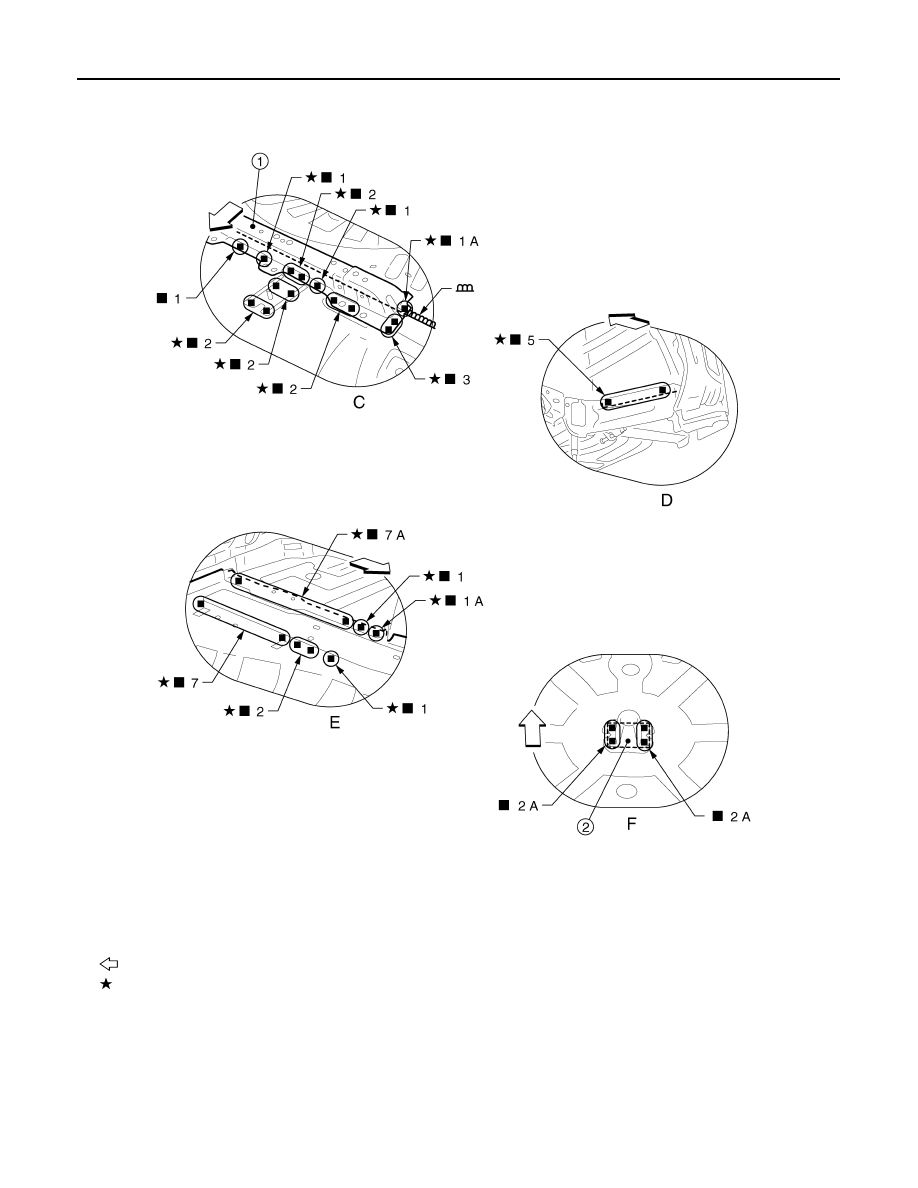

View F: Rear floor rear (replacement part), spare tire clamp bracket (replacement part), and spare wheel
clamp reinforcement (replacement part)

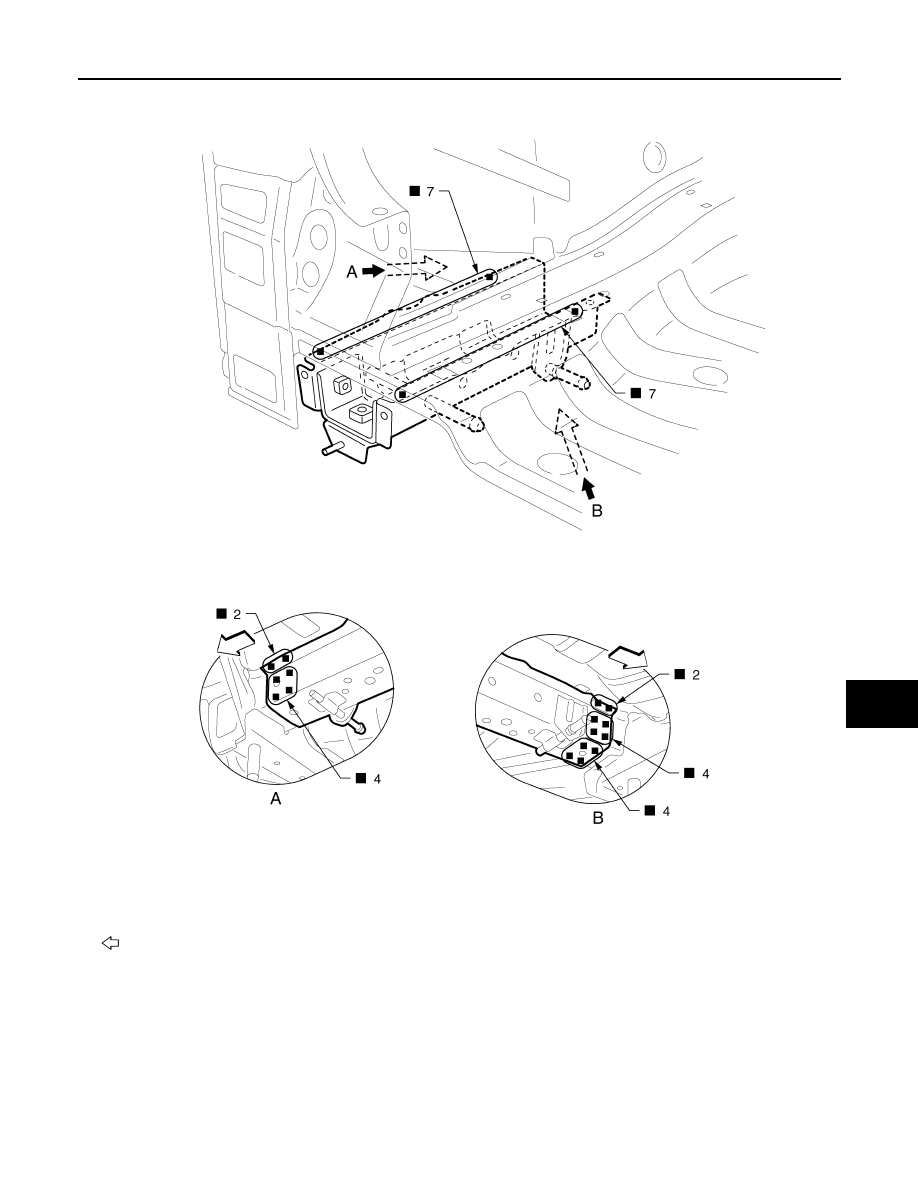

Rear Side Member Extension

INFOID:0000000009718056

Work after rear panel is removed.

1.

Rear seat back support

2.

Spare wheel clamp reinforcement

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

JSKIA1096ZZ

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

Replacement parts

z

Rear side member extension (LH)

JSKIA0543ZZ

BRM-44

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

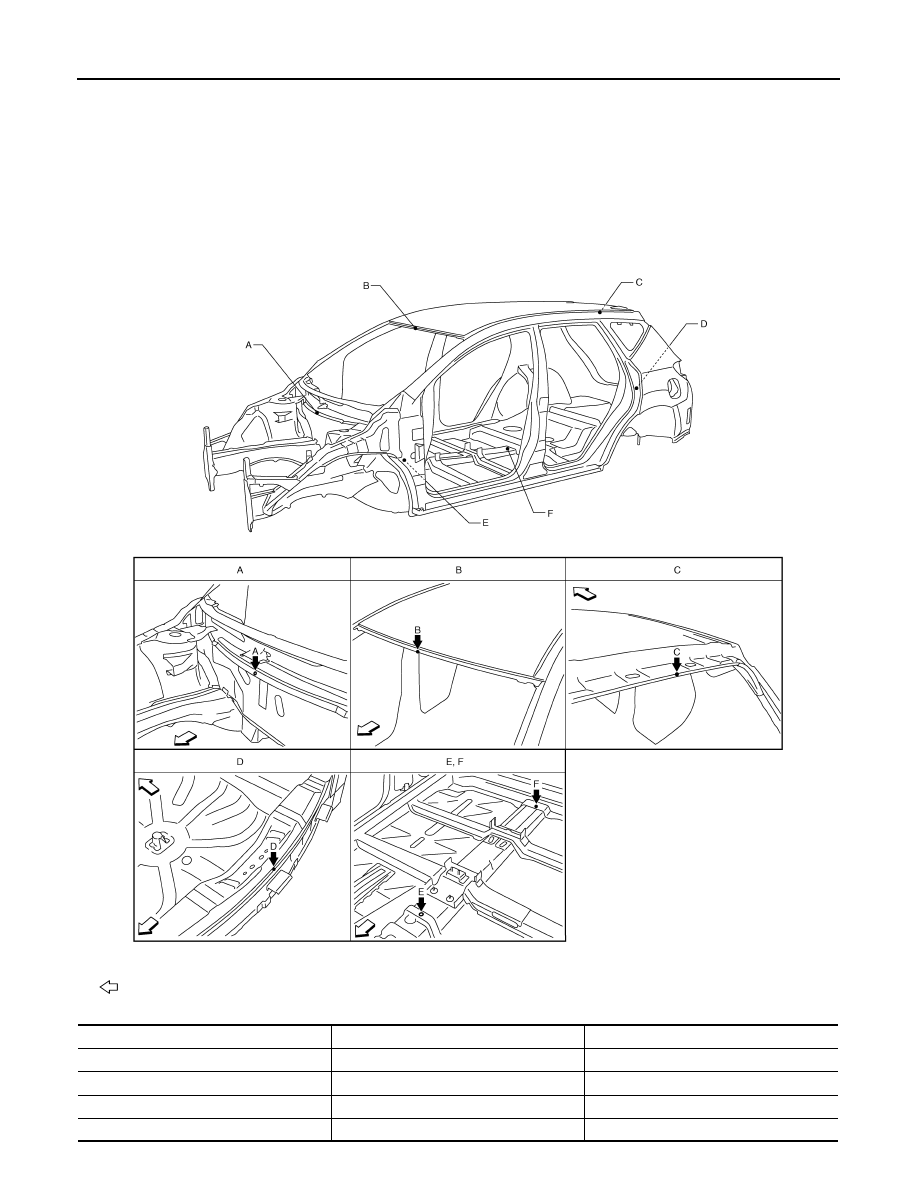

Body Center Marks

INFOID:0000000009718057

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Upper dash

Hole

φ

7 (0.28)

B

Front roof

Embossment

C

Rear roof

Indent

D

Upper rear panel

Indent

JSKIA0558ZZ
