REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

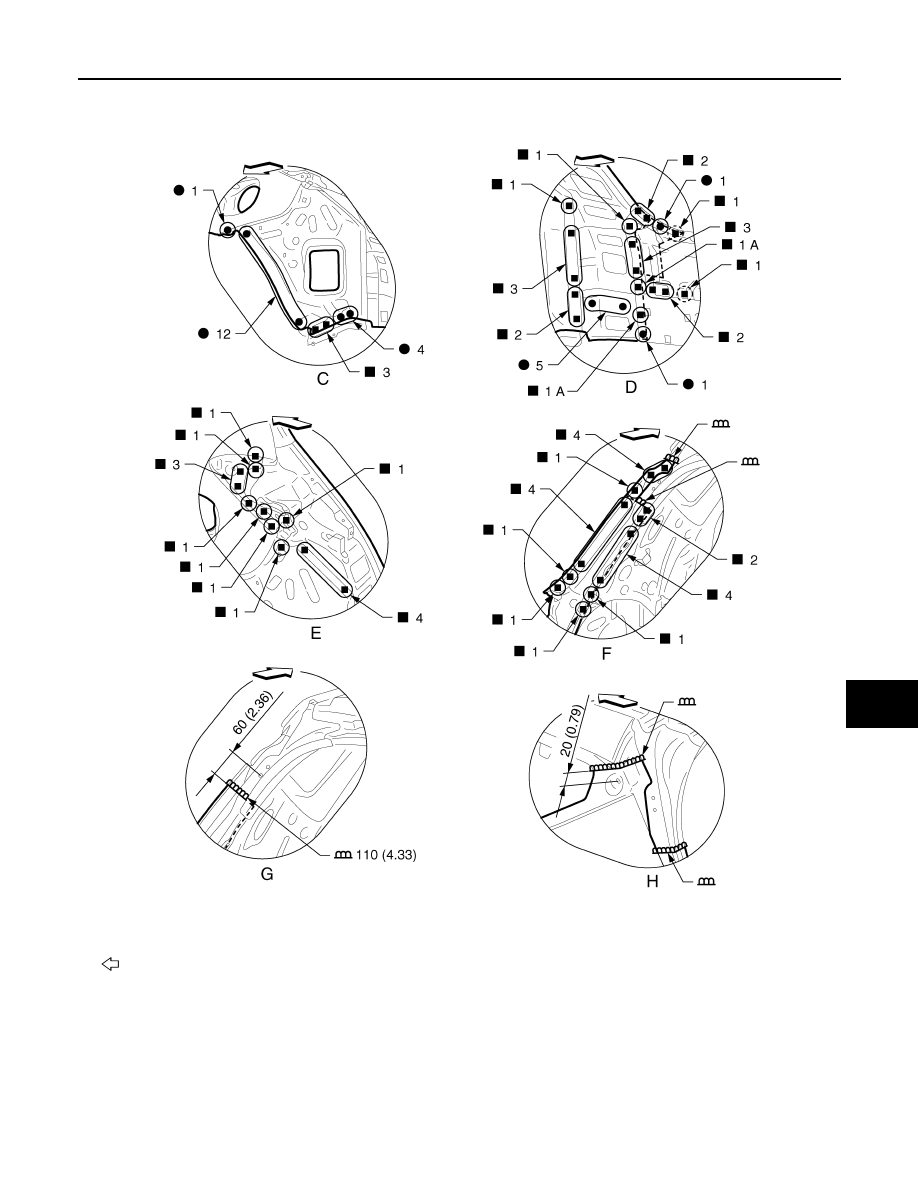

View N and Q: Before installing outer sill
View O: Before installing center pillar reinforcement
View P: Before installing outer sill reinforcement

Rear Fender

INFOID:0000000009718053

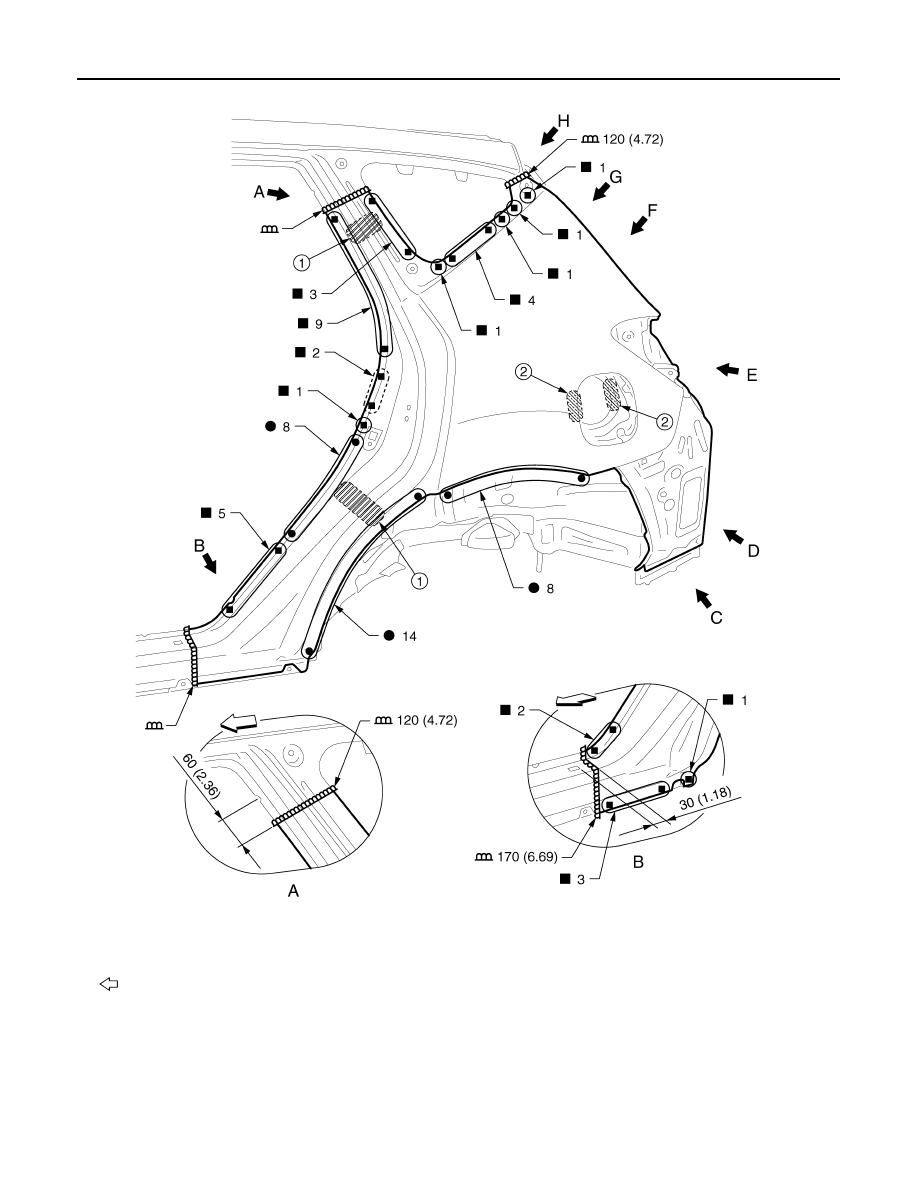

Remove the outer back pillar and rear combination lamp base from the rear fender assembly service part for
easier installation.

Unit: mm (in)

: Vehicle front

JSKIA0537GB

BRM-38

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

1.

Urethane foam

2.

Adhesive

Unit: mm (in)

: Vehicle front

Replacement parts

z

Rear fender assembly (LH)

JSKIA0538GB

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

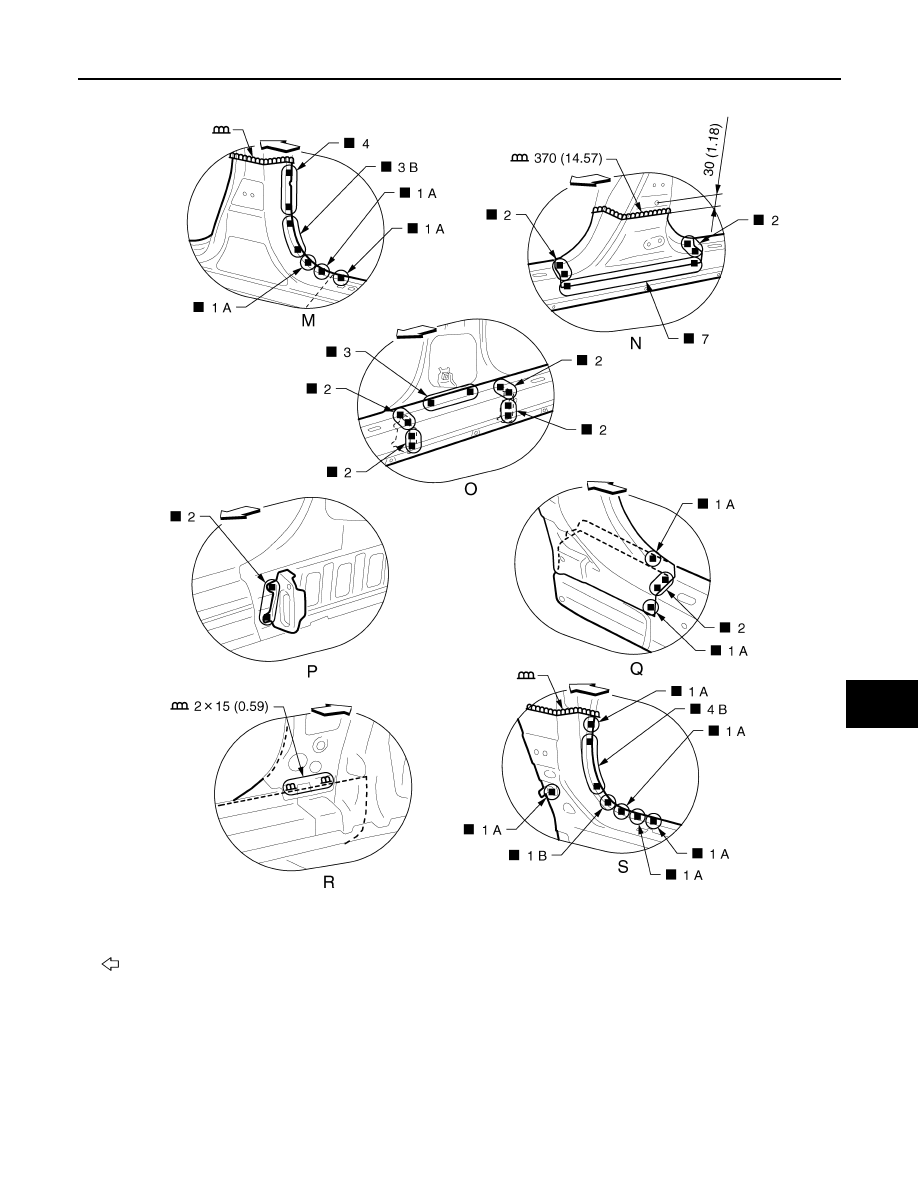

Unit: mm (in)

: Vehicle front

JSKIA0539GB

BRM-40

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

Rear Panel

INFOID:0000000009718054

Rear Floor Rear

INFOID:0000000009718055

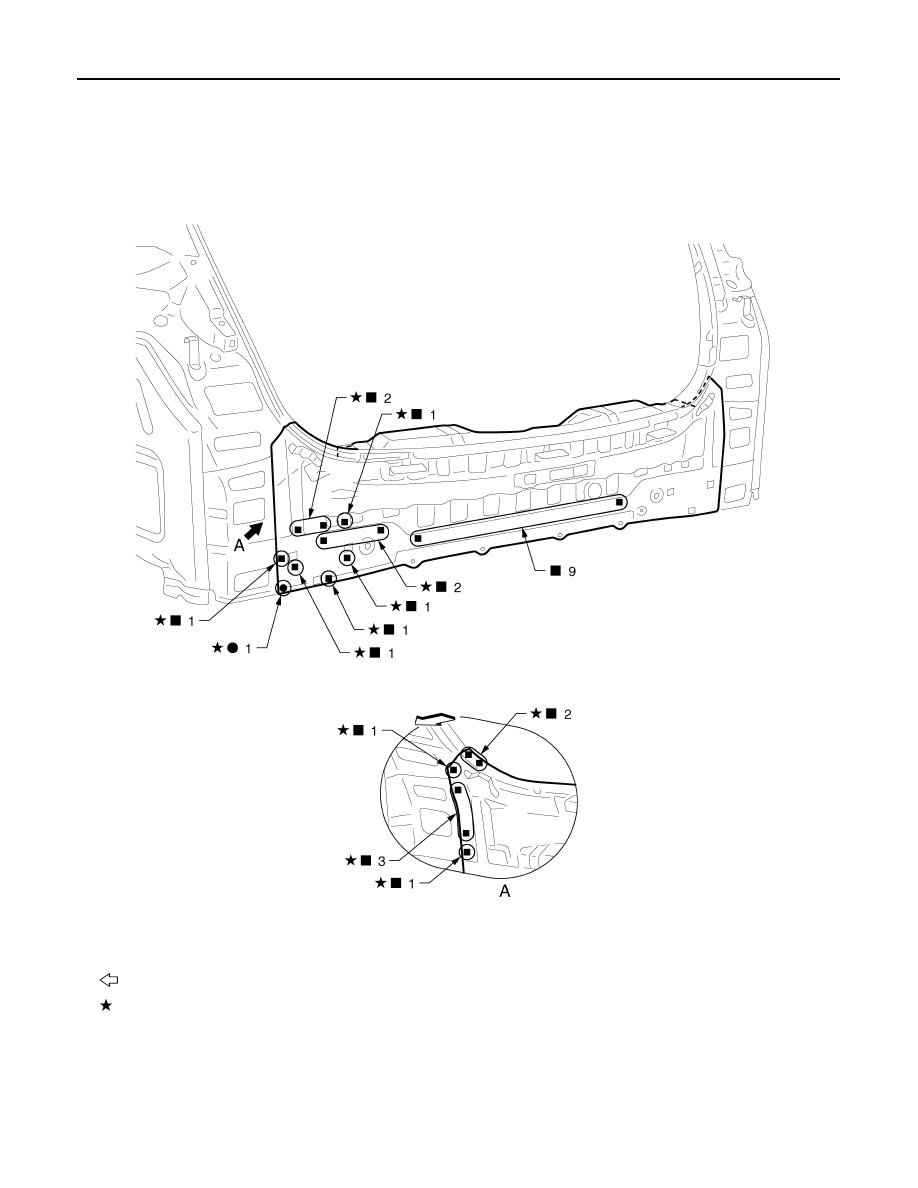

Work after rear panel is removed.
Remove the rear seat back support (reusable).

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

z

Rear panel assembly

JSKIA0540ZZ
