Nissan Murano. Manual - part 252

REPLACEMENT OPERATIONS

BRM-33

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

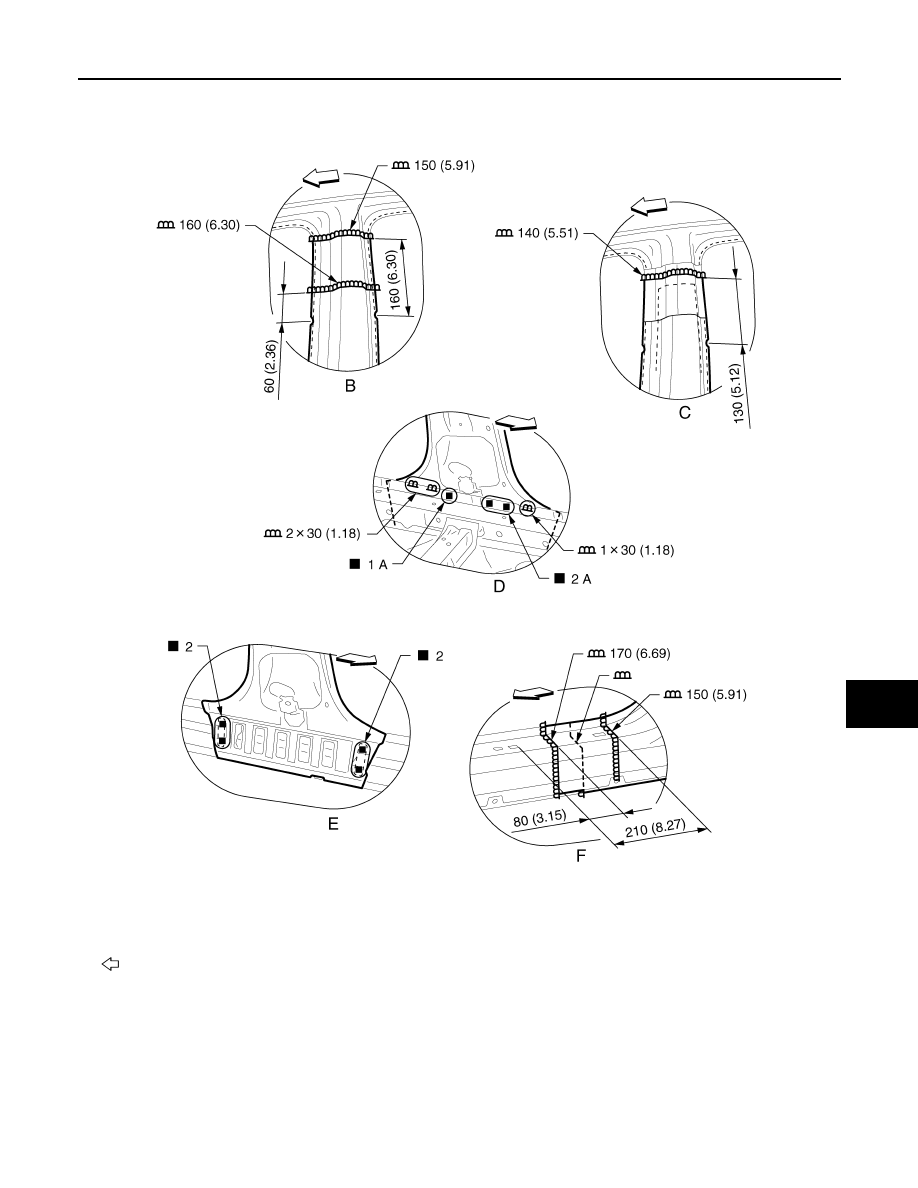

View C: Before installing outer front side body
View E: Inner center pillar and side body assembly (replacement parts)

Unit: mm (in)

: Vehicle front

JSKIA0533GB

BRM-34

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

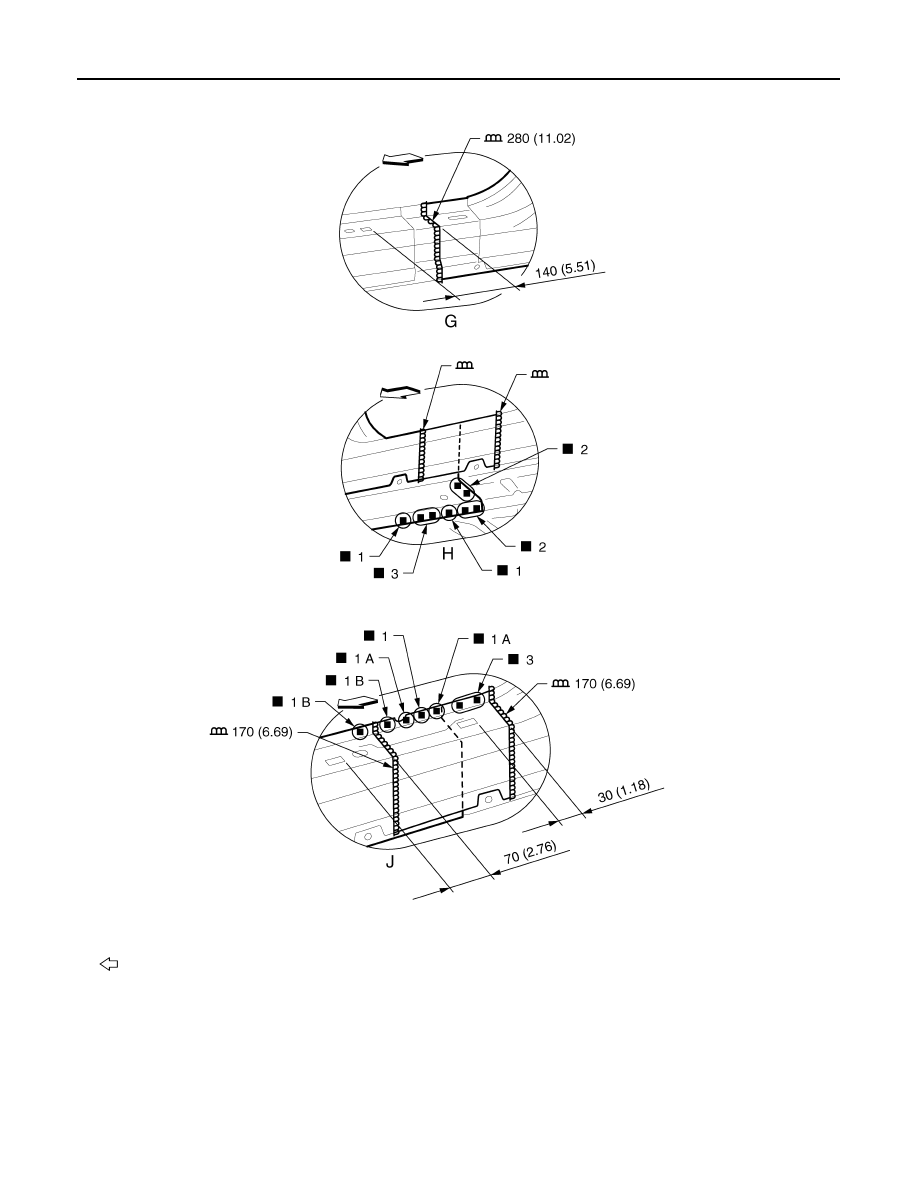

View G: Before installing outer front side body

Outer Sill

INFOID:0000000009718052

Install the lower front pillar reinforcement assembly to the outer sill reinforcement (replacement part) as shown
in the figure for repairing the hidden welding point

″

View A

″

.

Unit: mm (in)

: Vehicle front

JSKIA0534GB

REPLACEMENT OPERATIONS

BRM-35

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

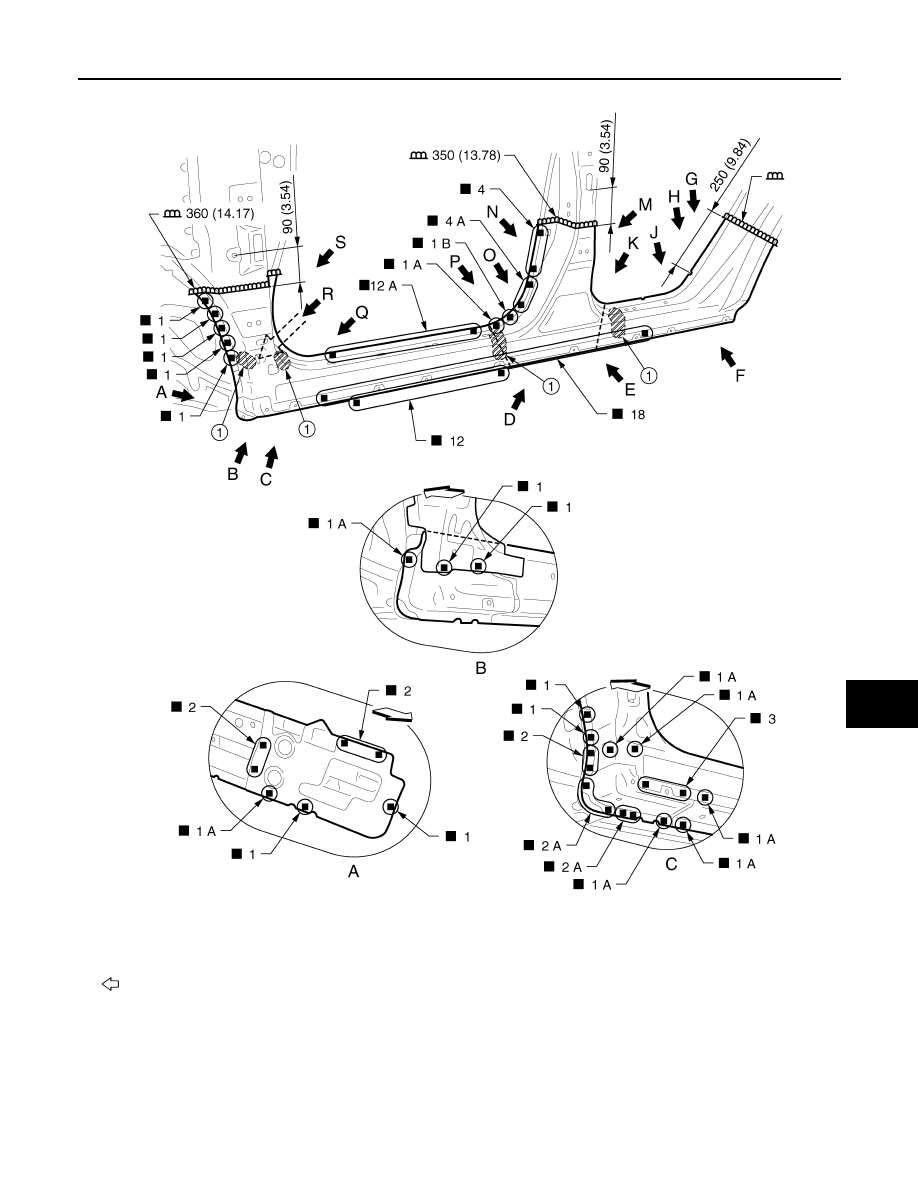

View A: Outer sill reinforcement and lower front pillar reinforcement assembly (replacement parts)
View B: Before installing outer sill

1.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer sill (LH)

z

Outer sill reinforcement (LH)

z

Lower front pillar reinforcement as-
sembly (LH)

JSKIA0535GB

BRM-36

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

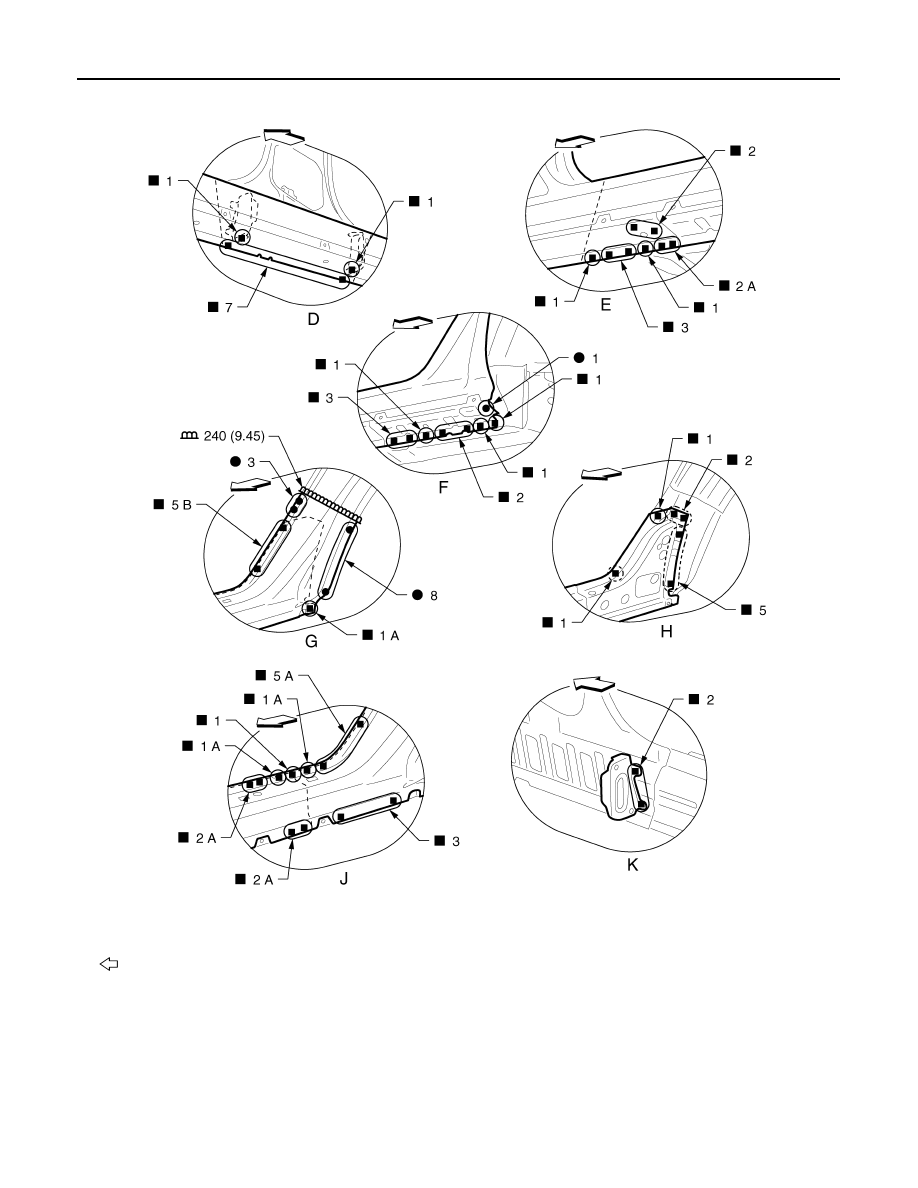

View D: Before installing outer sill and center pillar reinforcement
View H: Before installing outer sill
View K: Before installing outer sill reinforcement

Unit: mm (in)

: Vehicle front

JSKIA0536GB
