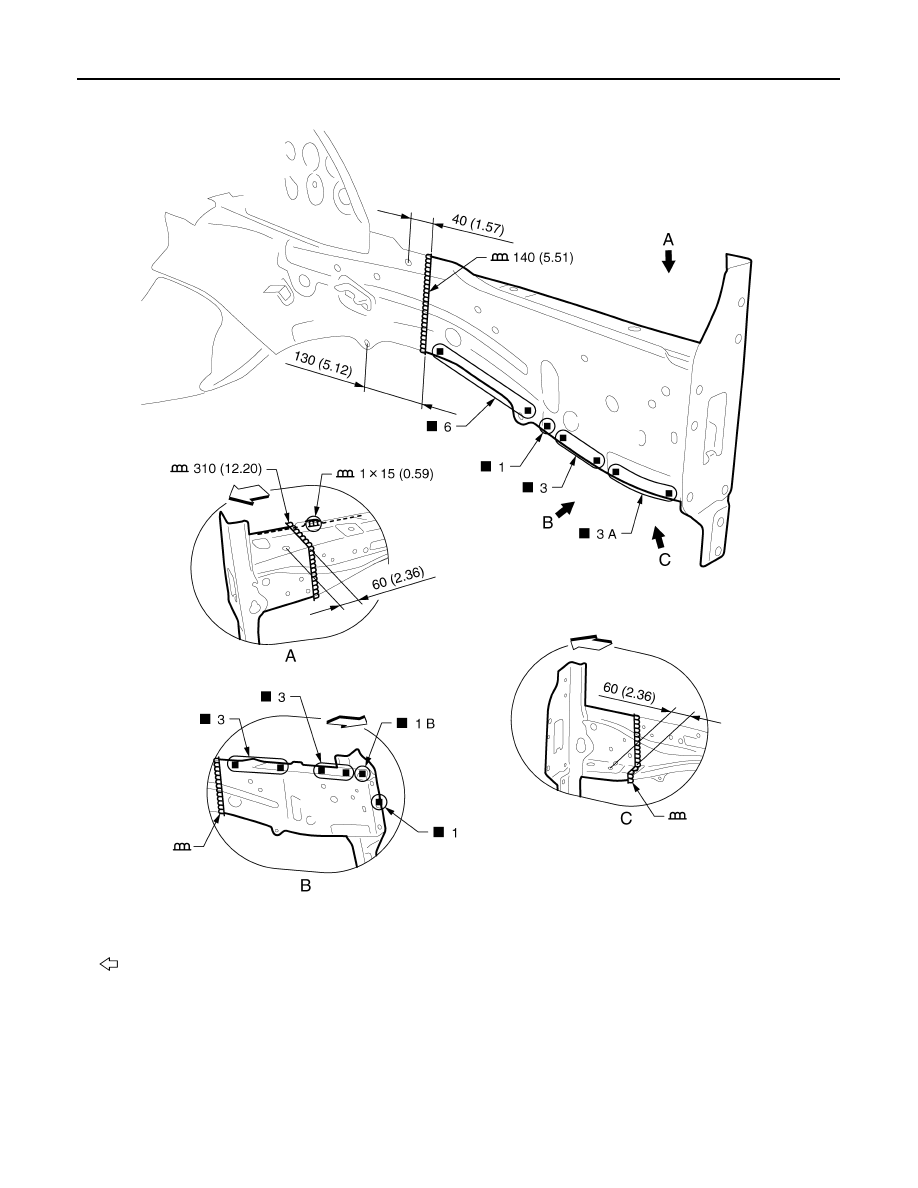

View C and D: Before installing hoodledge reinforcement

Hoodledge (Partial Replacement)

INFOID:0000000009718047

Work after radiator core support is removed.

Unit: mm (in)

: Vehicle front

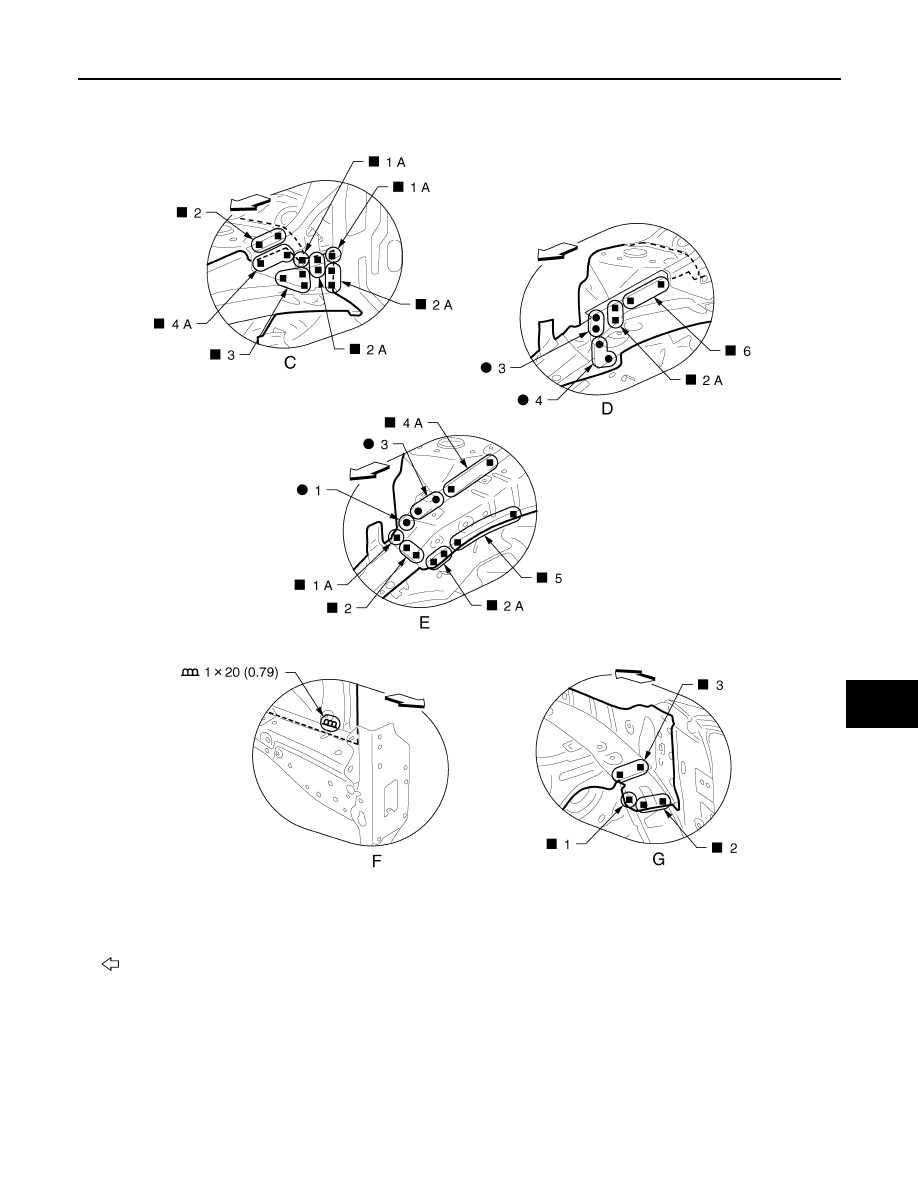

JSKIA0525GB

BRM-26

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

Front Side Member

INFOID:0000000009718048

Work after radiator core support and hoodledge are removed.

Unit: mm (in)

: vehicle front

Replacement parts

z

Lower front hoodledge (RH)

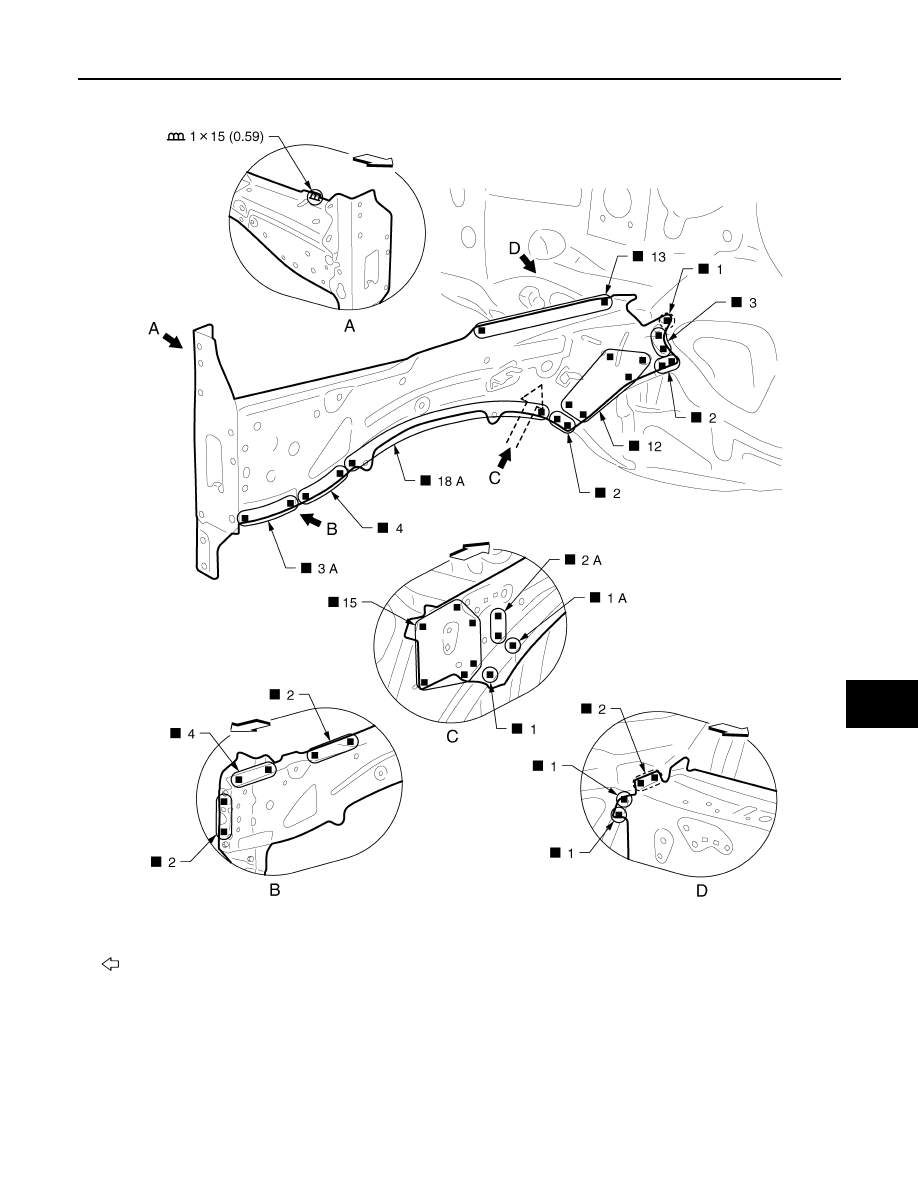

JSKIA0526GB

REPLACEMENT OPERATIONS

BRM-27

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Front Side Member (Partial Replacement)

INFOID:0000000009718049

Work after radiator core support and lower front hoodledge are removed.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly (LH)

z

Front side member closing plate as-
sembly (LH)

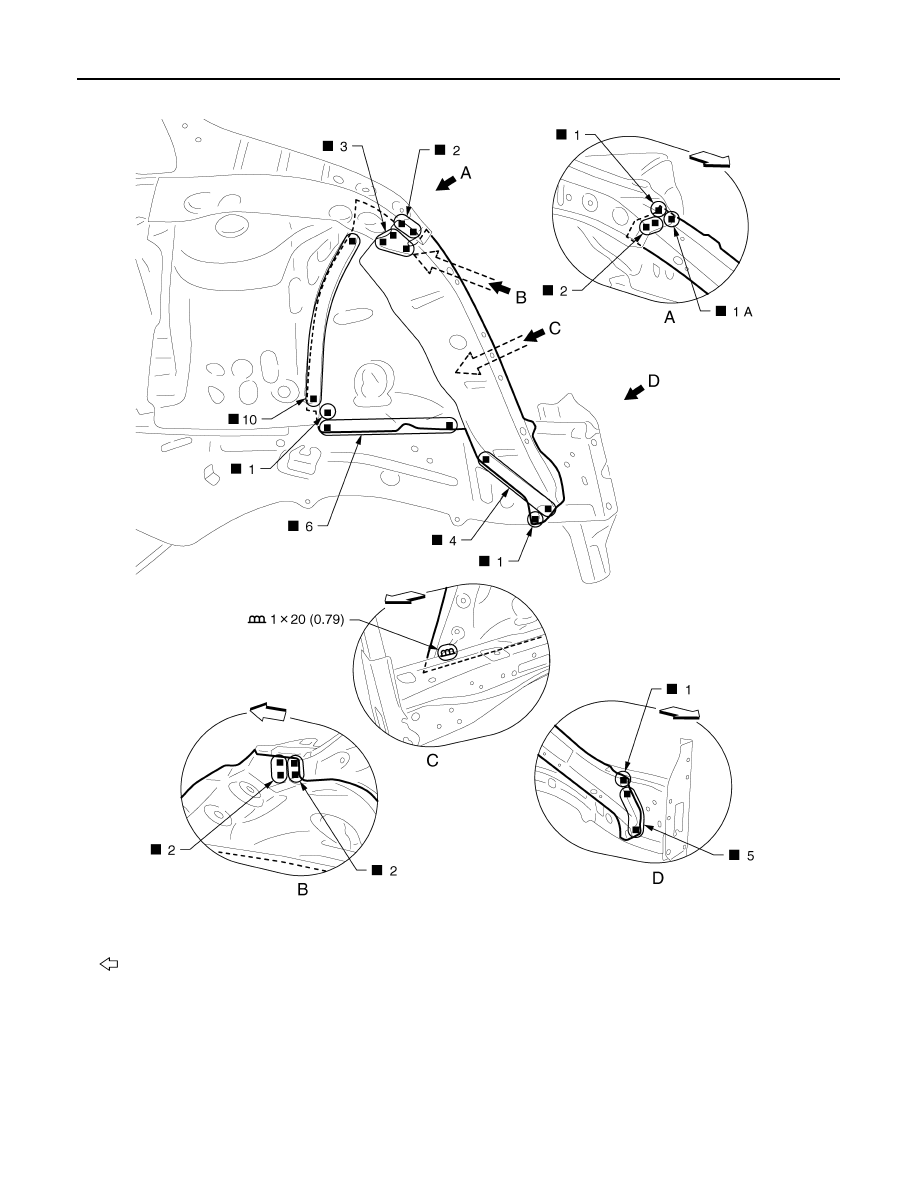

JSKIA0527GB

BRM-28

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

Front Pillar

INFOID:0000000009718050

Work after hoodledge reinforcement is removed.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly (RH)

z

Front side member closing plate as-
sembly (RH)

JSKIA0528GB
