REPAIRING HIGH STRENGTH STEEL

BRM-5

< PRECAUTION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

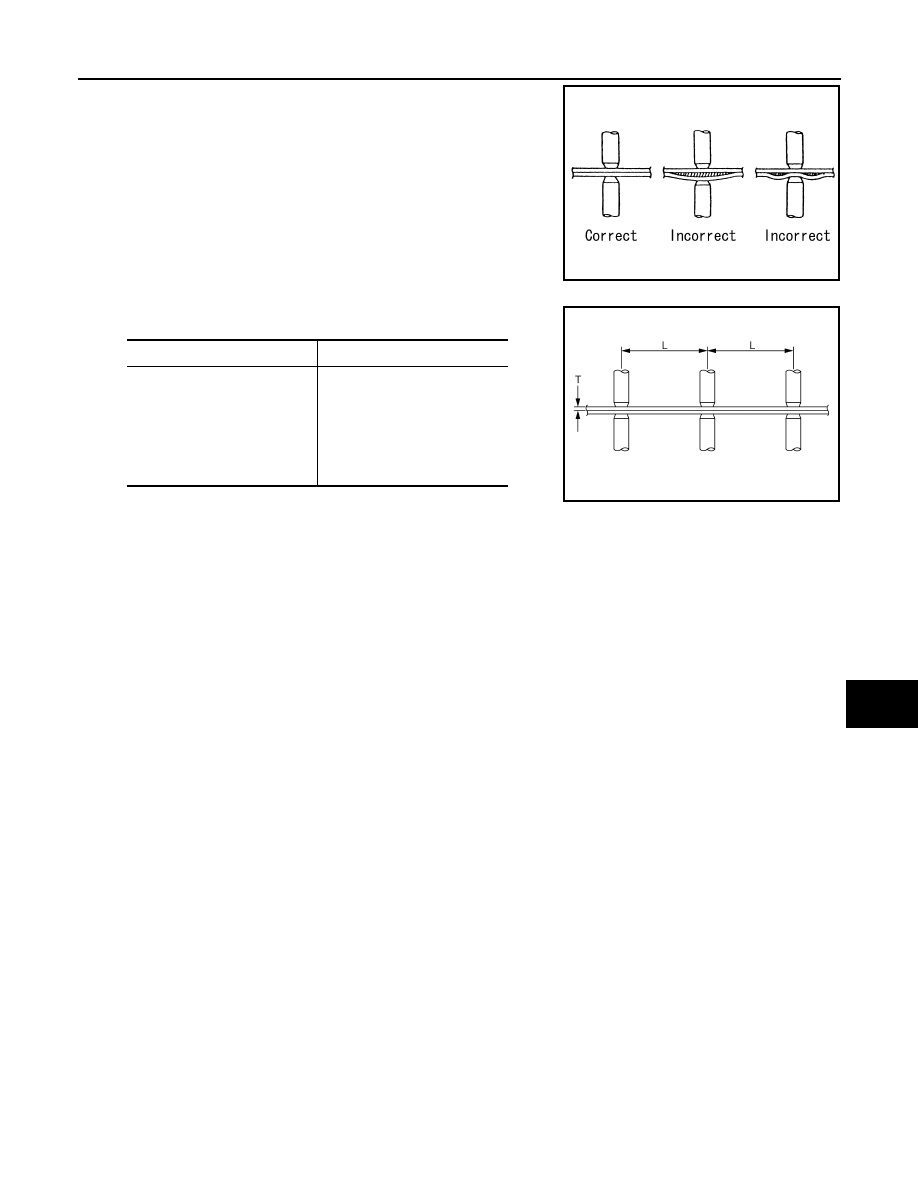

• The panel surfaces must fit flush to each other, leaving no

gaps.

• Follow the specifications for the proper welding pitch.

Unit: mm (in)

Handling of Ultra High Strength Steel Plate Parts

INFOID:0000000009718034

PROHIBITION OF CUT AND CONNECTION

Never cut and Joint the stiffener front side member (front floor inside frame parts) because its material is high
strength steel plate (ultra high strength steel plate).
The front floor assembly must be replaced if this part is damaged.

PIIA0147E

Thickness (T)

Minimum pitch (L)

0.6 (0.024)
0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.6 (0.063)
1.8 (0.071)

10 (0.39) or more
12 (0.47) or more
18 (0.71) or more
20 (0.79) or more
27 (1.06) or more
31 (1.22) or more

JSKIA0781ZZ

BRM-6

< PREPARATION >

[FOR USA AND CANADA]

REPAIRING MATERIAL

PREPARATION

REPAIRING MATERIAL

Foam Repair

INFOID:0000000009718035

During factory body assembly, foam insulators are installed in certain body panels and locations around the
vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

Use commercially available Urethane foam for sealant (foam material) repair of material used on vehicle.

Read instructions on product for fill procedures.

Example of foaming agent filling operation procedure

1.

Fill procedures after installation of service part.

a.

Eliminate foam material remaining on vehicle side.

b.

Clean area after eliminating form insulator and foam material.

c.

Install service part.

d.

Insert nozzle into hole near fill area and fill foam material or fill enough to close gap with the service part.

2.

Fill procedures before installation of service part.

a.

Eliminate foam material remaining on vehicle side.

b.

Clean area after eliminating foam insulator and foam material.

c.

Fill foam material on wheelhouse outer side.

<Urethane foam for foaming agent>

3M™ Automix™ Flexible Foam 08463 or equiva-
lent

1.

Urethane foam

A.

Nozzle insert hole

: Vehicle front

JSKIA0129GB

REPAIRING MATERIAL

BRM-7

< PREPARATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

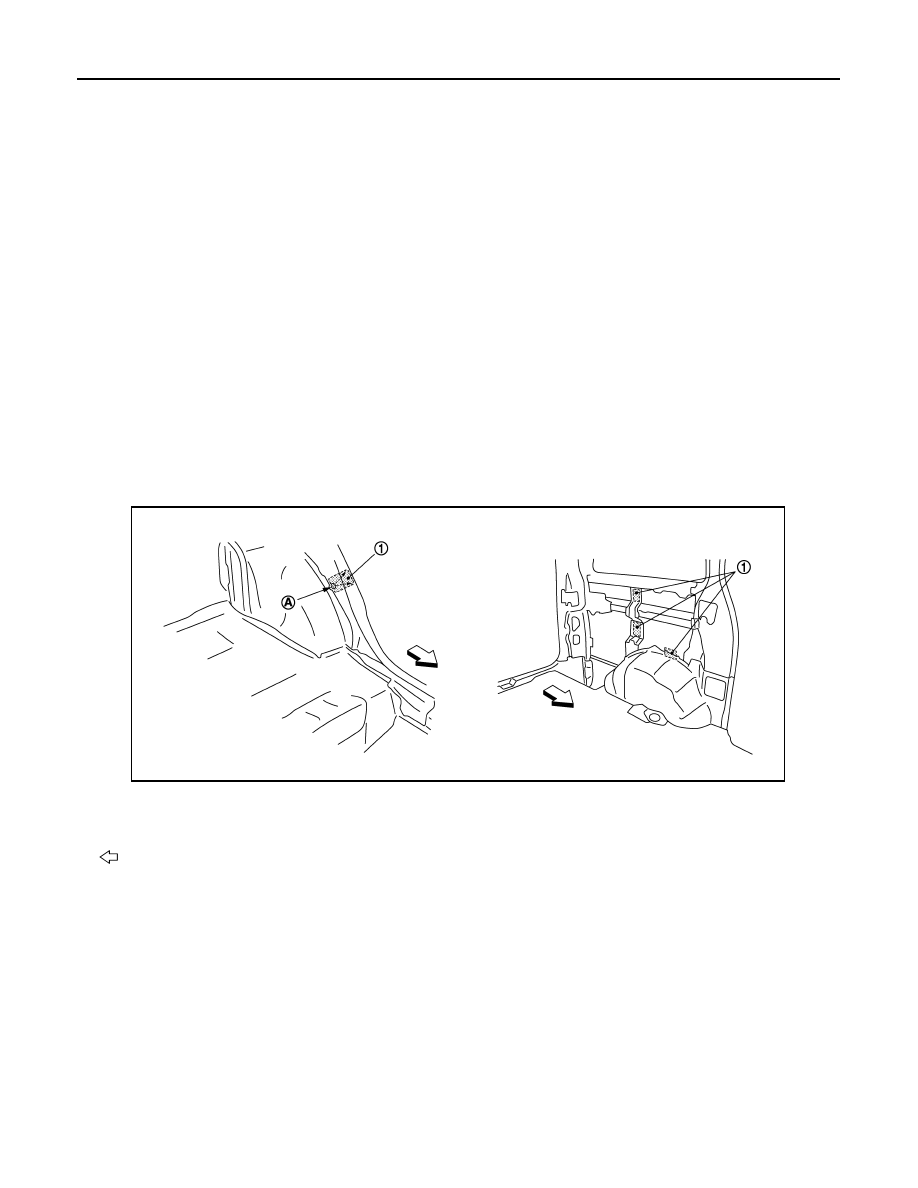

NOTE:
Fill enough to close gap with service part while avoiding flange
area.

d.

Install service part.
NOTE:
Refer to label for information on working times.

1.

Urethane foam

A.

Fill while avoiding flange area

: Vehicle front

JSKIA0130GB

BRM-8

< PREPARATION >

[FOR USA AND CANADA]

BODY COMPONENT PARTS

BODY COMPONENT PARTS

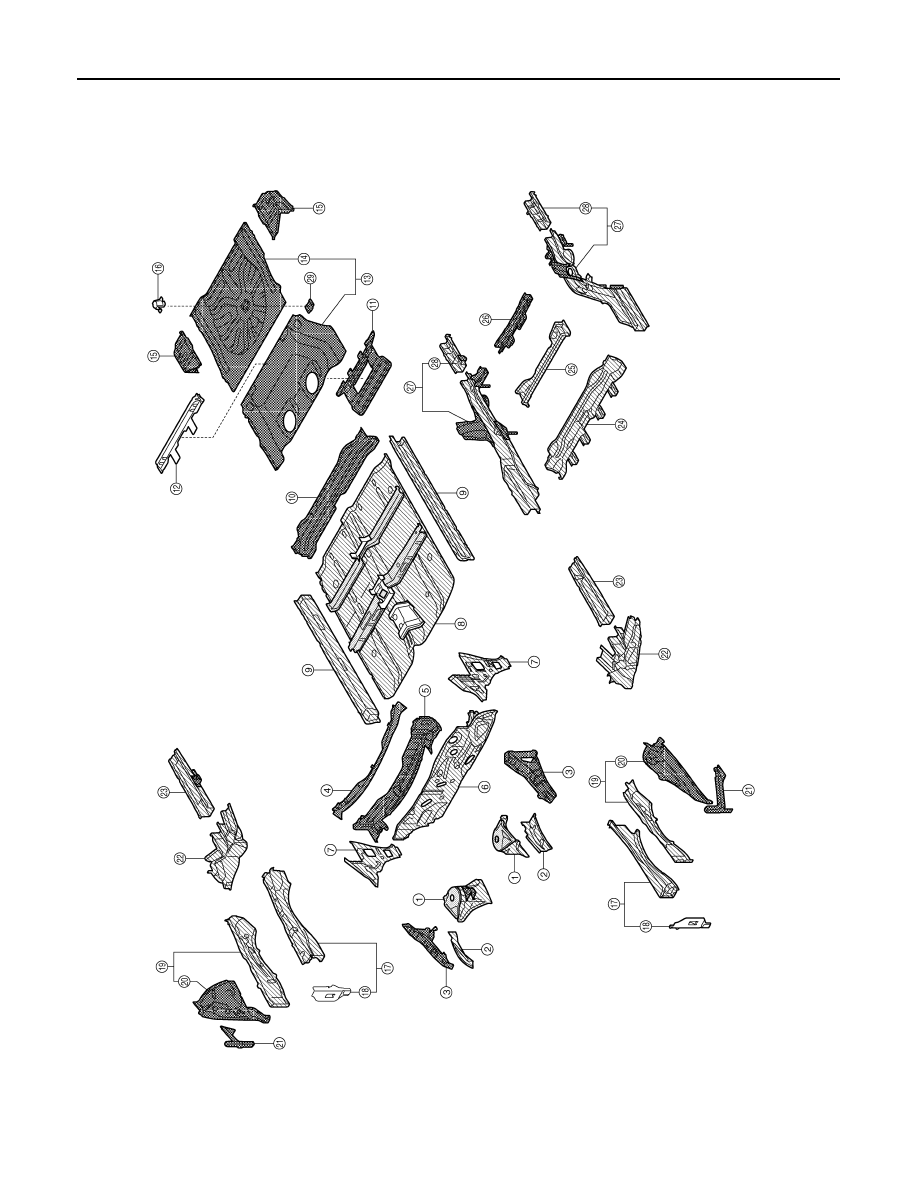

Underbody Component Parts

INFOID:0000000009718036

1.

Lower rear hoodledge (RH & LH)

2.

Upper hoodledge (RH & LH)

3.

Hoodledge reinforcement (RH & LH)

4.

Center cowl top

5.

Upper dash

6.

Lower dash

7.

Side dash (RH & LH)

8.

Front floor

9.

Inner sill (RH & LH)

JSKIA1107ZZ
