BODY COMPONENT PARTS

BRM-9

< PREPARATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

10. Rear floor front extension

11.

2nd seat mounting bracket

12. Rear seat back support

13. Rear floor front

14. Rear floor rear

15. Rear floor side (RH & LH)

16. Spare tire clamp bracket

17. Front side member assembly (RH &

LH)

18. Front side member connector as-

sembly (RH & LH)

19. Front side member closing plate as-

sembly (RH & LH)

20. Lower front hoodledge (RH & LH)

21. Side radiator core support (RH & LH)

22. Front side member extension (RH &

LH)

23. Front side member center extension

(RH & LH)

24. Rear seat crossmember

25. Center rear crossmember assembly

26. Spare wheel crossmember

27. Rear side member assembly (RH &

LH)

28. Rear side member extension (RH &

LH)

29. Spare wheel clamp reinforcement

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

BRM-10

< PREPARATION >

[FOR USA AND CANADA]

BODY COMPONENT PARTS

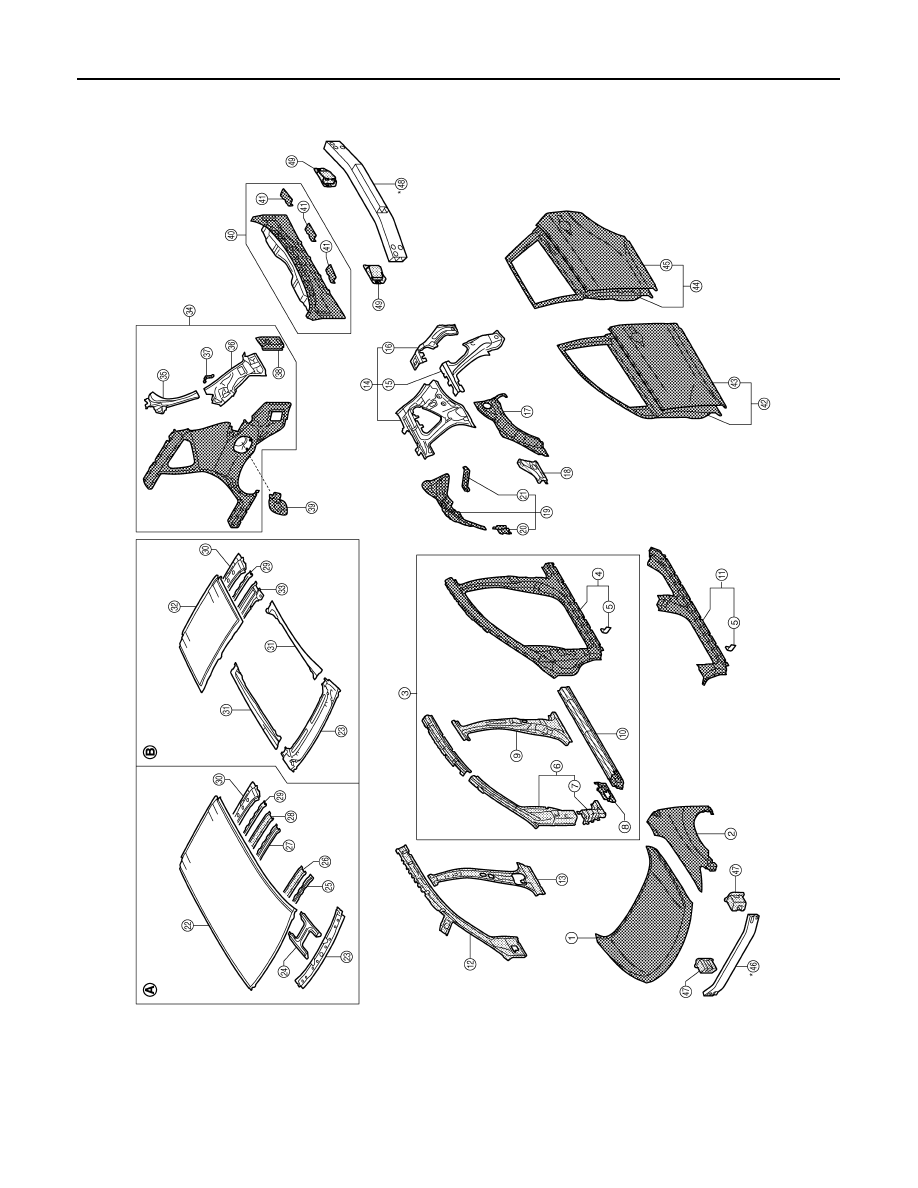

Body Component Parts

INFOID:0000000009718037

1.

Hood

2.

Front fender (RH & LH)

3.

Side body assembly (RH & LH)

4.

Outer front side body (RH & LH)

5.

Front fender bracket assembly (RH
& LH)

6.

Front pillar hinge reinforcement (RH
& LH)

7.

Lower front pillar hinge brace (RH &
LH)

8.

Lower front pillar reinforcement as-
sembly (RH & LH)

9.

Center pillar reinforcement (RH &
LH)

JSKIA0577ZZ

BODY COMPONENT PARTS

BRM-11

< PREPARATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

10. Outer sill reinforcement (RH & LH)

11.

Outer sill (RH & LH)

12. Inner side roof rail (RH & LH)

13. Inner center pillar (RH & LH)

14. Inner rear pillar (RH & LH)

15. Inner rear pillar reinforcement (RH &

LH)

16. Back pillar reinforcement assembly

(RH & LH)

17. Outer rear wheelhouse (RH & LH)

18. Outer rear sill reinforcement (RH &

LH)

19. Inner rear wheelhouse (RH & LH)

20. Inner rear wheelhouse front exten-

sion (RH & LH)

21. Inner rear wheelhouse rear exten-

sion (RH & LH)

22. Roof

23. Front roof rail

24. Roof reinforcement assembly

25. Roof bow No. 1

26. Roof bow No. 2

27. Roof bow No. 3

28. Roof bow No. 4

29. Roof bow No. 5

30. Rear roof rail

31. Side roof reinforcement (RH & LH)

32. Rear roof

33. Rear sunroof reinforcement assem-

bly

34. Rear fender assembly (RH & LH)

35. Outer back pillar (RH & LH)

36. Rear combination lamp base (RH &

LH)

37. Rear fascia rear bracket (RH & LH)

38. Rear combination lamp base exten-

sion (RH & LH)

39. Fuel filler lid

40. Rear panel assembly

41. Upper rear bumper retainer

42. Front door assembly (RH & LH)

43. Outer front door panel (RH & LH)

44. Rear door assembly (RH & LH)

45. Outer rear door panel (RH & LH)

46. Inner front bumper center reinforce-

ment

47. Front bumper stay (RH & LH)

48. Inner center rear bumper reinforce-

ment

49. Rear side bumper bracket (RH & LH)

A.

Standard roof

B.

With sunroof

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS   sections

*: Aluminum portion

BRM-12

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

CORROSION PROTECTION

REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000009718038

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

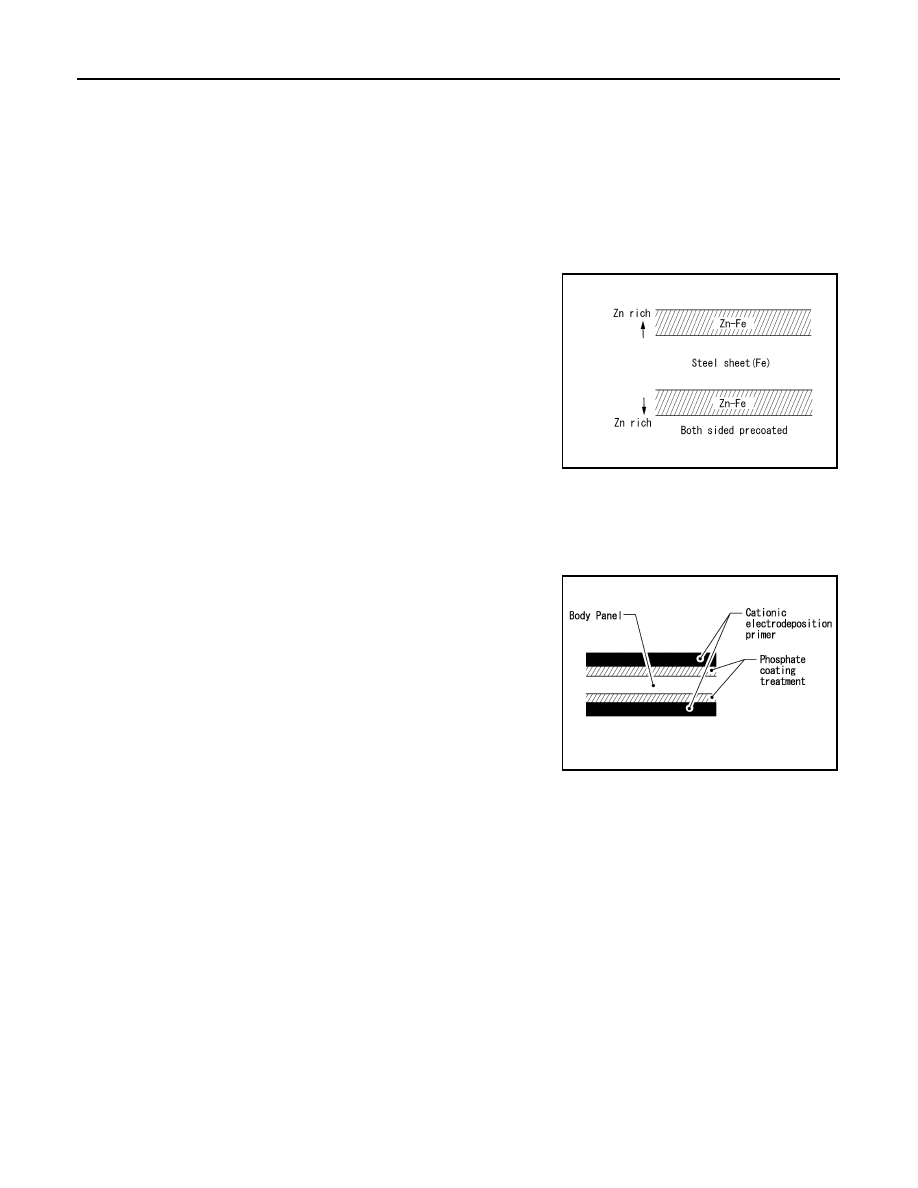

ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet has been adopted replacing conven-
tional zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrodeposition primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that
GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-
mance built into the vehicle at the factory.

PHOSPHATE COATING TREATMENT AND CATIONIC ELECTRODEPOSITION PRIMER

A phosphate coating treatment and a cationic electrodeposition
primer, which provide excellent corrosion protection, are employed
on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute
minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-
INE NISSAN PARTS or an equivalent be used for panel replacement to maintain anti-corrosive performance
built into the vehicle at the factory.

Anti-corrosive Wax

INFOID:0000000009718039

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.

DOOR

SIIA2294E
