Nissan Murano. Manual - part 198





BR-2

REAR : Removal and Installation  ...........................

25

REAR : Inspection  ..................................................

26

BRAKE MASTER CYLINDER  ...........................

27

Exploded View  ........................................................

27

Removal and Installation  ........................................

27

Disassembly and Assembly ....................................

28

Inspection ...............................................................

29

BRAKE BOOSTER  ............................................

30

Exploded View  ........................................................

30

Removal and installation  ........................................

30

Inspection and Adjustment  .....................................

31

VACUUM LINES  ................................................

33

Exploded View  ........................................................

33

Removal and Installation  ........................................

33

Inspection ...............................................................

33

FRONT DISC BRAKE ........................................

35

BRAKE PAD (1 PISTON TYPE)  ...............................

35

BRAKE PAD (1 PISTON TYPE) : Exploded View ...

35

BRAKE PAD (1 PISTON TYPE) : Removal and In-
stallation ................................................................
.

35

BRAKE PAD (1 PISTON TYPE) : Inspection  .........

36

BRAKE PAD (2 PISTON TYPE)  ...............................

36

BRAKE PAD (2 PISTON TYPE) : Exploded View ...

37

BRAKE PAD (2 PISTON TYPE) : Removal and In-
stallation ................................................................
.

37

BRAKE PAD (2 PISTON TYPE) : Inspection  .........

38

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) ...

38

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)
: Exploded View  .....................................................
.

38

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)
: Removal and Installation  .....................................
.

39

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)
: Disassembly and Assembly .................................
.

40

BRAKE CALIPER ASSEMBLY (1 PISTON TYPE)
: Inspection ..............................................................

42

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) ...

42

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE)
: Exploded View  ......................................................

42

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE)
: Removal and Installation .......................................

43

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE)
: Disassembly and Assembly  ..................................

44

BRAKE CALIPER ASSEMBLY (2 PISTON TYPE)
: Inspection ..............................................................

46

REAR DISC BRAKE ..........................................

47

BRAKE PAD ..............................................................

47

BRAKE PAD : Exploded View .................................

47

BRAKE PAD : Removal and Installation  .................

47

BRAKE PAD : Inspection  ........................................

48

BRAKE CALIPER ASSEMBLY  ................................

48

BRAKE CALIPER ASSEMBLY : Exploded View  ....

48

BRAKE CALIPER ASSEMBLY : Removal and In-
stallation ..................................................................

49

BRAKE CALIPER ASSEMBLY : Disassembly and
Assembly ................................................................

50

BRAKE CALIPER ASSEMBLY : Inspection ............

52

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

53

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

53

General Specifications  ............................................

53

Brake Pedal  ............................................................

53

Brake Booster  .........................................................

54

Front Disc Brake  .....................................................

54

Rear Disc Brake ......................................................

54

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

BR-3

< SYMPTOM DIAGNOSIS >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009722294

Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

BR

-1

6

BR-18

BR

-1

6

BR-18

BR-36

BR-38

BR-48

BR

-1

6

BR-18

BR

-1

6

BR-18

BR

-1

6

BR-18

BR

-1

6

BR-18

BR

-1

6

BR-18

BR

-1

6

BR-18

BR

-1

6

BR-18

NVH in DLN

section

NHV in DLN

section

NVH in F

AX, RAX

, FSU

and RSU section

NVH in WT

 se

ct

io

n

NVH in WT

 se

ct

io

n

NVH in F

AX and/or

R

A

X section

NVH in ST

section

Possible cause and
SUSPECTED PARTS

Pad

s - da

ma

ge

d

Pad

s - un

ev

en

 wea

r

Shi

ms

 da

ma

ge

d

Ro

to

r im

ba

la

nc

e

Ro

to

r da

ma

ge

Rot

o

r runout

Ro

to

r de

fo

rm

a

tio

n

Ro

to

r de

fl

e

c

ti

o

n

Rot

o

r rust

Ro

to

r th

ic

kn

es

s va

ri

ati

o

n

PROPELLER SHAFT

DIFF

ERENTIAL

AXLE AND S

U

SPENSION

TI

RE

ROAD WHEE

L

DRIVE SHAFT

STE

E

RING

Symptom

BRAKE

Noise

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

Shimmy, Judder

×

×

×

×

×

×

×

×

×

×

×

BR-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

FOR USA AND CANADA

FOR USA AND CANADA : Precaution for Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT PRE-TENSIONER"

INFOID:0000000009992214

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

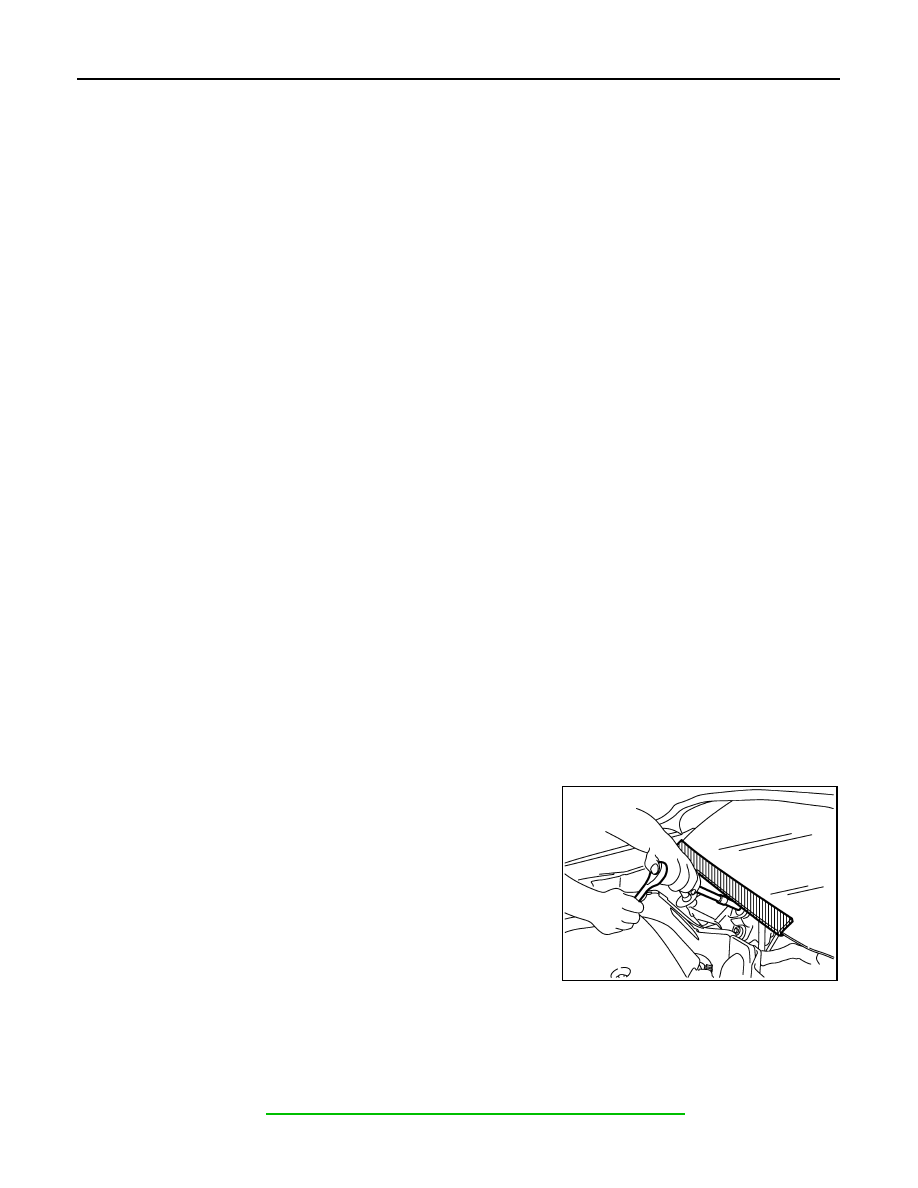

FOR USA AND CANADA : Precaution for Procedure without Cowl Top Cover

INFOID:0000000009722296

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

FOR USA AND CANADA : Precaution for Brake System

INFOID:0000000009722297

WARNING:

Since dust covering the front and rear brakes has an affect on human body, the dust must be removed
with a dust collector. Never splatter the dust with an air blow gun.

CAUTION:

• Brake fluid use refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubricants"

.

• Never reuse drained brake fluid.

PIIB3706J

PRECAUTIONS

BR-5

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface.

• Always clean with new brake fluid when cleaning the master cylinder, brake caliper and other com-

ponents.

• Never use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and

cause improper operation.

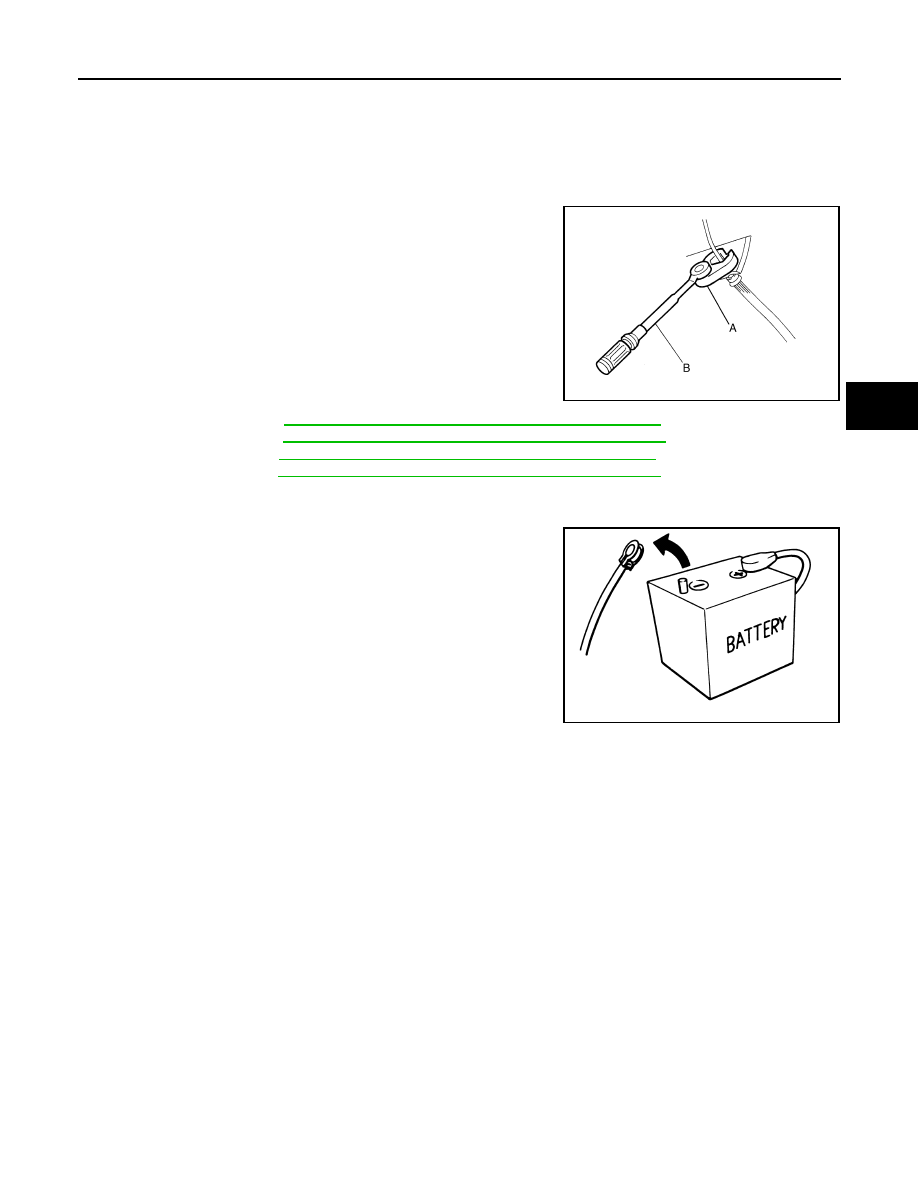

• Always loosen the brake tube flare nut with a flare nut wrench.
• Tighten the brake tube flare nut to the specified torque with

crowfoot (A) and torque wrench (B).

• Always confirm the specified tightening torque when install-

ing the brake pipes.

• Turn the ignition switch OFF and disconnect the ABS actuator

and electric unit (control unit) connector or the battery nega-
tive terminal before performing the work.

• Check that no brake fluid leakage is present after replacing

the parts.

• Burnish the brake contact surfaces after refinishing or replac-

ing rotors, after replacing pads, or if a soft pedal occurs at
very low mileage.

- Front brake pad: Refer to

BR-16, "BRAKE PAD : Inspection and Adjustment"

.

- Front disc rotor: Refer to

BR-16, "DISC ROTOR : Inspection and Adjustment"

.

- Rear brake pad: Refer to

BR-18, "BRAKE PAD : Inspection and Adjustment"

.

- Rear disc rotor: Refer to

BR-18, "DISC ROTOR : Inspection and Adjustment"

.

FOR USA AND CANADA : Precautions for Removing of Battery Terminal

INFOID:0000000009956795

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.
