AV-434

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH GROUND CIRCUIT

STEERING SWITCH GROUND CIRCUIT

Description

INFOID:0000000009721966

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000009721967

1.

CHECK STEERING SWITCH SIGNAL GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector and spiral cable connector.

3.

Check continuity between AV control unit harness connector and spiral cable harness connector.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-15, "Exploded View"

.

3.

CHECK GROUND CIRCUIT

1.

Connect AV control unit connector.

2.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit. Refer to

AV-448, "Exploded View"

.

4.

CHECK STEERING SWITCH

Check steering switch. Refer to

AV-434, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-459, "Exploded View"

.

Component Inspection

INFOID:0000000009721968

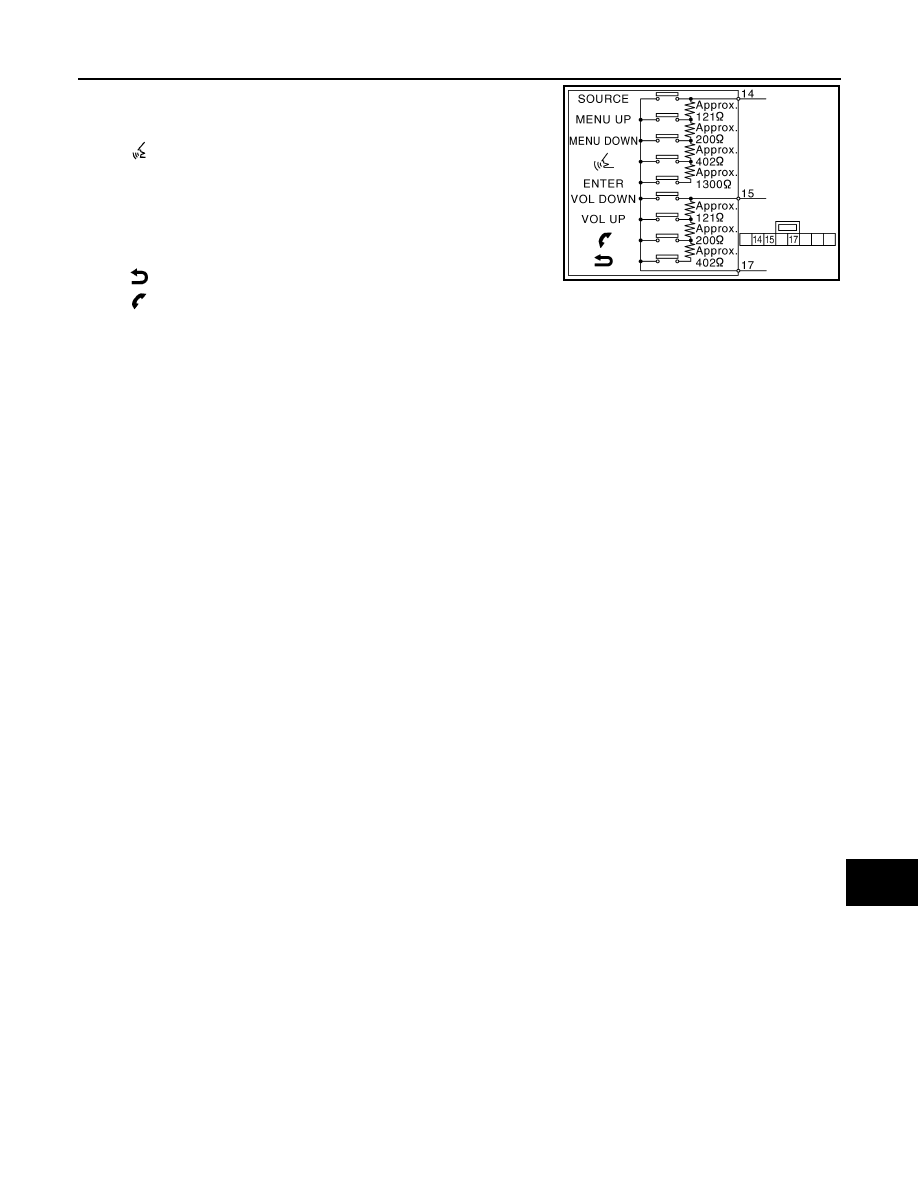

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M178

15

M33

33

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M178

15

Existed

AV

STEERING SWITCH GROUND CIRCUIT

AV-435

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Standard

Between terminals 14 and 17

ENTER switch ON

: 2003 – 2043

Ω

 switch ON

: 716 – 730

Ω

MENU DOWN switch ON

: 318 – 324

Ω

MENU UP switch ON

: 120 – 122

Ω

SOURCE switch ON

: 0

Ω

Between terminals 15 and 17

 switch ON

: 716 – 730

Ω

 switch ON

: 318 – 324

Ω

VOL UP switch ON

: 120 – 122

Ω

VOL DOWN switch ON

: 0

Ω

JSNIA0112GB

AV-436

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

MULTI AV SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009721969

RELATED TO NAVIGATION

RELATED TO HANDS-FREE PHONE (EXCEPT FOR MEXICO)

• Before performing diagnosis, confirm that the cellular phone being used by the customer is compatible with

the vehicle.

• It is possible that a malfunction is occurring due to a version change of the phone even though the phone is

a compatible type. This can be confirmed by changing the cellular phone to another compatible type, and
checking that it operates normally. It is important to determine whether the cause of the malfunction is the
vehicle or the cellular phone.

Check Compatibility

1.

Make sure the customer's Bluetooth

®

 related concern is understood.

2.

Verify the customer's concern.
NOTE:
The customer's phone may be required, depending upon their concern.

3.

Write down the customer's phone brand, model, and service provider.
NOTE:
It is necessary to know the service provider. On occasion, a given phone may be on the approved list with
one provider, but may not be on the approved list with other providers.

4.

Go to “www.nissanusa.com/bluetooth/”.

a.

Using the website's search engine, find out if the customer's phone is on the approved list.

b.

If the customer's phone is NOT on the approved list:
Stop diagnosis here. The customer needs to obtain a Bluetooth

®

 phone that is on the approved list before

any further action.

c.

If the feature related to the customer's concern shows as “N” (not compatible):
Stop diagnosis here. If the customer still wants the feature to function, they will need to get an approved
phone showing the feature as “Y” (compatible) in the “Basic Features” list.

d.

If the feature related to the customer's concern shows as “Y” (compatible):

Symptoms

Check items

Probable malfunction location

Multifunction switch and preset
switch operation does not work.

• All switches cannot be operated.
• “MULTI AV” is displayed on system

selection screen when the CONSULT
is started.

• Multifunction switch power supply and ground circuit

malfunction.

• AV communication circuit between AV control unit and

multifunction switch.
Perform “Self Diagnostic Result” of “MULTI AV” with
CONSULT. Refer to

AV-327, "CONSULT Function"

.

• All switches cannot be operated.
• “MULTI AV” is not displayed on sys-

tem selection screen when the CON-
SULT is started.

AV control unit power supply and ground circuit malfunc-
tion. Refer to

AV-419, "AV CONTROL UNIT : Diagnosis

Procedure"

.

Only specified switch cannot be operat-
ed.

Multifunction switch or preset switch malfunction.
Perform multifunction switch and preset switch self-di-
agnosis function. Refer to

AV-315, "On Board Diagnosis

Function"

.

Fuel economy display is abnor-
mal.

There is malfunction in the CONSULT
“self-diagnosis result” of “MULTI AV”.

Perform detected DTC diagnosis.
Refer to

AV-340, "DTC Index"

.

There is no malfunction in the CON-
SULT “self-diagnosis results” of “MULTI
AV”.

Ignition signal circuit malfunction.

Guide sound is not heard or too
low.

On the setting display select “system
sound (guide sound volume, etc.),” and
confirm that guide sound is ON.

AV control unit malfunction.
Replace AV control unit. Refer to

AV-448, "Exploded

View"

.

AV

MULTI AV SYSTEM SYMPTOMS

AV-437

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Perform diagnosis as per the following table.

RELATED TO HANDS-FREE PHONE (FOR MEXICO)

Symptoms

Check items

Probable malfunction location

Does not recognize cellular
phone connection. (no connec-
tion is displayed on the display
at the guide.)

Repeat the registration of cellular phone.

AV control unit malfunction.
Replace AV control unit. Refer to

AV-448, "Exploded

View"

.

Hands-free phone cannot be
established.

• Hands-free phone operation can be

made, but the communication cannot
be established.

• Hands-free phone operation can be

performed, however, voice between
each other cannot be heard during the
conversation.

The other party's voice cannot
be heard by hands-free phone.

Check the “microphone speaker” in In-
spection & Adjustment Mode if sound is
heard.

Originating sound is not heard
by the other party with hands-
free phone communication.

Sound operation function is normal.

Sound operation function does not work.

Microphone signal circuit malfunction.
Refer to

AV-428, "Diagnosis Procedure"

.

The system cannot be operat-
ed.

• The voice recognition can be controlled.
• Steering switch's ”VOL UP”, “VOL

DOWN” and “

” switch works, but

“

” it does not work.

Steering switch malfunction.
Replace steering switch. Refer to

AV-459, "Exploded

View"

.

Steering switch's “

”, ”VOL UP”, “VOL

DOWN” and “

” switches do not work.

Steering switch signal B circuit malfunction.
Refer to

AV-432, "Diagnosis Procedure"

.

All steering switches do not work.

Steering switch ground circuit malfunction.
Refer to

AV-434, "Diagnosis Procedure"

.

Symptoms

Check items

Probable malfunction location

Does not recognize cellular
phone connection. (no connec-
tion is displayed on the display
at the guide.)

Repeat the registration of cellular phone.

AV control unit malfunction.
Replace AV control unit. Refer to

AV-448, "Exploded

View"

.

Hands-free phone cannot be
established.

• Hands-free phone operation can be

made, but the communication cannot
be established.

• Hands-free phone operation can be

performed, however, voice between
each other cannot be heard during the
conversation.

The other party's voice cannot
be heard by hands-free phone.

Check the “microphone speaker” in In-
spection & Adjustment Mode if sound is
heard.

Originating sound is not heard
by the other party with hands-
free phone communication.

Sound operation function is normal.

Sound operation function does not work.

Microphone signal circuit malfunction.
Refer to

AV-428, "Diagnosis Procedure"

.
