VTL-108

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

MODE DOOR MOTOR

Install in the reverse order of removal.

AIR MIX DOOR MOTOR

VTL-109

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

AIR MIX DOOR MOTOR

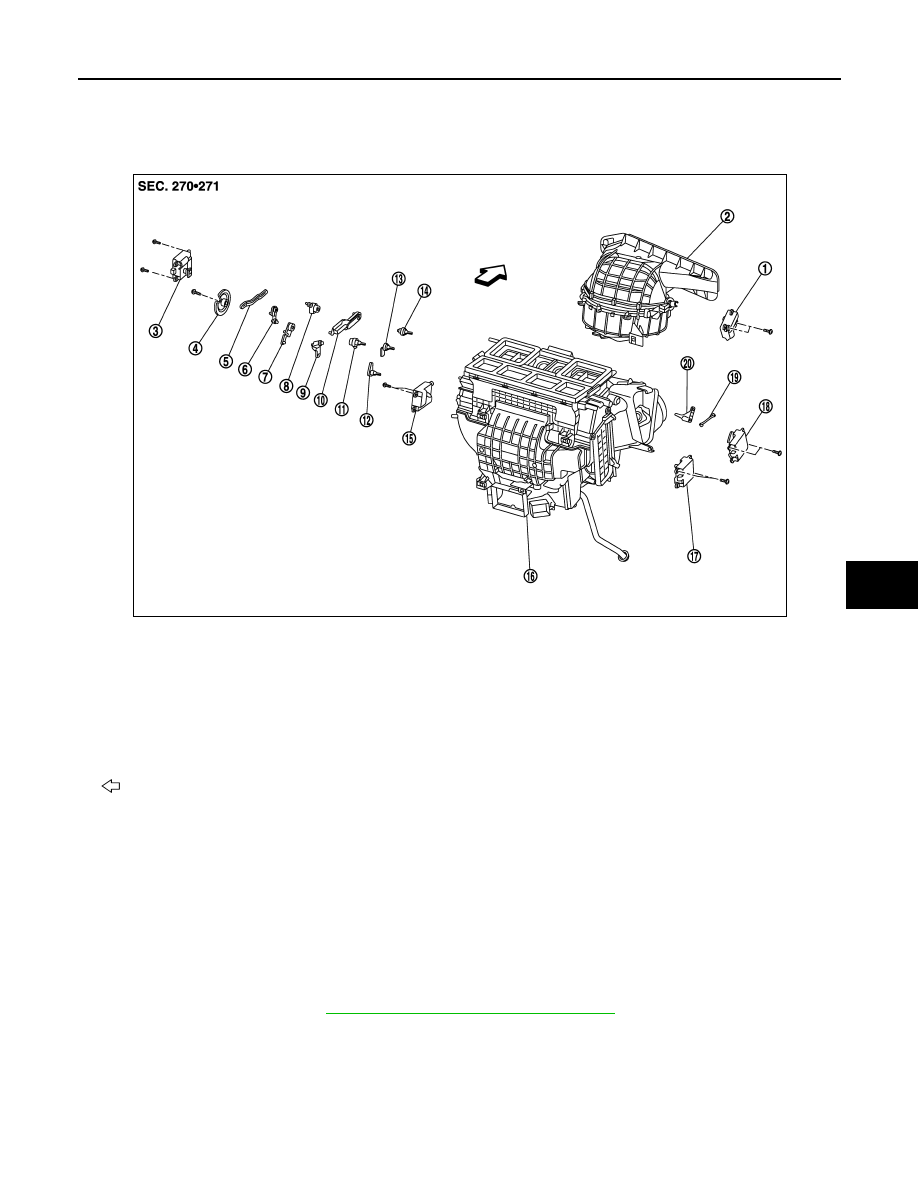

Exploded View

INFOID:0000000009721181

Removal and Installation

INFOID:0000000009721182

REMOVAL

Driver Side

1.

Set the temperature at full cold.

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove foot duct LH. Refer to

VTL-133, "FOOT DUCT : Exploded View"

.

4.

Disconnect air mix door motor connector.

1.

Intake door motor

2.

Bower unit assembly

3.

Mode door motor

4.

Main link

5.

Rod link

6.

Max. cool door link

7.

Max. cool door link

8.

Mode door lever

9.

Ventilator door link

10. Defroster door link

11.

Ventilator door lever

12. Foot door lever

13. Max. cool door lever

14.

Defroster door lever

15. Air mix door motor (Driver side)

16. Heater & cooling unit assembly

17.

Air mix door motor (Passenger side) 18. Upper ventilator door motor

19. Upper ventilator door rod

20.

Upper ventilator door lever

: Vehicle front

JPIIA1238ZZ

VTL-110

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

AIR MIX DOOR MOTOR

5.

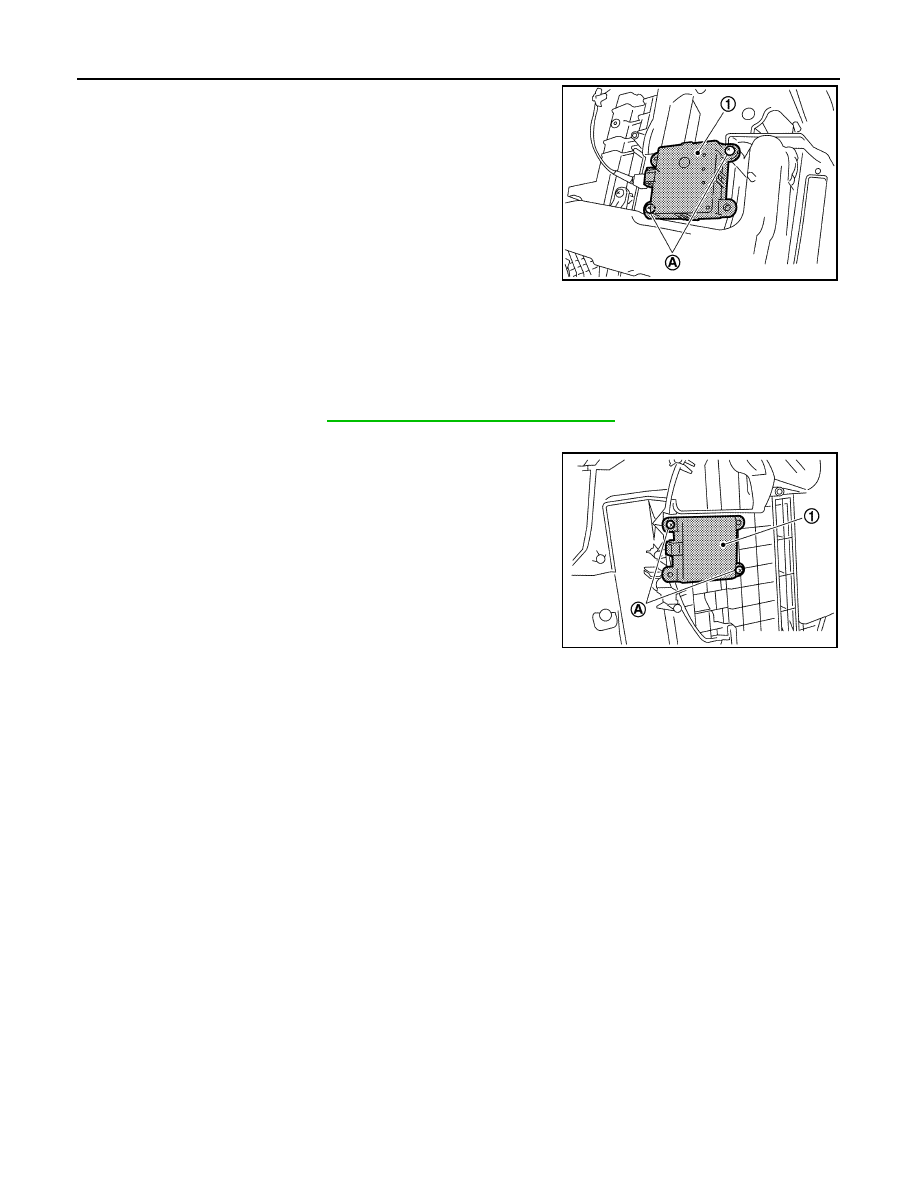

Remove fixing screws (A) and then remove air mix door motor
(1).

Passenger Side

1.

Set the temperature at full cold.

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove foot duct RH. Refer to

VTL-133, "FOOT DUCT : Exploded View"

.

4.

Disconnect the air mix door motor connector.

5.

Remove fixing screws (A) and then remove air mix door motor
(1).

INSTALLATION

Install in the reverse order of removal.

JPIIA0577ZZ

JPIIA0578ZZ

HEATER CORE

VTL-111

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

HEATER CORE

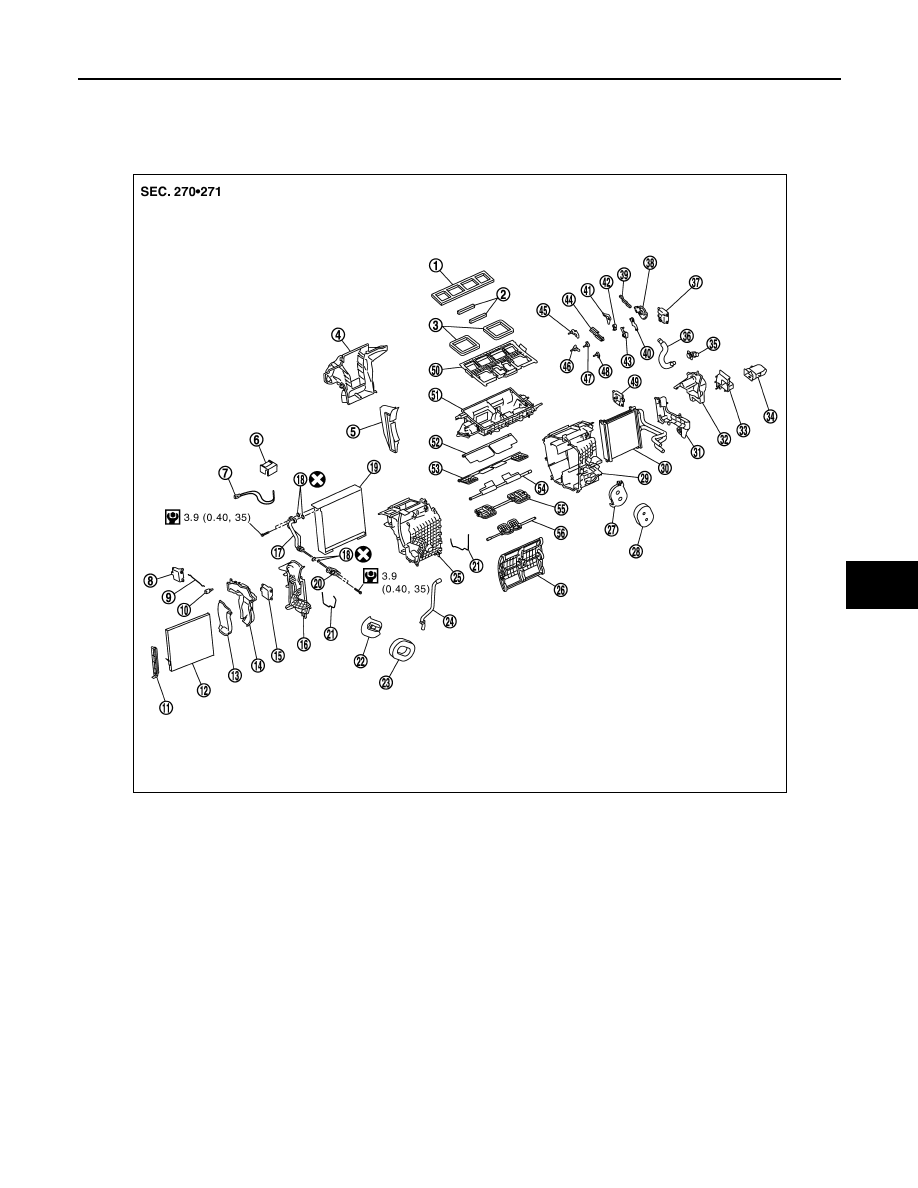

Exploded View

INFOID:0000000009721183

1.

Ventilator seal

2.

Upper ventilator seal

3.

Defroster seal

4.

Adapter case

5.

Center case

6.

Intake sensor bracket

7.

Intake sensor

8.

Upper ventilator door motor

9.

Upper ventilator door rod

10.

Upper ventilator door lever

11.

Filter cover

12. In-cabin microfilter

(Air conditioner filter*

13.

Foot duct 1 RH

14.

Foot duct 2 RH

15. Air mix door motor (Passenger side)

16.

Heater & cooling unit case cover

17.

Evaporator pipe assembly

18. O-ring

19.

Evaporator

20.

Expansion valve

21. Case packing

22.

Grommet

23.

Cooler pipe grommet

24. Drain hose

25.

Heater & cooling unit case RH

26.

Air mix door (Slide door)

27. Heater pipe support

28.

Heater pipe grommet

29.

Heater & cooling unit case LH

30. Heater core

31.

Heater pipe cover

32.

Foot duct 2 LH

33. Foot duct 1 LH

34.

Heater duct

35.

Aspirator

36. Aspirator hose

37.

Mode door motor

38.

Main link

39. Rod link

40.

Max. cool door link

41.

Ventilator door link

42. Foot door link

43.

Mode door lever

44.

Defroster door link

45. Ventilator door lever

JPIIA0454GB
