Nissan Murano. Manual - part 1439
VTL-112
< REMOVAL AND INSTALLATION >
[WITH 7 INCH DISPLAY]
HEATER CORE
*
: Models for Mexico.
Removal and Installation
INFOID:0000000009721184
REMOVAL
1.
Remove heater & cooling unit assembly. Refer to
.
2.

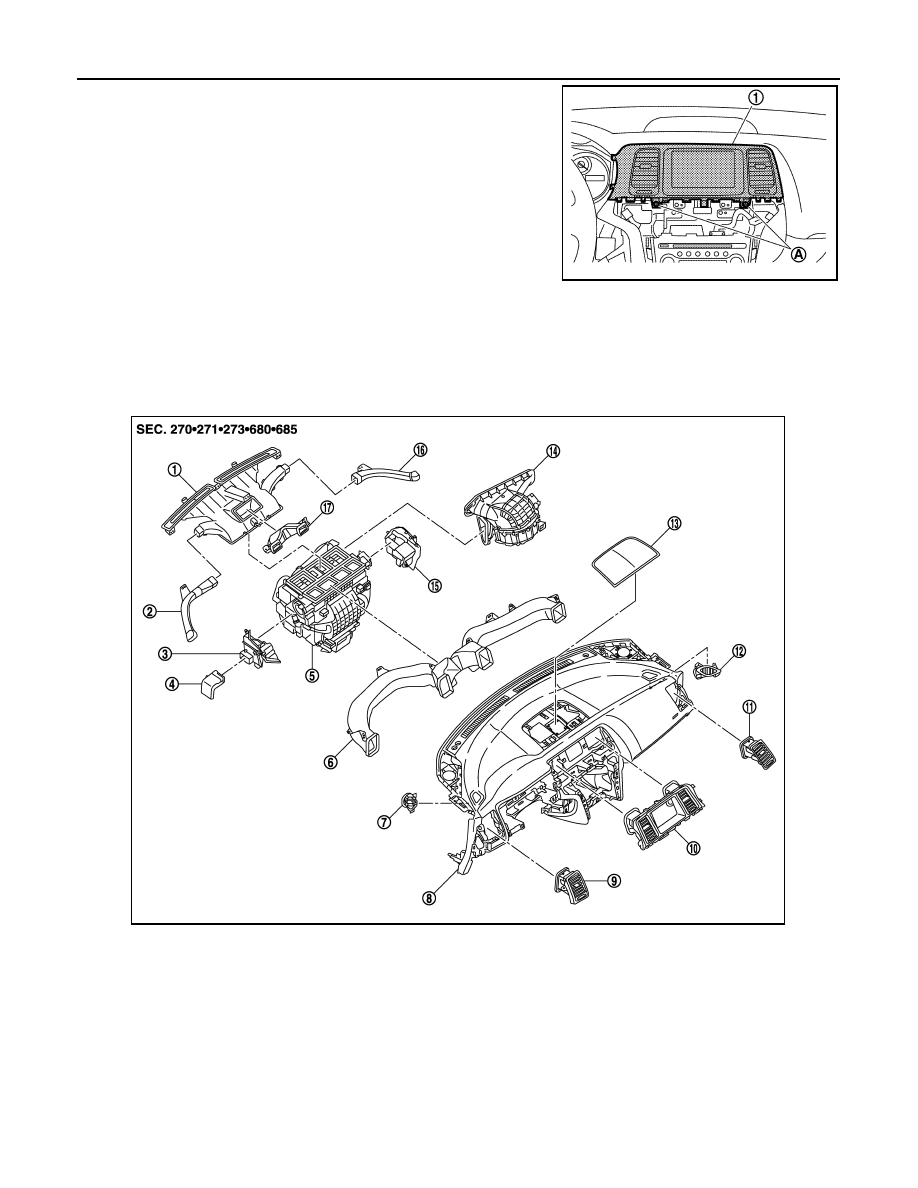

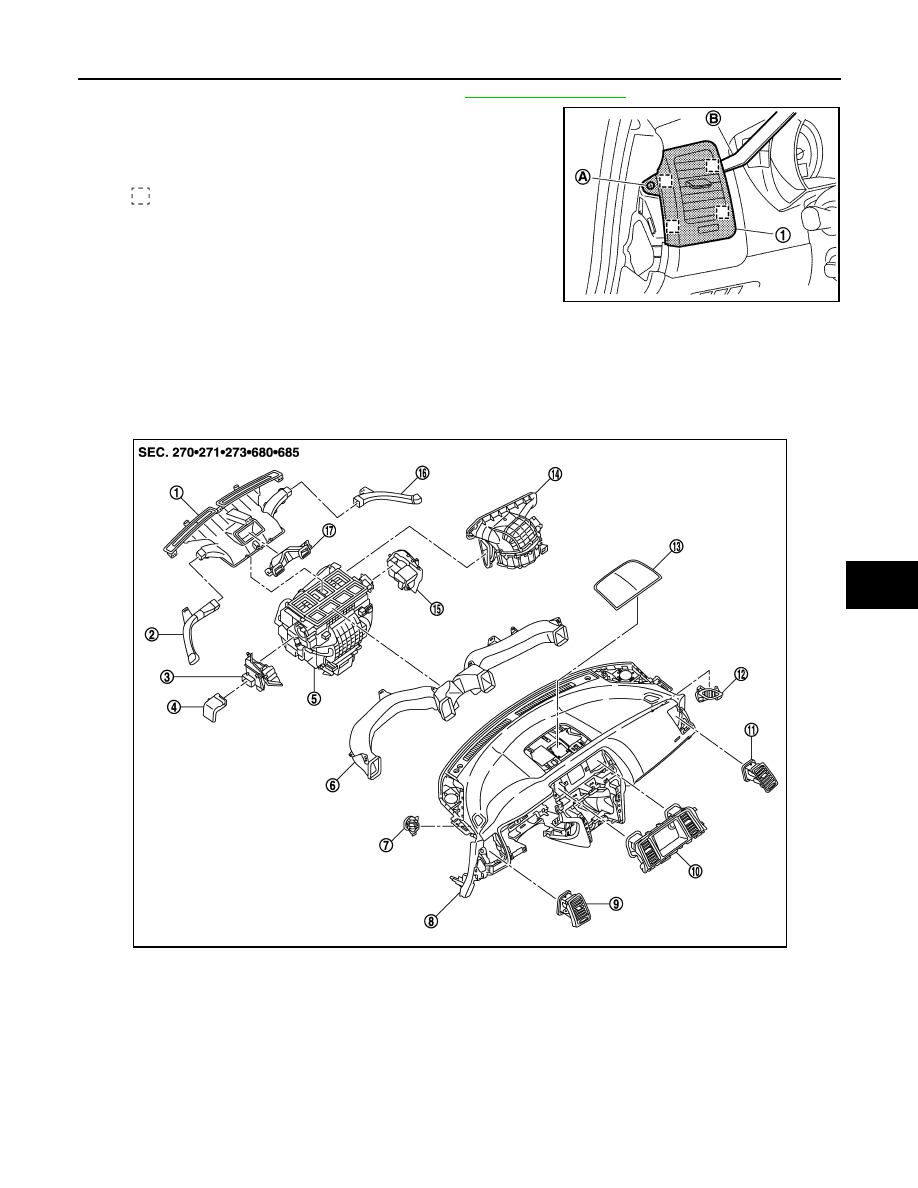

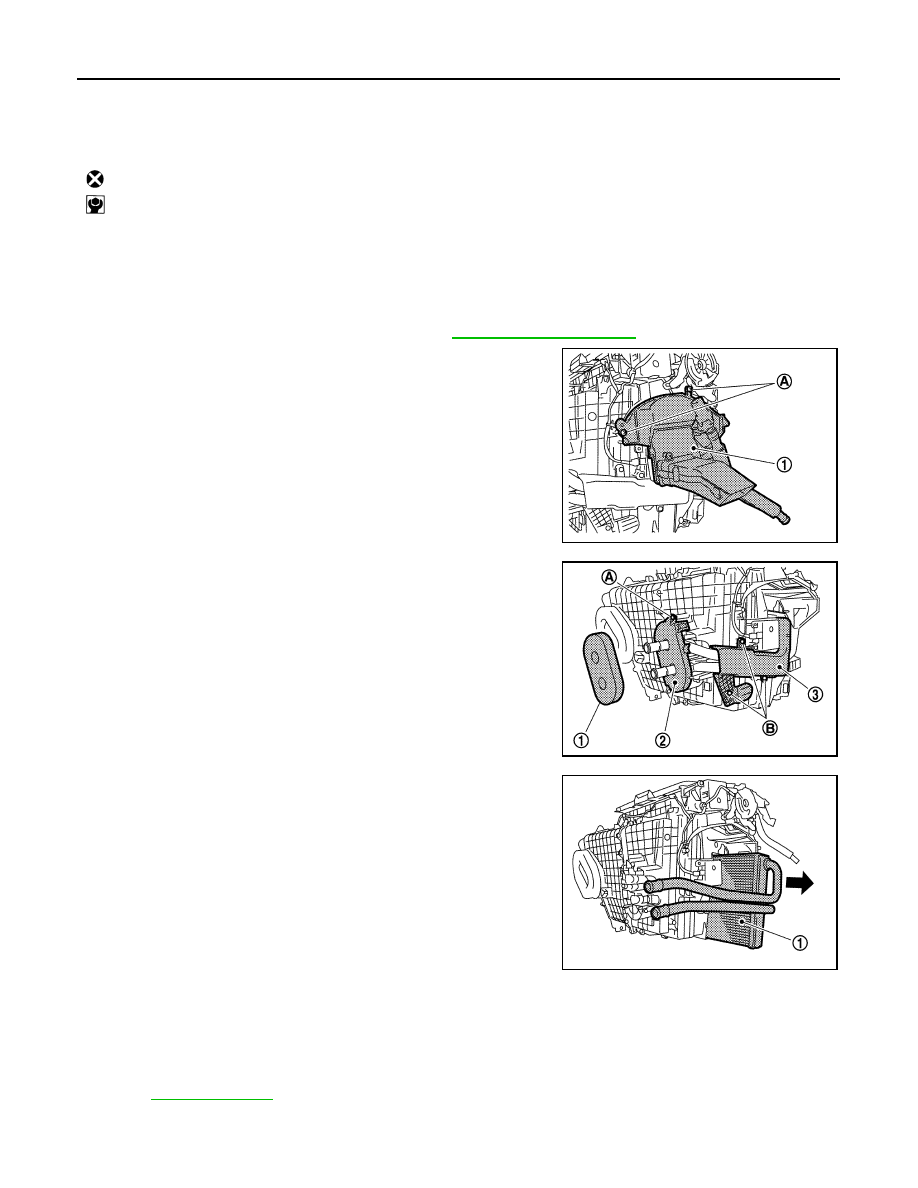

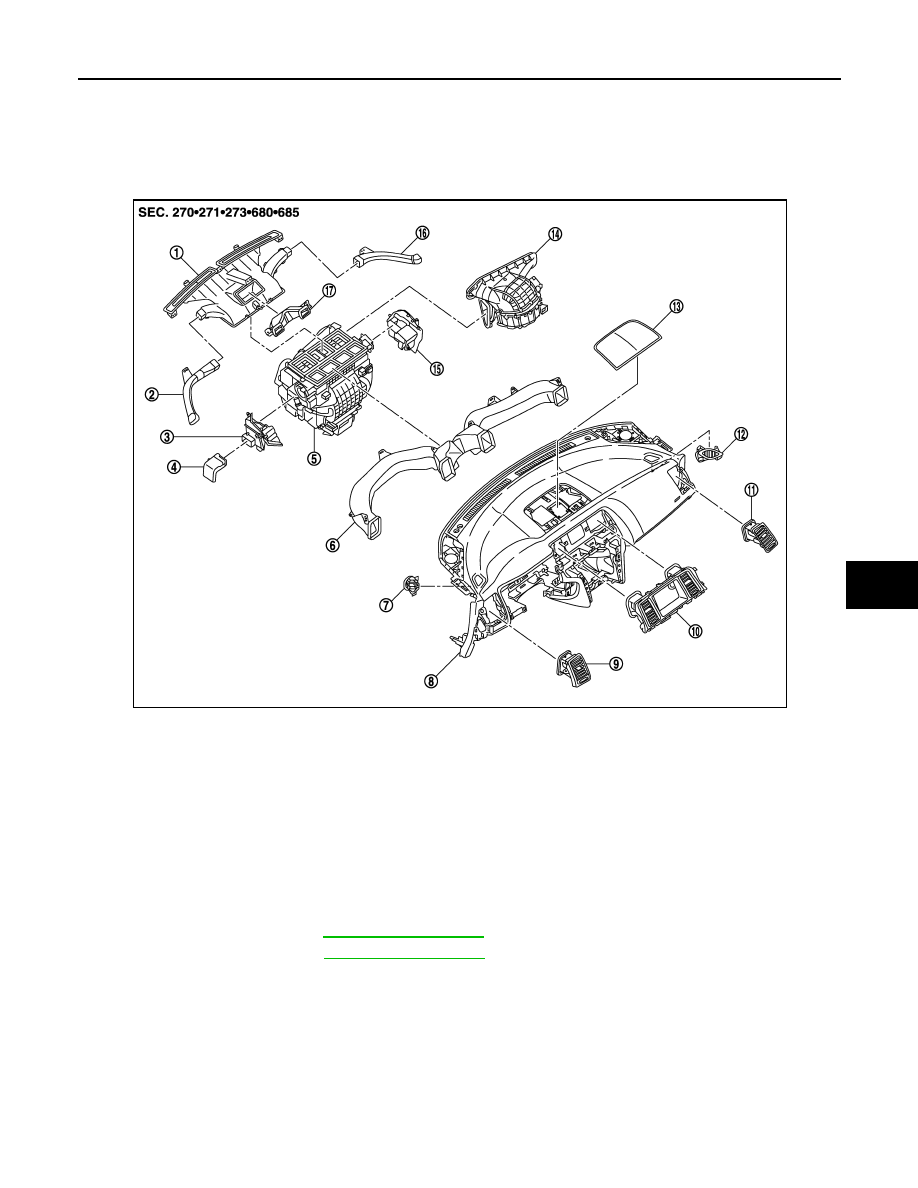

Remove fixing screws (A) and then remove foot duct LH (1).
3.
Remove heater pipe grommet (1).
4.
Remove fixing screw (A) and then remove heater pipe support
(2).
5.
Remove fixing screws (B) and then remove heater pipe cover
(3).
6.
Slide the heater core (1) in the direction shown by the arrow, and
then remove it.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
• Replace the O-ring with a new one. Apply a coat of compressor oil to the O-ring prior to installation.
• Check for refrigerant leakage when charging refrigerant.
NOTE:
• Refer to
when filling the radiator with engine coolant.
• Charge the refrigerant again.
