TM-170

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

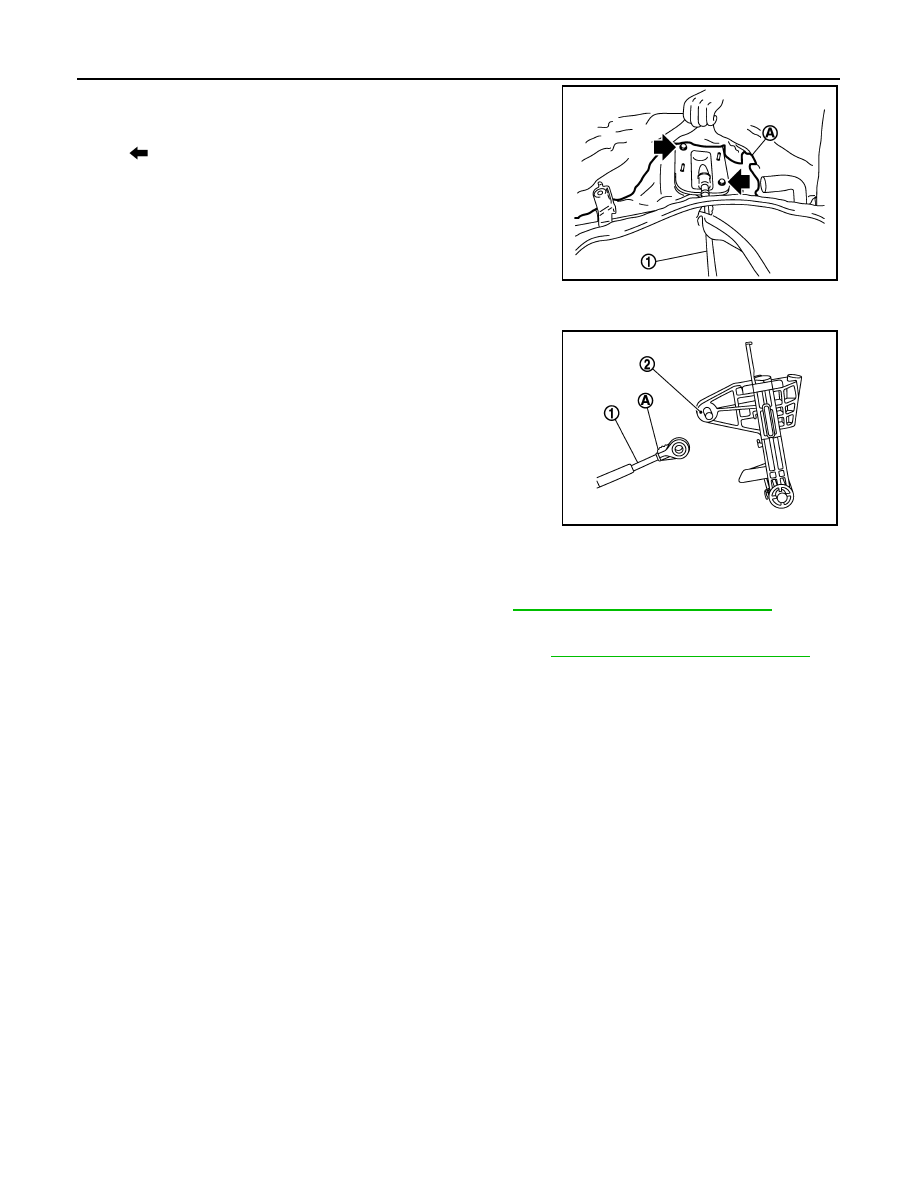

CONTROL CABLE

10. Remove the control cable (1) from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
When installing control cable (1) to CVT shift selector assembly (2),
check that control cable is fully pressed in with the ribbed (A) surface
facing upward.

Inspection and Adjustment

INFOID:0000000009719580

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing control cable. Refer to

TM-164, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-164, "Inspection and Adjustment"

.

A

: Dash trim

: Bolt

JPDIA0629ZZ

JPDIA0609ZZ

OIL PAN

TM-171

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

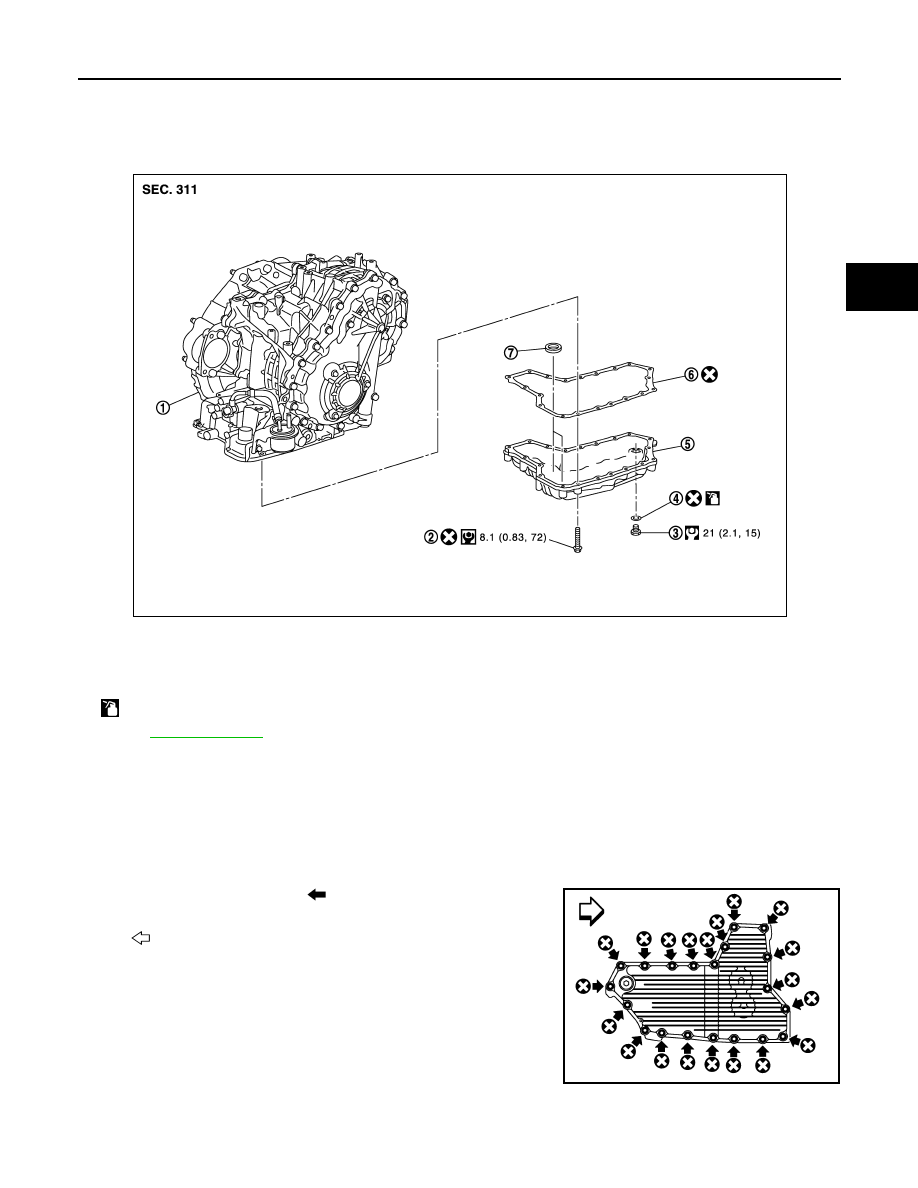

OIL PAN

Exploded View

INFOID:0000000009719581

Removal and Installation

INFOID:0000000009719582

REMOVAL

1.

Remove engine under cover with power tool.

2.

Remove drain plug.

3.

Remove O-ring from drain plug.

4.

Remove oil pan fitting bolts (

).

5.

Remove oil pan.

1.

Transaxle assembly

2.

Oil pan fitting bolt

3.

Drain plug

4.

O-ring

5.

Oil pan

6.

Oil pan gasket

7.

Magnet

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0608GB

: Vehicle front

SCIA8135J

TM-172

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

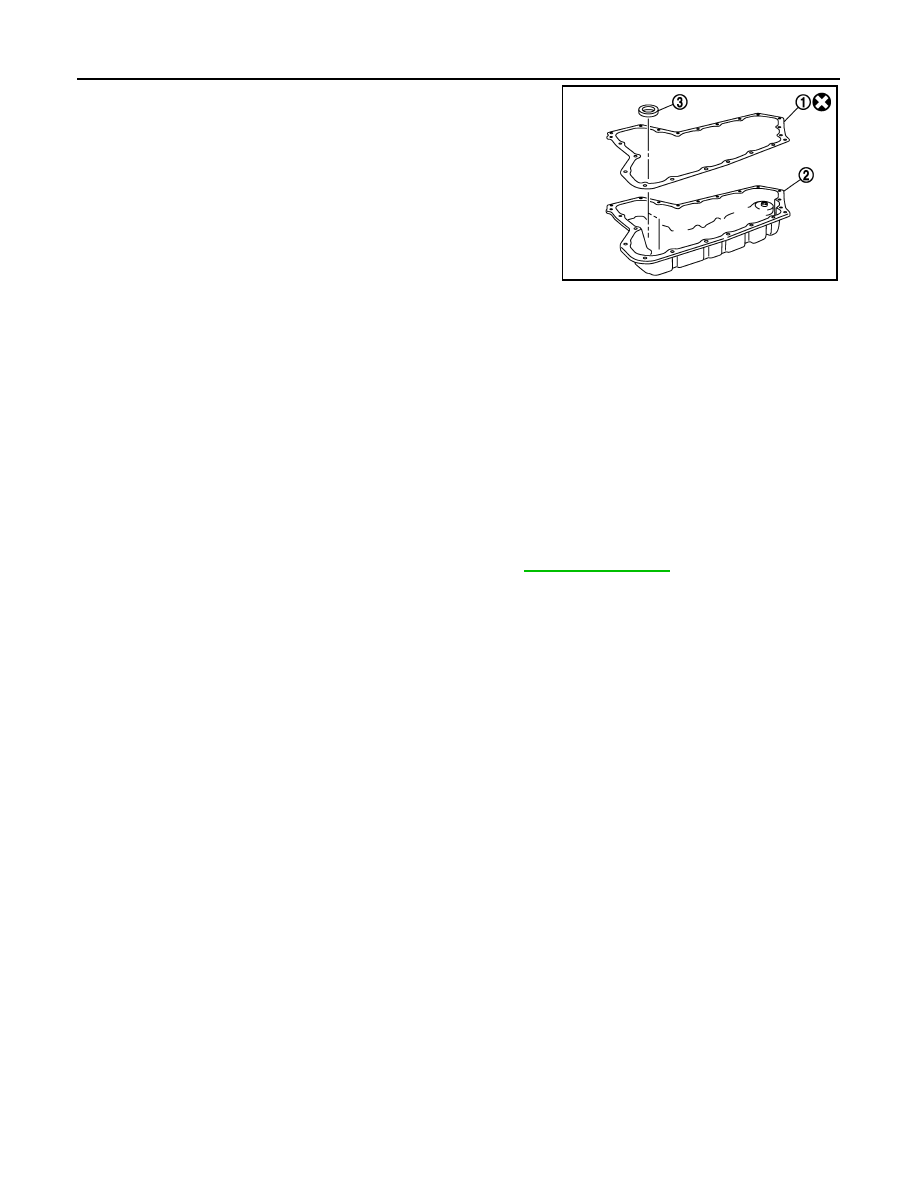

OIL PAN

6.

Remove oil pan gasket (1) from oil pan (2).

7.

Remove magnet (3) from oil pan.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Completely remove all moisture, oil and old gasket, etc. from the oil pan gasket mounting surface of

transaxle case and oil pan.

• Never reuse oil pan gasket, O-ring and oil pan fitting bolts.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000009719583

Check foreign materials in oil pan to help determine causes of malfunction. If the CVT fluid is very dark, smells
burned, or contains foreign particles, frictional material (clutches) may need replacement. A tacky film that will
not wipe clean indicates varnish build up. Varnish can cause valves and clutches to stick and can inhibit pump
pressure.

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-151, "Inspection"

.

SCIA8219J

SECONDARY SPEED SENSOR

TM-173

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

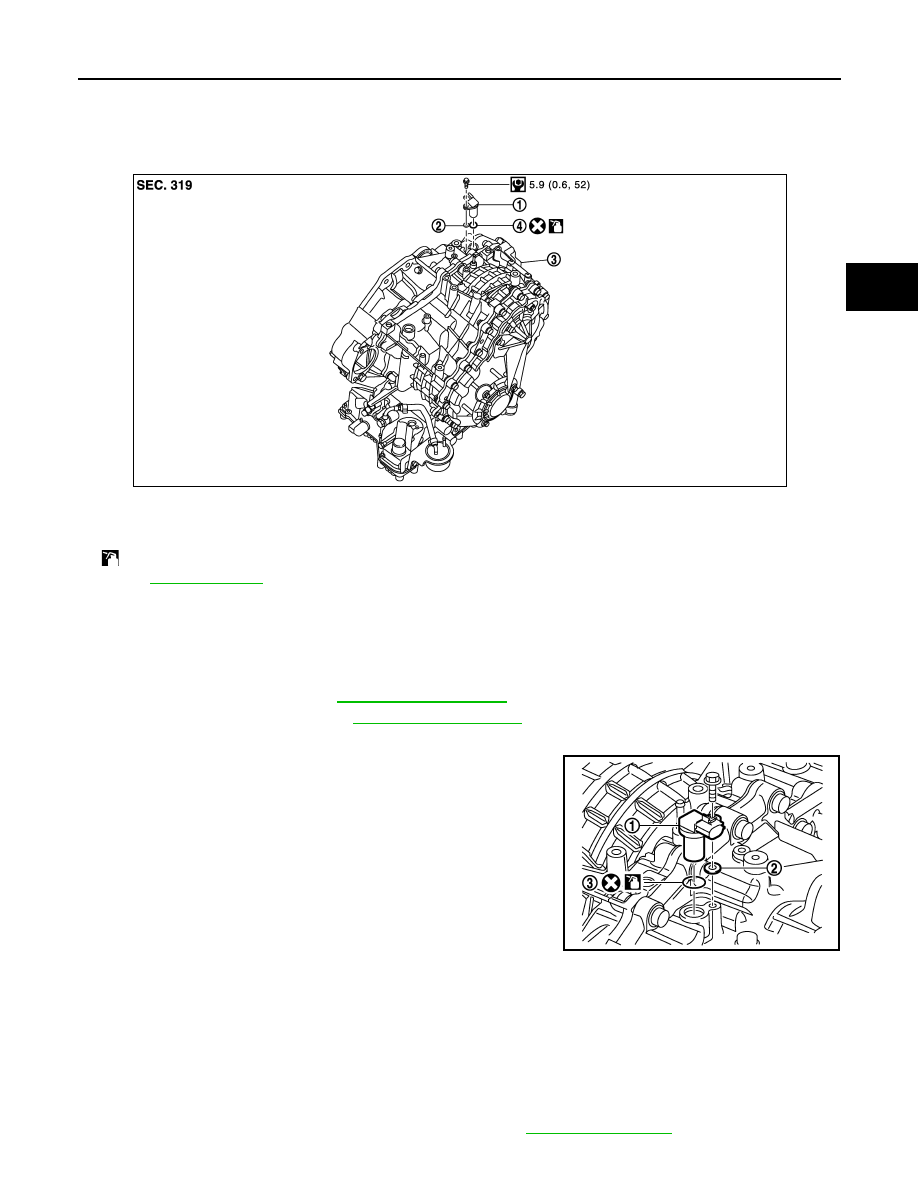

SECONDARY SPEED SENSOR

Exploded View

INFOID:0000000009719584

Removal and Installation

INFOID:0000000009719585

REMOVAL

1.

Disconnect the battery cable from negative terminal.

2.

Remove air duct (inlet). Refer to

EM-31, "Exploded View"

.

3.

Remove air cleaner case. Refer to

EM-31, "Exploded View"

4.

Disconnect secondary speed sensor connector.

5.

Remove secondary speed sensor (1) and shim (2).

CAUTION:

Never lose the shim.

6.

Remove O-ring (3) from secondary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000009719586

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-151, "Inspection"

.

1.

Secondary speed sensor

2.

Shim

3.

Transaxle assembly

4.

O-ring

: Apply CVT fluid.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0687GB

JPDIA0617ZZ
