DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

2WD

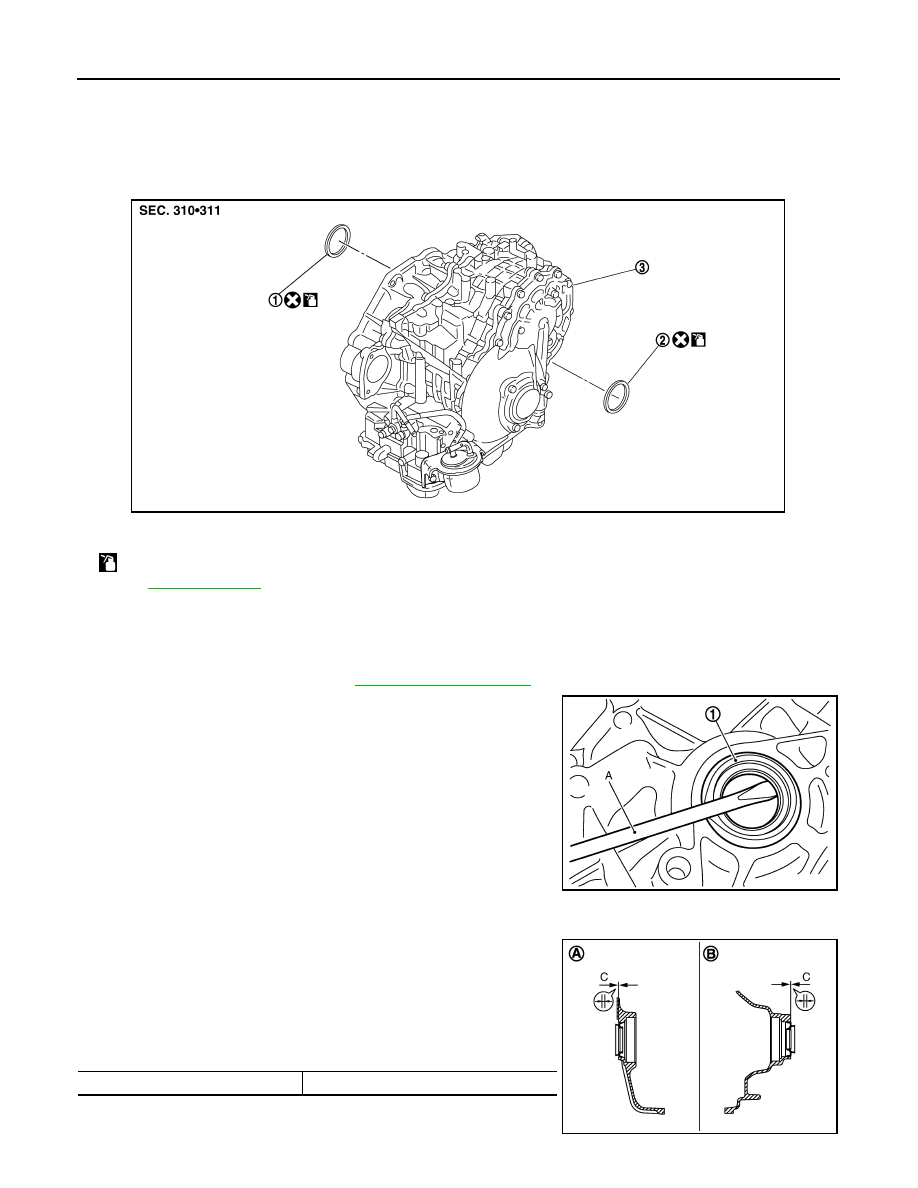

2WD : Exploded View

INFOID:0000000009719587

2WD : Removal and Installation

INFOID:0000000009719588

REMOVAL

1.

Remove front drive shafts. Refer to

FAX-18, "Exploded View"

.

2.

Remove differential side oil seals (1) using a flat-bladed screw-
driver (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Drive each differential side oil seal evenly using a commercial ser-

vice tool so that differential side oil seal protrudes by the dimension
(C) respectively.

Unit: mm (in)

NOTE:
Differential side oil seal pulling direction is used as the reference.

1.

RH differential side oil seal

2.

LH differential side oil seal

3.

Transaxle assembly

: Apply CVT fluid.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0593ZZ

JPDIA0118ZZ

A

: Transaxle case side

B

: Converter housing side

Dimension C

0

±

 0.5 (0

±

 0.020)

JPDIA0618ZZ

DIFFERENTIAL SIDE OIL SEAL

TM-175

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CAUTION:

• Never reuse differential side oil seals.
• Apply CVT fluid to differential side oil seals.

Drift to be used:

2WD : Inspection

INFOID:0000000009719589

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-151, "Inspection"

.

AWD

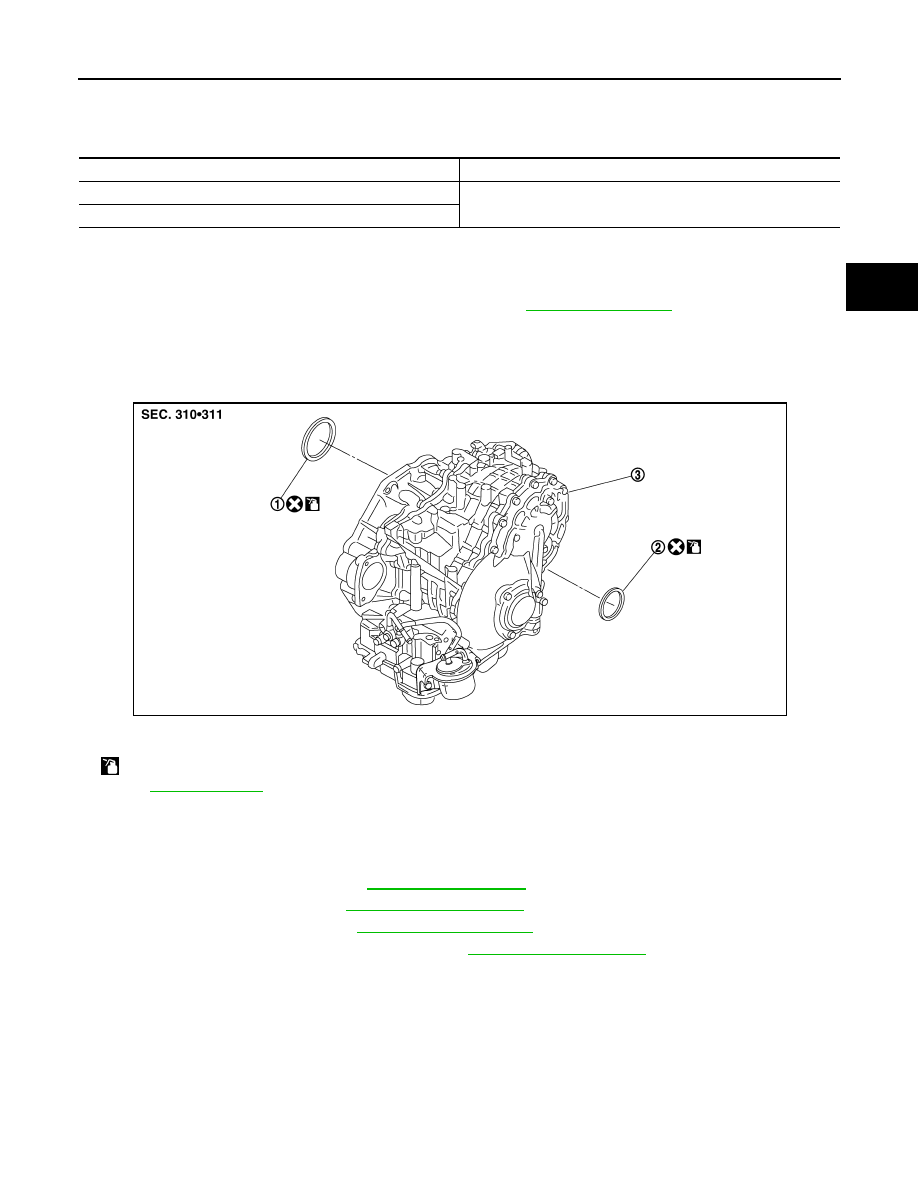

AWD : Exploded View

INFOID:0000000009719590

AWD : Removal and Installation

INFOID:0000000009719591

REMOVAL

1.

Remove exhaust front tube. Refer to

EX-5, "Exploded View"

.

2.

Separate propeller shaft. Refer to

DLN-85, "Exploded View"

.

3.

Remove front drive shafts. Refer to

FAX-45, "Exploded View"

.

4.

Remove transfer from transaxle assembly. Refer to

DLN-55, "Exploded View"

.

Location

Tool number (Kent-Moore No.)

Transaxle case side

ST33400001 (J-26082)

Converter housing side

1.

Side oil seal (transfer joint)

2.

LH differential side oil seal

3.

Transaxle assembly

: Apply CVT fluid.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0594ZZ

TM-176

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

DIFFERENTIAL SIDE OIL SEAL

5.

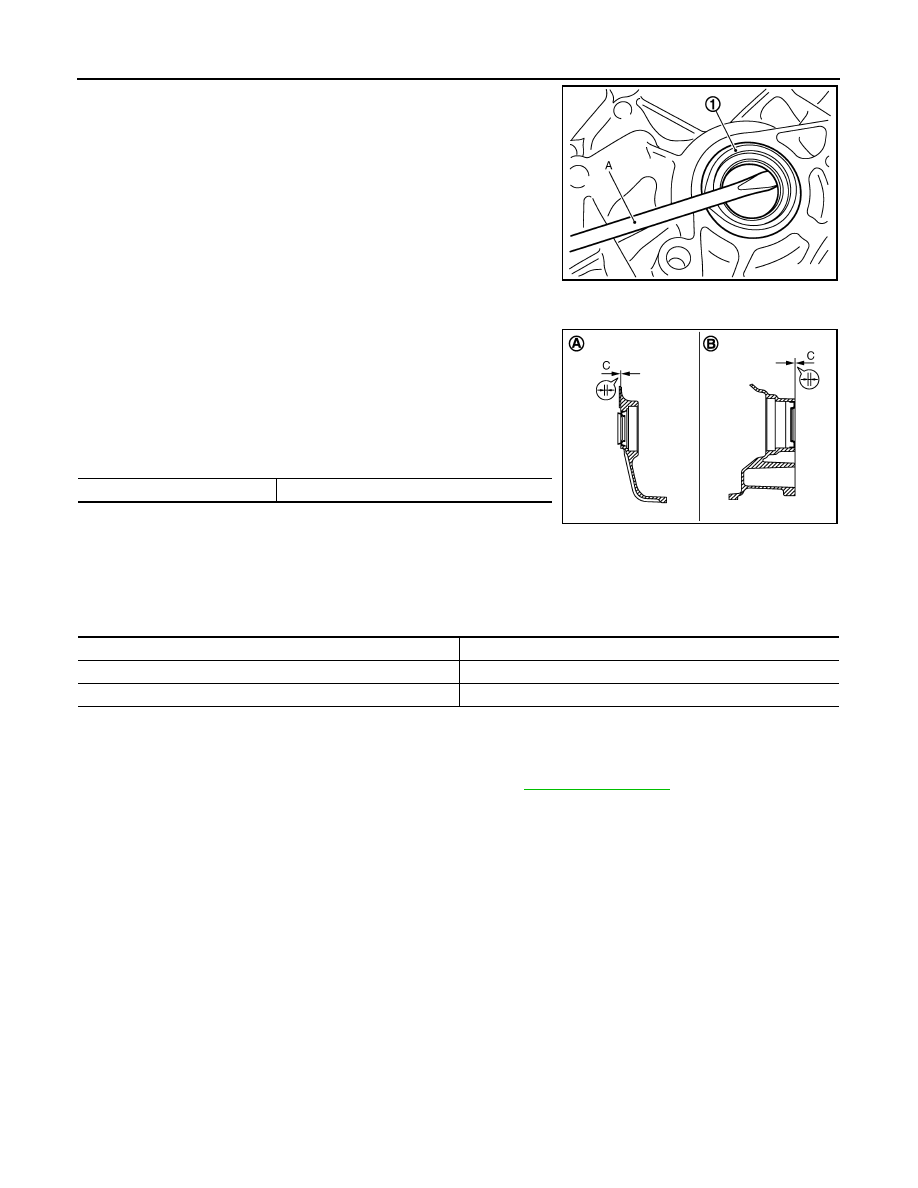

Remove differential side oil seal (1) and side oil seal (transfer
joint) using a flat-bladed screwdriver (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Drive each differential side oil seal and side oil seal (transfer joint)

evenly using a commercial service tool so that differential side oil
seal and side oil seal (transfer joint) protrudes by the dimension
(C) respectively.

Unit: mm (in)

NOTE:
Differential side oil seal and side oil seal (transfer joint) pulling direc-
tion is used as the reference.

CAUTION:

• Never reuse differential side oil seals and side oil seal (transfer joint).
• Apply CVT fluid to differential side oil seals and side oil seal (transfer joint).

Drift to be used:

AWD : Inspection

INFOID:0000000009719592

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-151, "Inspection"

.

JPDIA0118ZZ

A

: Transaxle case side

B

: Converter housing side

Dimension C

0

±

 0.5 (0

±

 0.020)

JPDIA0619ZZ

Location

Tool number (Kent-Moore No.)

Differential side oil seal

ST33400001 (J-26082)

Side oil seal (transfer joint)

KV40100621 (J-25405)

AIR BREATHER HOSE

TM-177

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

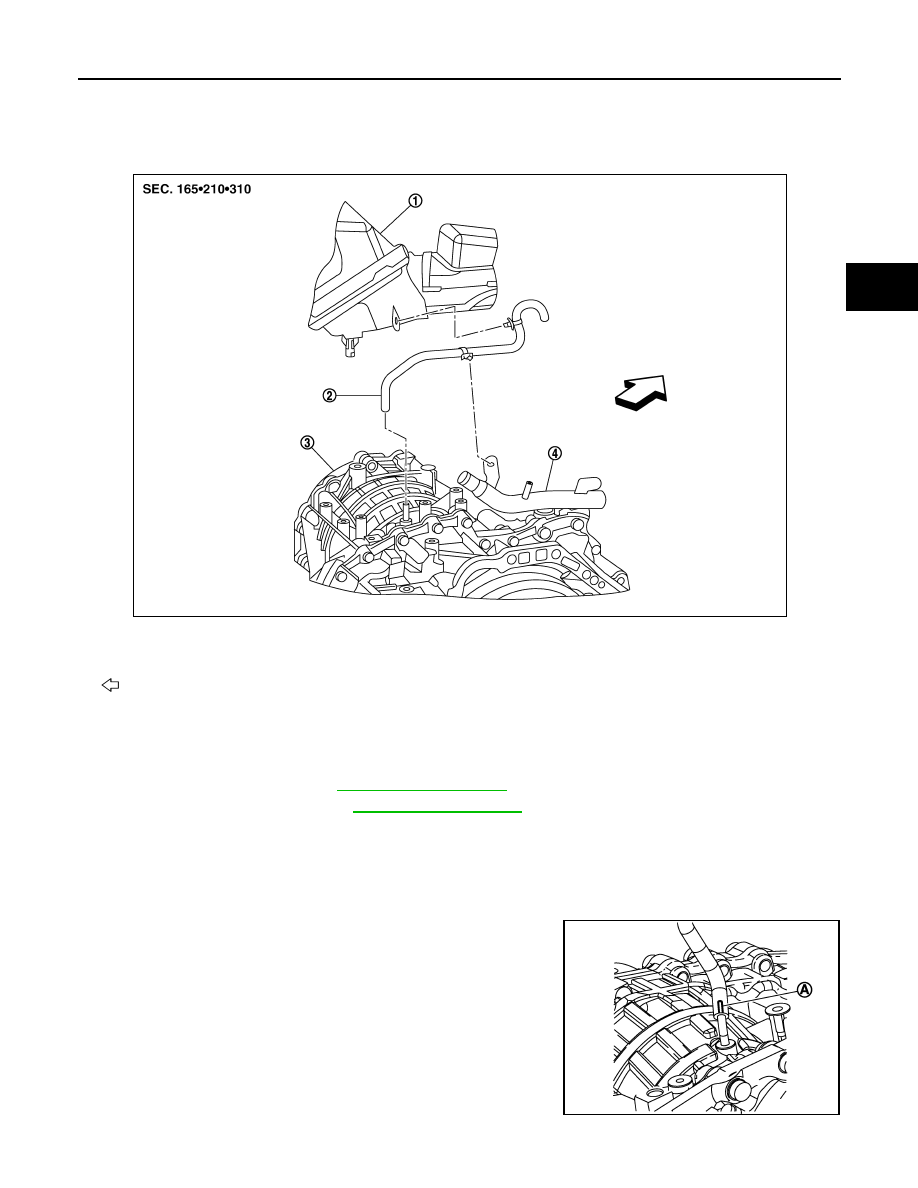

Exploded View

INFOID:0000000009719593

Removal and Installation

INFOID:0000000009719594

REMOVAL

1.

Remove air duct (inlet). Refer to

EM-31, "Exploded View"

.

2.

Remove air cleaner case. Refer to

EM-31, "Exploded View"

.

3.

Remove air breather hose from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Check that air breather hose is not collapsed or blocked due to folding or bending when installed.
• Install air breather hose to air breather tube so that the paint mark

(A) faces upward. Also insert hose to the bend of air breather tube.

1.

Air cleaner case

2.

Air breather hose

3.

Transaxle assembly

4.

Heater pipe

: Vehicle front

JPDIA0592ZZ

SCIA7584J
