TM-158

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

LINE PRESSURE TEST

LINE PRESSURE TEST

Inspection and Judgment

INFOID:0000000009719566

INSPECTION

Line Pressure Test Procedure

1.

Inspect the amount of engine oil and replenish if necessary.

2.

Drive the car for about 10 minutes to warm it up so that the CVT fluid reaches in the range of 50 to 80

°

C

(122 to 176

°

F). Then inspect the amount of CVT fluid and replenish if necessary.

NOTE:
The CVT fluid temperature rises in the range of 50 to 80

°

C (122 to 176

°

F) during 10 minutes of driv-

ing.

3.

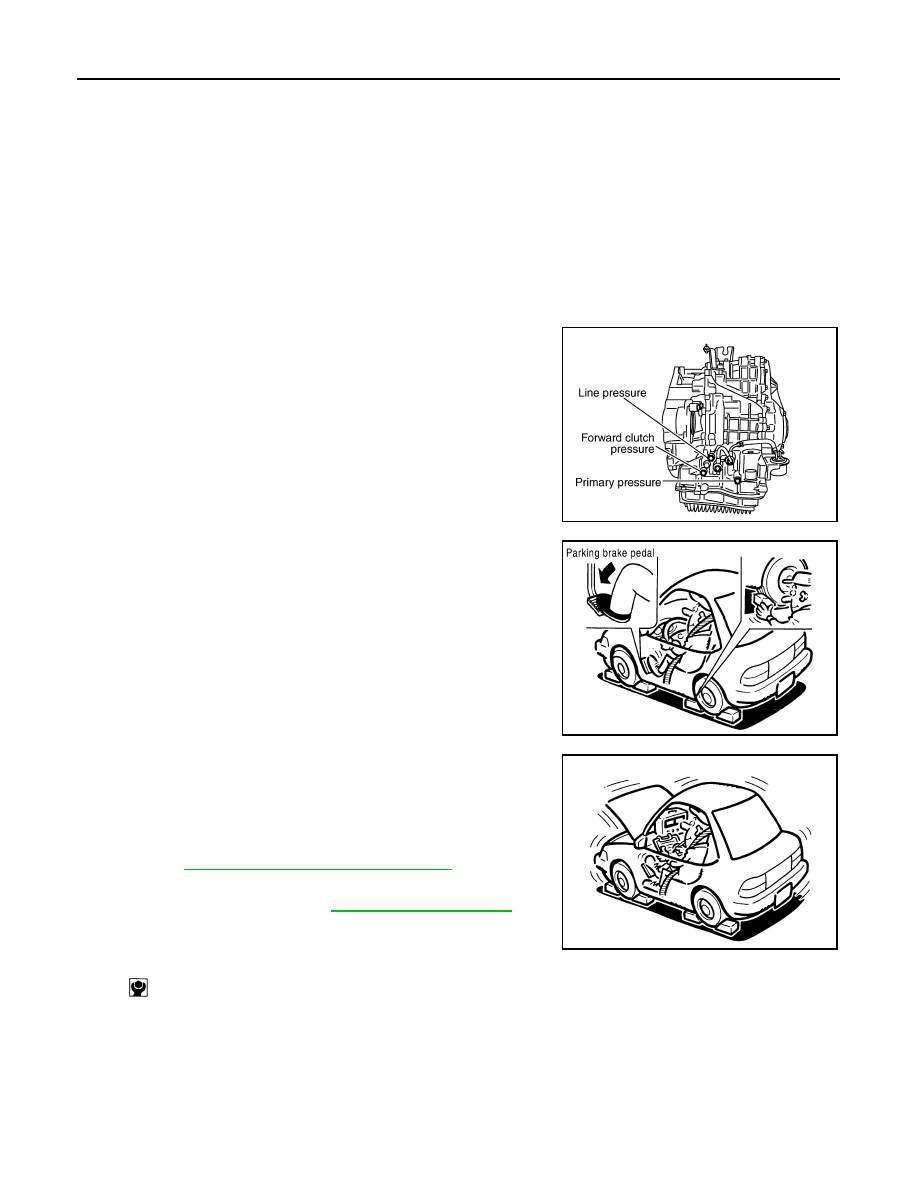

After warming up transaxle assembly, remove oil pressure
detection plug and install oil pressure gauge [special service
tool: — (OTC3492)].

CAUTION:

When using oil pressure gauge, be sure to use O-ring
attached to oil pressure detection plug.

4.

Securely engage parking brake so that the tires do not turn.

5.

Start the engine, and then measure the line pressure at both idle
and the stall speed.

CAUTION:

• Keep brake pedal pressed all the way down during mea-

surement.

• When measuring the line pressure at the stall speed.

Refer to

TM-156, "Inspection and Judgment"

6.

Install oil pressure detection plug and tighten to the specified
torque below after the measurements are complete.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

JUDGMENT

SCIA7972E

SCIA7463E

Line pressure

: Refer to

TM-185, "Line Pressure"

.

: 7.5 N·m (0.77 kg-m, 66 in-lb)

SAT493G

LINE PRESSURE TEST

TM-159

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Judgment Possible

cause

Idle speed

Low for all positions
(“P”, “R”, “N”, “D”, “L”)

Possible causes include malfunctions in the pressure supply system and low oil pump output.
For example
• Oil pump wear
• Pressure regulator valve or plug sticking or spring fatigue
• Oil strainer

 oil pump

 pressure regulator valve passage oil leak

• Engine idle speed too low

Only low for a specific
position

Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.

High

Possible causes include a sensor malfunction or malfunction in the line pressure adjustment
function.
For example
• Accelerator pedal position signal malfunction
• CVT fluid temperature sensor malfunction
• Pressure control solenoid A (line pressure solenoid) malfunction (sticking in OFF state, filter

clog, cut line)

• Pressure regulator valve or plug sticking

Stall speed

Line pressure does not
rise higher than the line
pressure for idle.

Possible causes include a sensor malfunction or malfunction in the pressure adjustment func-
tion.
For example
• Accelerator pedal position signal malfunction
• TCM  malfunction
• Pressure control solenoid A (line pressure solenoid) malfunction (shorting, sticking in ON

state)

• Pressure regulator valve or plug sticking

The pressure rises, but
does not enter the
standard position.

Possible causes include malfunctions in the pressure supply system and malfunction in the pres-
sure adjustment function.
For example
• Accelerator pedal position signal malfunction
• Pressure control solenoid A (line pressure solenoid) malfunction (sticking, filter clog)
• Pressure regulator valve or plug sticking

Only low for a specific
position

Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.

TM-160

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

ROAD TEST

ROAD TEST

Description

INFOID:0000000009719567

DESCRIPTION

• The purpose of the test is to determine the overall performance of

CVT and analyze causes of problems.

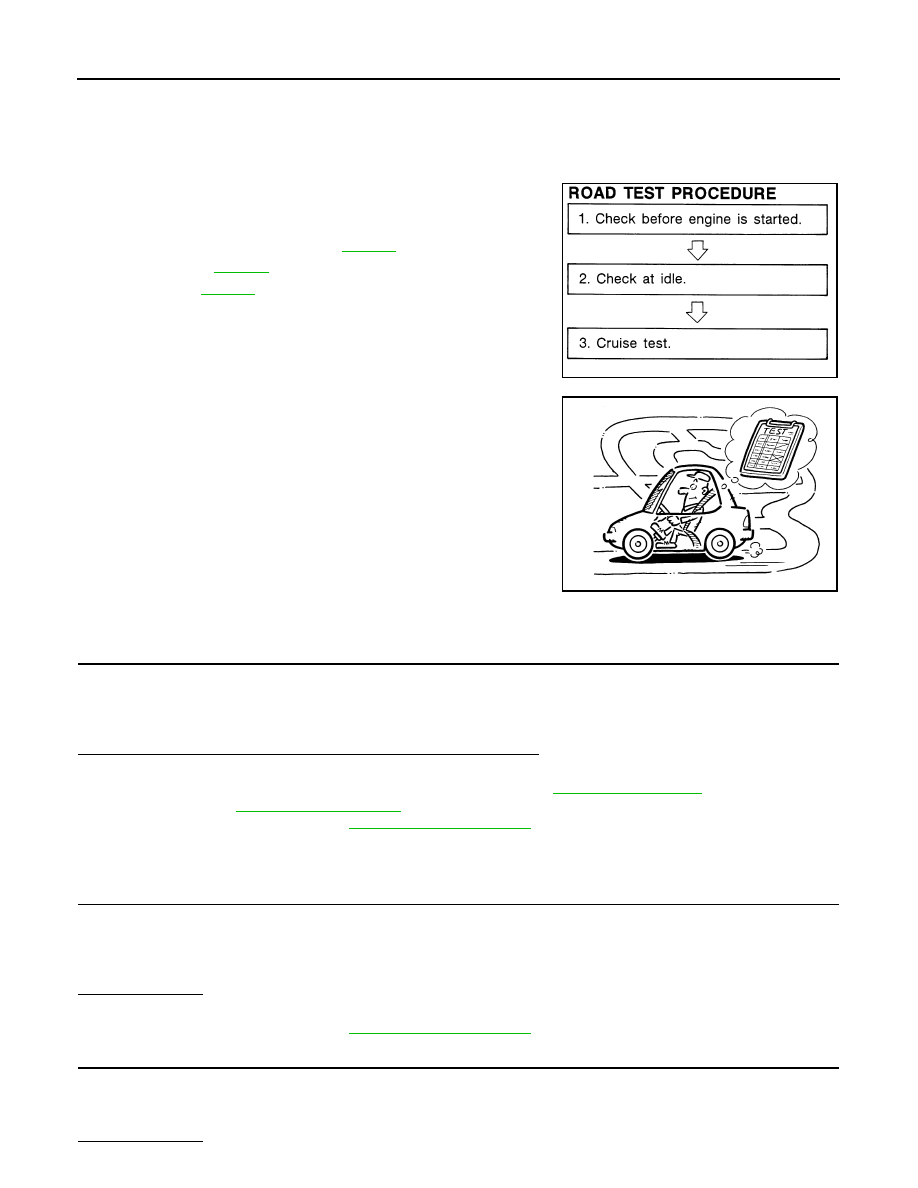

• The road test consists of the following three parts:

1.

“Check Before Engine Is Started”

TM-160

.

2.

“Check at Idle”

TM-160

.

3.

“Cruise Test”

TM-161

.

• Before the road test, familiarize yourself with all test procedures

and items to check.

• Perform tests for all the check items until a malfunction phenome-

non is detected. Perform diagnosis for NG items after the comple-
tion of road tests.

Check before Engine Is Started

INFOID:0000000009719568

1.

CHECK OD OFF INDICATOR LAMP

1.

Park vehicle on flat surface.

2.

Move selector lever to “P” position.

3.

Turn ignition switch OFF. Wait at least 5 seconds.

4.

Turn ignition switch ON. (Never start engine.)

Has OD OFF indicator lamp been turned ON for about 2 seconds?

YES

>> 1.

Turn ignition switch OFF.

2.

Perform self-diagnosis and note NG items. Refer to

TM-128, "DTC Index"

.

3.

Go to

TM-160, "Check at Idle"

.

NO

>> Stop “Road Test”. Refer to

TM-129, "Symptom Table"

.

Check at Idle

INFOID:0000000009719569

1.

CHECK STARTING THE ENGINE (PART 1)

1.

Park vehicle on flat surface.

2.

Move selector lever to “P” or “N” position.

3.

Turn ignition switch OFF.

4.

Turn ignition switch to “START” position.

Is engine started?

YES

>> GO TO 2.

NO

>> Stop “Road Test”. Refer to

TM-129, "Symptom Table"

.

2.

CHECK STARTING THE ENGINE (PART 2)

1.

Turn ignition switch ON.

2.

Move selector lever to “D”, “L” or “R” position.

3.

Turn ignition switch to “START” position.

Is engine started?

SAT786A

SAT496G

ROAD TEST

TM-161

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

YES

>> Stop “Road Test”. Refer to

TM-129, "Symptom Table"

.

NO

>> GO TO 3.

3.

CHECK “P” POSITION FUNCTION

1.

Move selector lever to “P” position.

2.

Turn ignition switch OFF.

3.

Release parking brake.

4.

Push vehicle forward or backward.

5.

Apply parking brake.

Does vehicle move forward or backward?

YES

>> Refer to

TM-129, "Symptom Table"

. GO TO 4.

NO

>> GO TO 4.

4.

CHECK “N” POSITION FUNCTION

1.

Start engine.

2.

Move selector lever to “N” position.

3.

Release parking brake.

Does vehicle move forward or backward?

YES

>> Refer to

TM-129, "Symptom Table"

. GO TO 5.

NO

>> GO TO 5.

5.

CHECK SHIFT SHOCK

1.

Apply foot brake.

2.

Move selector lever to “R” position.

Is there large shock when changing from “N” to “R” position?

YES

>> Refer to

TM-129, "Symptom Table"

. GO TO 6.

NO

>> GO TO 6.

6.

CHECK “R” POSITION FUNCTION

Release foot brake for several seconds.
Does vehicle creep backward when foot brake is released?

YES

>> GO TO 7.

NO

>> Refer to

TM-129, "Symptom Table"

. GO TO 7.

7.

CHECK “D” POSITION FUNCTION

Move selector lever to “D” and “L” position and check if vehicle creeps forward.

Does vehicle creep forward in all positions?

YES

>> Go to

TM-161, "Cruise Test"

.

NO

>> Stop “Road Test”. Refer to

TM-129, "Symptom Table"

.

Cruise Test

INFOID:0000000009719570

1.

CHECK VEHICLE SPEED WHEN SHIFTING GEARS (PART 1)

1.

Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.

2.

Park vehicle on flat surface.

3.

Move selector lever to “P” position.

4.

Start engine.

5.

Move selector lever to “D” position.

CVT fluid operating temperature

: 50 – 80

°

C (122 – 176

°

F)
