Nissan Murano. Manual - part 1401





TM-146

< PRECAUTION >

[CVT: RE0F09B]

PRECAUTIONS

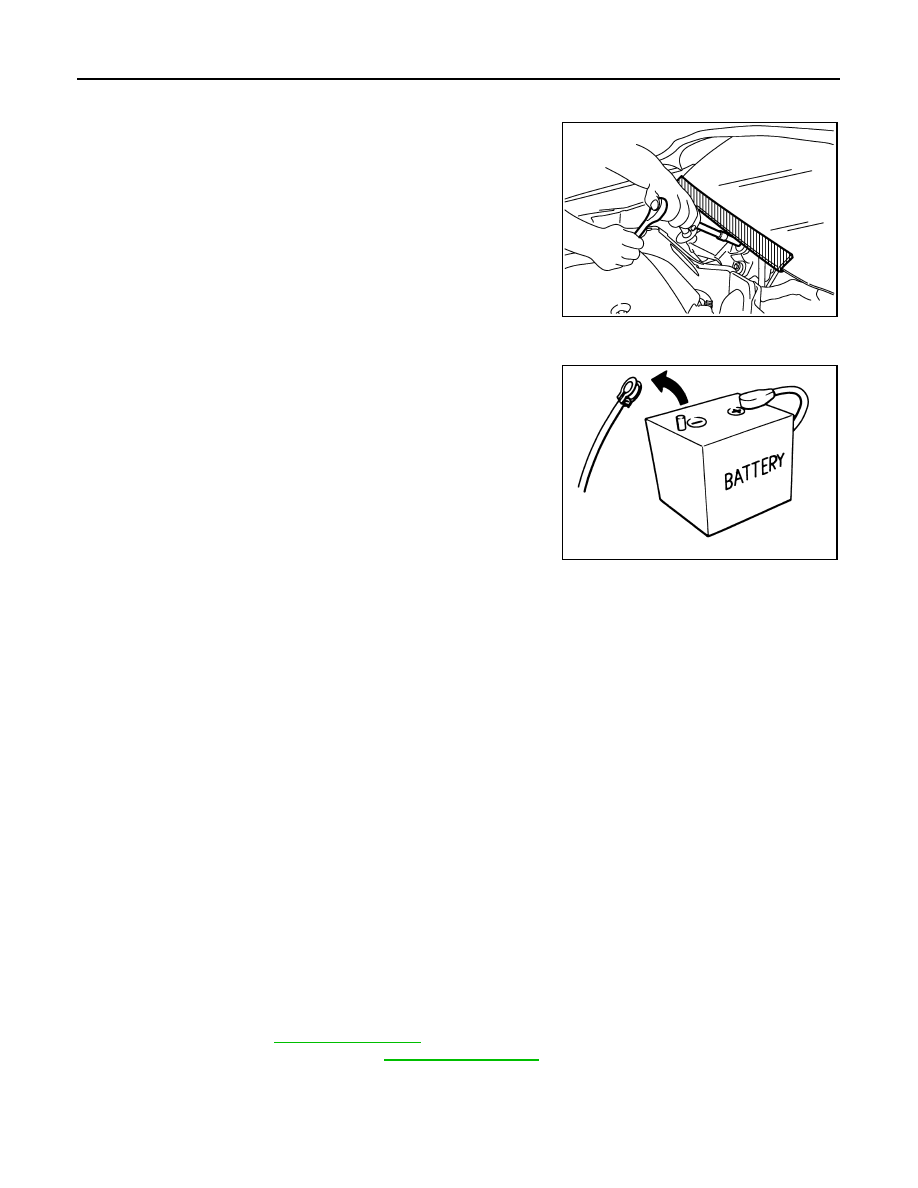

FOR MEXICO : Precaution for Procedure without Cowl Top Cover

INFOID:0000000009719553

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

FOR MEXICO : Precautions for Removing of Battery Terminal

INFOID:0000000010056677

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

FOR MEXICO : Precaution for On Board Diagnosis (OBD) System of CVT and Engine

INFOID:0000000009719554

The ECM has an on board diagnostic system. It will light up the malfunction indicator (MIL) to warn the driver
of a malfunction causing emission deterioration.

CAUTION:

• Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative terminal

before any repair or inspection work. The open/short circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.

• Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will

cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

• Be sure to route and secure the harnesses properly after work. Interference of the harness with a

bracket, etc. may cause the MIL to light up due to a short circuit.

• Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube

may cause the MIL to light up due to a malfunction of the EVAP system or fuel injection system, etc.

• Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and

ECM before returning the vehicle to the customer.

FOR MEXICO : Precaution for TCM and Transaxle Assembly Replacement

INFOID:0000000009719555

CAUTION:

• To replace TCM, refer to

TM-8, "Description"

.

• To replace transaxle assembly, refer to

TM-10, "Description"

.

PIIB3706J

SEF289H

PRECAUTIONS

TM-147

< PRECAUTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

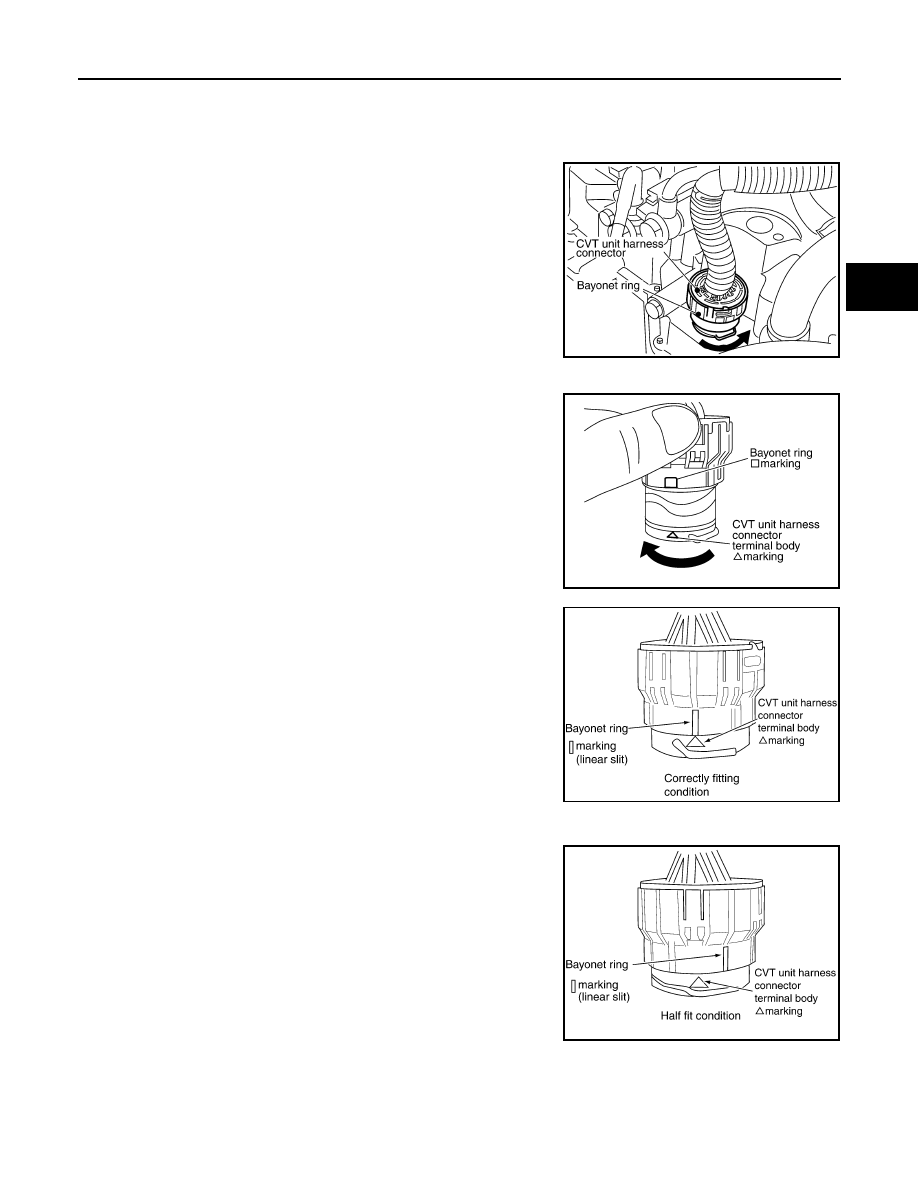

FOR MEXICO : Removal and Installation Procedure for CVT Unit Connector

INFOID:0000000009719556

REMOVAL

Rotate bayonet ring counterclockwise. Pull out CVT unit harness
connector upward and remove it.

INSTALLATION

1.

Align

 marking on CVT unit harness connector terminal body

with

†

 marking on bayonet ring. Insert CVT unit harness con-

nector. Then rotate bayonet ring clockwise.

2.

Rotate bayonet ring clockwise until

 marking on CVT unit har-

ness connector terminal body is aligned with the slit on bayonet
ring as shown in the figure (correctly fitting condition). Install
CVT unit harness connector to CVT unit harness connector ter-
minal body.

CAUTION:

• Securely align

 marking on CVT unit harness connector

terminal body with bayonet ring slit. Then, be careful not
to make a half fit condition as shown in the figure.

• Never mistake the slit of bayonet ring for other dent por-

tion.

SCIA2096E

SCIA2097E

SCIA2098E

SCIA2099E

TM-148

< PRECAUTION >

[CVT: RE0F09B]

PRECAUTIONS

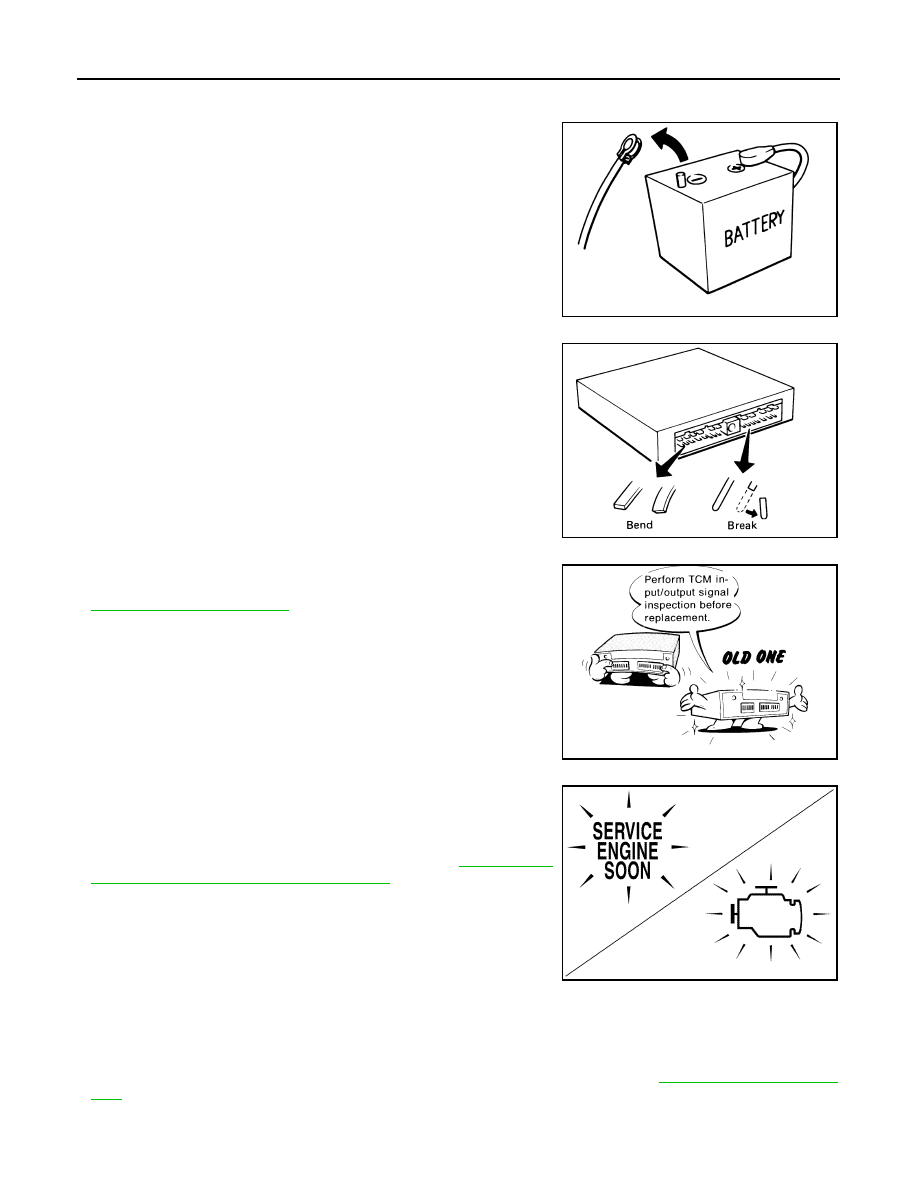

FOR MEXICO : Precaution

INFOID:0000000009719557

• Turn ignition switch OFF and disconnect negative battery

cable before connecting or disconnecting the TCM harness
connector. Because battery voltage is applied to TCM even if
ignition switch is turned OFF.

• When connecting or disconnecting pin connectors into or

from TCM, do not damage pin terminals (bend or break).
Check that there are not any bends or breaks on TCM pin ter-
minal, when connecting pin connectors.

• Perform TCM input/output signal inspection and check

whether TCM functions normally or not before replacing TCM.

TM-116, "Reference Value"

.

• Perform “DTC Confirmation Procedure” after performing each

TROUBLE DIAGNOSIS.
If the repair is completed the DTC should not be displayed in
the “DTC Confirmation Procedure”.

• Always use the specified brand of CVT fluid. Refer to

MA-15, "FOR

NORTH AMERICA : Fluids and Lubricants"

.

• Use lint-free paper, not cloth rags, during work.
• Dispose of the waste oil using the methods prescribed by law, ordi-

nance, etc. after replacing the CVT fluid.

FOR MEXICO : Service Notice or Precaution

INFOID:0000000009719558

OBD-II SELF-DIAGNOSIS

• CVT self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through

the blinking pattern of the Malfunction Indicator Lamp (MIL). Refer to the table on

TM-38, "CONSULT Func-

tion"

 for the indicator used to display each self diagnostic result.

• The self diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM memo-

ries.

SEF289H

SEF291H

MEF040DA

JSBIA1315ZZ

PRECAUTIONS

TM-149

< PRECAUTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Always perform the procedure on

TM-36, "Diagnosis Description"

 to complete the repair and avoid

unnecessary blinking of the MIL.

For details of OBD-II, refer to

EC-118, "Diagnosis Description"

.

• Certain systems and components, especially those related to OBD, may use the new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

PG-86

.

FOR MEXICO : ATFTEMP COUNT Conversion Table

INFOID:0000000009719559

ATFTEMP COUNT

Temperature

°

C (

°

F)

ATFTEMP COUNT

Temperature

°

C (

°

F)

4

–30 (–22)

177

90 (194)

8

–20 (–4)

183

95 (203)

13

–10 (14)

190

100 (212)

17

–5 (23)

196

105 (221)

21

0 (32)

201

110 (230)

27

5 (41)

206

115 (239)

32

10 (50)

210

120 (248)

39

15 (59)

214

125 (257)

47

20 (68)

218

130 (266)

55

25 (77)

221

135 (275)

64

30 (86)

224

140 (284)

73

35 (95)

227

145 (293)

83

40 (104)

229

150 (302)

93

45 (113)

231

155 (311)

104

50 (122)

233

160 (320)

114

55 (131)

235

165 (329)

124

60 (140)

236

170 (338)

134

65 (149)

238

175 (347)

143

70 (158)

239

180 (356)

152

75 (167)

241

190 (374)

161

80 (176)

243

200 (392)

169

85 (185)
