TM-110

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

SHIFT LOCK SYSTEM

Component Function Check

INFOID:0000000009719530

1.

 CHECK CVT SHIFT LOCK OPERATION

1.

Turn ignition switch ON.

2.

Move selector lever to “P” position.

3.

Attempt to shift selector lever to any other position with brake pedal released.

Can selector lever be shifted to any other position?

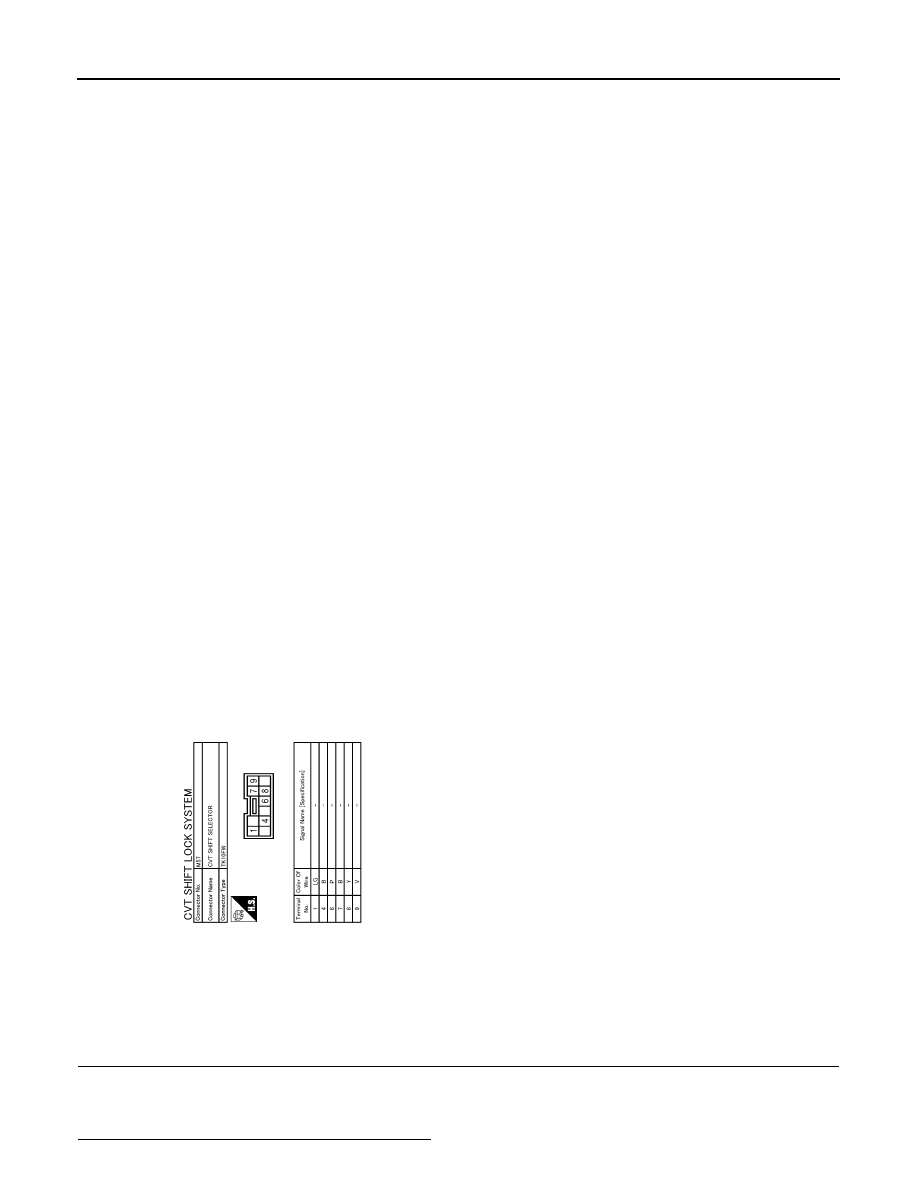

JRDWC1703GB

SHIFT LOCK SYSTEM

TM-111

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

YES

>> Go to

TM-111, "Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

 CHECK CVT SHIFT LOCK OPERATION

Attempt to shift selector lever to any other position with brake pedal depressed.

Can the selector lever be shifted to any other position?

YES

>> INSPECTION END

NO

>> Go to

TM-111, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009719531

1.

 CHECK POWER SOURCE

1.

Turn ignition switch OFF.

2.

Disconnect fuse block (J/B) connector.

3.

Turn ignition switch ON.

4.

Check voltage between fuse block (J/B) connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>>

Check the following.

• 10A fuse [No. 3, located in fuse block (J/B)]
• Ignition switch

2.

CHECK HARNESS BETWEEN FUSE BLOCK (J/B) AND STOP LAMP SWITCH (PART 1)

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch connector.

3.

Check continuity between fuse block (J/B) vehicle side harness connector terminal and stop lamp switch
vehicle side harness connector terminal.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK HARNESS BETWEEN FUSE BLOCK (J/B) AND STOP LAMP SWITCH (PART 2)

Check continuity between stop lamp switch vehicle side harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK STOP LAMP SWITCH

Check stop lamp switch. Refer to

TM-113, "Component Inspection (Stop Lamp Switch)"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace stop lamp switch. Refer to

BR-20, "Exploded View"

.

Fuse block (J/B) connector

Ground

Voltage (Approx.)

Connector

Terminal

E103

4F

Battery voltage

Fuse block (J/B) vehicle side harness connector

Stop lamp switch vehicle side harness connector

Continuity

Connector

Terminal

Connector

Terminal

E103

4F

E116

3

Existed

Stop lamp switch vehicle side harness connector

Ground

Continuity

Connector

Terminal

E116

3

Not existed

TM-112

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

SHIFT LOCK SYSTEM

5.

CHECK HARNESS BETWEEN STOP LAMP SWITCH AND CVT SHIFT SELECTOR (PART 1)

1.

Disconnect CVT shift selector connector.

2.

Check continuity between stop lamp switch vehicle side harness connector terminal and CVT shift selec-
tor vehicle side harness connector terminal.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace damaged parts.

6.

CHECK HARNESS BETWEEN STOP LAMP SWITCH AND CVT SHIFT SELECTOR (PART 2)

Check continuity between control vehicle side harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair or replace damaged parts.

7.

CHECK GROUND CIRCUIT

Check continuity between CVT shift selector vehicle side harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace damaged parts.

8.

CHECK CVT SHIFT SELECTOR

1.

Shift selector lever to “P” position.

2.

Check continuity between CVT shift selector connector terminals.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace CVT shift selector. Refer to

TM-167, "Exploded View"

.

9.

CHECK SHIFT LOCK SOLENOID

1.

Remove shift lock unit. Refer to

TM-167, "Exploded View"

.

2.

Check shift lock solenoid. Refer to

TM-113, "Component Inspection (Shift Lock Solenoid)"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair or replace damaged parts.

Stop lamp switch vehicle side harness connector

CVT shift selector vehicle side harness connec-

tor

Continuity

Connector

Terminal

Connector

Terminal

E116

4

M57

6

Existed

CVT shift selector vehicle side harness connector

Ground

Continuity

Connector

Terminal

M57

6

Not existed

CVT shift selector vehicle side harness connector

Ground

Continuity

Connector

Terminal

M57

7

Existed

CVT shift selector connector

Continuity

Connector

Terminal

M57

6

7

Existed

SHIFT LOCK SYSTEM

TM-113

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component Inspection (Stop Lamp Switch)

INFOID:0000000009719532

1.

CHECK STOP LAMP SWITCH

Check continuity between stop lamp switch connector terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace stop lamp switch. Refer to

BR-20, "Exploded View"

.

Component Inspection (Shift Lock relay)

INFOID:0000000009719533

1.

CHECK SHIFT LOCK RELAY

Apply voltage to terminals of shift lock relay connector to check the continuity.

CAUTION:

Connect the fuse between the terminals when applying the voltage.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace shift lock relay.

Component Inspection (Shift Lock Solenoid)

INFOID:0000000009719534

1.

CHECK SHIFT LOCK SOLENOID

Apply voltage to CVT shift selector connector terminals and then check that shift lock solenoid is activated.

CAUTION:

Connect the fuse between the terminals when applying the voltage.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace shift lock unit. Refer to

TM-167, "Exploded View"

.

Stop lamp switch connector

Condition

Continuity

Connector

Terminal

E116

3

4

Depressed brake pedal

Existed

Released brake pedal

Not existed

Shift lock relay connector

Condition

Continuity

Connector

Terminal

E53

5

3

Apply 12 V direct voltage between terminals 2 and 1.

Existed

(+) (fuse)

(

−

)

Condition

Status

CVT shift selector connector

Connector

Terminal

M57

6

7

• Park switch: ON
• Apply 12 V direct current be-

tween terminals 6 and 7.

Shift lock solenoid operates
