POWER STEERING FLUID

PERIODIC MAINTENANCE

POWER STEERING FLUID

Inspection

INFOID:0000000009721521

FLUID LEVEL

1.

Check fluid level with engine stopped.

2.

Ensure that fluid level is between MIN and MAX.

3.

Fluid levels at HOT and COLD are different. Do not confuse
them.

CAUTION:

• The fluid level should not exceed the MAX line. Excessive fluid causes fluid leakage from the

cap.

• Never reuse drained power steering fluid.

FLUID LEAKAGE

Check hydraulic connections for fluid leakage, cracks, damage,
looseness, or wear.

1.

Run the engine until the fluid temperature reaches 50 to 80

°

C

(122 to 176

°

F) in reservoir tank, and keep engine speed idle.

2.

Turn steering wheel several times from full left stop to full right
stop.

3.

Hold steering wheel at each lock position for five seconds and
carefully check for fluid leakage.

CAUTION:

Never hold the steering wheel in a locked position for more
than 10 seconds. (There is the possibility that power steer-
ing oil pump assembly may be damaged.)

4.

If fluid leakage at connections is noticed, then loosen flare nut and then retighten. Do not overtighten con-
nector as this can damage O-ring, washer and connector.

5.

If fluid leakage from oil pump is noticed, check oil pump.

6.

Check steering gear boots for accumulation of fluid leaked from steering gear.

AIR BLEEDING HYDRAULIC SYSTEM

If air bleeding is not complete, the following symptoms can be observed.
• Bubbles are created in reservoir tank.
• Clicking noise can be heard from oil pump.
• Excessive buzzing in the oil pump.

NOTE:
Fluid noise may occur in the steering gear or oil pump. This does not affect performance or durability of the
system.

1.

Turn steering wheel several times from full left stop to full right stop with engine off.

CAUTION:

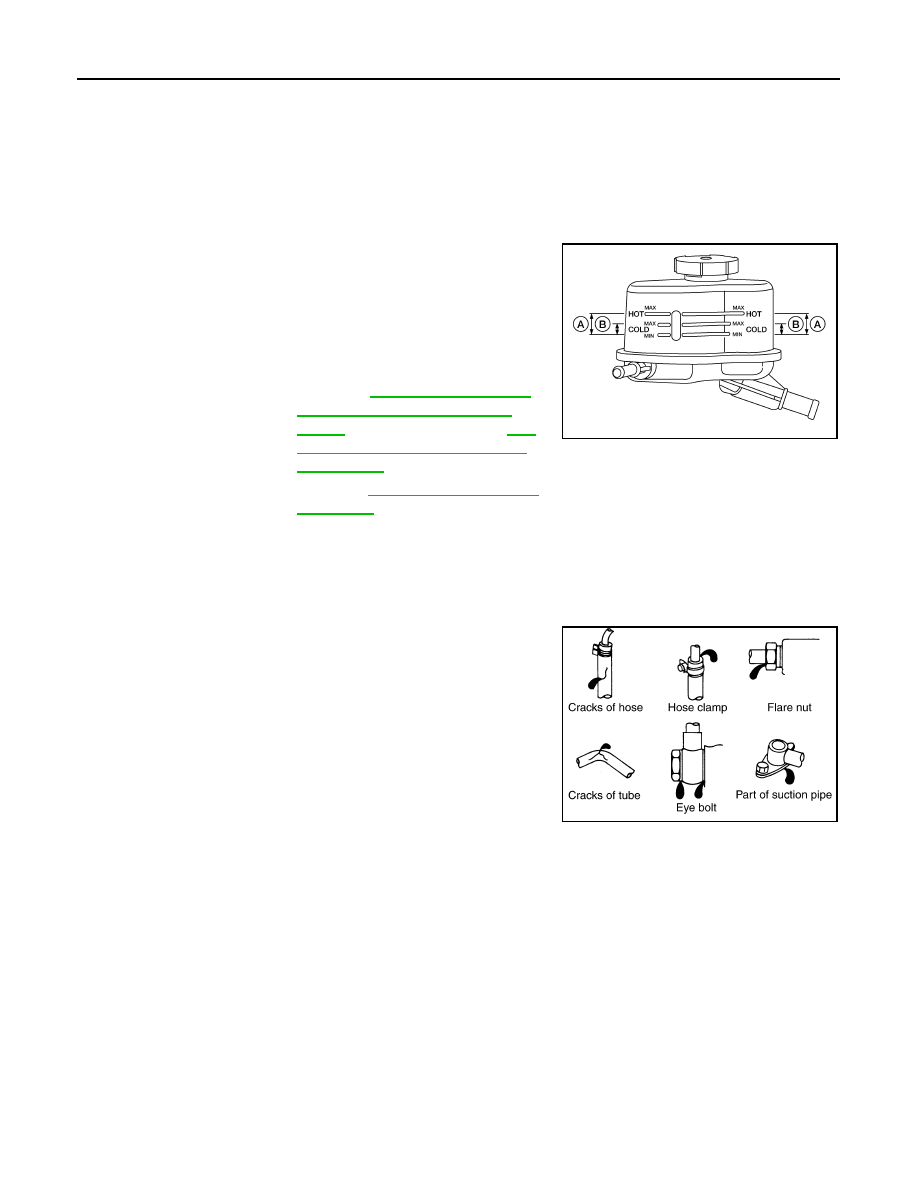

HOT (A)

: Fluid temperature 50 – 80

°

C (122 – 176

°

F)

COLD (B)

: Fluid temperature 0 – 30

°

C (32 – 86

°

F)

Recommended fluid

: Refer to

MA-15, "FOR NORTH

AMERICA : Fluids and Lubri-
cants"

 (For North America),

MA-

16, "FOR MEXICO : Fluids and
Lubricants"

 (For Mexico).

Fluid capacity

: Refer to

ST-108, "General Spec-

ifications"

.

ALGIA0002GB

SGIA0506E

POWER STEERING FLUID

ST-79

< PERIODIC MAINTENANCE >

[WITHOUT HEATED STEERING WHEEL]

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

Fill reservoir tank with a sufficient amount of fluid so that fluid level is not below the MIN line while
turning steering wheel.

2.

Start the engine and hold steering wheel at each lock position for 3 second at idle to check for fluid leak-
age.

3.

Repeat step 2 above several times at approximately 3 second intervals.

CAUTION:

Never hold the steering wheel in a locked position for more than 10 seconds. (There is the possi-
bility that oil pump may be damaged.)

4.

Check fluid for bubbles and white contamination.

5.

Stop the engine if bubbles and white contamination do not drain out. Perform step 2 and 3 above after
waiting until bubbles and white contamination drain out.

6.

Stop the engine, and then check fluid level.

ST-80

< PERIODIC MAINTENANCE >

[WITHOUT HEATED STEERING WHEEL]

STEERING WHEEL

STEERING WHEEL

Inspection

INFOID:0000000009721522

STEERING WHEEL AXIAL END PLAY

1.

Check installation conditions of steering gear assembly, front suspension assembly, axle and steering col-
umn assembly.

2.

Check if movement exists when steering wheel is moved up and down, to the left and right and to the axial
direction.

3.

Check the following items when steering wheel axial end play is out of the standard.
• Check the steering column assembly mounting condition. Refer to

ST-82, "Exploded View"

.

• Check steering gear assembly mounting condition for looseness. Refer to

ST-88, "Exploded View"

.

STEERING WHEEL PLAY

1.

Turn steering wheel so that front wheels come to the straight-ahead position.

2.

Start the engine and lightly turn steering wheel to the left and right until front wheels start to move.

3.

Measure steering wheel movement on the outer circumference.

4.

Check the following items when steering wheel play is out of the standard.
• Check backlash for each joint of steering column assembly.
• Check installation condition of steering gear assembly.

Standard

Steering wheel axial end
play

: Refer to

ST-108, "Steer-

ing Wheel Axial End Play
and Play"

.

Standard

Steering wheel play

: Refer to

ST-108, "Steer-

ing Wheel Axial End Play
and Play"

.

STEERING WHEEL

ST-81

< REMOVAL AND INSTALLATION >

[WITHOUT HEATED STEERING WHEEL]

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

REMOVAL AND INSTALLATION

STEERING WHEEL

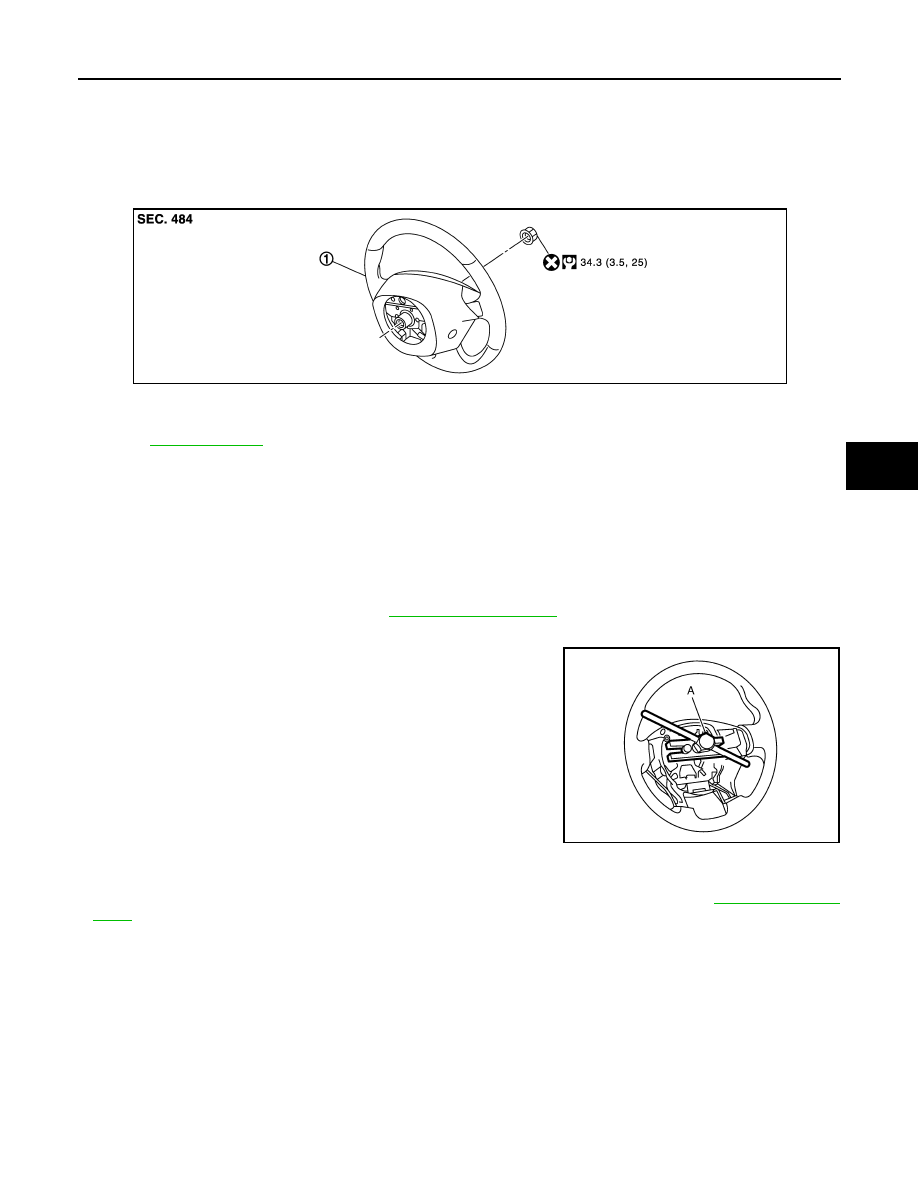

Exploded View

INFOID:0000000009721523

Removal and Installation

INFOID:0000000009721524

REMOVAL

NOTE:
When reconnecting spiral cable, fix cable with a tape so that fixing case and rotating part keep aligned. This
will omit neutral position alignment procedure during spiral cable installation.
1.

Set the vehicle to the straight-ahead position.

2.

Remove driver air bag module. Refer to

SR-12, "Exploded View"

.

3.

Remove steering wheel lock nut after steering is locked.

4.

Remove steering wheel with the steering wheel puller (A) [SST:
ST27180001 (J-25726-A)].
NOTE:
Put paint marks on the steering wheel and the column shaft
head for supporting accurate positioning during the installation
procedure.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Check the spiral cable neutral position after replacing or rotating spiral cable. Refer to

SR-15, "Exploded

View"

.

CAUTION:

Never twist spiral cable freely on excessively after it becomes tight (doing so may cause the cable to
tear off).

• Never reuse steering wheel lock nut.

1.

Steering wheel

Refer to

GI-4, "Components"

 for symbols in the figure.

JSGIA0704GB
