STEERING WHEEL

BASIC INSPECTION

STEERING WHEEL

Inspection

INFOID:0000000009721519

NEUTRAL POSITION STEERING WHEEL

Check that steering gear assembly, steering column assembly and steering wheel are installed in the cor-
rect position.

Perform neutral position inspection after wheel alignment. Refer to

FSU-7, "Inspection"

Set the vehicle to the straight-ahead position and confirm steering wheel is in the neutral position.

Loosen outer socket lock nut and turn inner socket to left and right equally to make fine adjustments if
steering wheel is not in the neutral position.

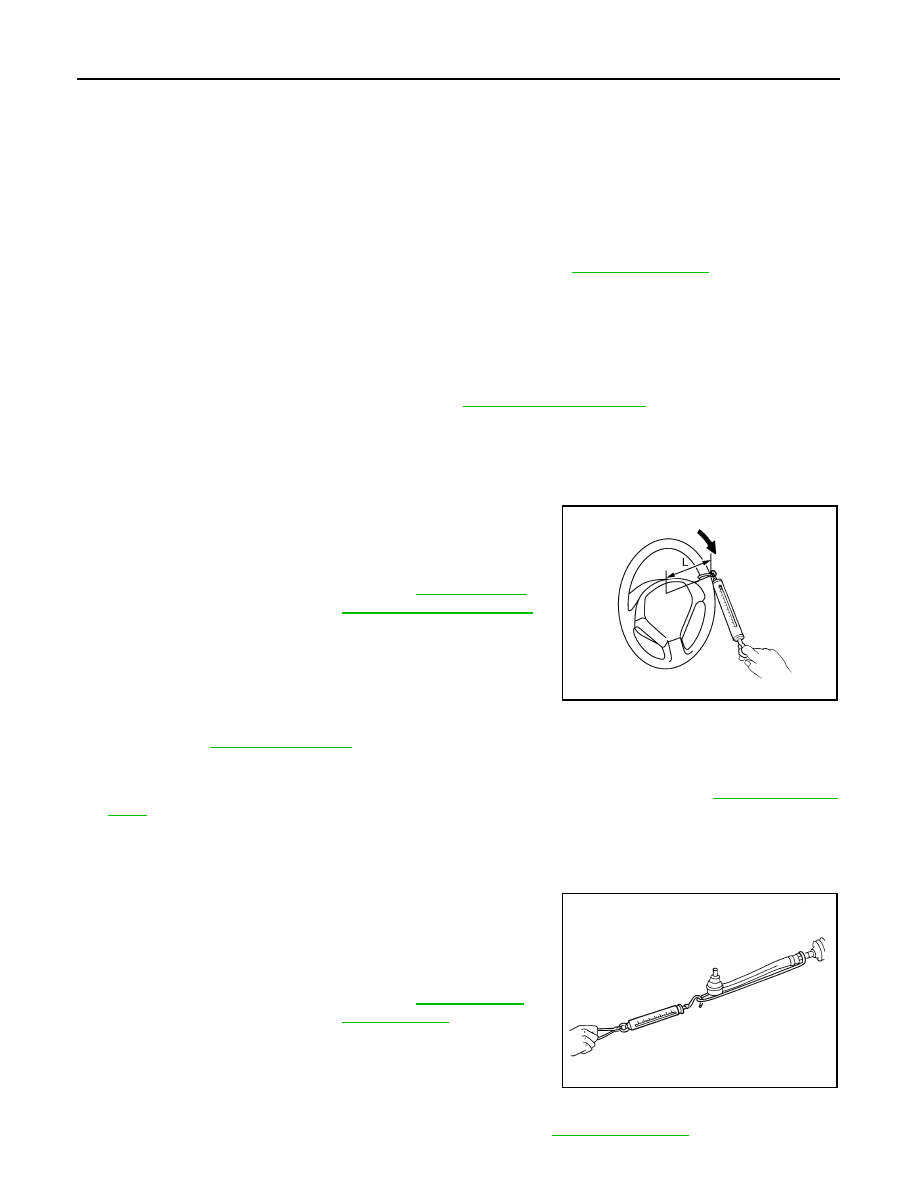

STEERING WHEEL TURNING FORCE

Park the vehicle on a level and dry surface, set parking brake.

Tires need to be inflated normal pressure. Refer to

WT-52, "Tire Air Pressure"

Start the engine.

Bring power steering fluid up to adequate operating temperature.

Check steering wheel turning force when steering wheel has
been turned 540

from neutral position.

NOTE:
Multiply the distance (L) from the hook of spring balance to the
center of steering wheel by the measurement value with a spring
balance.

If steering wheel turning force is out of the specification, check
rack sliding force and relief hydraulic pressure of oil pump. Regarding relief hydraulic pressure of oil
pump, refer to

ST-104, "Inspection"

RACK SLIDING FORCE

Disconnect lower joint and steering knuckle from steering gear assembly. Refer to

ST-85, "Exploded

View"

Start and run the engine at idle to make sure steering fluid has reached normal operating temperature.

While pulling outer socket slowly in

11.5 mm (

0.453 in) range

from neutral position, make sure rack sliding force is within
specification.

If rack sliding force is not within specification, overhaul steering
gear assembly.

FRONT WHEEL TURNING ANGLE

Check front wheel turning angle after toe-in inspection. Refer to

FSU-7, "Inspection"

Fluid temperature

: 50 – 80

C (122 – 176

Standard

Steering wheel turning
force

: Refer to

ST-108, "Steer-

ing Wheel Turning Force"

JSGIA0027ZZ

Fluid temperature

: 50 – 80

C (122 – 176

Standard

Rack sliding force

: Refer to

ST-109, "Rack

Sliding Force"

SST090B

STEERING WHEEL

ST-75

< BASIC INSPECTION >

[WITHOUT HEATED STEERING WHEEL]

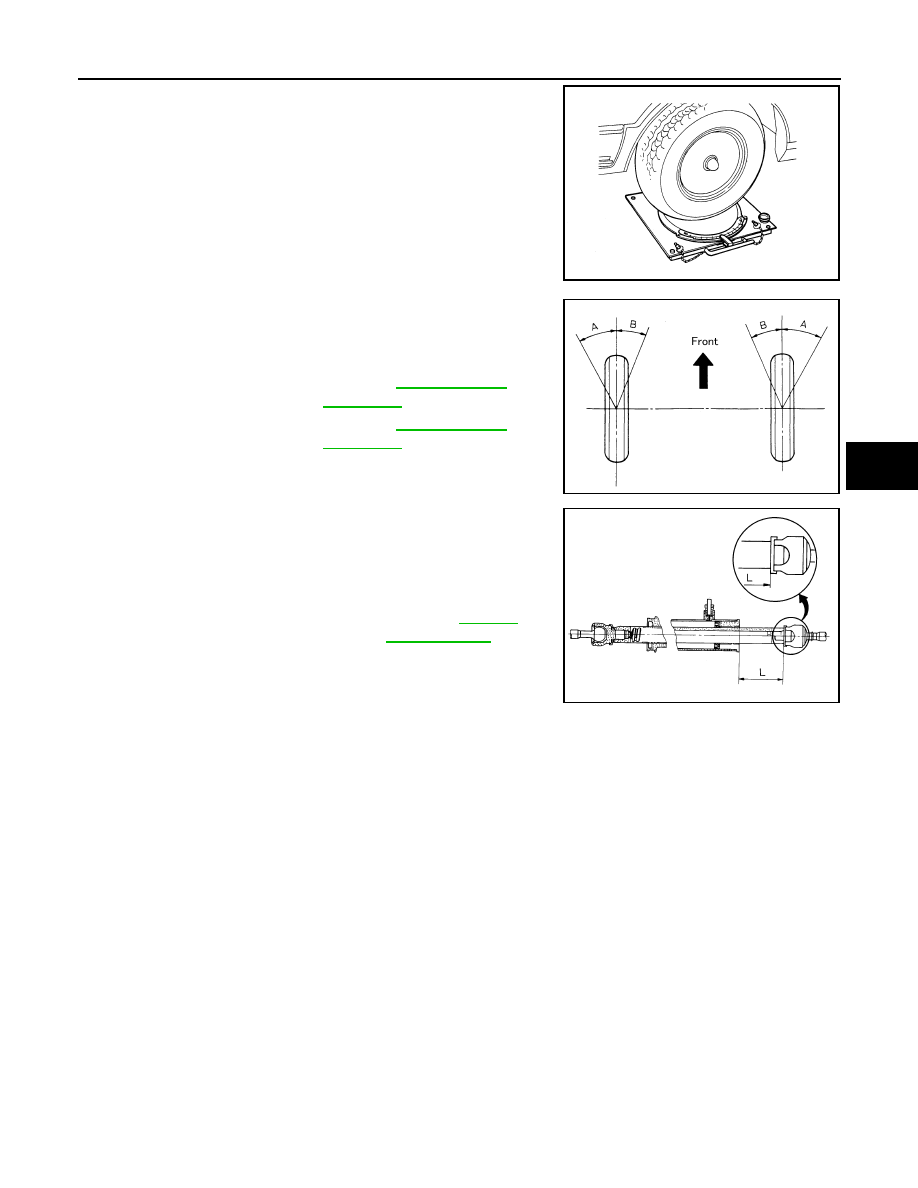

Place front wheels on turning radius gauges and rear wheels on
stands, so that vehicle can be level.

Check the maximum inner and outer wheel turning angles for LH
and RH road wheels.

With the engine at idle, turn steering wheel from full left stop to
full right stop and measure the turning angles.

Check the following items when turning angle is out of the stan-
dard.

Check the neutral position of the rack stroke (L).

Disassemble steering gear assembly to check the cause that
rack stroke is outside of the standard.
• Steering angles are not adjustable. Check steering gear

assembly, steering column assembly and front suspension
components for wear or damage if any of the turning angles are different from the specified value.
Replace any of them, if any non-standard condition exists.

FAA0016D

Standard

Inner wheel (Angle: A)

: Refer to

ST-108, "Steer-

ing Angle"

Outer wheel (Angle: B)

: Refer to

ST-108, "Steer-

ing Angle"

SGIA0055E

Standard
