AV-310

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

SYSTEM

• The position detection is not performed if GPS receiver does not receive radio waves from GPS satellites.

(Inside a tunnel, parking in a building, under an elevated highway etc.) GPS receiver may not receive radio
waves from GPS satellites if any object is placed on the GPS antenna.

NOTE:
• The detection result has an error of approximately 10 m (32.81 ft) even with a high-precision three dimen-

sional positioning.

• There may be cases when the accuracy is lowered and radio waves are stopped intentionally because the

GPS satellite signal is controlled by the US trace control center.

AUDIO FUNCTION

The audio system is equipped with the following functions. Each function is operated with multifunction switch,
preset switch, touch panel, steering switch or voice recognition. Operation status of audio is indicated at dis-
play.

*: For Mexico

Operating Signal

Audio system operation can be performed with multifunction switch, preset switch, steering switch, touch
panel function or voice recognition function.
• Operating signal is transmitted to AV control unit with AV communication when it is operated by multifunction

switch or preset switch. The disk ejection operating signal is performed by hardwire.

• Operating signal is transmitted to AV control unit with steering switch signal when it is operated by steering

switch.

Screen Display

Switching of display is performed with serial communication between display unit and AV control unit.

AM/FM Radio Mode

• AM/FM radio tuner is built into AV control unit.
• AM/FM radio wave is received by rod antenna, next it is amplified by antenna amp., and finally it is input to

AV control unit.

• FM radio wave is received by FM sub antenna, and it is transmitted to the AV control unit directly. The FM

sub antenna is installed on the back door window glass.

• Audio signal is input to BOSE amp. and BOSE amp. outputs to woofer and each speaker for AV control unit.

Satellite Radio Mode

• Satellite radio tuner is built into AV control unit.
• Sound signal (satellite radio) is received by satellite radio antenna and transmitted to AV control unit (satel-

lite radio antenna is built into antenna base.). AV control unit outputs sound signal to BOSE amp. The signal
is also outputted from BOSE amp. to woofer and each speaker.

CD Mode

• CD function is built into AV control unit.
• AV control unit outputs audio signal to BOSE amp., and BOSE amp. outputs to woofer and each speaker

when CD is inserted to AV control unit.

Bluetooth

®

 Audio Mode

• Bluetooth

®

 audio function is built into AV control unit.

• When the Bluetooth

®

 audio is connected to the portable audio equipped with the Bluetooth

®

 communication

compliant profile via Bluetooth

®

 communication, it can be play the music data in the portable audio.

• A maximum of five Bluetooth

®

 devices including the audio devices and cellular phones can be registered in

the AV control unit.

• AV control unit outputs audio signal to BOSE amp., and BOSE amp. outputs to woofer and each speaker.

FUNCTION

AM/FM radio

Satellite radio

CD

Bluetooth

®

 audio

Music Box (Hard Disk Drive)

*

Speed sensitive volume

AV

SYSTEM

AV-311

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Music Box Mode (for Mexico)

• Music CD data is stored on HDD that is built into AV control unit, and it can be played.
• AV control unit outputs music (sound signal) that is stored on HDD to BOSE amp., and BOSE amp. outputs

to woofer and each speaker.

Speed Sensitive Volume

• Volume level of this system gone up and down automatically in proportion to the vehicle speed.
• The control level can be selected by the customer.

DVD PLAY FUNCTION

• DVD is played by inserting DVD into the AV control unit.
• DVD image signals are transmitted to the display unit (except for Mexico), and DVD sound signals are trans-

mitted to woofer and each speaker via BOSE amp.

HANDS-FREE PHONE FUNCTION

• AV control unit includes hands-free phone function.
• Hands-free communication can be operated by connecting using Bluetooth

®

 communication with cellular

phone.

• Operation is performed by steering switch, and operating condition is indicated on display.
• Guide sound that is heard during operation is input from AV control unit to BOSE amp., and is output from

front speaker and center speaker.

When A Call Is Originated

Spoken voice sound output from the microphone (microphone signal) is input to AV control unit. AV control unit
outputs to cellular phone with Bluetooth

®

 communication as a TEL voice signal. Voice sound is then heard at

the other party.

When Receiving A Call

Voice sound is input to own cellular phone from the other party. TEL voice signal is output to front speaker and
center speaker from BOSE amp. via AV control unit by establishing Bluetooth

®

 communication from cellular

phone.

AUXILIARY INPUT FUNCTION

• Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
• AUX image signals are transmitted to the display unit via the AV control unit.
• AUX sound signals are transmitted to BOSE amp. via AV control unit. The signal is also outputted from

BOSE amp. to woofer and each speaker.

USB CONNECTION FUNCTION

• Connecting iPod

®

 or USB memory allows the driver to play iPod

®

 music files or USB memory-stored music

files, video data, and image viewer data.

• Sound signals of music files stored in iPod

®

 or USB memory are transmitted from the USB connector to the

AV control unit. The AV control unit transmits the sound signals to woofer and each speaker via BOSE amp.

• Video signals and image viewer file signals are transmitted from the USB connector to the AV control unit.

The data and files are displayed on the display unit screen.

• iPod

®

 is recharged when connected to USB connector.

• Only files that meet the following conditions will be played.

NOTE:
• iPod

®

 is a trademark of Apple inc., registered in the U.S. and other countries.

• Image signals cannot be received from iPod

®

.

• Use the enclosed USB harness when connecting iPod

®

 to USB connector.

• If a video-sound codec combination is not satisfied, its video file may not be played.

VOICE RECOGNITION FUNCTION

• Each operation of multi AV system can be performed by inputting sound to microphone.

Music file

Video file

Image viewer file

File format

“MP3”, “WMA”, “AAC”, “M4A”

“DivX”, “MPEG4 (ASF)”

“JPEG”

File extension

“.mp3”, “.wma”, “.aac”, “.m4a”

“.divx”, “.afs”, “.avi”

“.jpg”, “.jpeg”

Maximum file size

2 GB

2 GB

2 MB

AV-312

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

SYSTEM

• Start of sound recognition system can be performed by steering switch.

TOUCH PANEL SYSTEM

Each operation of multi AV system can be performed by directly touching a display.

REAR VIEW MONITOR FUNCTION (MODELS WITHOUT LDW AND BSW)

Camera Image Operation Principle

• The AV control unit supplies power to the rear view camera when receiving a reverse signal.
• The rear view camera transmits camera images to the display unit when power is supplied from the AV con-

trol unit.

• The AV control unit transmits a warning message, fixed guide lines, and predictive course lines to the display

unit by RGB digital image signals. Rear view monitor images are displayed by combining the RGB digital
image signals and the camera image signals from the rear view camera.

• Predictive course lines are controlled by a steering angle sensor signal received the AV control unit via CAN

communication.

REAR VIEW MONITOR FUNCTION (MODELS WITH LDW AND BSW)

• This system is equipped with wide-angle high-resolution camera on the rear of the vehicle.
• Rear-wide view function is adopted.
• AV control unit renders the “View” switch and warning message on display.

Operation Description

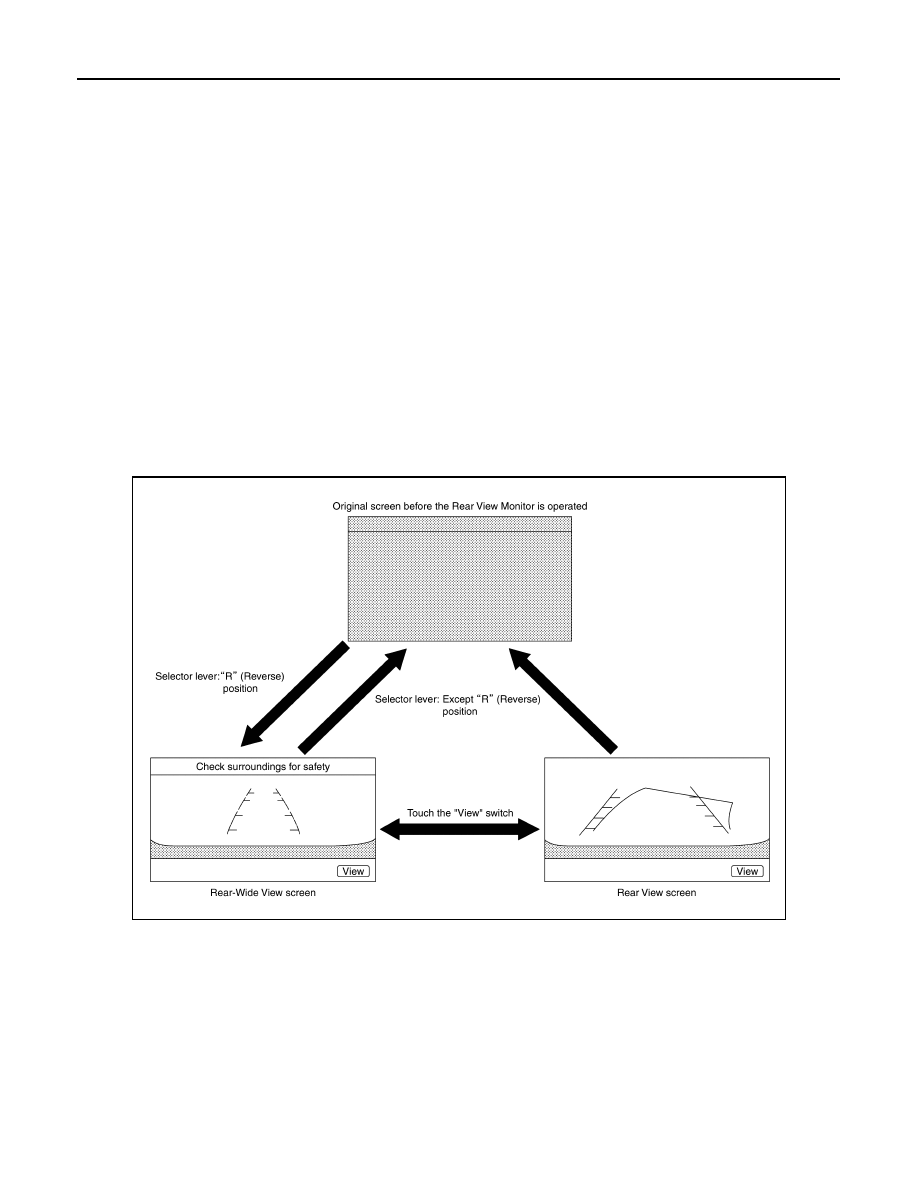

Rear view monitor screen transition

• Rear view monitor is displayed on the display when shifting position is reverse.
• Rear view/rear-wide view can be switched by “View” switch (touch switch) while rear view/rear-wide view is

displayed.

• In permanent OFF, MOD is not operative until MOD is switched to ON by “Driver Assistance” screen.
• When camera control unit receives reverse signal, while shift position is R position, camera control unit

reads image signal from rear view camera.

• When camera control unit reads image signal from rear view camera, superimposes camera image, vehicle

width guide lines, predicted course line, and “MOD” icon, and then outputs them to display.

REAR VIEW

• The rear view image is from the rear view camera.
• When the selector lever is in the reverse position, the rear view is displayed. The rear-wide view function

allows the display of an image with a 180

°

 horizontal angle.

JSNIA5365GB

AV

SYSTEM

AV-313

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Display the vehicle width guiding line and vehicle distance guiding line in rear view and display the predictive

course line according to the steering angle (except when using the rear-wide view function).

• The predictive course line is not displayed at the steering neutral position.
• Camera control unit is connected to the steering angle sensor and receives the steering angle signal via

CAN communication.

• Camera control unit controls the direction and distance of predictive course line according to the sensor sig-

nal from steering angle sensor.

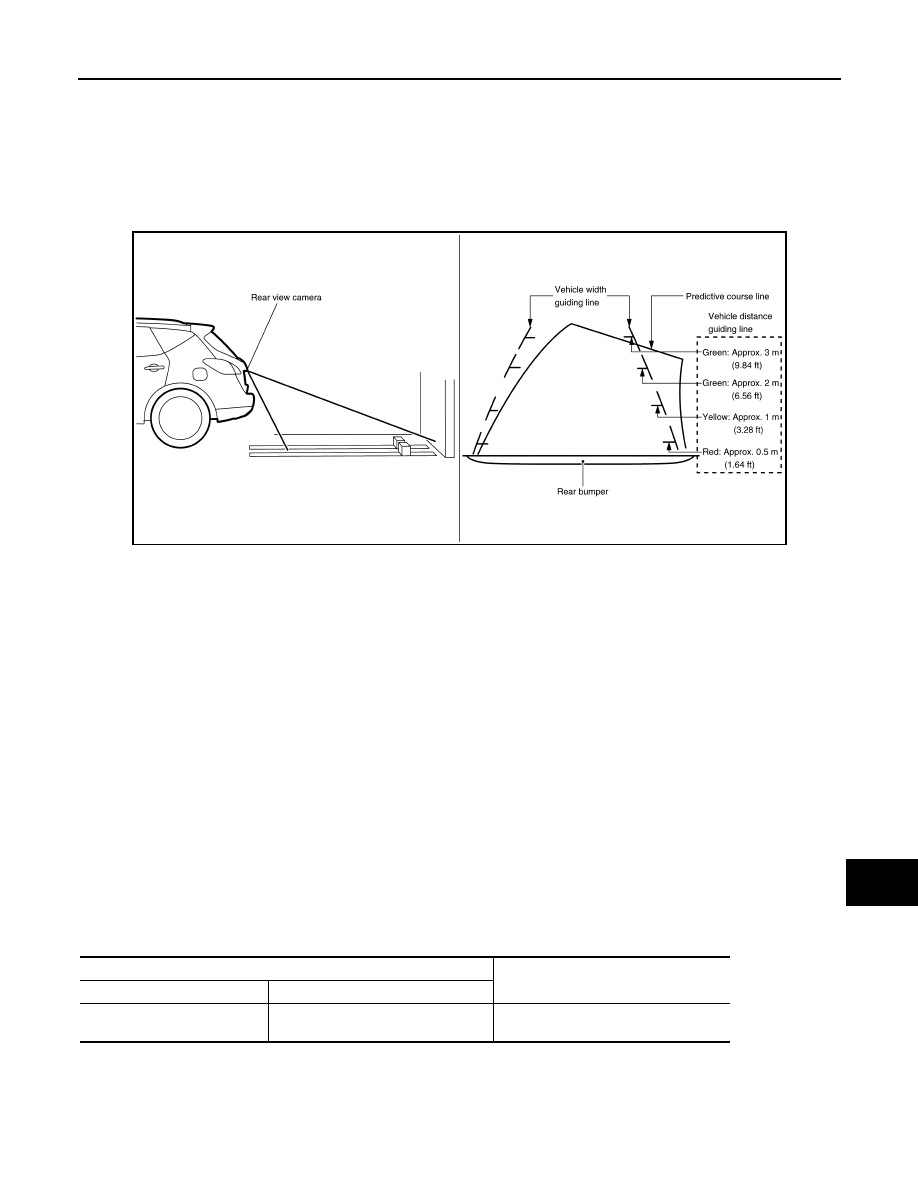

Rear view guiding lines

Moving Object Detection (MOD)

• Moving Object Detection (MOD) is a function that notifies the driver of the presence of moving objects in the

area around the vehicle. MOD detects moving objects from camera image, illuminates frame of view in yel-
low whenever “MOD” icon is displayed in blue, and sounds buzzer in combination meter.

• MOD detects moving objects while camera image is displayed on display.
• Camera control unit performs the following process when moving objects are detected.
- Superimposes yellow frame line on camera image signal and outputs them to front display.
- Transmits buzzer output signal to combination meter via CAN communication so that buzzer in combination

meter sounds.

• Camera control unit detects moving objects from camera image according to an image recognition method

called optical flow.

• MOD does not detect a background as a moving object when the vehicle moves (when whole screen

moves), but detects a moving object when an actual moving object is displayed on screen.

• MOD can be set to permanent OFF by the following operation.
- Permanent OFF: MOD is switched to off by “Settings”

“Driver Assistance”

“Moving Object Detection

(MOD)”.

• Color of “MOD” icon indicates whether or not MOD is operative. “MOD” icon is displayed as shown in the fol-

lowing table. When MOD is operative, “MOD” icon is displayed in blue. When MOD is not operative, “MOD”
icon is displayed in gray or orange. MOD icon is not displayed when MOD is off (permanent off) by “Set-
tings”

“Driver Assistance”

“Moving Object Detection (MOD)”.

• MOD illuminates frame of view in yellow and sounds buzzer, when any of the conditions in the following table

are satisfied.

• MOD does not operate or stops operation when any of the conditions in the following table are satisfied.

“MOD” icon is displayed in gray or orange.

JSNIA5573GB

Operation Condition

View where MOD is operative

Shift position

Vehicle speed

R position

0 km/h (0 MPH) or more - less than 8
km/h (5 MPH)

• Rear view
• Rear-wide view
