TEL ANTENNA

TEL ANTENNA

Removal and Installation

INFOID:0000000009721826

REMOVAL

1.

Remove luggage floor finisher center (front and rear). Refer to

INT-34, "Exploded View"

.

2.

Remove luggage side finisher lower RH. Refer to

INT-34, "Exploded View"

.

3.

Remove TEL antenna feeder clips.

4.

Disconnect TEL antenna connector, and them remove TEL antenna.

INSTALLATION

Install in the reverse order of removal.

AV

MICROPHONE

AV-295

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Exploded View

INFOID:0000000009721827

REMOVAL

Refer to

INL-123, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721828

REMOVAL

1.

Remove map lamp. Refer to

INL-123, "Exploded View"

.

2.

Remove microphone from map lamp.

INSTALLATION

Install in the reverse order of removal.

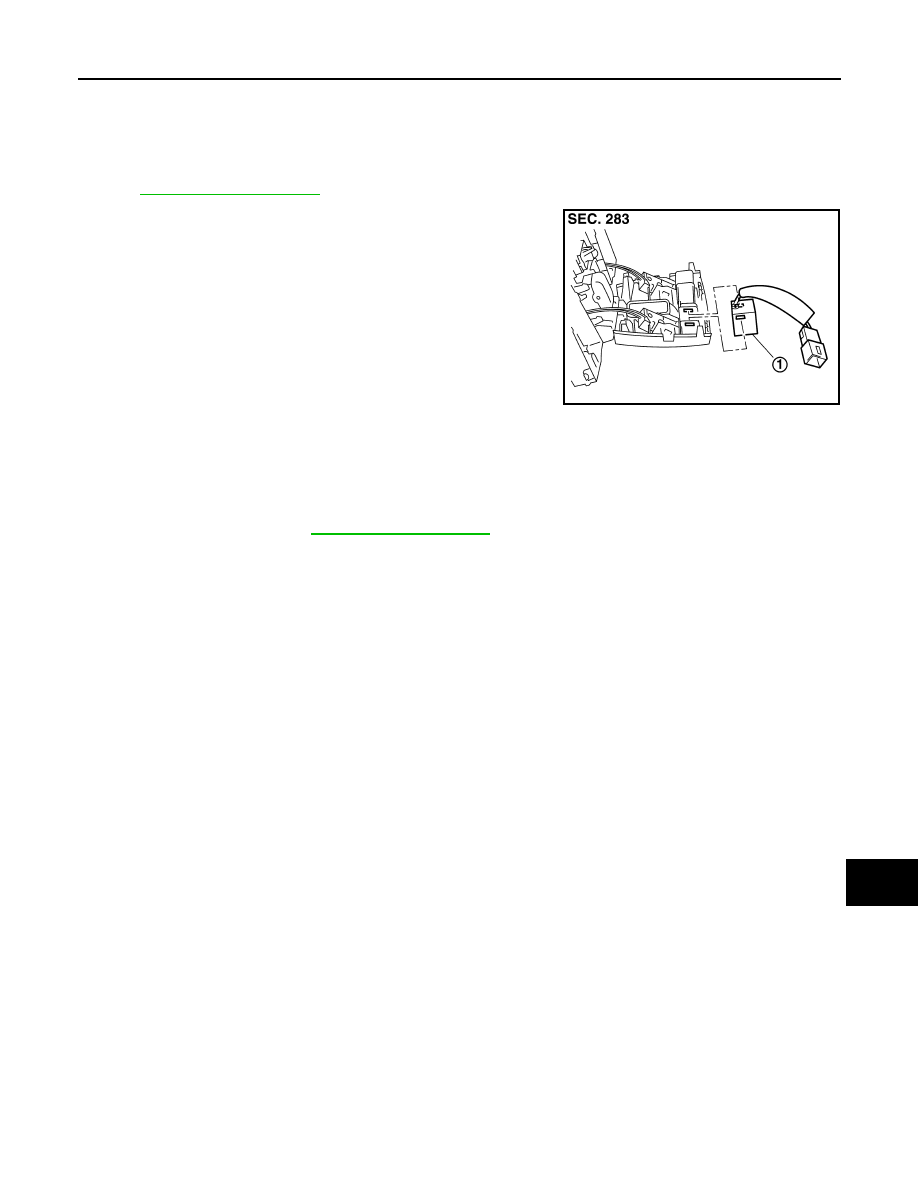

JSNIA0132ZZ

1.

Microphone

AV-296

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

ROOF ANTENNA

ROOF ANTENNA

Exploded View

INFOID:0000000009721829

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000009721830

REMOVAL

1.

Remove headlining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

26, "NORMAL ROOF : Exploded View"

 [normal roof] or

INT-30, "SUNROOF : Exploded View"

 [sunroof].

2.

Disconnect antenna feeder connectors.

3.

Remove antenna base mounting nut, and then remove antenna base from roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the antenna base mounting nut is tightened looser than the specified torque, then this will lower the
sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified torque,
then this will deform the roof panel.

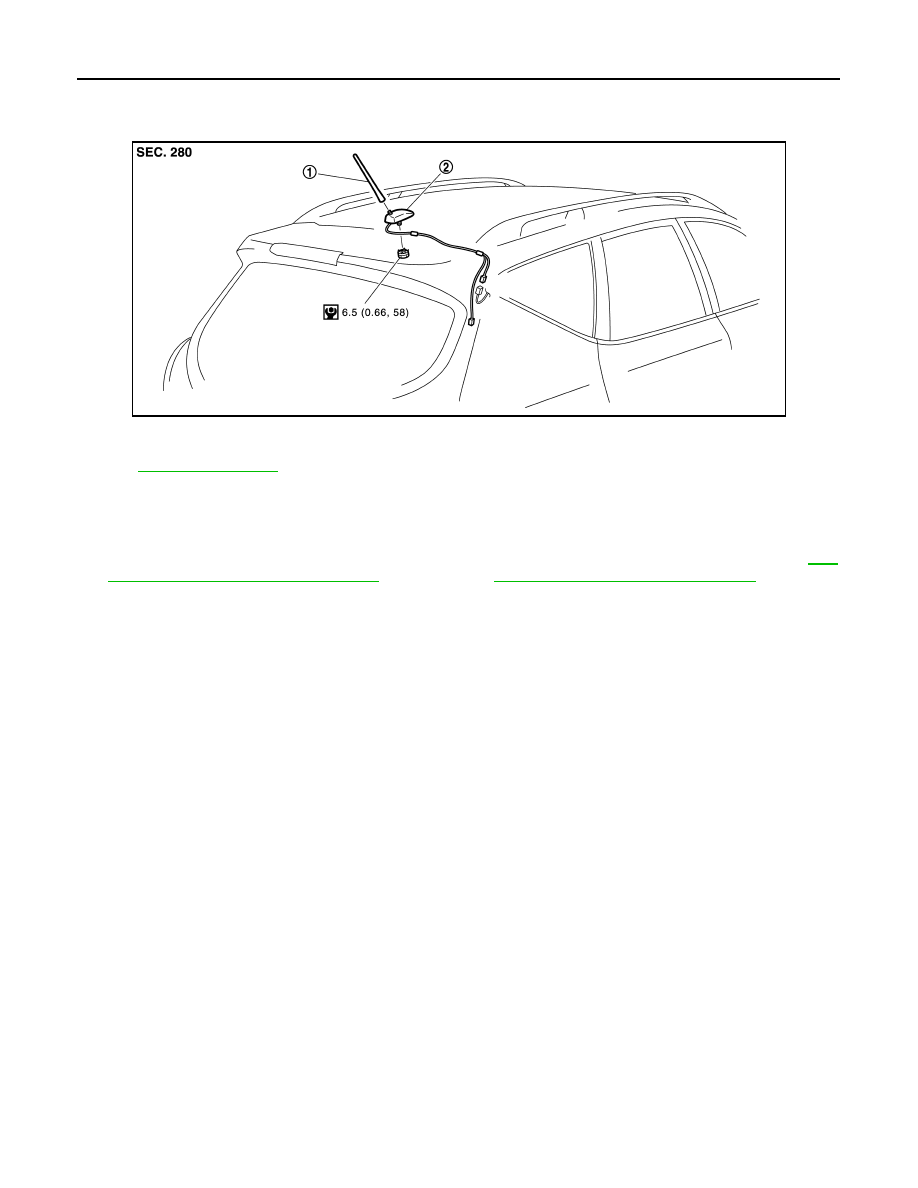

JPNIA0786ZZ

1.

Rod antenna

2.

Antenna base

AV

SATELLITE RADIO TUNER

AV-297

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO TUNER

Exploded View

INFOID:0000000009721831

Removal and Installation

INFOID:0000000009721832

REMOVAL

1.

Remove luggage floor finisher front. Refer to

INT-34, "Exploded View"

.

2.

Remove satellite radio tuner (1) with TEL adapter unit as a sin-
gle unit from the body.

3.

Remove bracket screws, and them remove satellite tuner.

INSTALLATION

Install in the reverse order of removal.

1.

Satellite radio tuner

2.

Bracket LH

3.

TEL adapter unit

4.

Bracket RH

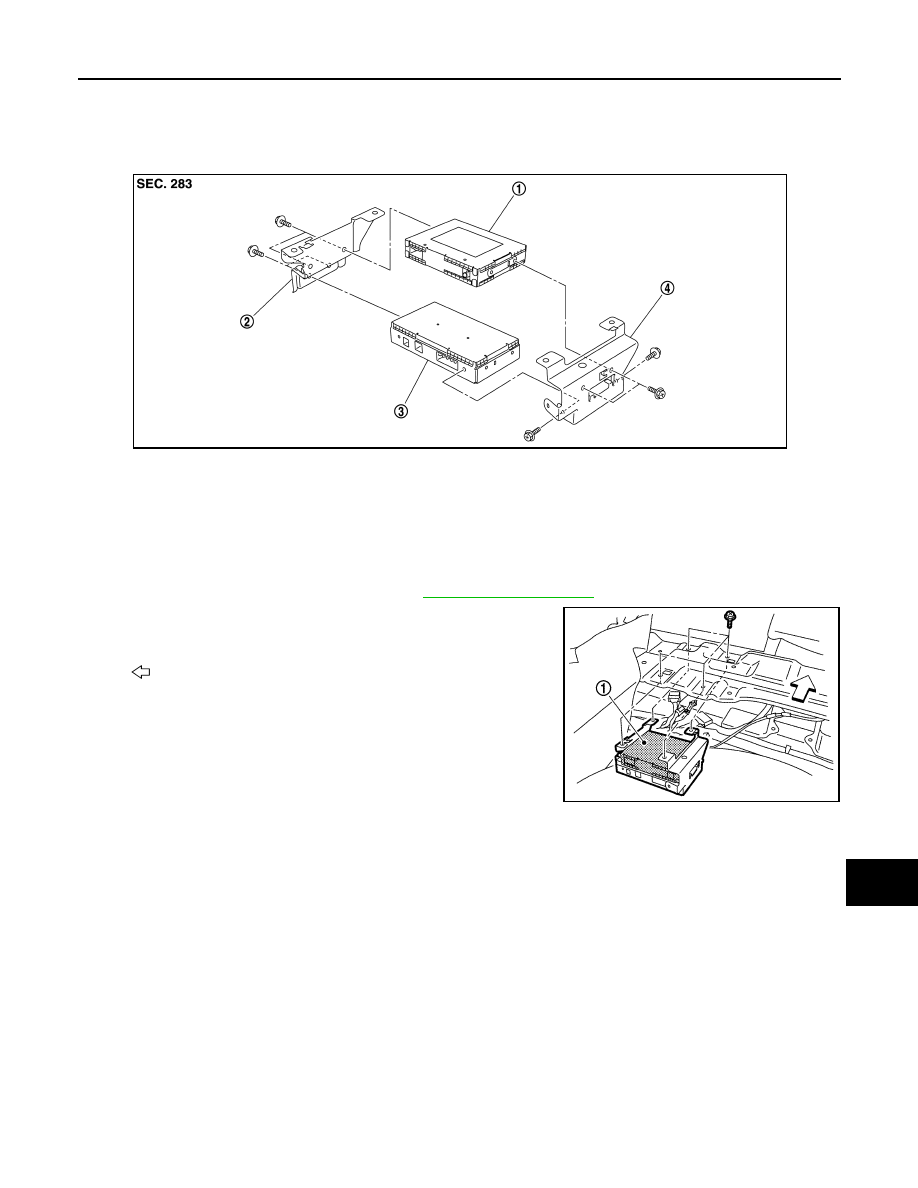

JPNIA0784ZZ

:

Vehicle front

JPNIA0785ZZ
