Nissan Murano. Manual - part 127





AV-286

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

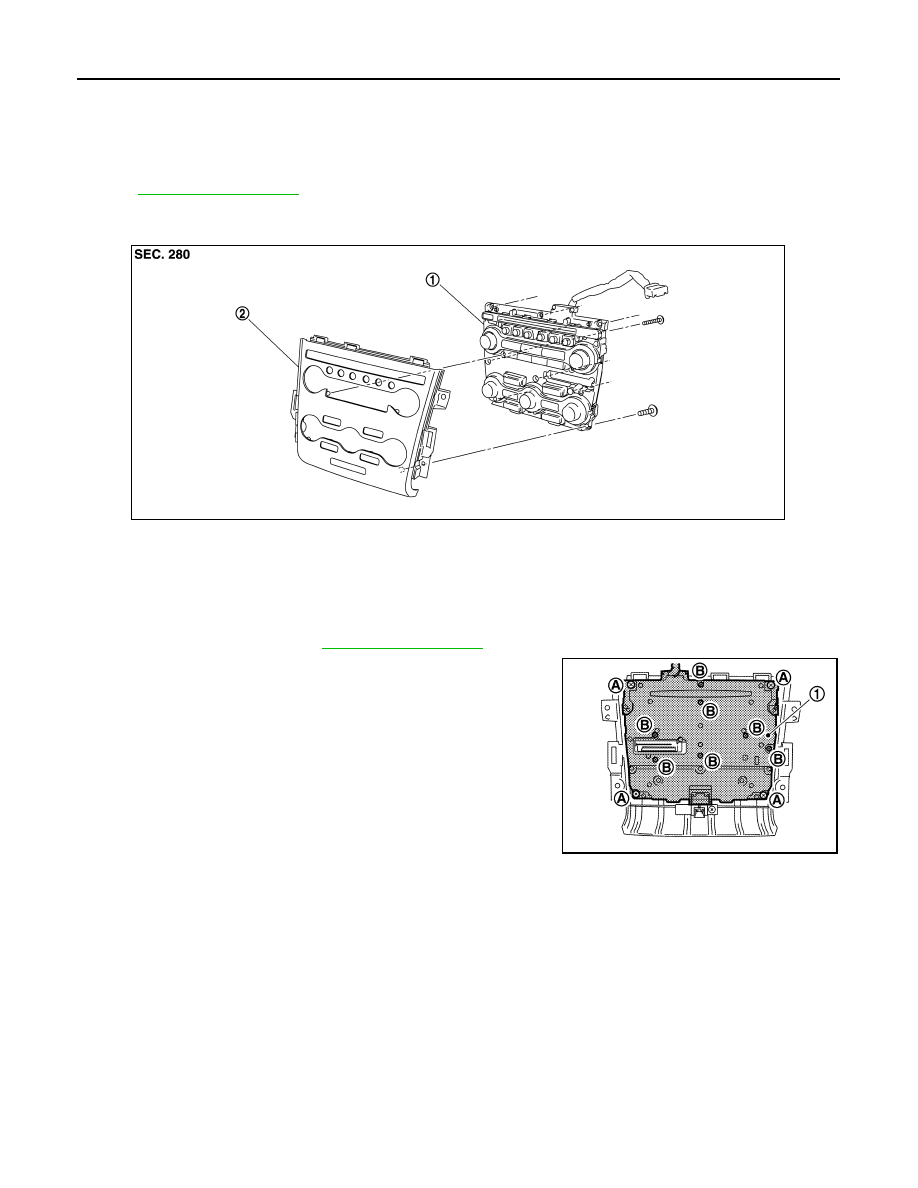

PRESET SWITCH

PRESET SWITCH

Exploded View

INFOID:0000000009721813

REMOVAL

Refer to

IP-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721814

REMOVAL

1.

Remove cluster lid C. Refer to

IP-14, "Exploded View"

.

2.

Remove preset switch screws (A) (B), remove preset switch (1)
from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

1.

Preset switch

2.

Cluster lid C

JPNIA0790ZZ

1.

Preset switch

A.

Screw

B.

Screw

JPNIA0802ZZ

AV

STEERING SWITCH

AV-287

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000009721815

Refer to

ST-36, "Exploded View"

.

Removal and Installation

INFOID:0000000009721816

REMOVAL

Refer to

ST-36, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV-288

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

AUXILIARY INPUT JACKS

AUXILIARY INPUT JACKS

Removal and Installation

INFOID:0000000009721817

REMOVAL

1.

Remove center console assembly. Refer to

IP-22, "Exploded View"

.

2.

Remove auxiliary input jacks mounting screws.

3.

Disconnect connector to remove auxiliary input jacks from lower console assembly.

INSTALLATION

Install in the reverse order of removal.

AV

USB CONNECTOR

AV-289

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR

Removal and Installation

INFOID:0000000009721818

REMOVAL

1.

Remove console finisher assembly. Refer to

IP-22, "Exploded View"

.

2.

Press the pawl from the back of lower console assembly to remove USB connector.

INSTALLATION

Install in the reverse order of removal.
