Nissan Murano. Manual - part 125

AV-278

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

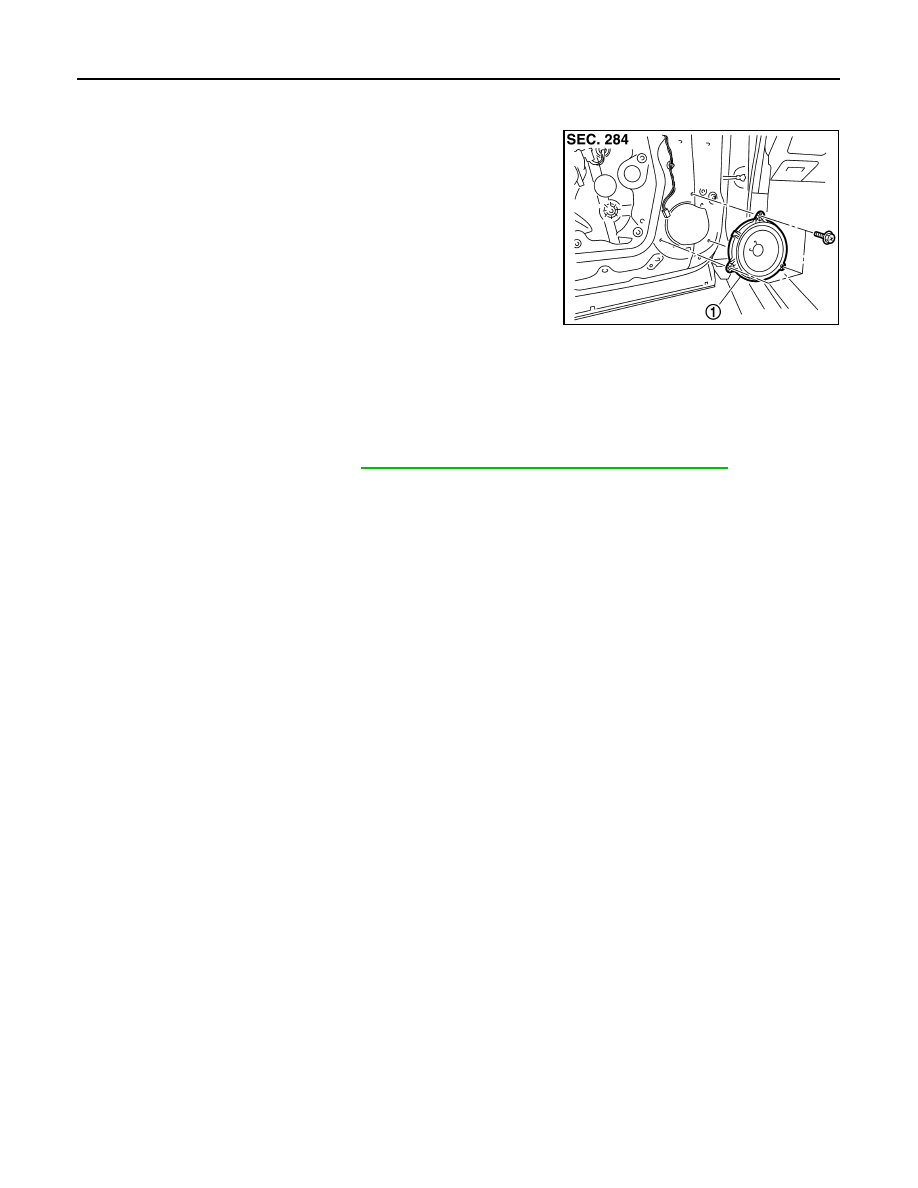

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000009721797

Removal and Installation

INFOID:0000000009721798

REMOVAL

1.

Remove front door finisher. Refer to

INT-13, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0773ZZ

1.

Front door speaker

AV

REAR DOOR SPEAKER

AV-279

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

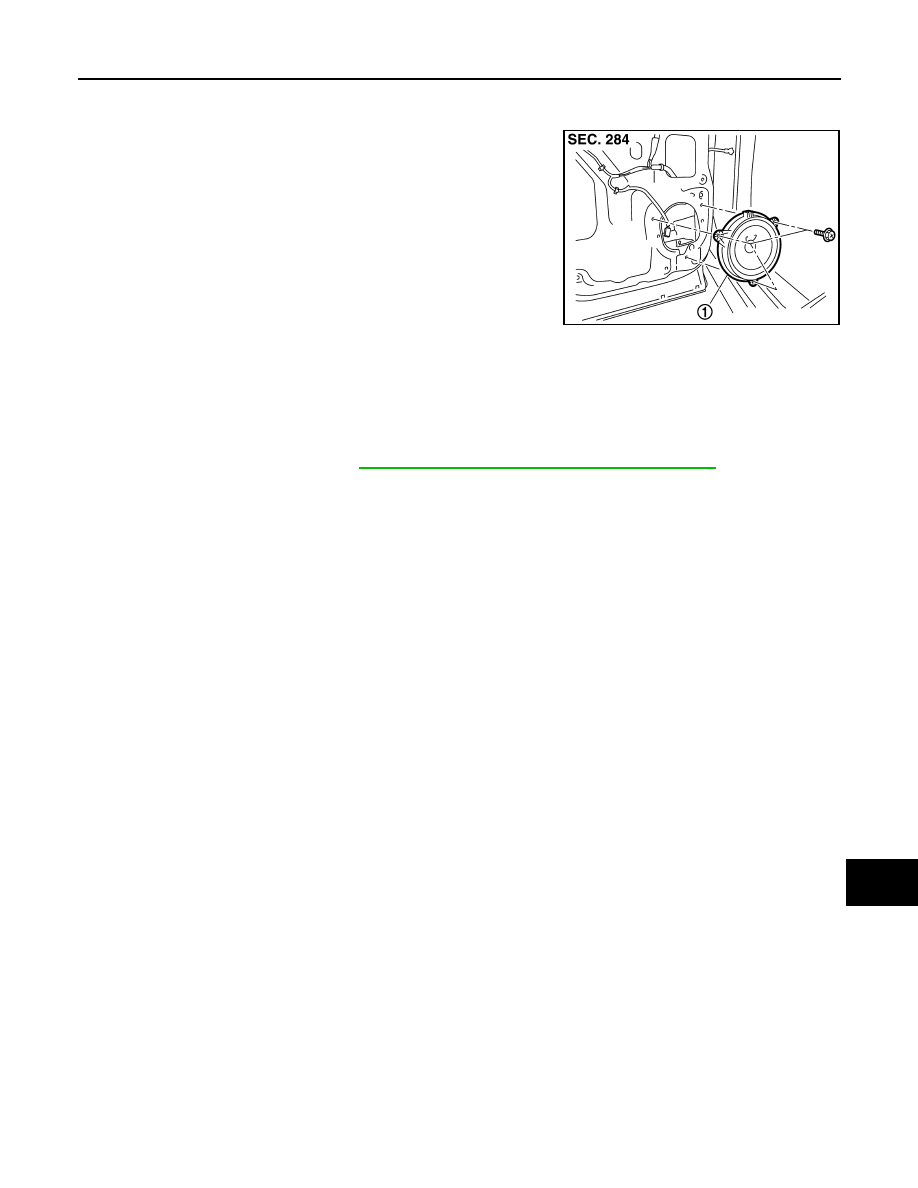

REAR DOOR SPEAKER

Exploded View

INFOID:0000000009721799

Removal and Installation

INFOID:0000000009721800

REMOVAL

1.

Remove rear door finisher. Refer to

INT-16, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0774ZZ

1.

Rear door speaker

AV-280

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

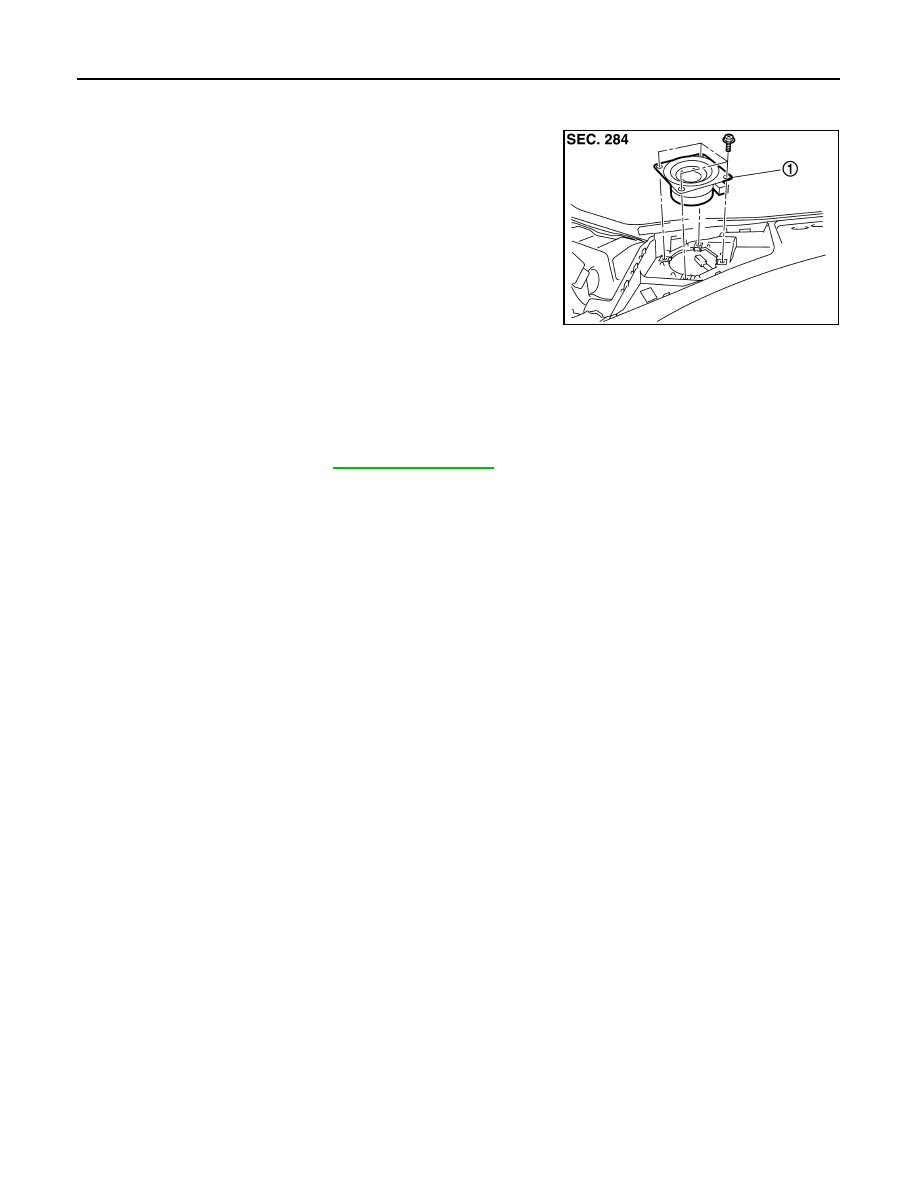

FRONT SQUAWKER

FRONT SQUAWKER

Exploded View

INFOID:0000000009721801

Removal and Installation

INFOID:0000000009721802

REMOVAL

1.

Remove speaker grille. Refer to

IP-14, "Exploded View"

.

2.

Remove front squawker screws, lift up the front squawker and disconnect front squawker connector. Then
remove the front squawker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0775ZZ

1.

Front squawker

AV

REAR SPEAKER

AV-281

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

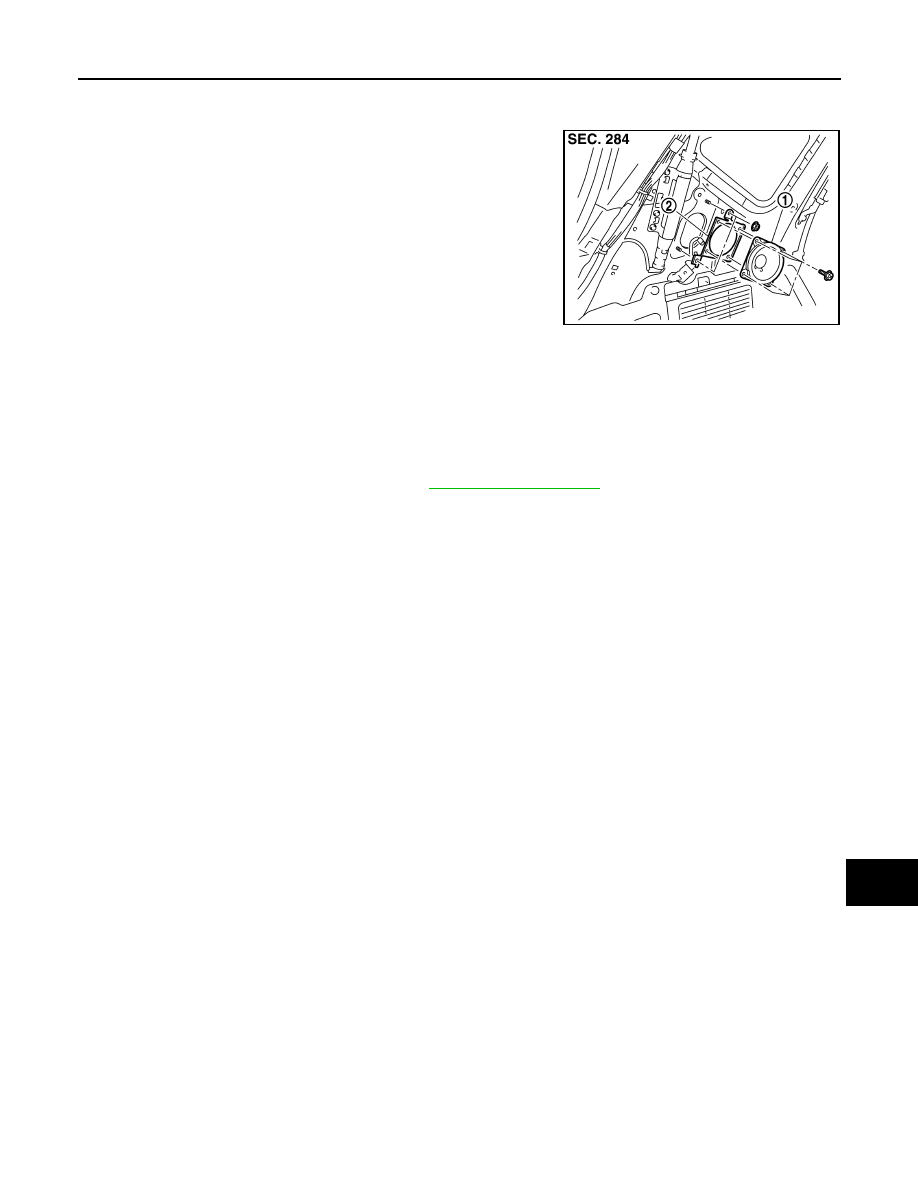

REAR SPEAKER

Exploded View

INFOID:0000000009721803

Removal and Installation

INFOID:0000000009721804

REMOVAL

1.

Remove luggage side finisher upper. Refer to

INT-34, "Exploded View"

.

2.

Remove rear speaker screws, lift up the rear speaker and disconnect rear speaker connector. Then
remove the rear speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0781ZZ

1.

Rear speaker

2.

Rear speaker bracket
