FRONT PASSENGER AIR BAG MODULE

SR-45

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

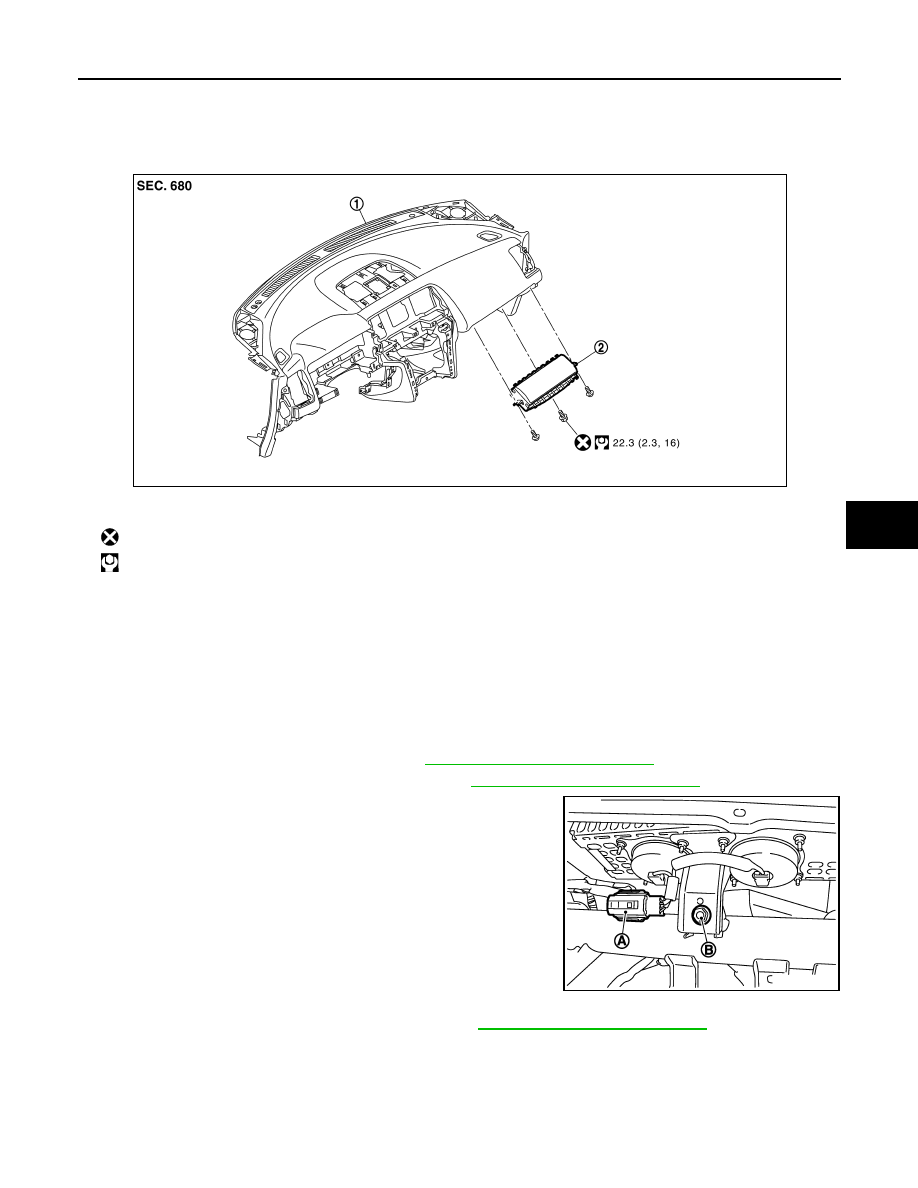

FRONT PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000009720415

Removal and Installation

INFOID:0000000009720416

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the glove box lid assembly. Refer to

IP-15, "Removal and Installation"

.

2.

Remove the Instrument lower assist panel. Refer to

IP-15, "Removal and Installation"

.

3.

Disconnect the front passenger air bag harness connector (A).

4.

Remove the front passenger air bag module fixing bolt (B).
NOTE:
The figure shows the installed front passenger air bag module.
(Under view of the module installed without glove box cover.)

5.

Remove the instrument panel assembly (1). Refer to

IP-15, "Removal and Installation"

.

1.

Instrument panel assembly

2.

Front passenger air bag module

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JSHIA0060GB

JMHIA0510ZZ

SR-46

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

FRONT PASSENGER AIR BAG MODULE

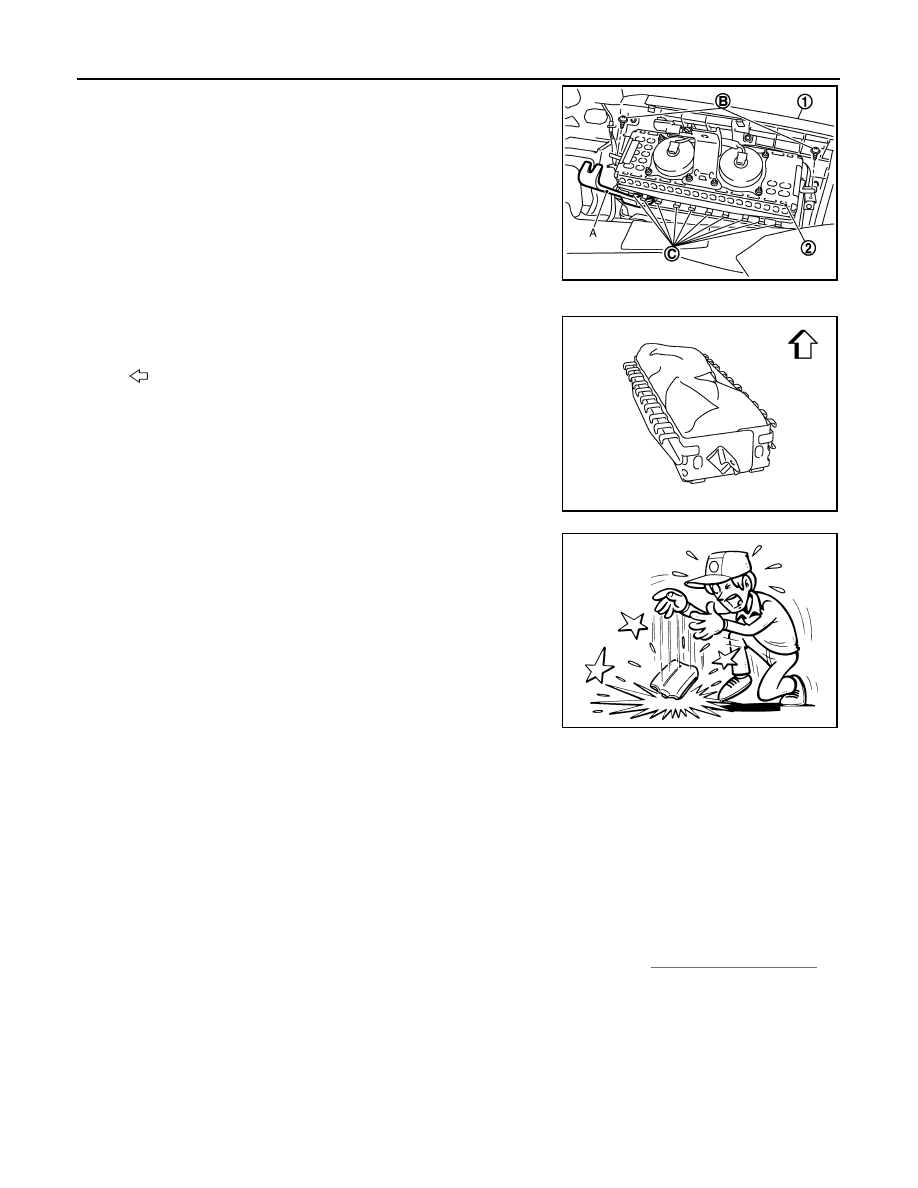

6.

Remove the front passenger air bag module fixing screws (B).

7.

Disconnect the pawls (C) by using remover tool (A), and then
remove the front passenger air bag module (2) from instrument
panel.

CAUTION:

• Always place the front passenger air bag module with pad

side facing upward.

• Never impact the passenger air bag module.
• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into front passenger air bag module.
• Never disassembly the front passenger air bag module.
• Never expose the front passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the front passenger air bag mod-

ule.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.
• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-91, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0511ZZ

: Upward

JMHIA0512ZZ

JMHIA0009ZZ

FRONT SIDE AIR BAG MODULE

SR-47

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

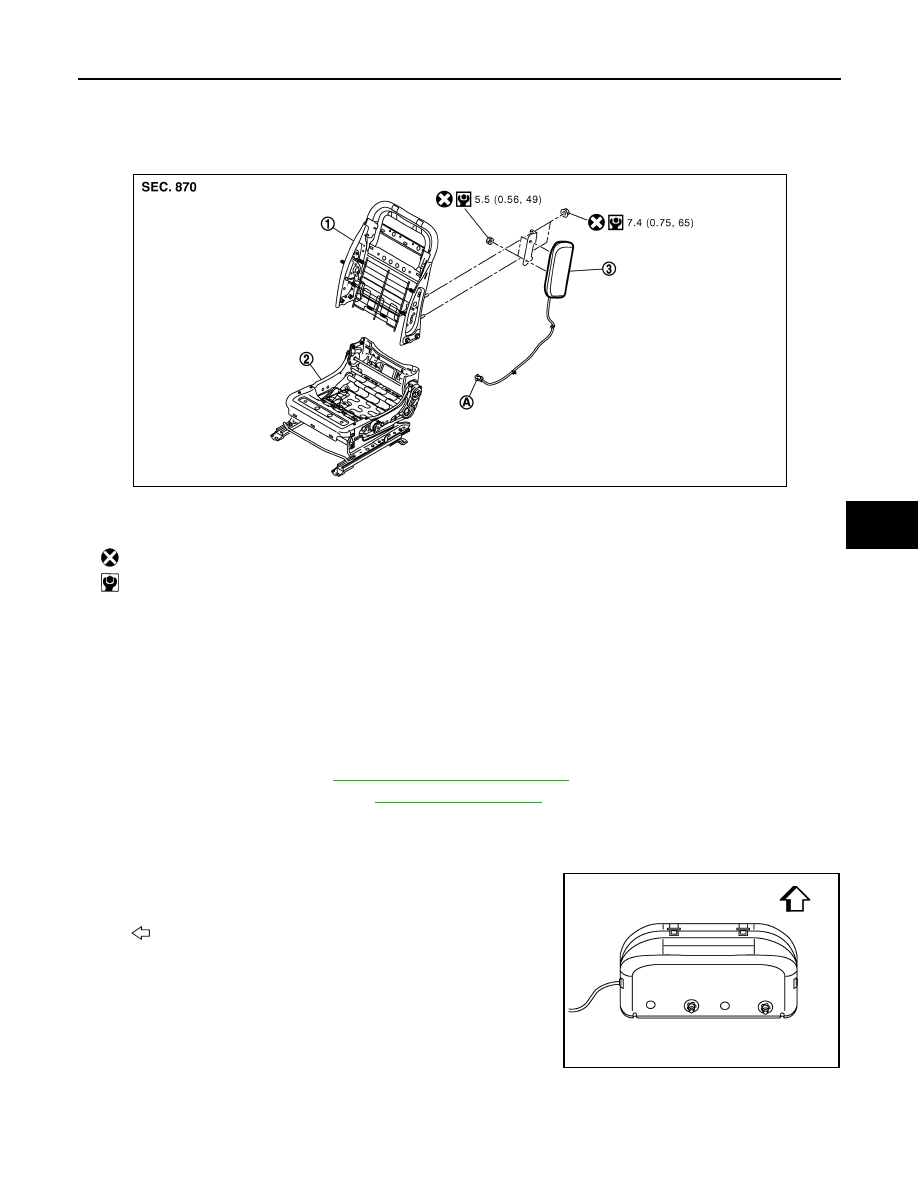

FRONT SIDE AIR BAG MODULE

Exploded View

INFOID:0000000009720417

Removal and Installation

INFOID:0000000009720418

REMOVAL

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Always work from the rear of the front side air bag module.
• Never use the air tools or electric tools for servicing.

1.

Remove the front seat. Refer to

SE-98, "Removal and Installation"

.

2.

Remove the seatback board. Refer to

SE-92, "Exploded View"

.

3.

Remove the front side air bag module fixing nuts, and/or harness connector.

4.

Remove the front side air bag module.

CAUTION:

• Always place the front side air bag module with pad side fac-

ing upward.

• Never impact the front side air bag module.

1.

Seatback flame

2.

Seat cushion flame

3.

Front side air bag module

A.

Front side air bag harness connector

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JMHIA0514GB

: Upward

JMHIA0274ZZ

SR-48

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

FRONT SIDE AIR BAG MODULE

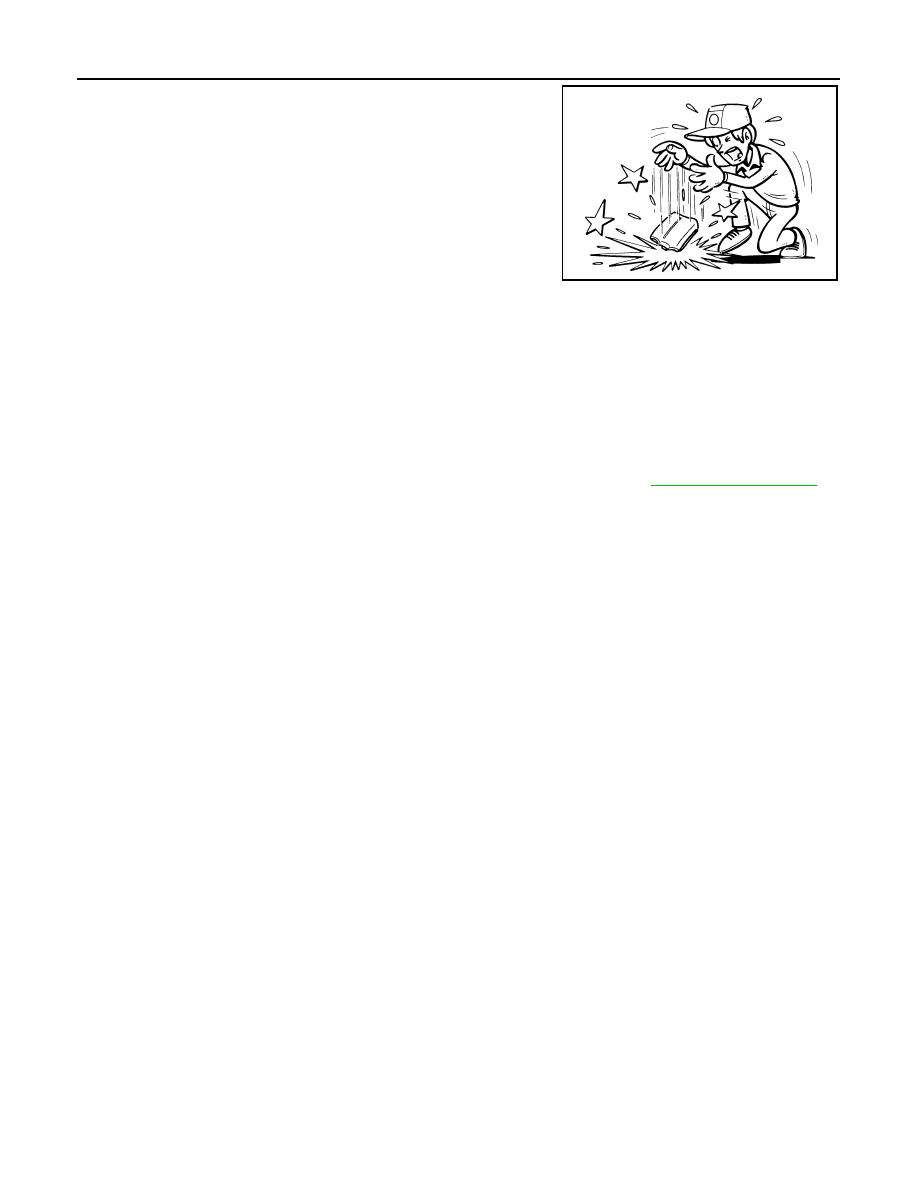

• Replace the front side air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into front side air bag module.
• Never disassemble the front side air bag module.
• Never expose the front side air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the front side air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use the old fixing nuts after removal, replace with the new nuts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-91, "Description"

.

• After the work is completed, check that no malfunctioning system is detected by air bag warning

lamp.
