COLLISION DIAGNOSIS

SR-37

< BASIC INSPECTION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

Part

Inspection

Side curtain air bag module LH

If the side curtain air bag LH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the center pillar on the col-
lision side.

2.

If damaged

 Remove the side curtain air bag module LH.

3.

Check for visible signs of damage (tears etc.) of the side curtain air bag module LH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall the side curtain air bag module LH with new fasteners.

6.

If damaged

 REPLACE the side curtain air bag module LH with new fasteners.

Side curtain air bag module RH

If the side curtain air bag RH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the center pillar on the col-
lision side.

2.

If damaged

 Remove the side curtain air bag module RH.

3.

Check for visible signs of damage (tears etc.) of the side curtain air bag module RH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall the side curtain air bag module RH with new fasteners.

6.

If damaged

 REPLACE the side curtain air bag module RH with new fasteners.

Front side air bag module LH

If the front side air bag LH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the seat back on the col-
lision side.

2.

Check harness and connectors for damage, and terminals for deformities.

3.

If damaged

 REPLACE the front seatback assembly LH.

Front side air bag module RH

If the front side air bag RH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the seat back on the col-
lision side.

2.

Check harness and connectors for damage, and terminals for deformities.

3.

If damaged

 REPLACE the front seatback assembly RH.

Side air bag (satellite) sensor
(LH or RH)

If none of the SRS components have been activated:
1.

Remove the side air bag (satellite) sensor (LH or RH) on the collision side. Check harness con-
nectors for damage, terminals for deformities, and harness for binding.

2.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the side air bag (satellite)
sensor (LH or RH).

3.

Install the side air bag (satellite) sensor (LH or RH) to check fit.

4.

If no damage is found, reinstall the side sir bag (satellite) sensor (LH or RH) with new fasteners.

5.

If damaged

 REPLACE the side air bag (satellite) sensor (LH or RH) with new fasteners.

Diagnosis sensor unit

If none of the SRS components have been activated:
1.

Check case and bracket for dents, cracks or deformities.

2.

Check connectors for damage, and terminals for deformities.

3.

If no damage is found, reinstall the diagnosis sensor unit with new fasteners.

4.

If damaged

 REPLACE the diagnosis sensor unit with new fasteners.

Seat belt pre-tensioner assem-
blies
(All applicable locations: buckle,
retractor, lap outer)

If the pre-tensioners have NOT been activated:
1.

Remove seat belt pre-tensioners.
Check harness cover and connectors for damage, terminals for deformities, and harness for
binding.

2.

Check belts for damage and anchors for loose mounting.

3.

Check retractor for smooth operation.

4.

Check seat belt adjuster for damage.

5.

Check for deformities of the center pillar inner.

6.

If the center pillar inner has no damage, REPLACE the seat belt pre-tensioner assembly.

7.

If no damage is found, reinstall seat belt pre-tensioner assembly.

8.

If damaged

 REPLACE. Install the seat belt pre-tensioners with new fasteners.

Seat (with front side air bag)

If the front LH or front RH side air bag modules have NOT deployed:
1.

Visually check the seat on the collision side.

2.

Remove the seat on the collision side and check the following for damage and deformities.

-

Harness, connectors and terminals

-

Frame and recliner (for front and rear seat), and also adjuster and slides (for front seat)

3.

If no damage is found, reinstall the seat.

4.

If damaged

 REPLACE the damaged seat parts using new fasteners. If the front seat back is

damaged, the front seat back assembly must be replaced.

Center inner pillar

1.

Check the center inner pillar on the collision side for damage (dents, cracks, deformation, etc.).

2.

If damaged

 REPAIR the center inner pillar.

SR-38

< BASIC INSPECTION >

[FOR MEXICO]

COLLISION DIAGNOSIS

Trim/headlining

1.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the interior trim on the
collision side.

2.

If damaged

 REPLACE the damaged trim parts.

Door-mounted curtain air bag
module LH

If the door-mounted curtain air bag LH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the door finisher on the
collision side.

2.

If damaged

 REPLACE the door finisher LH with new fasteners.

3.

Check for visible signs of damaged (tears etc.) of the door-mounted curtain air bag module LH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall door finisher.

CAUTION:

When removing door-mounted curtain air bag module from door finisher, never reuse
door finisher.

6.

If damaged

 REPLACE the door finisher LH and door-mounted curtain air bag module LH with

new fasteners.

Door-mounted curtain air bag
module RH

If the door-mounted curtain air bag RH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the door finisher on the
collision side.

2.

If damaged

 REPLACE the door finisher RH with new fasteners.

3.

Check for visible signs of damage (tears etc.) of the door-mounted curtain air bag module RH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall door finisher.

CAUTION:

When removing door-mounted curtain air bag module from door finisher, never reuse
door finisher.

6.

If damaged

 REPLACE the door finisher RH and door-mounted curtain air bag module RH with

new fasteners.

Pop-up roll bar

If the pop-up roll bar has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the pop-up roll bar.

2.

If damaged

 REPLACE the pop-up roll bar with new fasteners.

3.

Check harness and connectors for damage, and terminals for deformities.

4.

If no damage is found, reinstall the pop-up roll bar with new fasteners.

5.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the seatback support
brace assembly.

6.

If damaged

 REPAIR the seatback support brace assembly.

Part

Inspection

DRIVER AIR BAG MODULE

SR-39

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

REMOVAL AND INSTALLATION

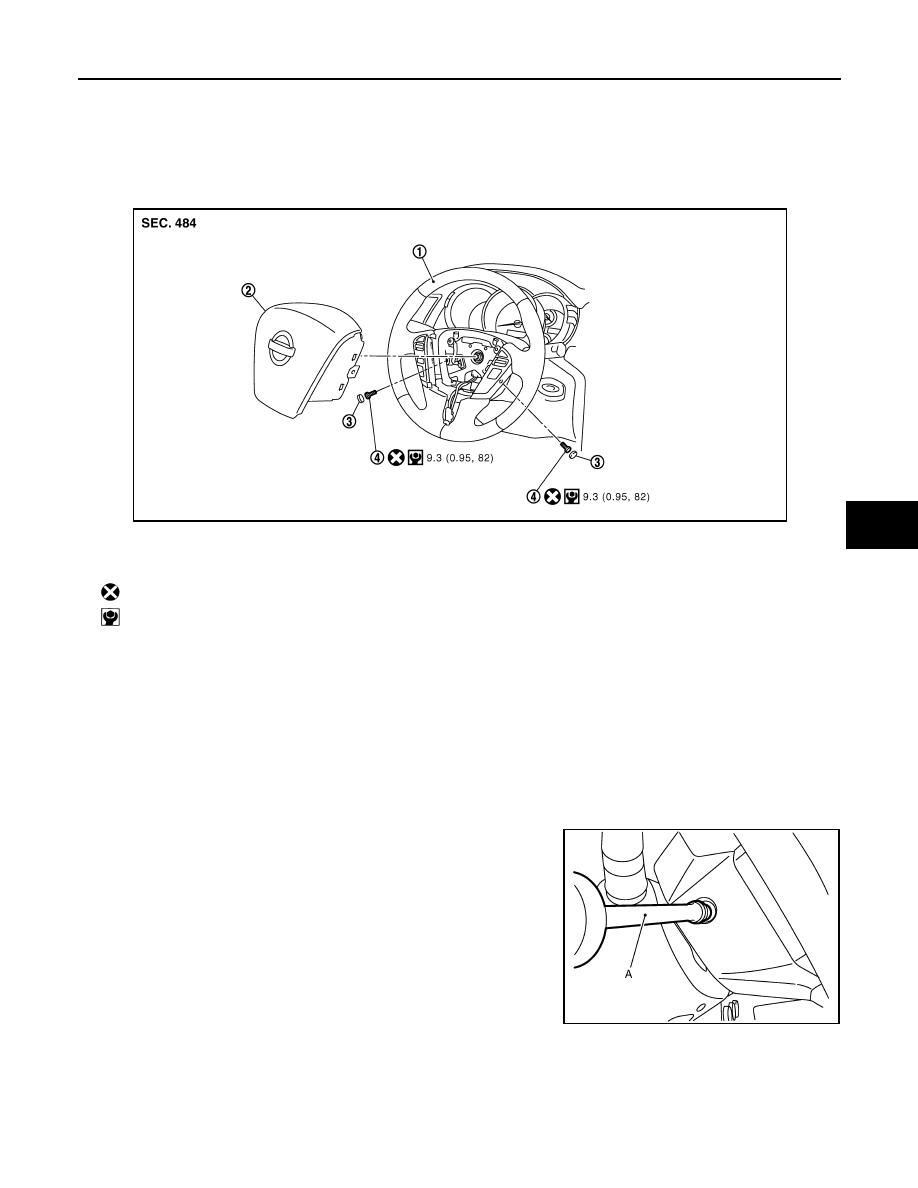

DRIVER AIR BAG MODULE

Exploded View

INFOID:0000000009720411

Removal and Installation

INFOID:0000000009720412

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the side lids (LH and RH).

2.

Remove the TORX bolts (LH and RH) from the steering wheel
lower side using TORX bit (A).

3.

Pull out the driver air bag module.

1.

Steering wheel

2.

Driver air bag module

3.

Side lid (LH/RH)

4.

TORX bolt (LH/RH)

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JMHIA0503GB

JMHIA0265ZZ

SR-40

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

DRIVER AIR BAG MODULE

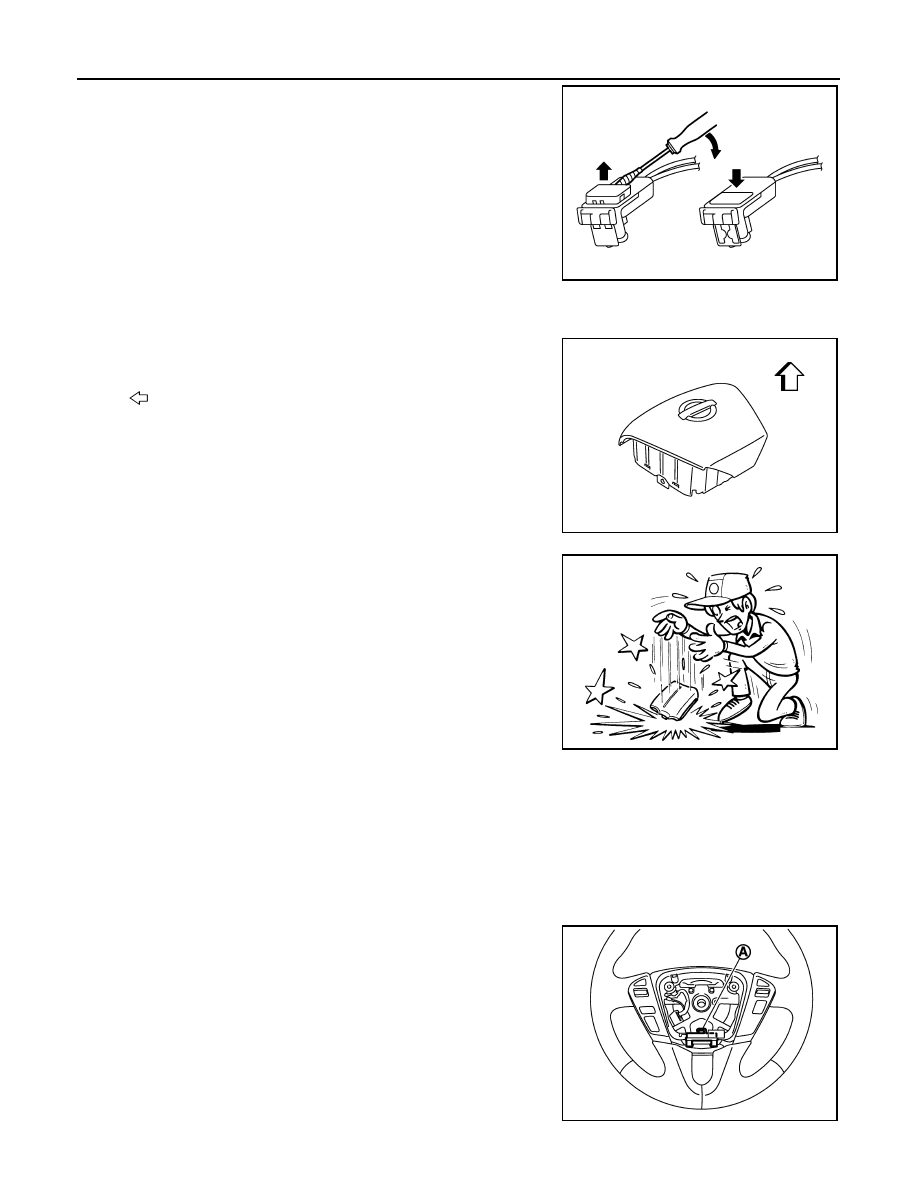

4.

Disconnect the driver air bag harness connector.

CAUTION:

• For installing/removing the driver air bag harness connec-

tor, insert thin screwdriver wrapped in tape into notch, lift
lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

5.

Remove the driver air bag module.

CAUTION:

• Always place the driver air bag module with pad side facing

upward.

• Never impact the driver air bag module.
• Replace the driver air bag module if it has been dropped or

sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the driver air bag module.
• Never disassemble the driver air bag module.
• Never expose the driver air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the driver air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use the old TORX bolts after removal, replace with the new bolts.
• Fix the driver air bag harness to the harness fixing hook (A).

PHIA0953J

: Upward

JMHIA0504ZZ

JMHIA0009ZZ

JMHIA0505ZZ
