DRIVER AIR BAG MODULE

SR-41

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Tighten the TORX bolts after completely adjusting the centers of fixing holes on the driver air bag

module side and the steering wheel side. If the holes are misaligned, the bolt threads are damaged
and the module is not installed securely.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-91, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

SR-42

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

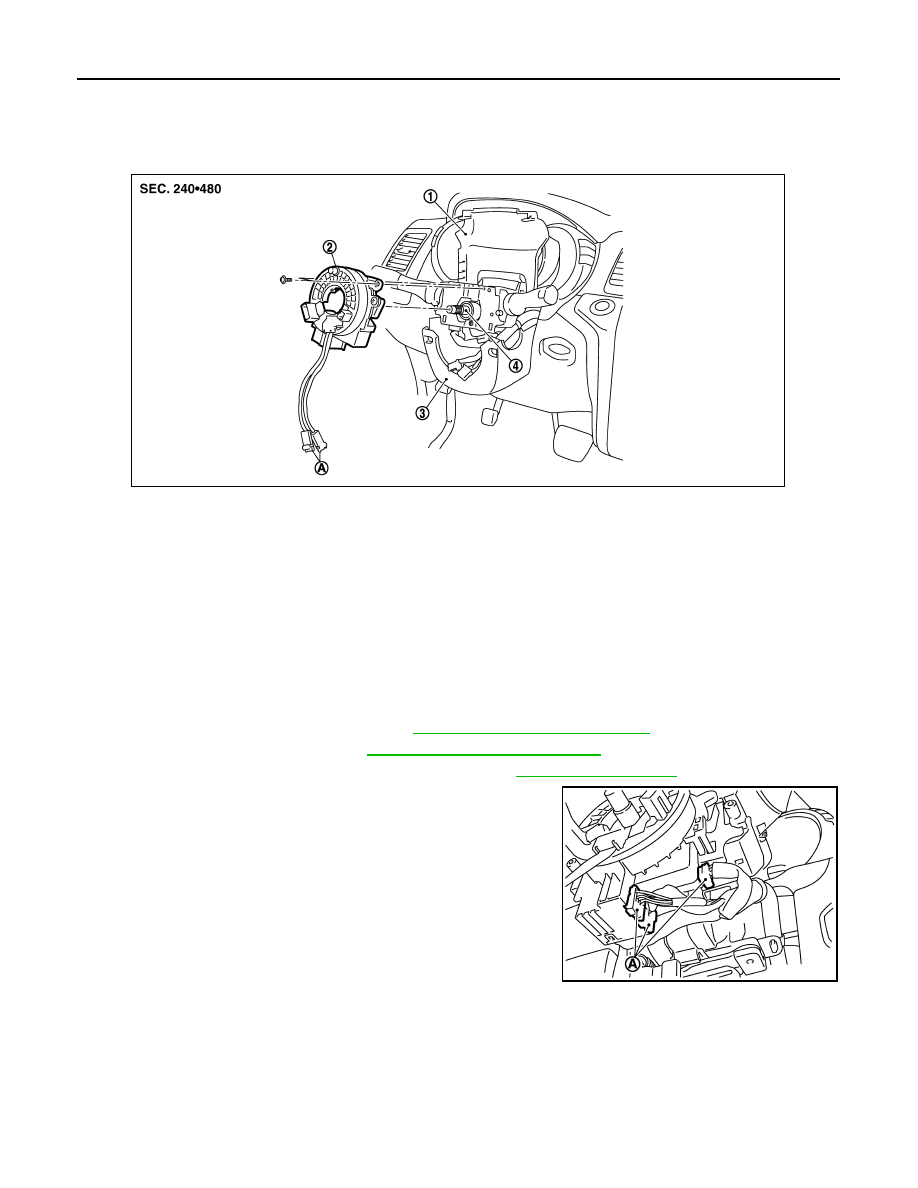

SPIRAL CABLE

SPIRAL CABLE

Exploded View

INFOID:0000000009720413

Removal and Installation

INFOID:0000000009720414

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the driver air bag module. Refer to

SR-39, "Removal and Installation"

.

2.

Remove the steering wheel. Refer to

ST-36, "Removal and Installation"

.

3.

Remove the steering column cover (upper/lower). Refer to

IP-14, "Exploded View"

.

4.

Disconnect the spiral cable and steering angle sensor harness
connectors (A).
NOTE:
Disconnect the spiral cable and steering angle sensor body side
harness connectors after removing the spiral cable.

5.

Remove the spiral cable fixing screws.

1.

Steering column cover (upper)

2.

Spiral cable

3.

Steering column cover (lower)

4.

Steering column assembly

A.

Driver air bag harness connector

JMHIA0506ZZ

JMHIA0507ZZ

SPIRAL CABLE

SR-43

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

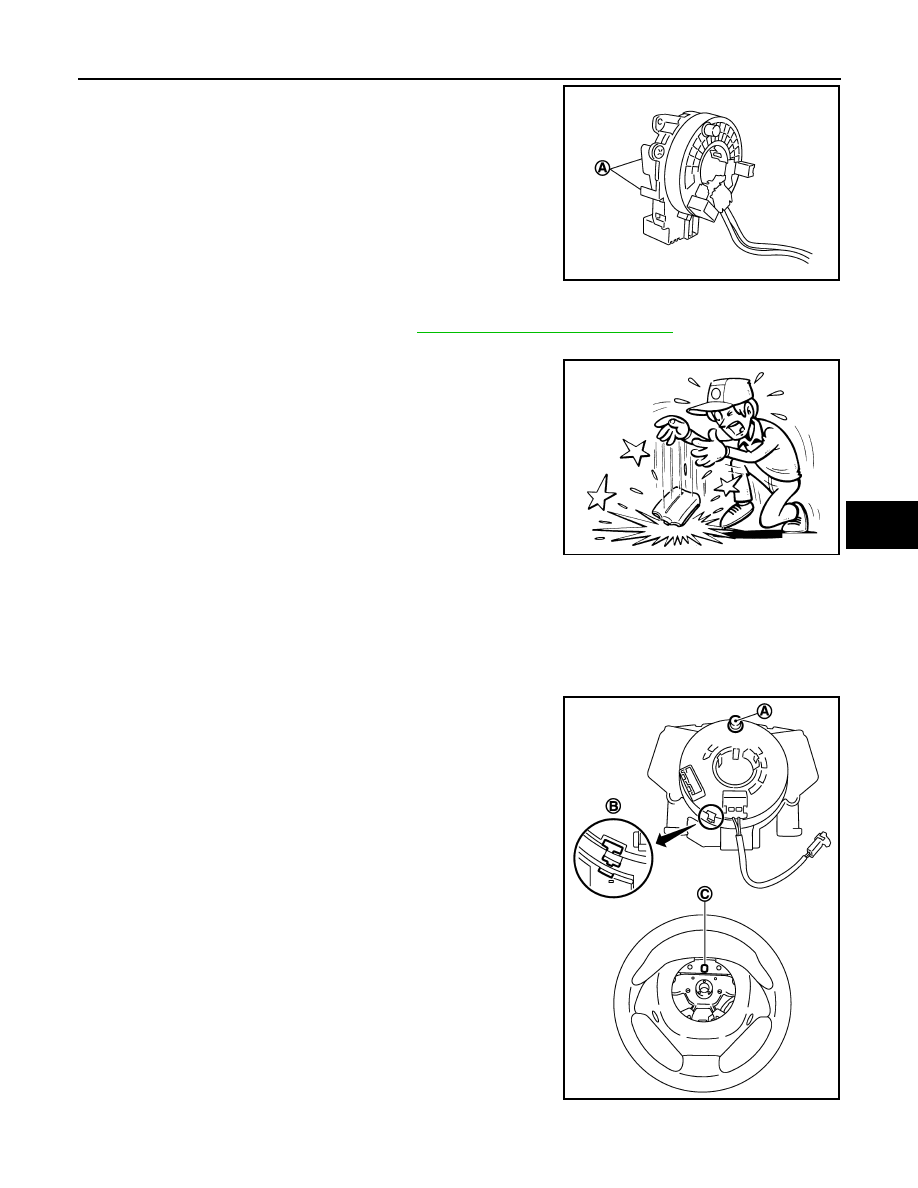

6.

Remove the spiral cable side pawls (A).

7.

Pull out forward the spiral cable.

8.

Remove the steering angle sensor. Refer to

BRC-130, "Removal and Installation"

.

CAUTION:

• Never impact the spiral cable.
• Never impact the spiral cable by dropping, etc. Replace the

spiral cable if it has been dropped or sustained an impact.

• Never disassemble the spiral cable.
• Never apply lubricant to the spiral cable.
• Never allow oil, grease, detergent, or water to come in contact with the spiral cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as per the following.

• Turn carefully the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and
stop turning at the mark (B) on which the stopper insertion
holes are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Never over turn the spiral cable or go beyond number of turns

required. (This will cause the cable to snap.)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

JMHIA0508ZZ

JMHIA0009ZZ

JMHIA0013ZZ

SR-44

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

SPIRAL CABLE

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-91, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
