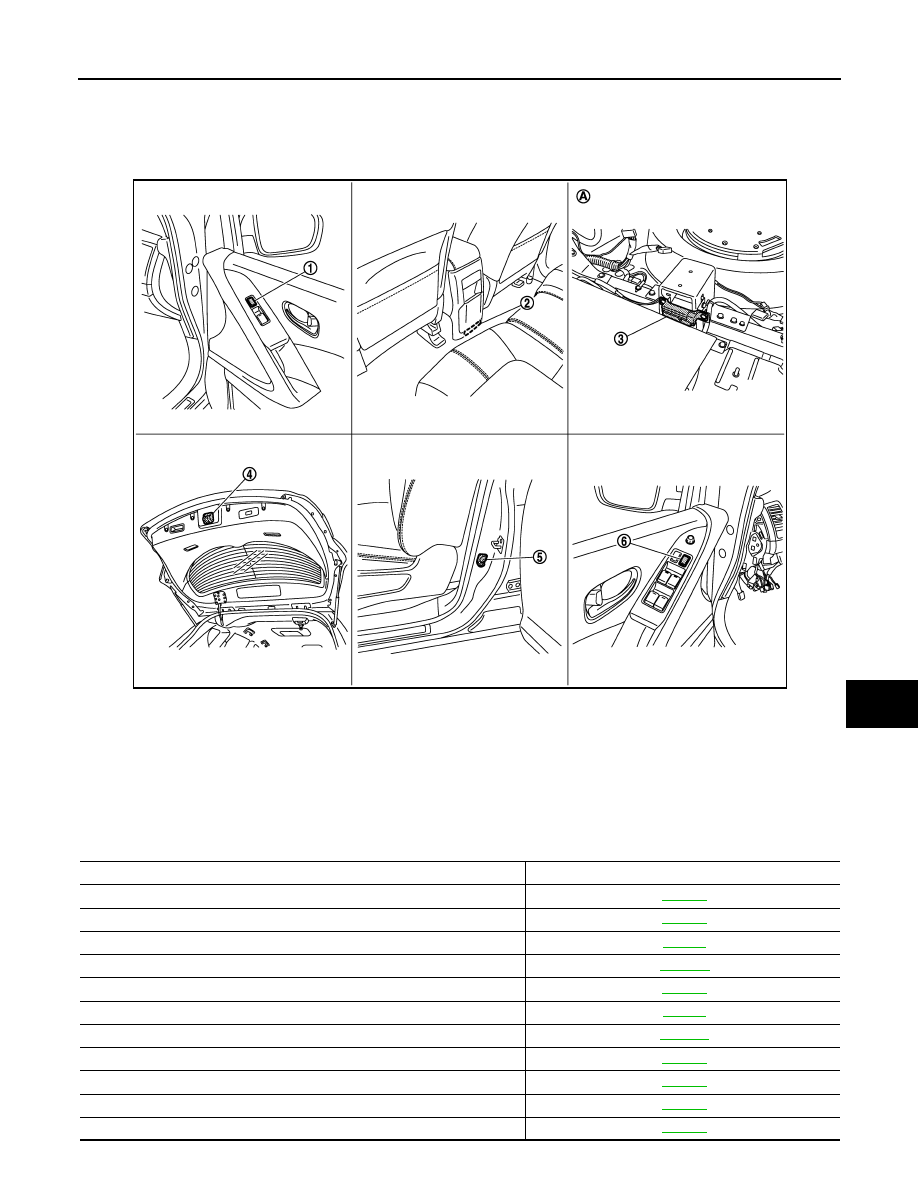

Component Description

INFOID:0000000009722703

A.

Behind the combination meter

B.

Engine room (LH)

C.

View with the center console as-
sembly removed

D.

Behind the instrument lower panel LH

E.

Behind the instrument lower panel RH

1.

Front power window switch (passen-
ger side)

2.

Inside key antenna (console)

3.

Inside key antenna (luggage room)

4.

Back door lock assembly (back door
switch)

5.

Front door switch (driver side)

6.

power window main switch (door
lock and unlock switch)

A.

Under the rear seat seatback

JMKIA4874ZZ

Component Reference

BCM

SEC-74

Push-button ignition switch

SEC-75

Door switch

DLK-97

key slot

DLK-129

CVT shift selector (detention switch)

SEC-56

Inside key antenna

DLK-91

Remote keyless entry receiver

DLK-112

Stop lamp switch

SEC-50

Transmission range switch

SEC-64

Starter relay

SEC-68

Starter control relay

SEC-55

SEC-18

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

Security indicator lamp

SEC-91

Key warning lamp

SEC-93

Component Reference

VEHICLE SECURITY SYSTEM

SEC-19

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY SYSTEM

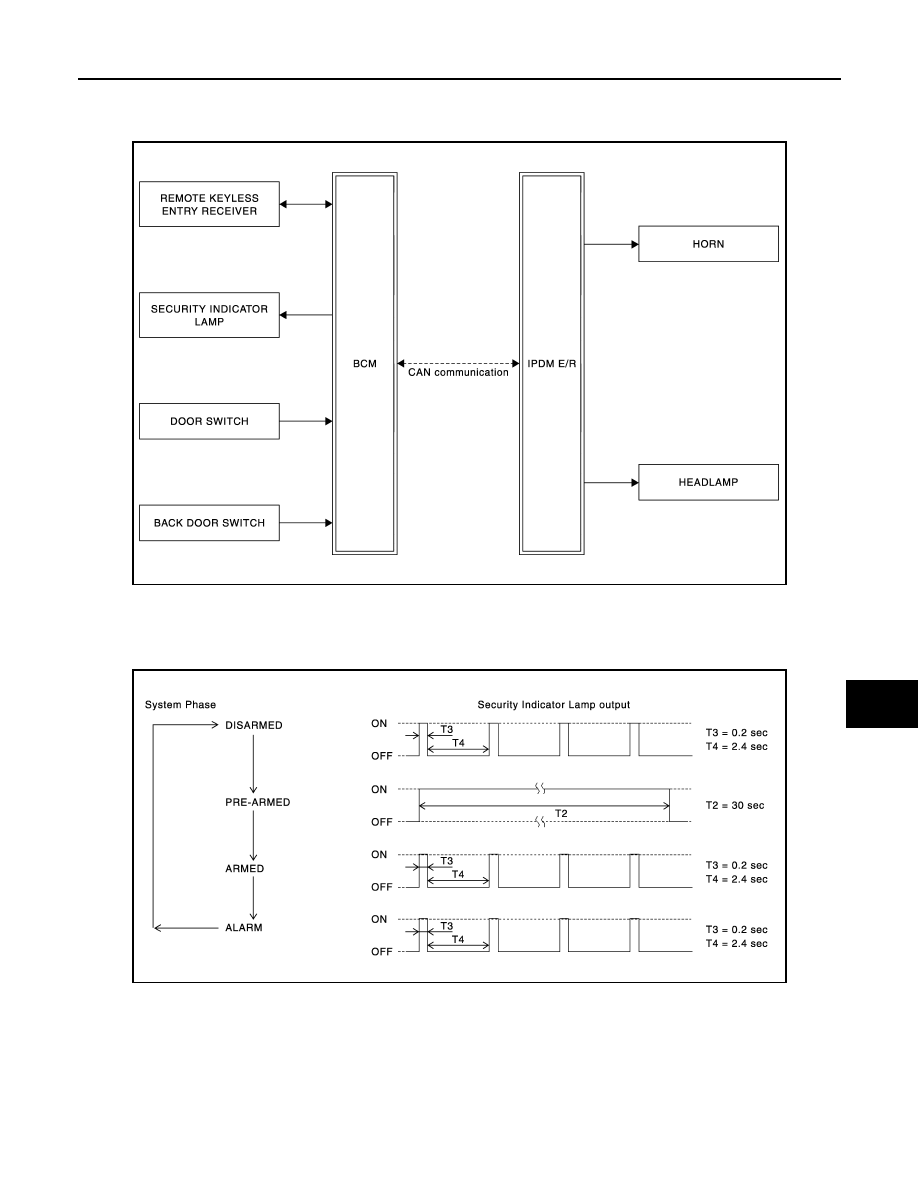

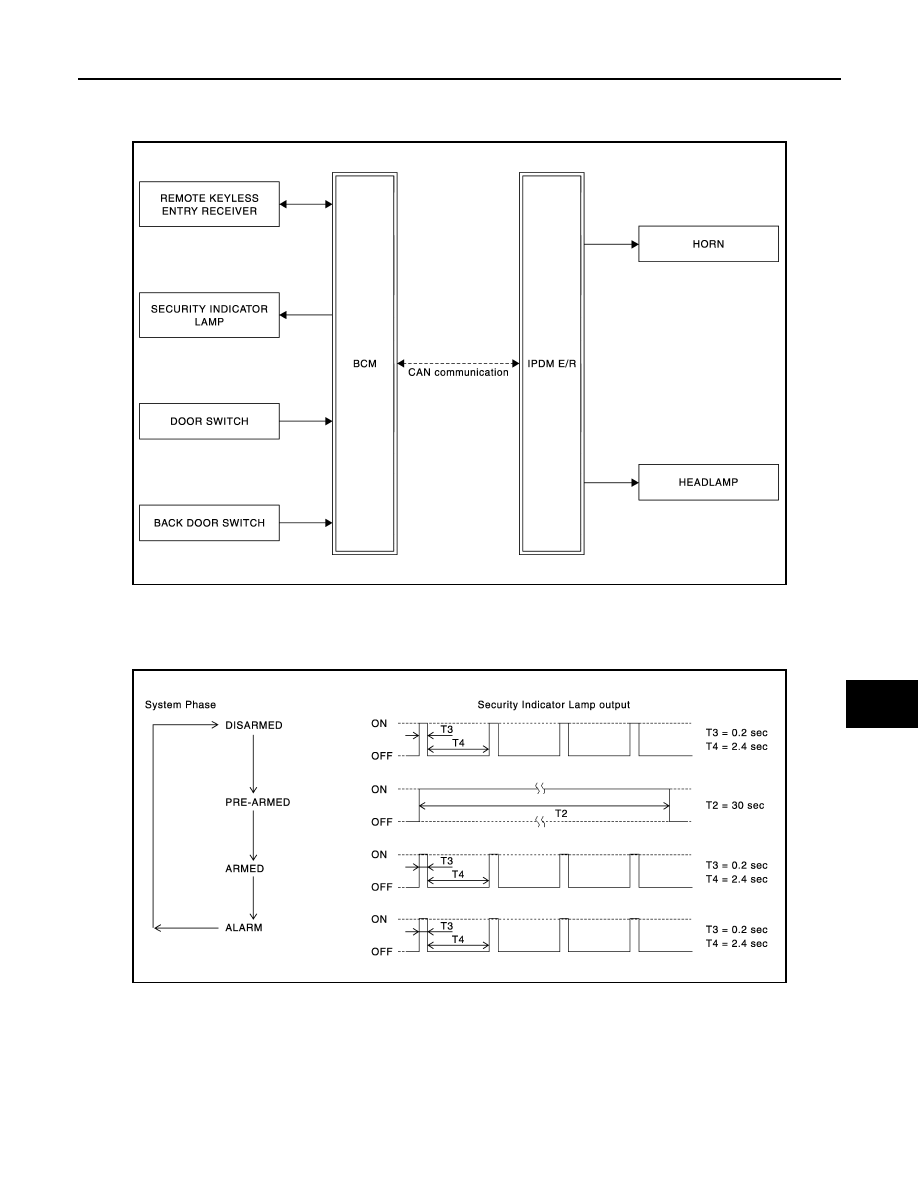

System Diagram

INFOID:0000000009722704

System Description

INFOID:0000000009722705

OPERATION FLOW

SETTING THE VEHICLE SECURITY SYSTEM

Initial Condition

• Ignition switch is in OFF position.

Disarmed Phase

• When any door or back door is open, the vehicle security system is set in the disarmed phase on the

assumption that the owner is inside or near the vehicle.

JMKIA3709GB

JMKIA2505GB

SEC-20

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

• When the vehicle security system is in the disarmed phase, the security indicator lamp blinks every 2.4 sec-

onds.

Pre-armed Phase and Armed Phase

When the following operation is performed, the vehicle security system turns into the “pre-armed” phase. (The
security indicator lamp illuminates.)

1.

BCM receives LOCK signal from front door request switch, Intelligent Key or door key cylinder, after back
door and all doors are closed.

2.

Security indicator lamp illuminates for 30 seconds. Then, the system automatically shifts into the “armed”
phase.

CANCELING THE SET VEHICLE SECURITY SYSTEM

When one of the following operations is performed, the armed phase is canceled.

1.

Unlock the all doors with the door request switch, Intelligent Key or door key cylinder.

2.

Turn ignition switch “ON” or “ACC” position.

CANCELING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

When unlocking the all doors with the door request switch, Intelligent Key or door key cylinder switch the alarm
operation is canceled.

ACTIVATING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

Check that the system is in the armed phase. (The security indicator lamp blinks every 2.4 seconds.)
When the following operation 1 or 2 is performed, the system sounds the horns and flashes the headlamps for
about 50 seconds.

1.

Back door or any door is opened during armed phase.

2.

Disconnecting and connecting the battery connector before canceling armed phase.
