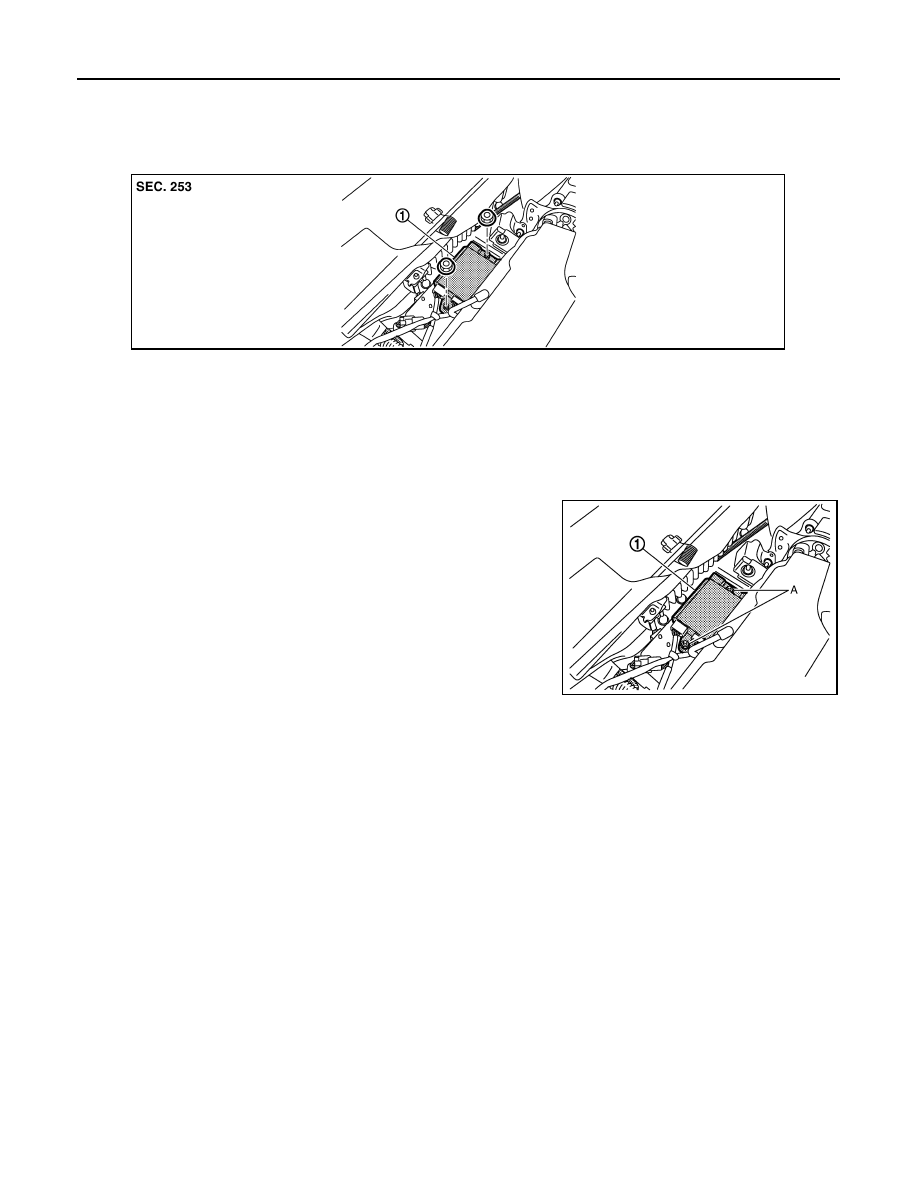

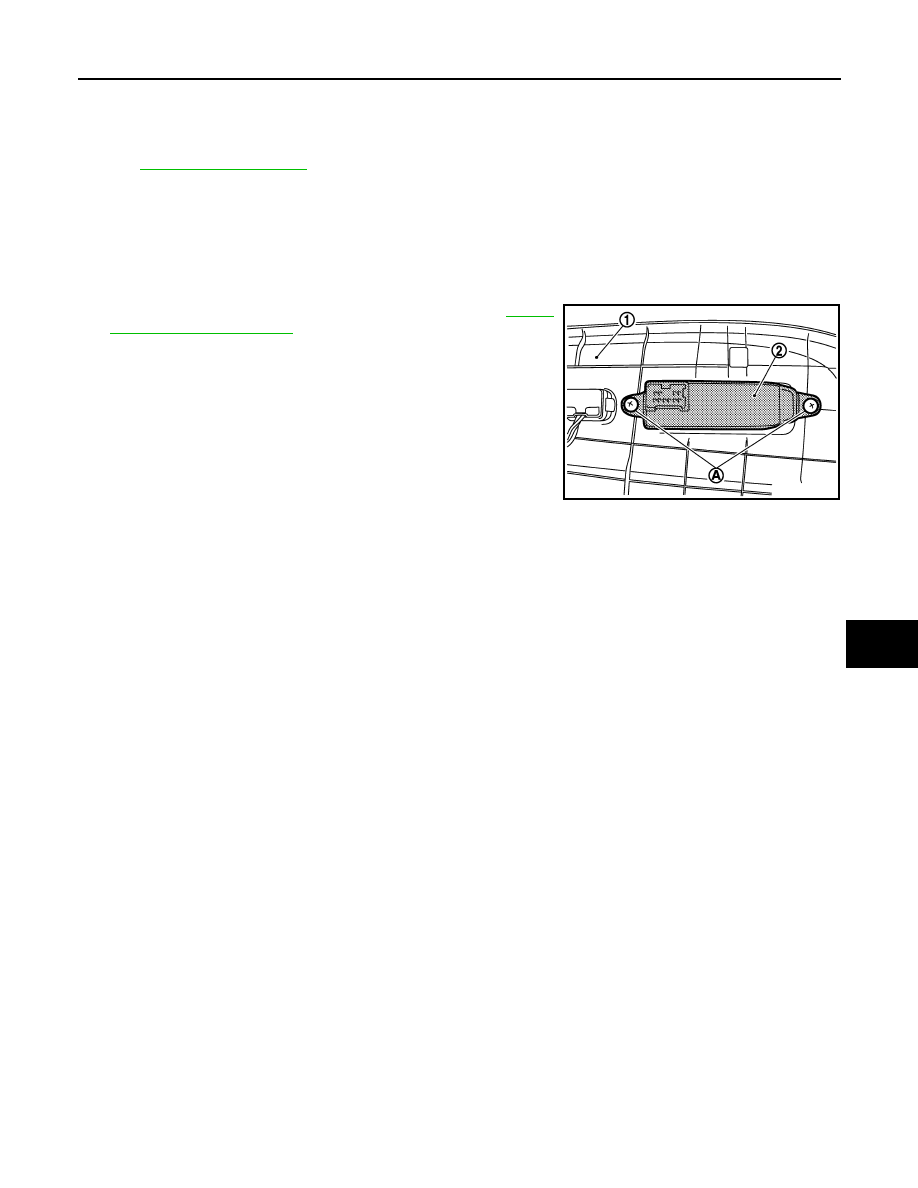

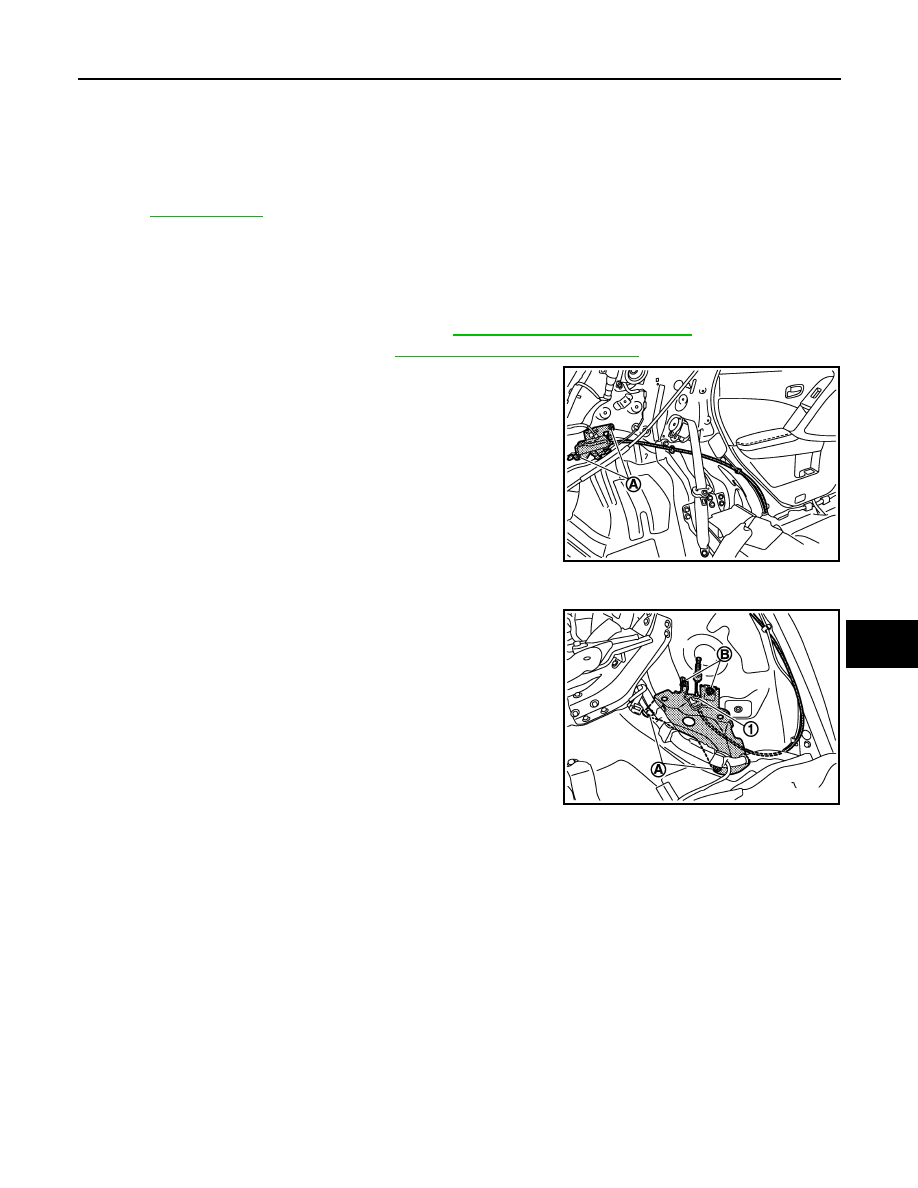

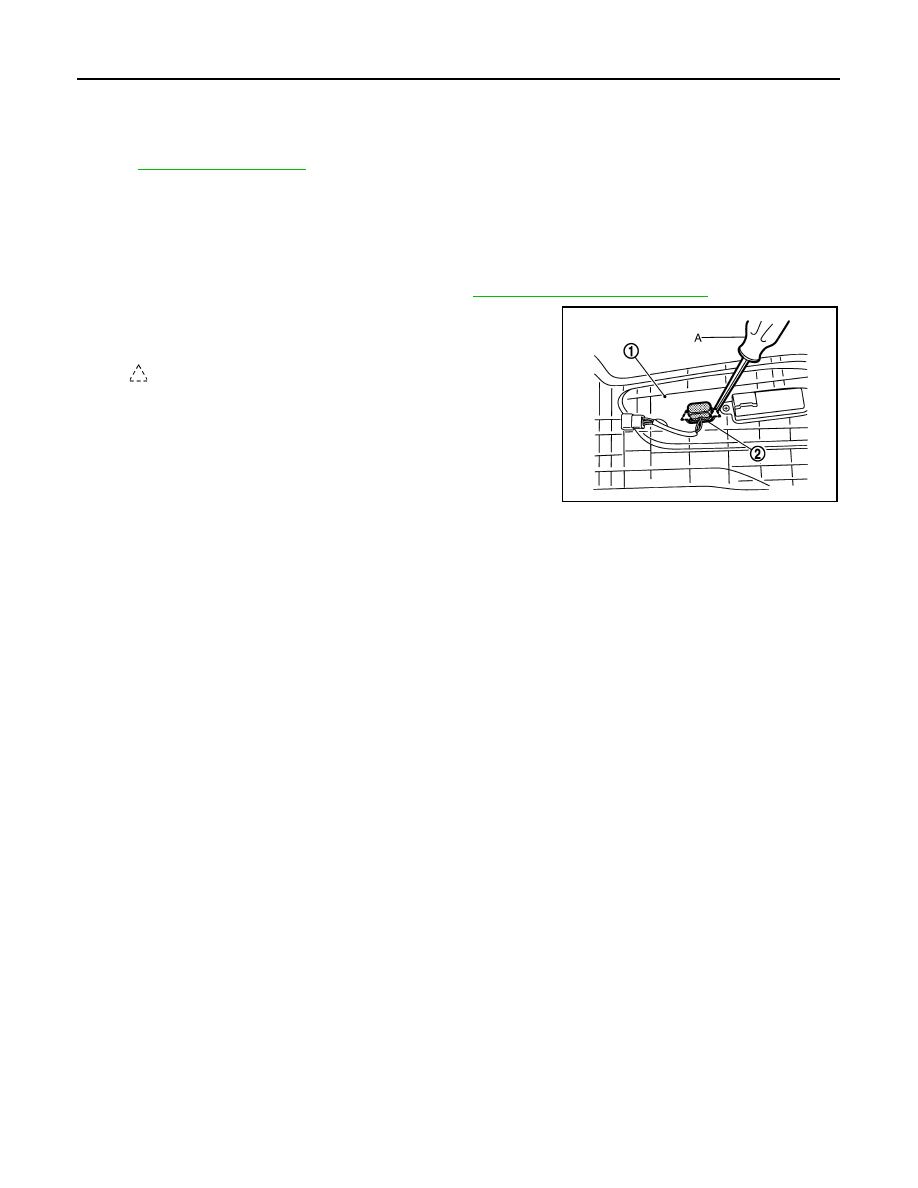

SEATBACK CONTROL CABLE SE-119 < REMOVAL AND INSTALLATION > C D E F G H I K L M A B SE N O P Removal and Installation INFOID:0000000009718776 REMOVAL 1. Remove the seatback control lever escutcheon. 2. Remove the luggage side lower finisher. Refer to INT-35, "Removal and Installation" 3. Remove the rear seat assembly. Refer to SE-109, "Removal and Installation" 4. Remove the mounting nuts (A), and then remove the seatback 5. Remove the rear seat mount bracket. a. Remove the seat mount bracket mounting bolts (A) and nuts (B). b. Remove the seatback control cable bush (1). c. Remove the seatback control cable from the vehicle. INSTALLATION Install in the reverse order of removal. 16. Seat cushion link bush 17. Reclining device inner cover (out- side) 18. Reclining device inner cover (inside) 19. Reclining device assembly 20. Reclining device outer cover 21. Reclining cover 22. Rear seat harness (RH) 23. Seatback board 24. Seatback board clip 25. Seatback frame 26. Dynamic dumper 27. Seatback control lever escutcheon 28. Seatback control cable 29. Seatback silencer Refer to for symbols in the figure. JMJIA1448ZZ JMJIA1464ZZ |
