HEATED SEAT SWITCH

SE-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

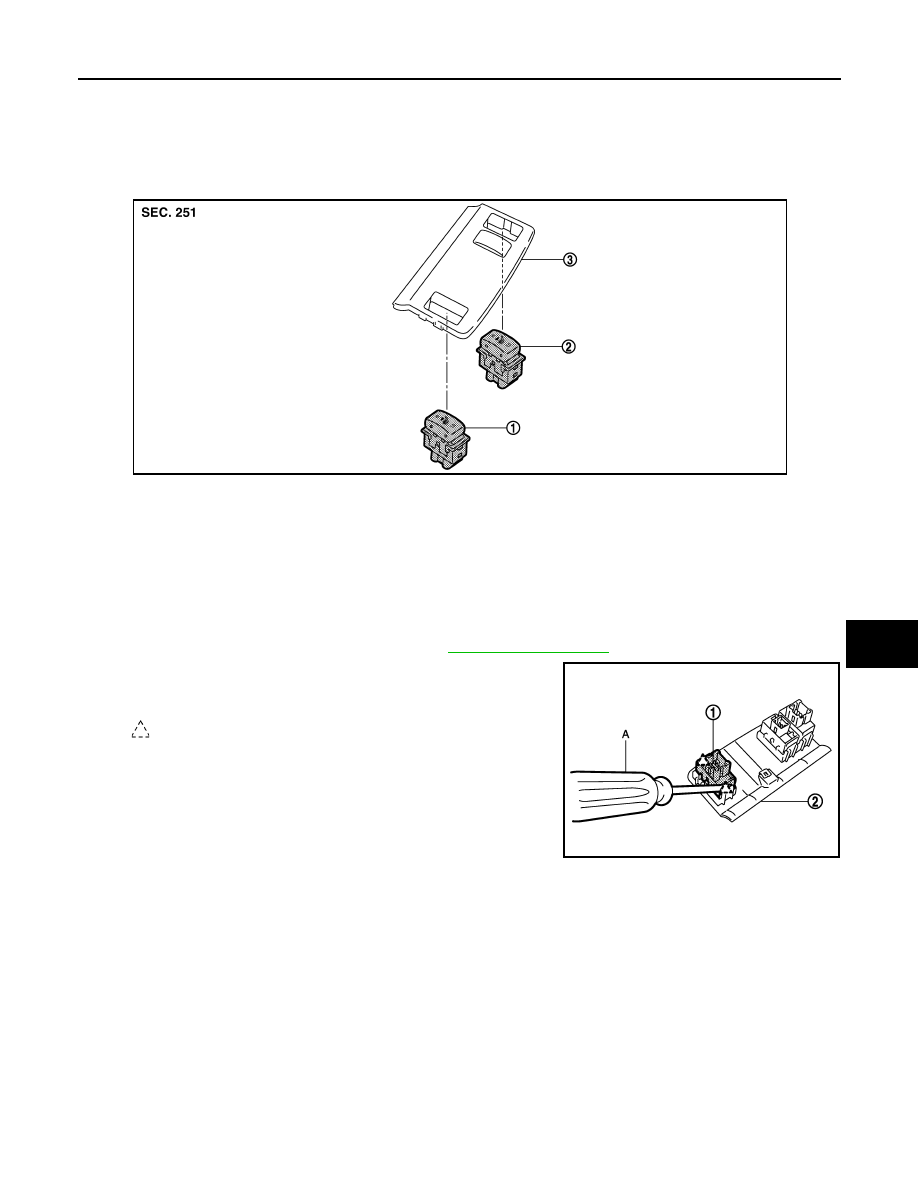

HEATED SEAT SWITCH

FRONT SEAT

FRONT SEAT : Exploded View

INFOID:0000000009718783

FRONT SEAT : Removal and Installation

INFOID:0000000009718784

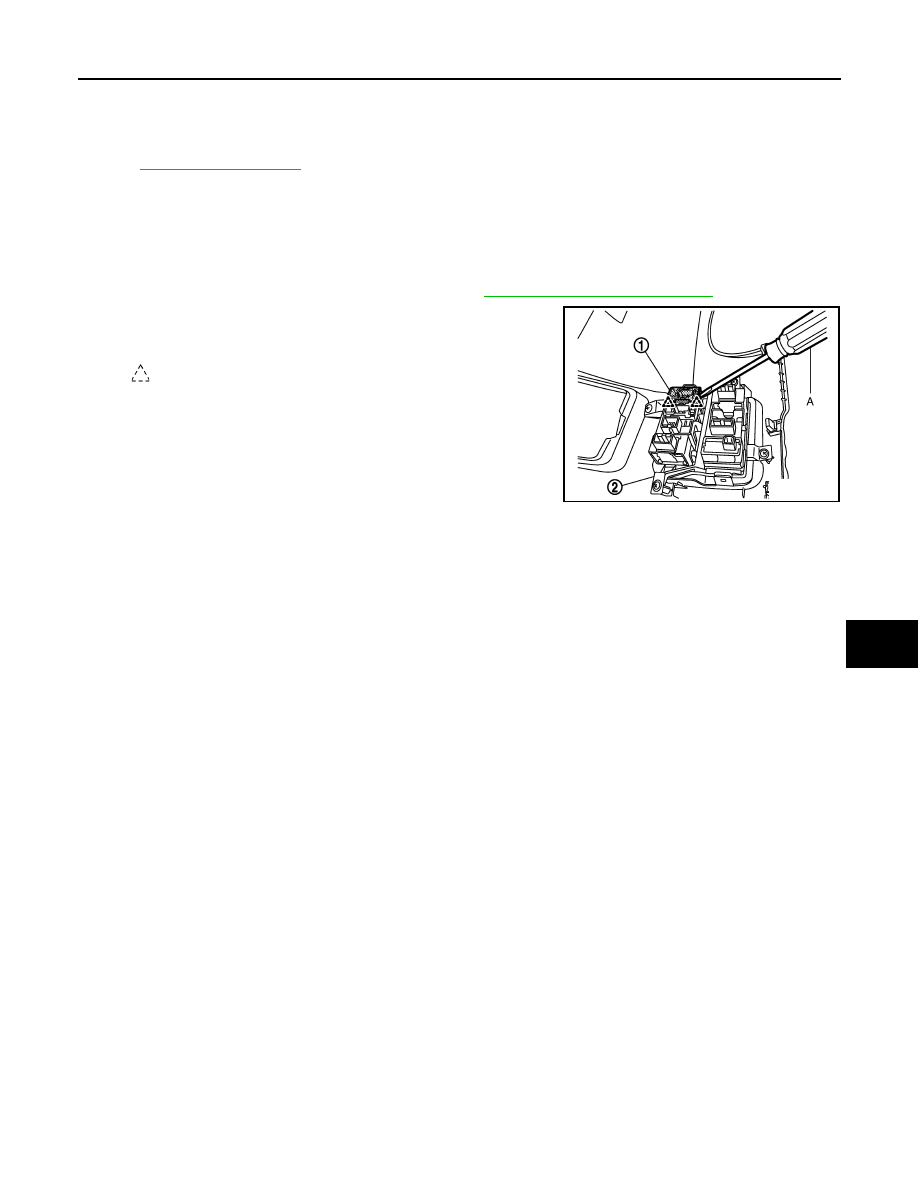

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect from damage.
1.

Remove the console switch finisher (1). Refer to

IP-22, "Exploded View"

2.

Remove front heated seat switch (driver side) (2) from console
switch finisher using remover tool (A).

NOTE:
The same procedure is also performed for passenger side.

INSTALLATION

Install in the reverse order of removal.

REAR SEAT

1.

Front heated seat switch (driver
side)

2.

Front heated seat switch (passenger
side)

3.

Console switch finisher

JMJIA1453ZZ

: Pawl

JMJIA1454ZZ

SE-124

< REMOVAL AND INSTALLATION >

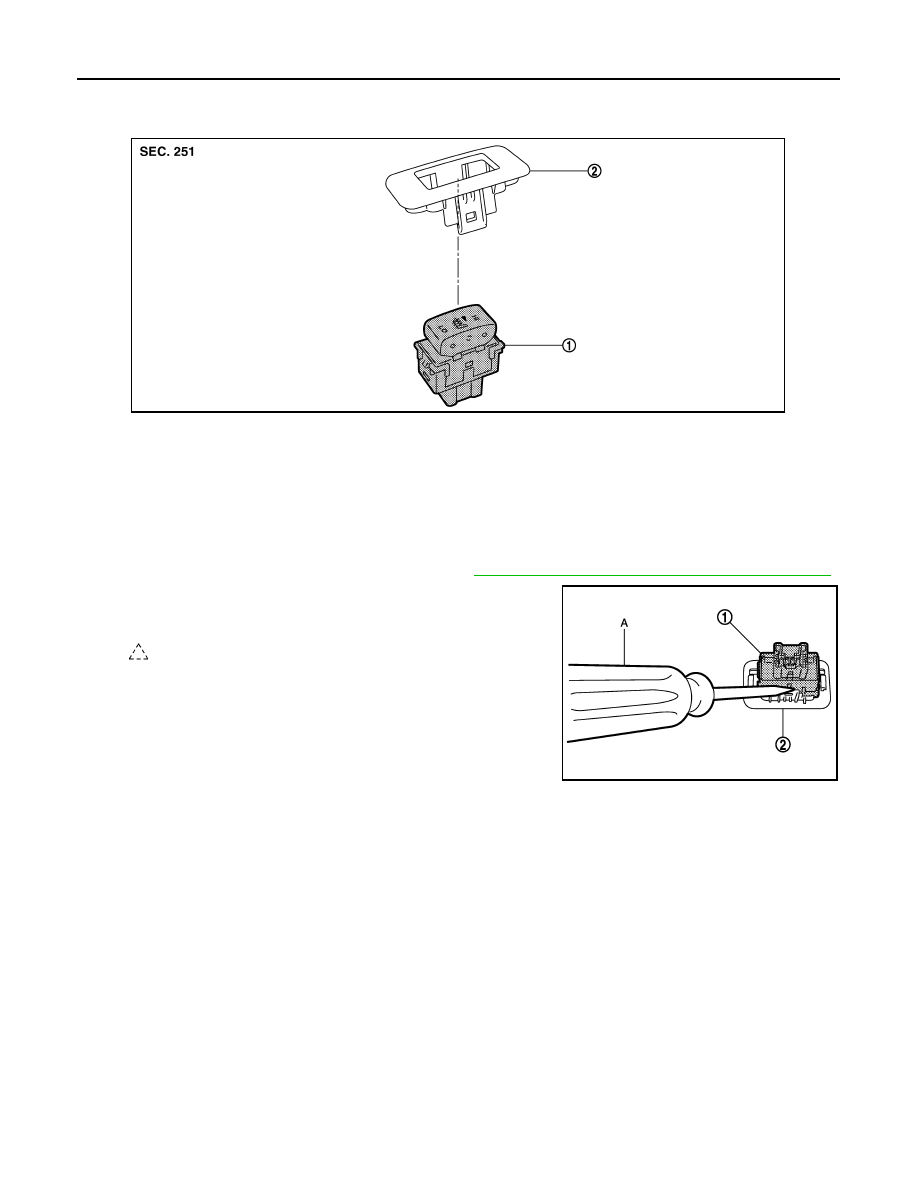

HEATED SEAT SWITCH

REAR SEAT : Exploded View

INFOID:0000000009718785

REAR SEAT : Removal and Installation

INFOID:0000000009718786

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the heated seat switch finisher (2). Refer to

INT-16, "REAR DOOR FINISHER : Exploded View"

2.

Remove rear heated seat switch (1) from heated seat switch fin-
isher using remover tool (A).

INSTALLATION

Install in the reverse order of removal.

1.

Rear heated seat switch

2.

Heated seat switch finisher

JMJIA1456ZZ

: Pawl

JMJIA1455ZZ

FRONT POWER RETURN SWITCH

SE-125

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

FRONT POWER RETURN SWITCH

Exploded View

INFOID:0000000009718787

Refer to

IP-14, "Exploded View"

.

Removal and Installation

INFOID:0000000009718788

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the instrument lower panel (LH) (1). Refer to

IP-15, "Removal and Installation"

2.

Remove front power return switch (1) from switch bracket using
remover tool (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMJIA1415ZZ

SE-126

< REMOVAL AND INSTALLATION >

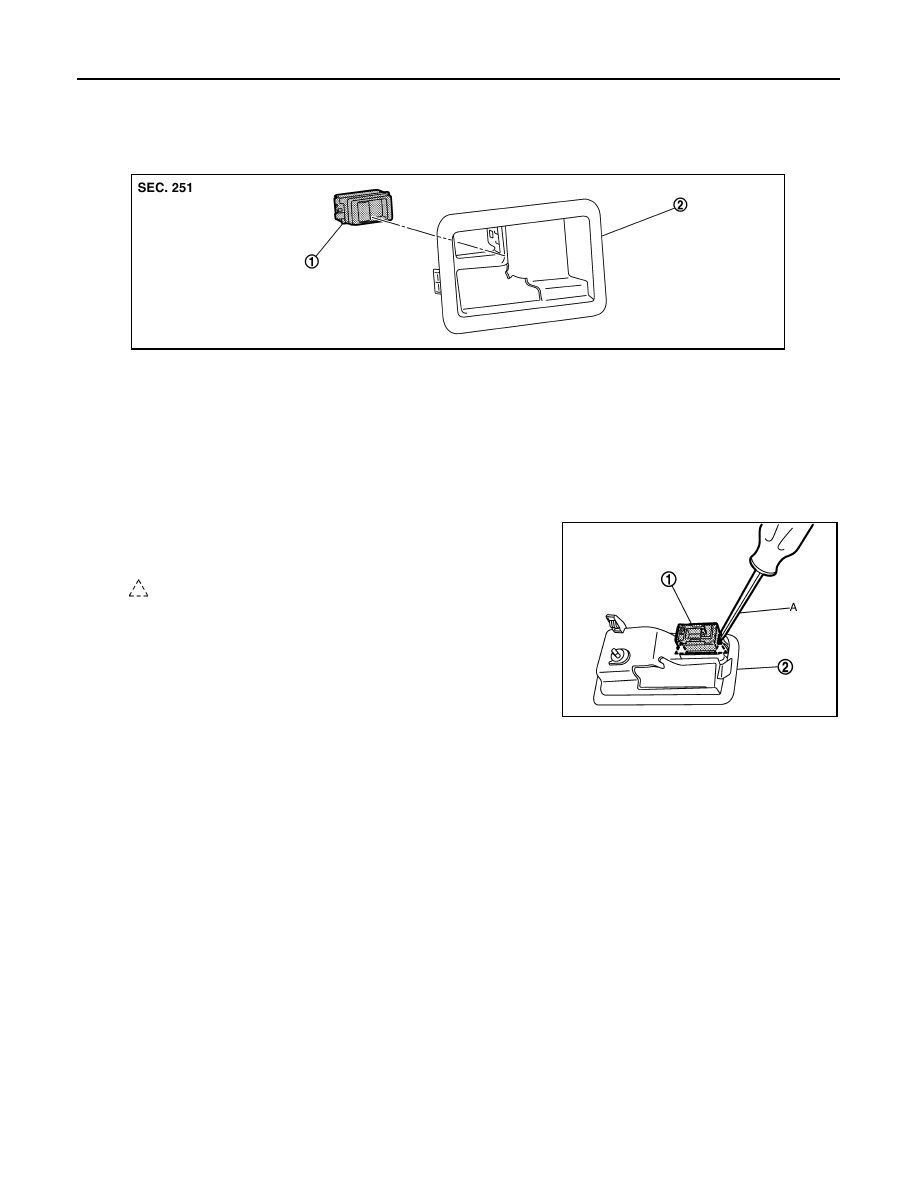

REAR POWER RETURN SWITCH

REAR POWER RETURN SWITCH

Exploded View

INFOID:0000000009718789

Removal and Installation

INFOID:0000000009718790

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the seatback control lever escutcheon.

2.

Remove rear power return switch (1) from seatback control lever
escutcheon using remover tool (A).

INSTALLATION

Install in the reverse order of removal.

1.

Rear power return switch

2.

Seatback control lever escutcheon

JMJIA1411ZZ

: Pawl

JMJIA1412ZZ
