REAR SEAT

SE-111

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

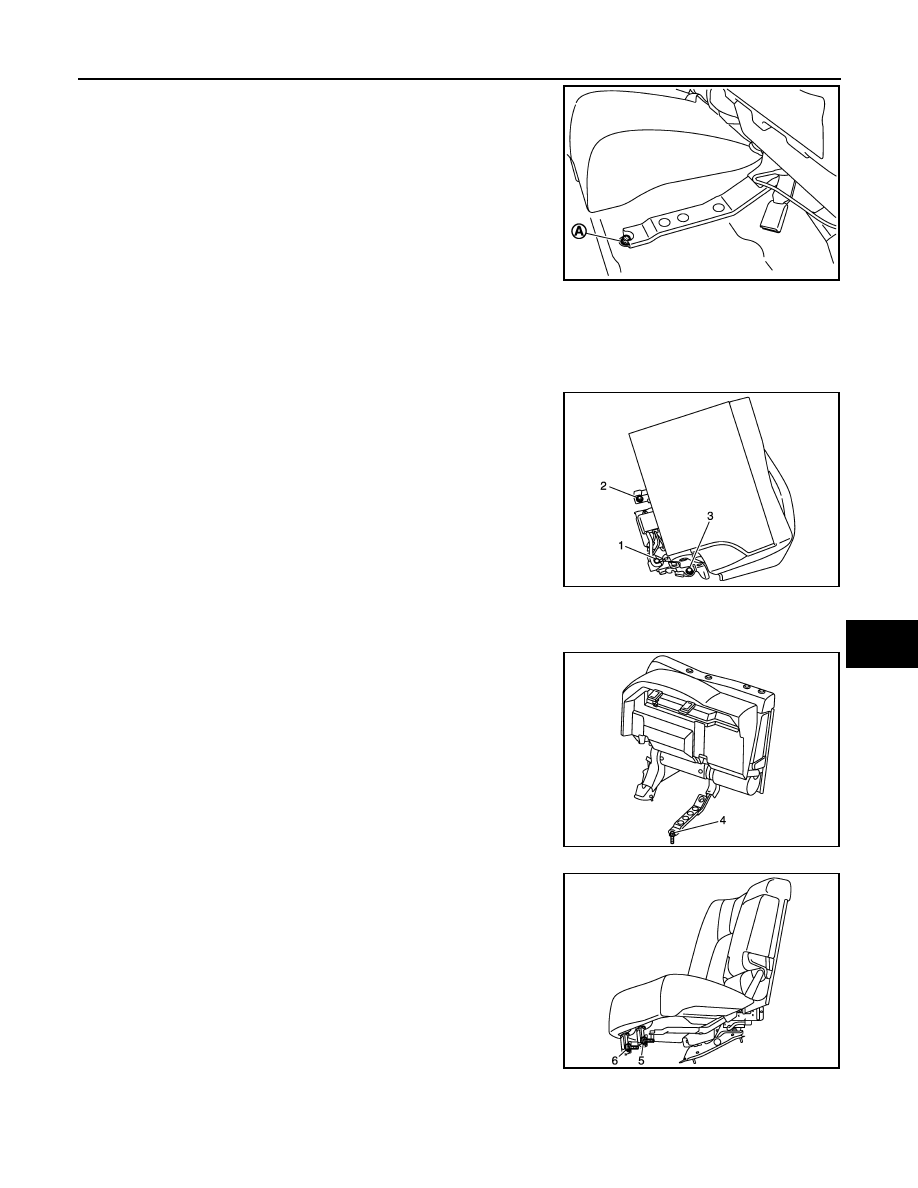

7.

Pull up the seat cushion and remove the seat mounting bolt (A).

8.

Remove the rear seat assembly from back door.

INSTALLATION

NOTE:
Tighten rear seat mounting bolts and nuts following the numerical order shown in the figure.

1.

Install the rear seat mounting bolt on behind the seatback (out
side) and nut on behind the seatback (inside).

2.

Install the rear seat mounting bolt on the seat cushion out side.

3.

Connect the rear seat harness connector and heater harness connector. (Power return seat and heater
seat only)

4.

Install the rear seat mounting bolt on the reclining device exten-
sion bracket.

5.

Install the rear seat mounting bolt and on the seat cushion
hinge.

6.

Connect the seatback control cable.

7.

Install the seat cushion hinge cover.

JMJIA1481ZZ

JMJIA1683ZZ

JMJIA1684ZZ

JMJIA1685ZZ

SE-112

< REMOVAL AND INSTALLATION >

REAR SEAT

8.

Install the reclining cover.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.
• Before installation, check that the rear seat harness and seatback control cable is not pressed by

seat frame.

Disassembly and Assembly

INFOID:0000000009718774

SEATBACK

Disassembly

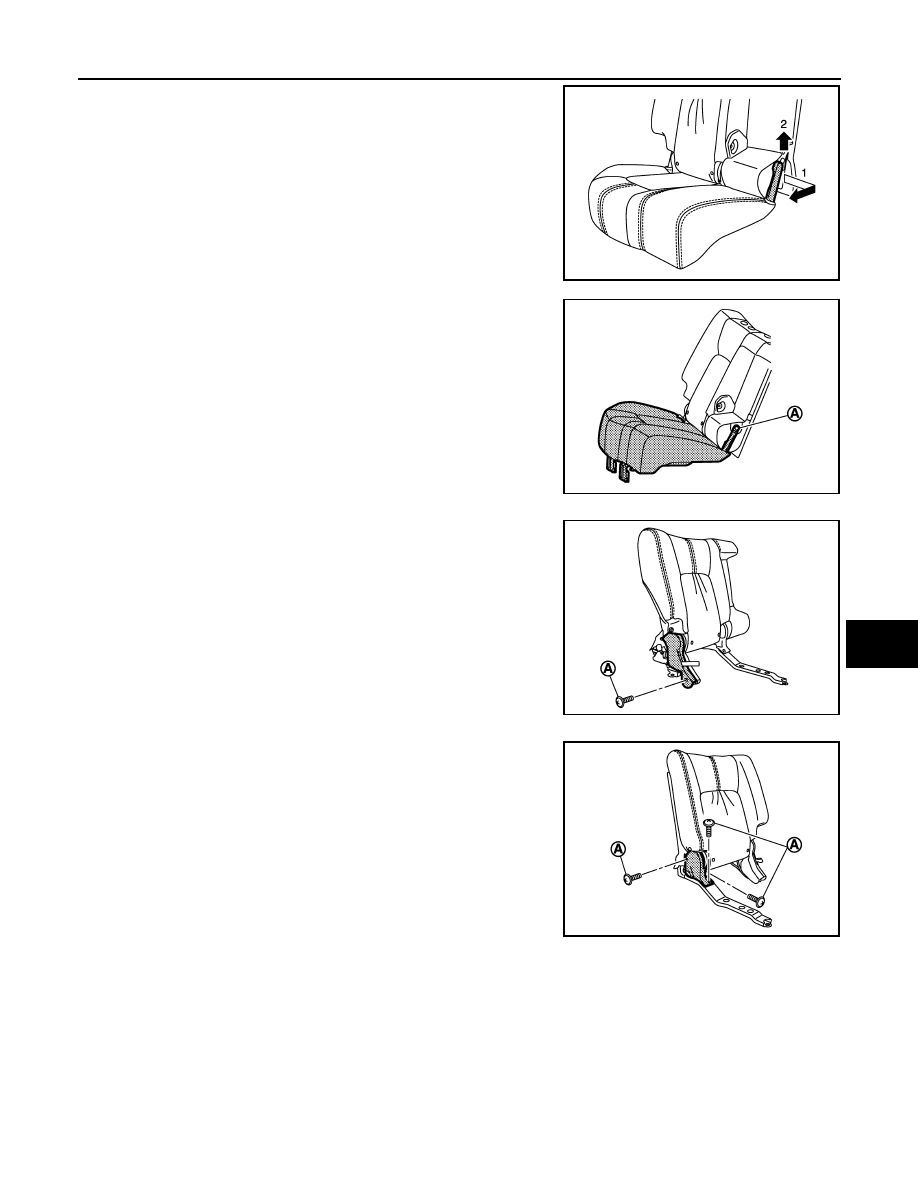

1.

Remove the armrest. (RH seat only)

a.

Remove the armrest outer cover.

b.

Remove the armrest mounting bolts (A), and then slide the arm-
rest to toward the arrow direction.

2.

Separate the seatback assembly and seat cushion assembly.

a.

Disconnect the seat cushion heater unit harness connectors (A)
and remove the harness clamps. (with heater seat model only)

: Pawl

JMJIA1470ZZ

JMJIA1471ZZ

JMJIA1438ZZ

REAR SEAT

SE-113

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

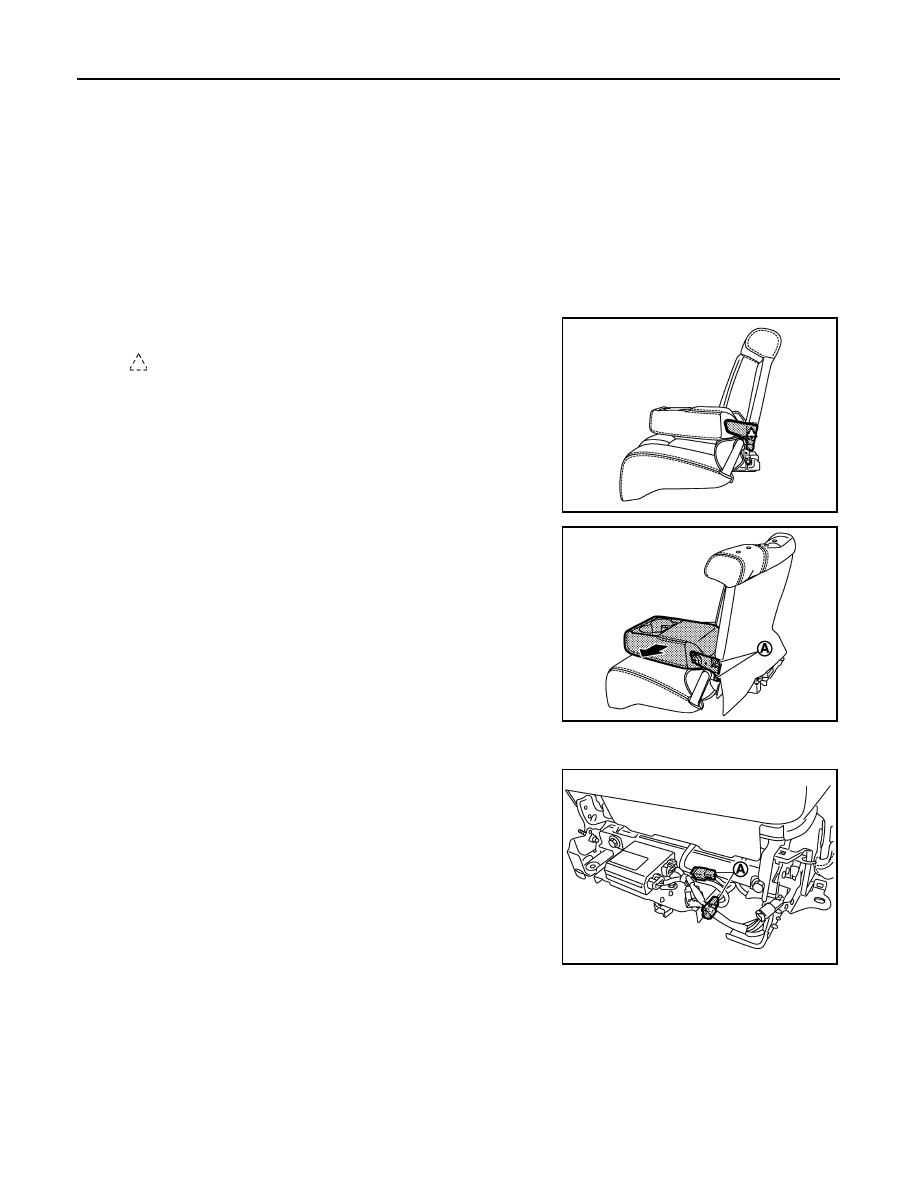

b.

Remove the seat cushion link cover.

c.

Remove the mounting bolt (A), and then separate the seatback
assembly and seat cushion assembly.

3.

Remove the mounting screw (A), and then remove the reclining
device outer cover.

4.

Remove the mounting screws (A), and then remove the reclining
device inner cover (outside). (LH seat)

5.

Remove the seatback trim and pad.

JMJIA1439ZZ

JMJIA1440ZZ

JMJIA1441ZZ

JMJIA1442ZZ

SE-114

< REMOVAL AND INSTALLATION >

REAR SEAT

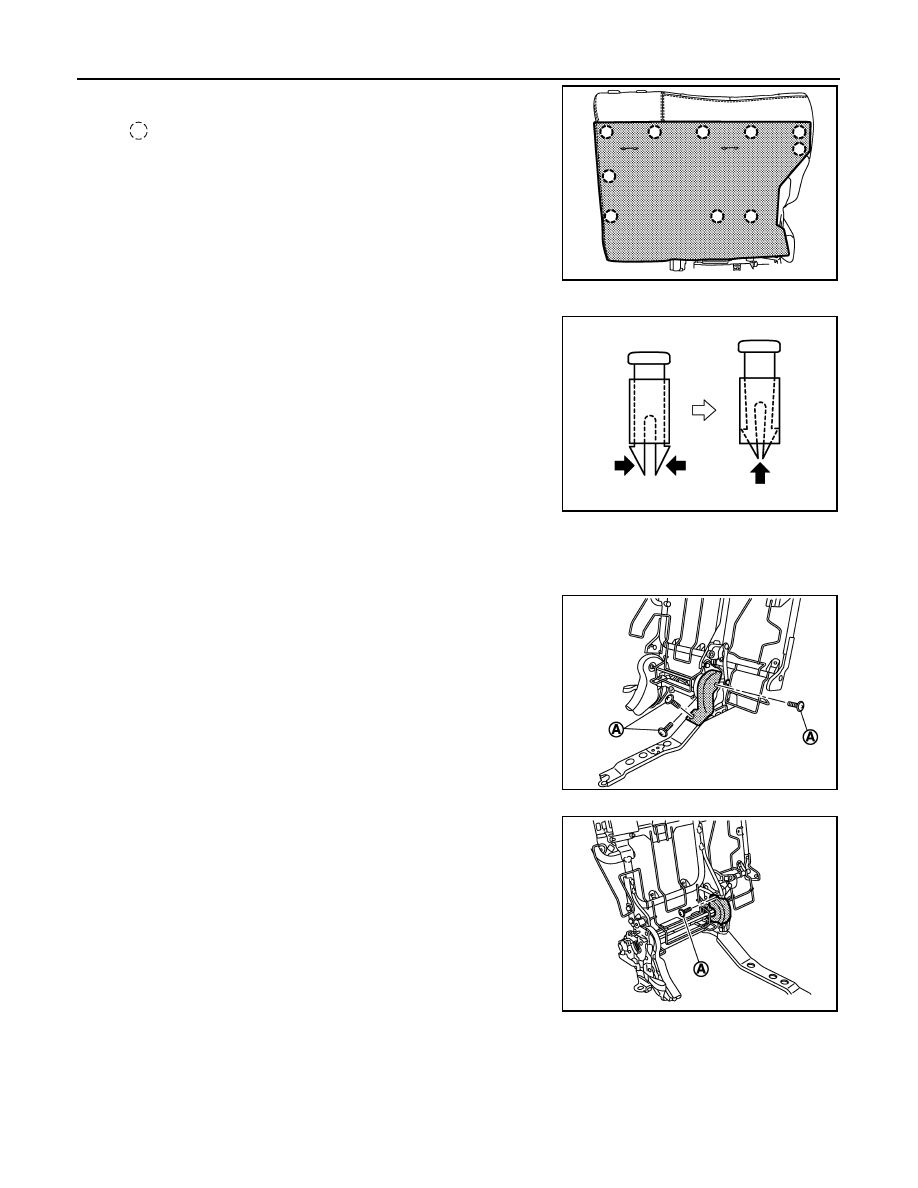

a.

Remove the clips, and then pull out the seatback board.

b.

Remove the seatback trim fixing hog rings and retainer.

c.

Use pincers, etc., to press up pawls as shown by the arrows in
the figure, and remove headrest holder from seatback.

CAUTION:

Before installing headrest holder check its orientation
(front/rear and right/left).

d.

Remove the seatback trim and pad from seatback frame.

e.

Remove the hog rings to separate the seatback trim and seatback pad.

6.

Remove the seatback silencer.

7.

Remove the screws (A), and then remove the reclining device
inner cover (outside). (RH seat)

8.

Remove the screw (A), and then remove the reclining device
inner cover (inside).

: Clip

JMJIA1443ZZ

PIIB4084J

JMJIA1444ZZ

JMJIA1445ZZ
