Nissan Murano. Manual - part 1220





FRONT SEAT

SE-103

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

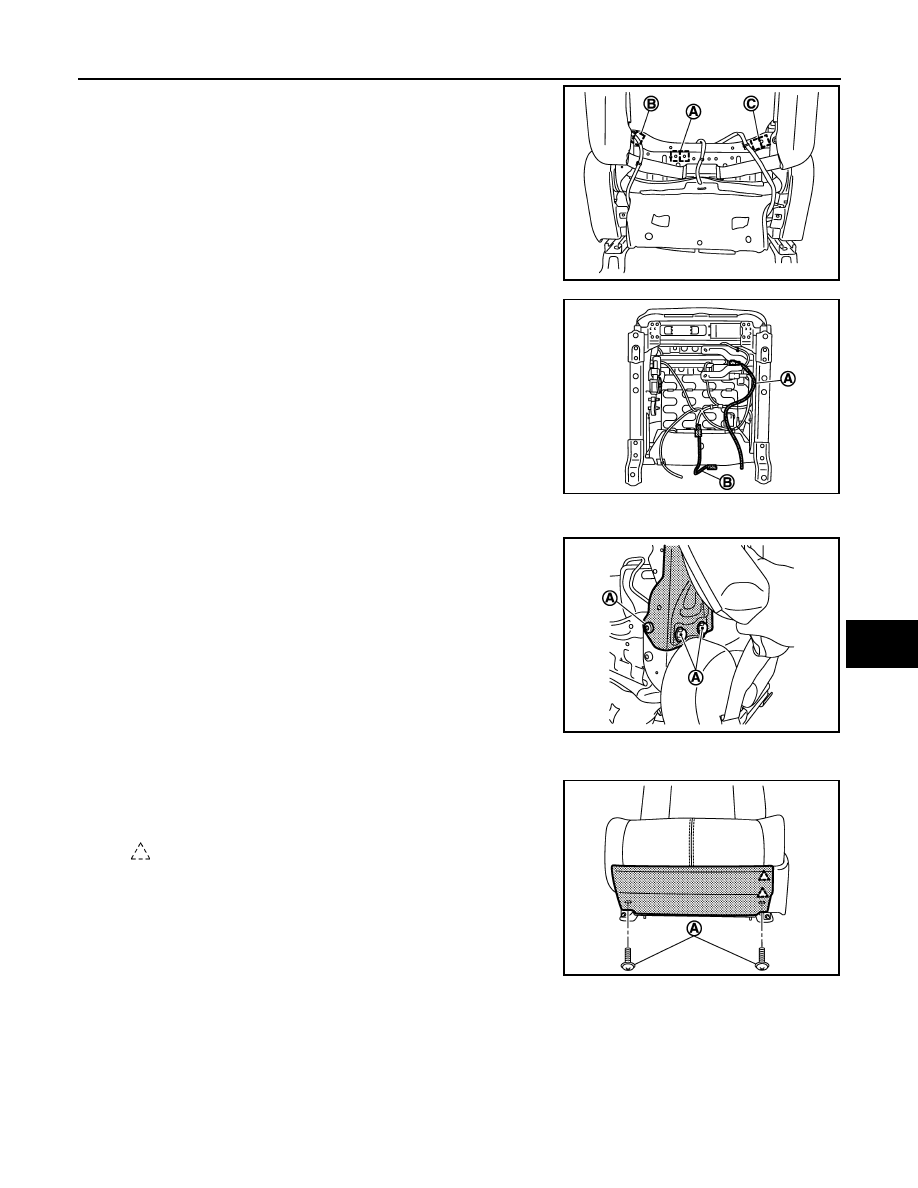

a.

Remove the seatback heater seat harness connector (A) (heater
seat only), lumbar support harness connector (B) (power lumbar
support seat only) and reclining motor harness connector (C)
(power seat only).

b.

Remove the side air bag module harness (A) and disconnect the
seat cushion heater harness connector (B) (heater seat only).

4.

Remove the seatback assembly.
Remove the seatback mounting bolts (A), and then remove the
seatback assembly.

5.

Remove the seat cushion front finisher. (Power seat only)

a.

Remove the seat cushion front finisher mounting screws (A).

b.

Remove the seat cushion front finisher mounting pawl.

JMJIA1423ZZ

JMJIA1426ZZ

JMJIA1427ZZ

: Pawl

JMJIA1428ZZ

SE-104

< REMOVAL AND INSTALLATION >

FRONT SEAT

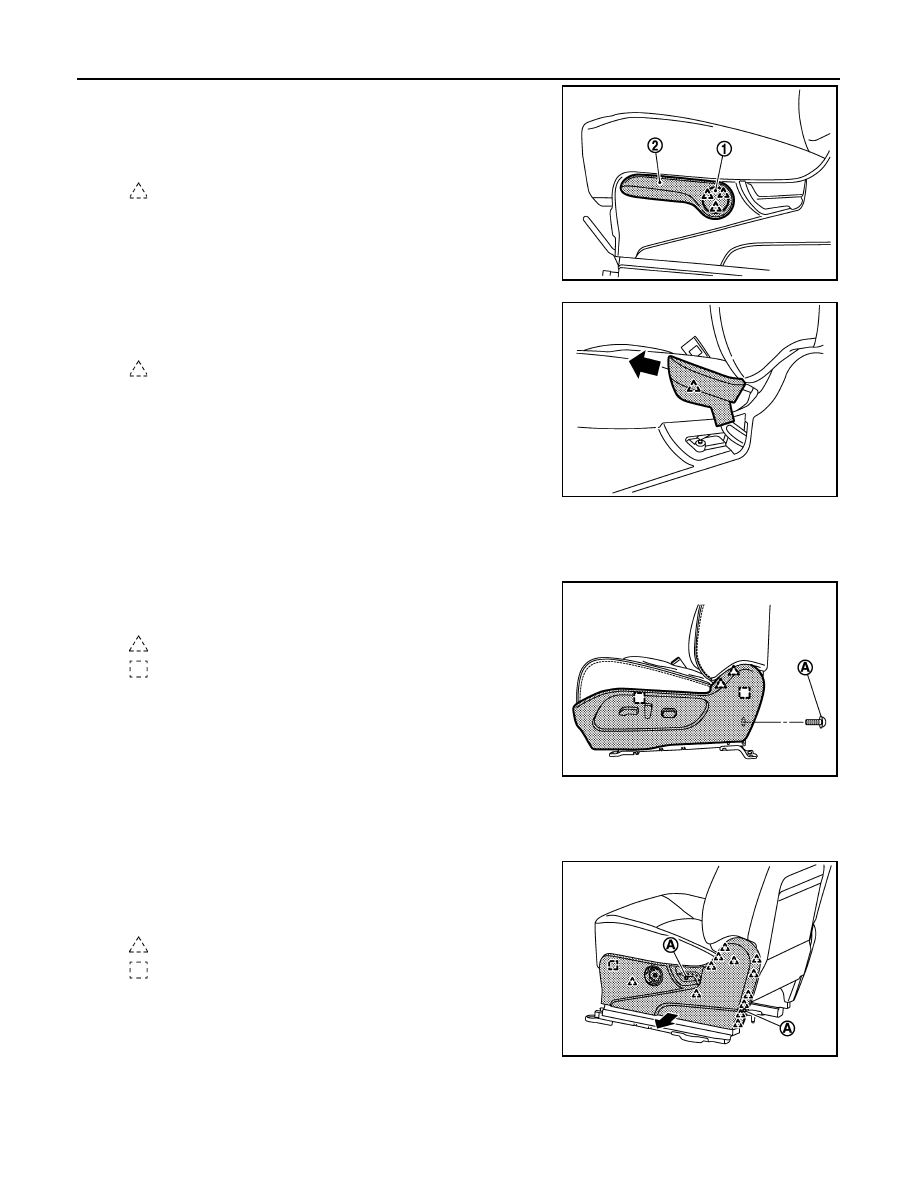

6.

Remove the pawls, and then lifter lever knob finisher (1) (driver
manual seat only).

7.

Remove the mounting screws, and remove the lifter lever (2)
(driver manual seat only).

8.

Pull out the reclining lever while holding and raising the pawl
(manual seat only)

9.

Remove the seat cushion outer finisher outside.

Power seat

• Remove the seat control switch knob and reclining switch knob and lumbar support switch.
• Remove the seat cushion outer finisher mounting screw (A),

metal clips and pawls.

• Disconnect the seat control switch, reclining switch and lumbar support switch harness connectors

(Driver's seat only).

Manual seat

• Remove the mounting screws (A).
• Remove the metal clip and pawls, and then pull out seat cush-

ion outer finisher outside.

10. Remove the seat cushion outer finisher inside (left).

: Pawl

JMJIA1090ZZ

: Pawl

JMJIA1091ZZ

: Pawl

: Metal clip

JMJIA1429ZZ

: Pawl

:Metal clip

JMJIA1482ZZ

FRONT SEAT

SE-105

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

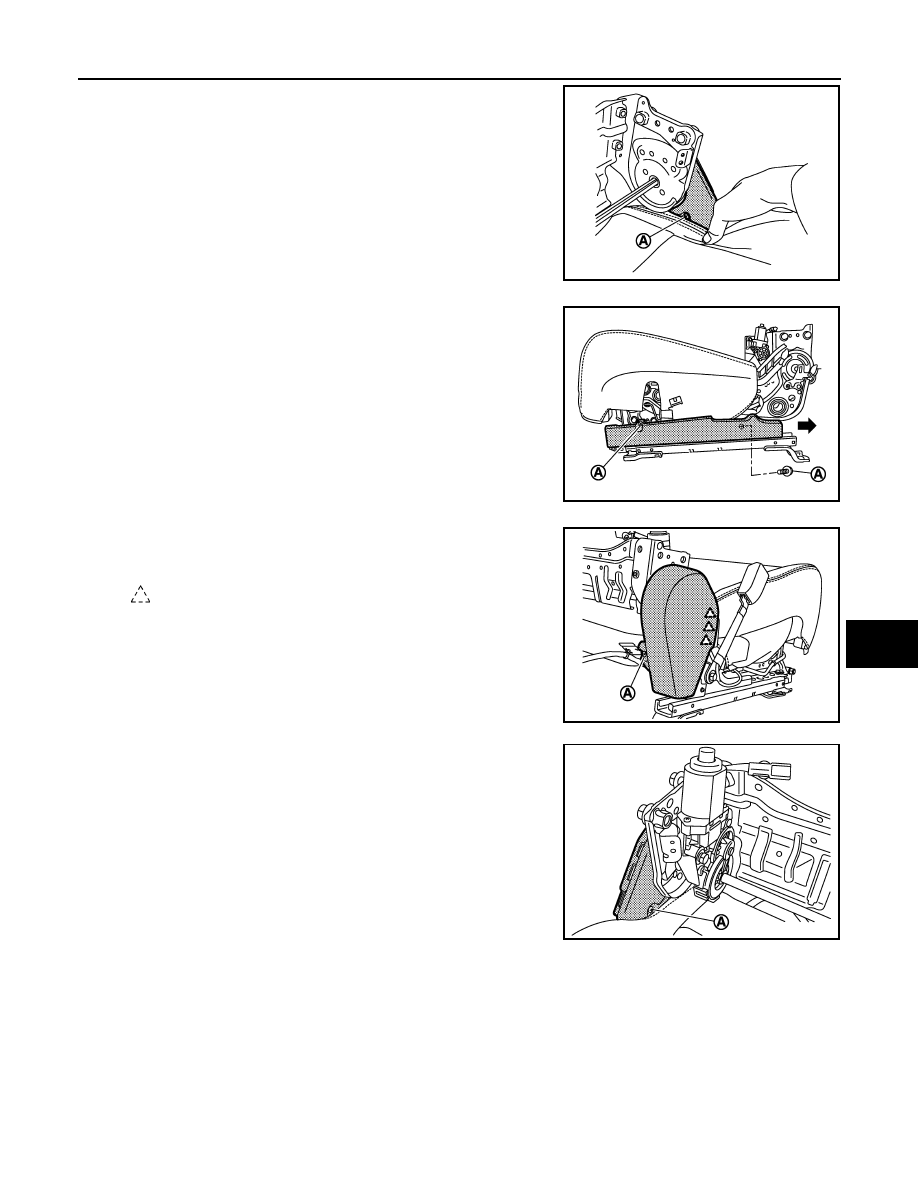

Remove the mounting screw (A).

11. Remove the seat slide outer cover (driver seat only) mounting

screws (A), and then slide to backward.

12. Remove the mounting screw (A) and pawls, and then pull out

seat cushion inner finisher outer.

13. Remove the mounting screw (A), and then pull out seat cushion

inner finisher inside (right).

JMJIA1430ZZ

JMJIA1431ZZ

: Pawl

JMJIA1432ZZ

JMJIA1433ZZ

SE-106

< REMOVAL AND INSTALLATION >

FRONT SEAT

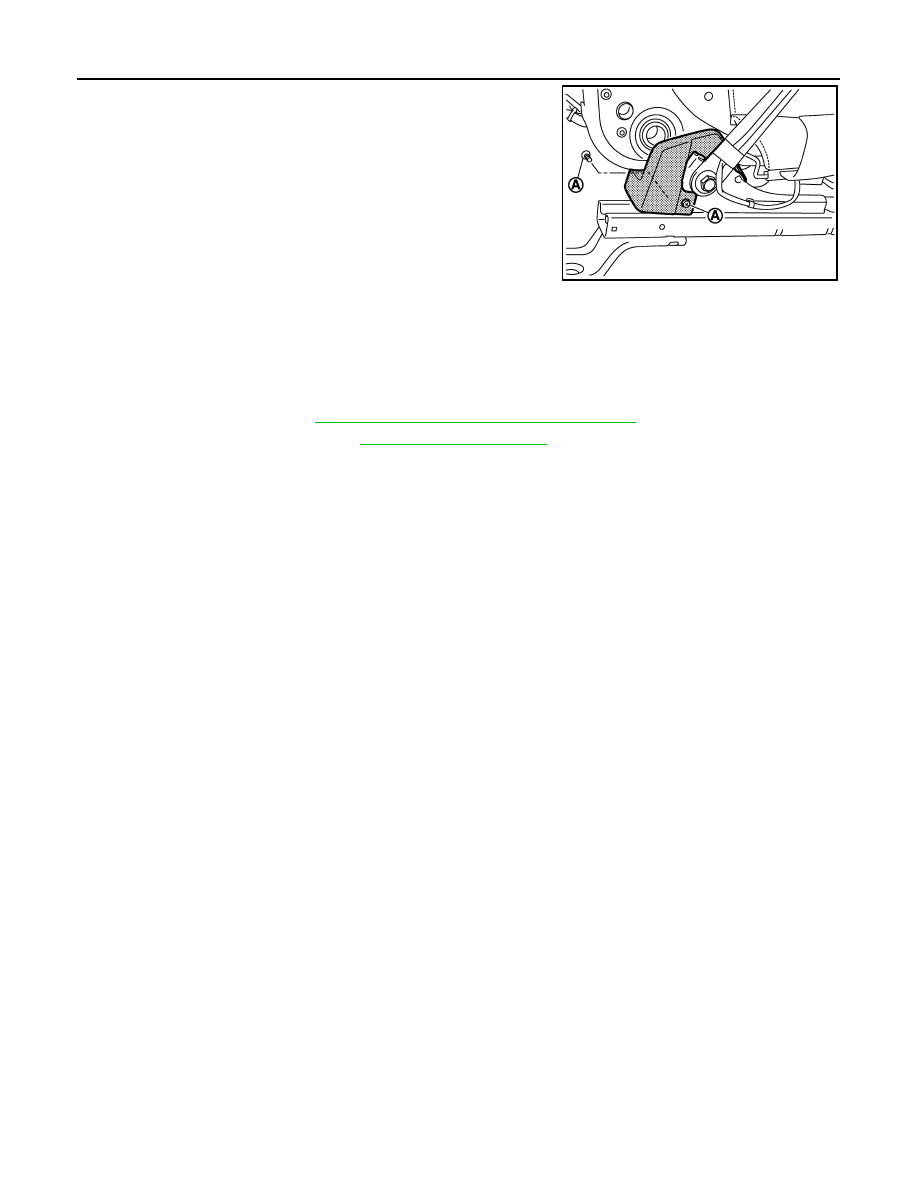

14. Remove the mounting screws (A), and then pull out seat slide

inner cover (driver seat only).

15. Remove the seat cushion trim and seat cushion pad. (Without occupant classification system control unit

model)

a.

Remove the seat cushion trim retainer.

b.

Remove the seat cushion trim and seat cushion pad from the seat cushion frame.

c.

Remove the hog rings, and separate the seat cushion trim and seat cushion pad.

16. Remove the seat belt buckle.

SB-9, "SEAT BELT BUCKLE : Exploded View"

17. Remove the driver seat control unit.

ADP-210, "Exploded View"

Assembly

Note the following item, and assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the pad side wire.

JMJIA1469ZZ
