PASSENGER SEAT

CAUTION:

Never disassembly the component parts of only front passenger seat in the dotted lines shown in the
figure below. (With occupant classification system control unit model)

16. Front outer slide cover

17. Lifter lever knob finisher

18. Lifter lever

19. Reclining lever

20. Seat cushion outer finisher outside

21. Seat cushion outer finisher inside

(left)

22. Seat slide outer cover

23. Rear outer slide cover

24. Rear inner slide cover

25. Side air bag module cover

26. Side air bag module

27. Side air bag module mounting brack-

et

28. Seatback board

29. Seatback silencer

Refer to

GI-4, "Components"

 for symbols in the figure.

SE-96

< REMOVAL AND INSTALLATION >

FRONT SEAT

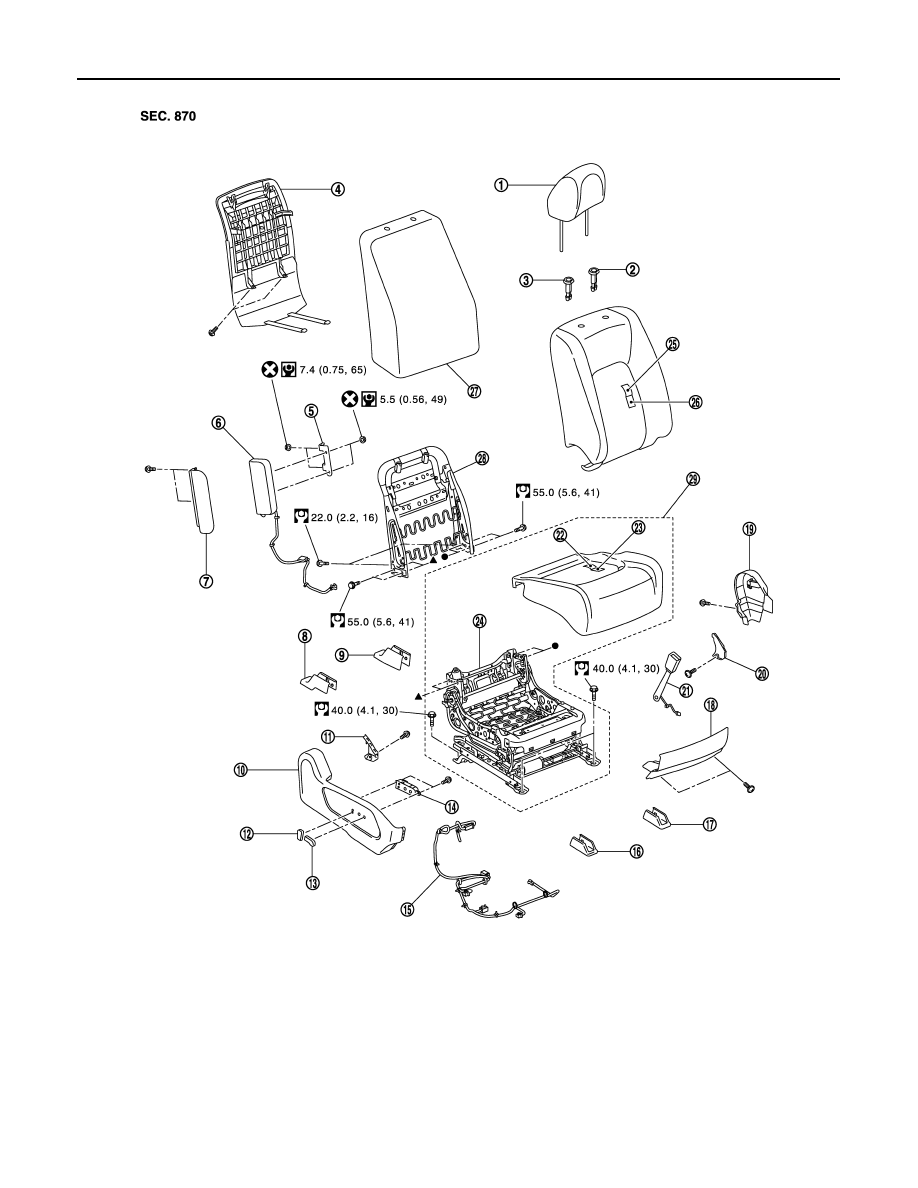

POWER SEAT

JMJIA1417GB

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback board

5.

Side air bag module mounting brack-
et

6.

Side air bag module

7.

Side air bag module cover

8.

Rear outer slide cover

9.

Rear inner slide cover

10. Seat cushion outer finisher outside

11.

Seat cushion outer finisher inside
(right)

12. Seat reclining switch knob

13. Seat control switch knob

14. Seat control switch

15. Seat harness

FRONT SEAT

SE-97

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

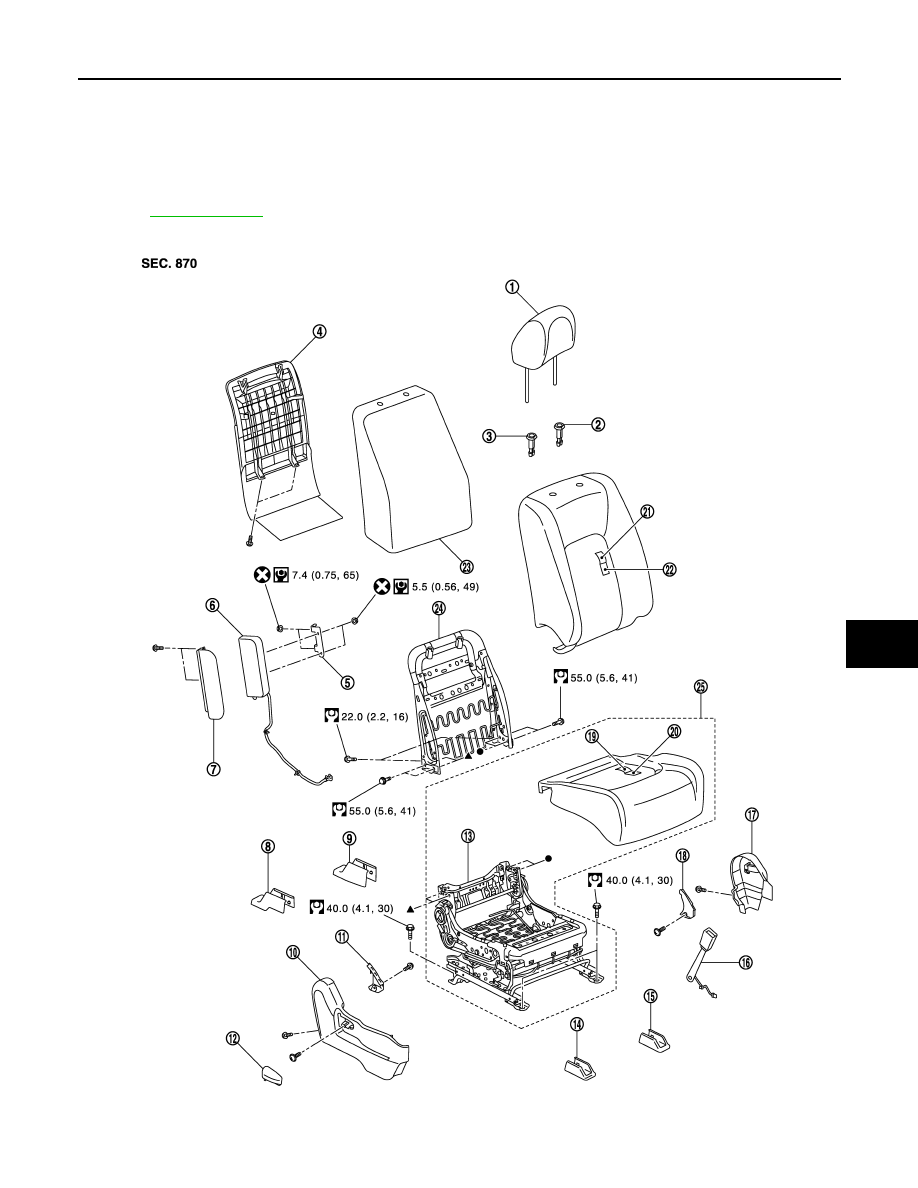

MANUAL SEAT

16. Front outer slide cover

17. Front inner slide cover

18. Seat cushion front finisher

19. Seat cushion inner finisher outside

20. Seat cushion inner finisher inside

(left)

21. Seat belt buckle

22. Seat cushion trim

23. Seat cushion pad

24. Seat cushion frame

25. Seatback trim

26. Seatback pad

27. Seatback silencer

28. Seatback frame

29. Seat cushion assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA1419GB

SE-98

< REMOVAL AND INSTALLATION >

FRONT SEAT

Removal and Installation

INFOID:0000000009718770

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

REMOVAL

NOTE:
When removing seat slide outer cover and seat slide inner cover, operate seat slide & lifter and set seat cush-
ion to the highest position in advance. This facilitates removal.
1.

Remove the headrest.

2.

Remove the front slide cover.

CAUTION:

Remove the pawl more carefully.
If pawl was damaged, the cover is broken by case.

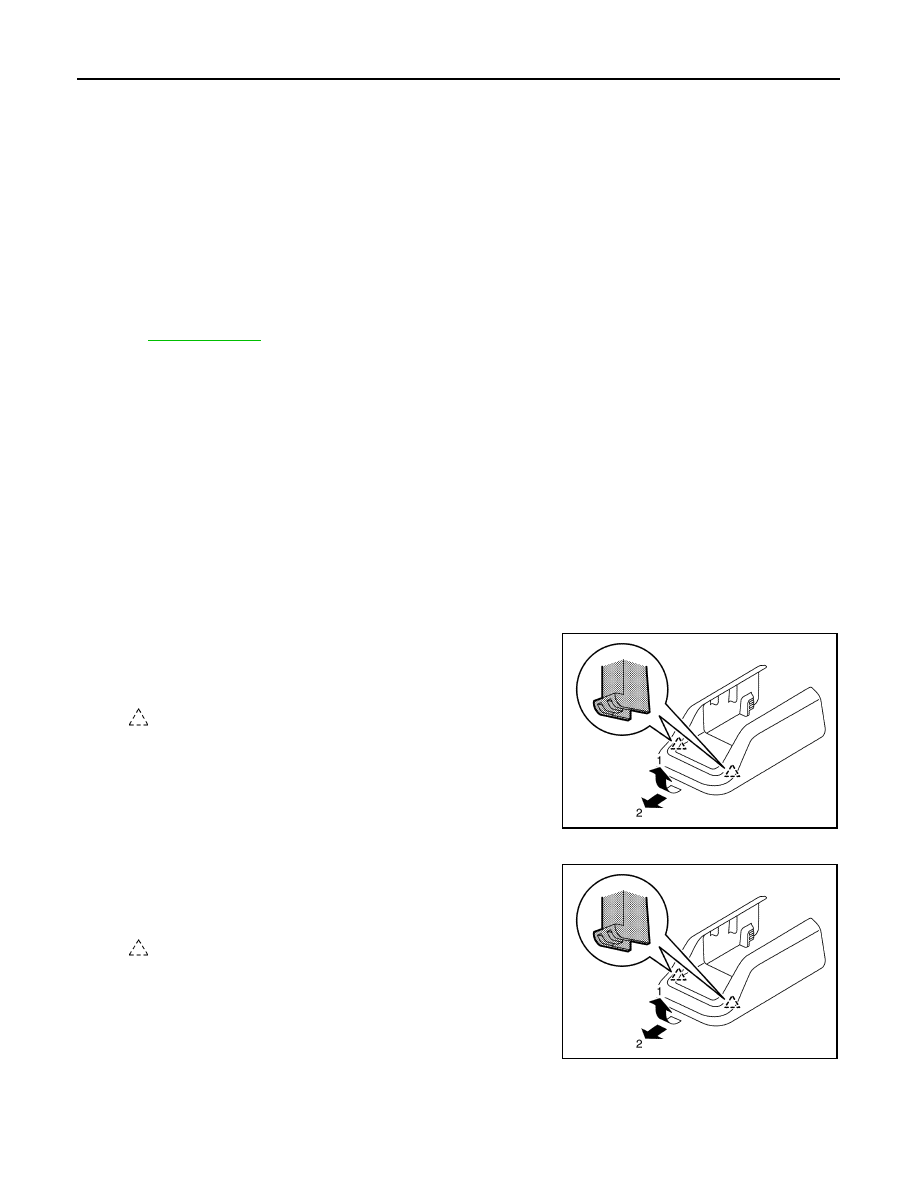

a.

Remove front outer slide cover.

i.

Pull front outer slide cover in direction indicated by the arrow as
shown in the figure. Disengage pawls on the front side.

ii.

Slide front outer slide cover to the front side to remove.

b.

Remove front inner slide cover.

i.

Pull front inner slide cover in direction indicated by the arrow as
shown in the figure. Disengage pawls on the front side.

ii.

Slide front inner slide cover to the front side to remove.

3.

Remove the mounting bolts on the front side of the front seat.

4.

Remove the rear slide cover.

CAUTION:

Remove the pawl more carefully.

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback board

5.

Side air bag module mounting brack-
et

6.

Side air bag module

7.

Side air bag module cover

8.

Rear outer slide cover

9.

Rear inner slide cover

10. Seat cushion outer finisher outside

11.

Seat cushion outer finisher inside
(right)

12. Reclining lever

13. Seat cushion frame

14. Front outer slide cover

15. Front inner slide cover

16. Seat belt buckle

17. Seat cushion inner finisher outside

18. Seat cushion inner finisher inside

(left)

19. Seat cushion trim

20. Seat cushion pad

21. Seatback trim

22. Seatback pad

23. Seatback silencer

24. Seatback frame

25. Seat cushion assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

: Pawl

JMJIA6396ZZ

: Pawl

JMJIA6396ZZ
