CLIP LIST

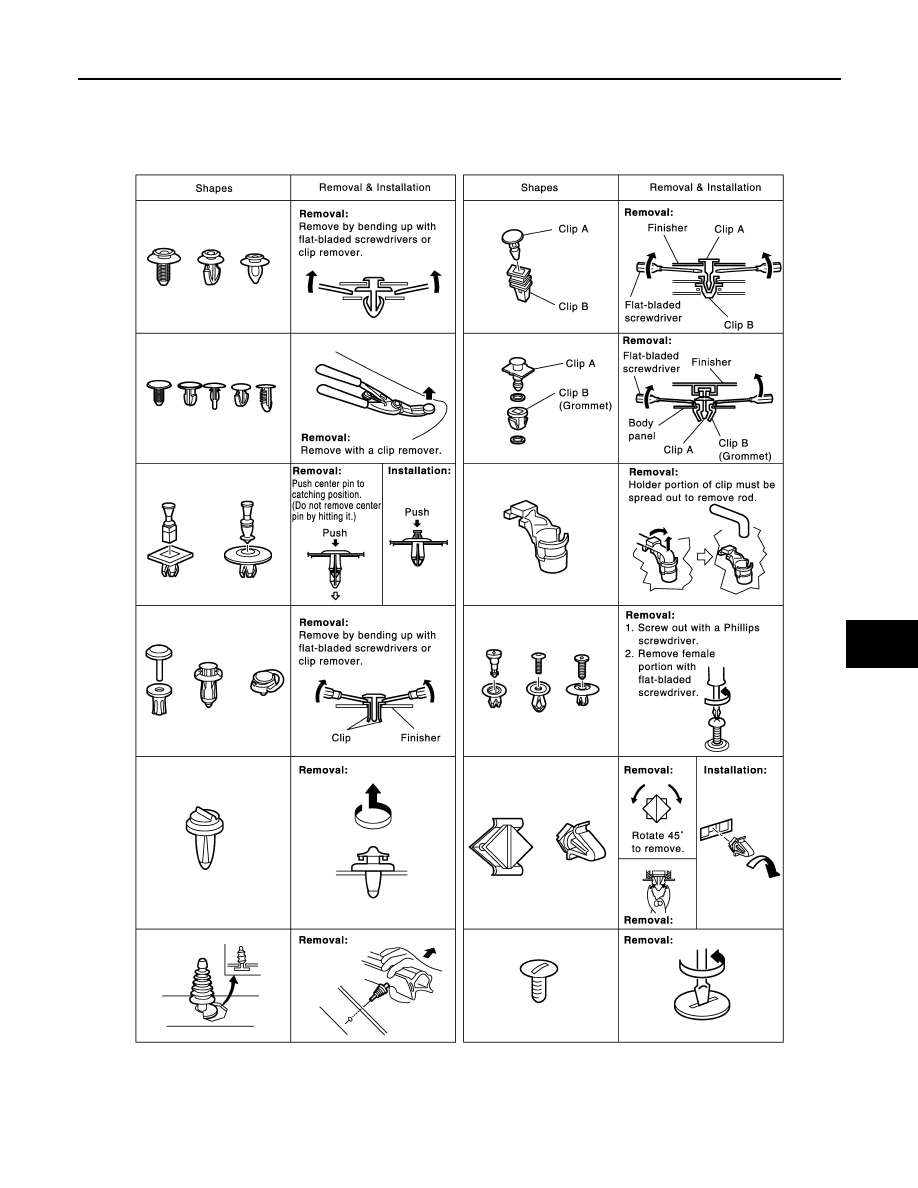

Clip List

INFOID:0000000009718768

JMJIA3734GB

SE-92

< REMOVAL AND INSTALLATION >

FRONT SEAT

REMOVAL AND INSTALLATION

FRONT SEAT

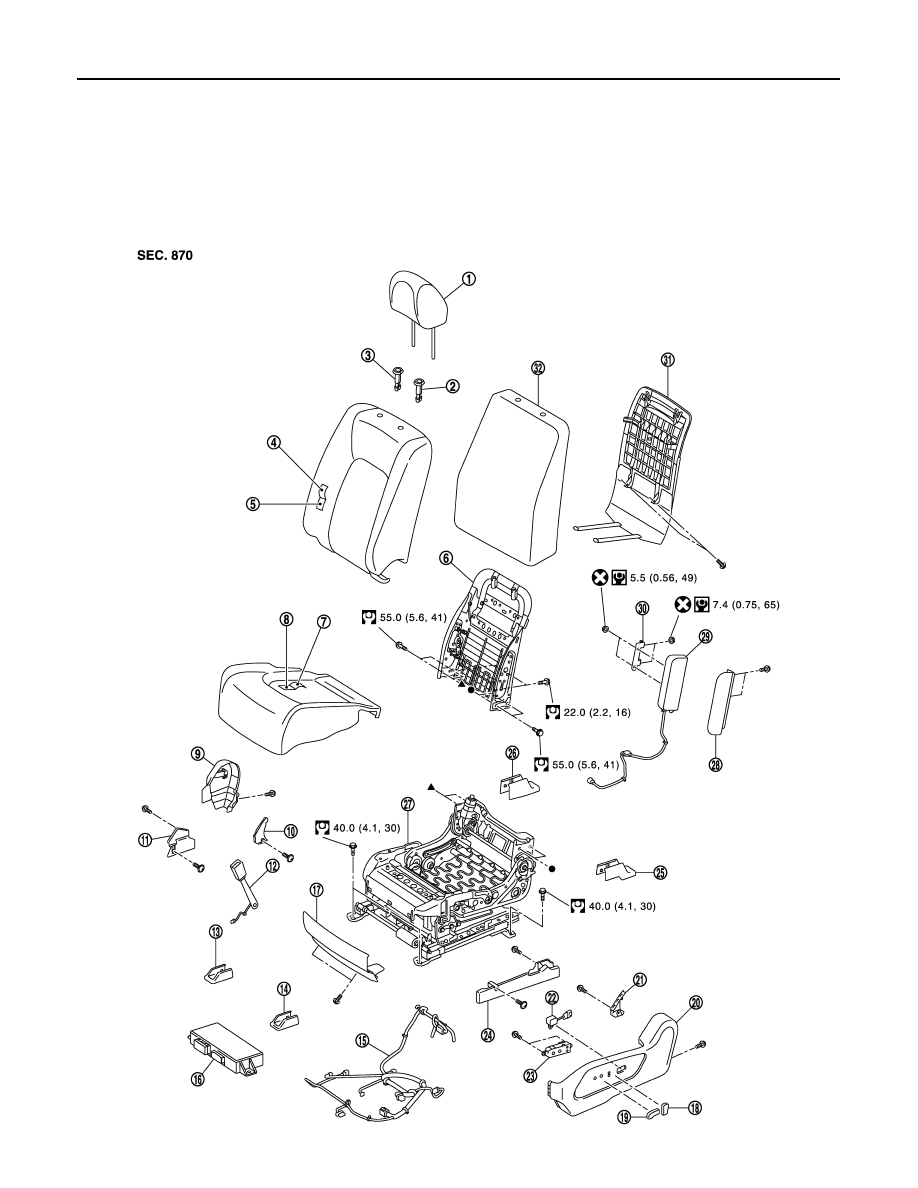

Exploded View

INFOID:0000000009718769

DRIVER SEAT

POWER SEAT

JMJIA1418GB

FRONT SEAT

SE-93

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Seatback frame

7.

Seat cushion trim

8.

Seat cushion pad

9.

Seat cushion inner finisher outside

10. Seat cushion inner finisher inside

(right)

11.

Seat slide inner cover

12. Seat belt buckle

13. Front inner slide cover

14. Front outer slide cover

15. Seat harness

16. Seat control unit

17. Seat cushion front finisher

18. Seat reclining switch knob

19. Seat control switch knob

20. Seat cushion outer finisher outside

21. Seat cushion outer finisher inside

(left)

22. Lumbar support switch

23. Seat control switch

24. Seat slide outer cover

25. Rear outer slide cover

26. Rear inner slide cover

27. Seat cushion frame

28. Side air bag module cover

29. Side air bag module

30. Side air bag module mounting brack-

et

31. Seatback board

32. Seatback silencer

Refer to

GI-4, "Components"

 for symbols in the figure.

SE-94

< REMOVAL AND INSTALLATION >

FRONT SEAT

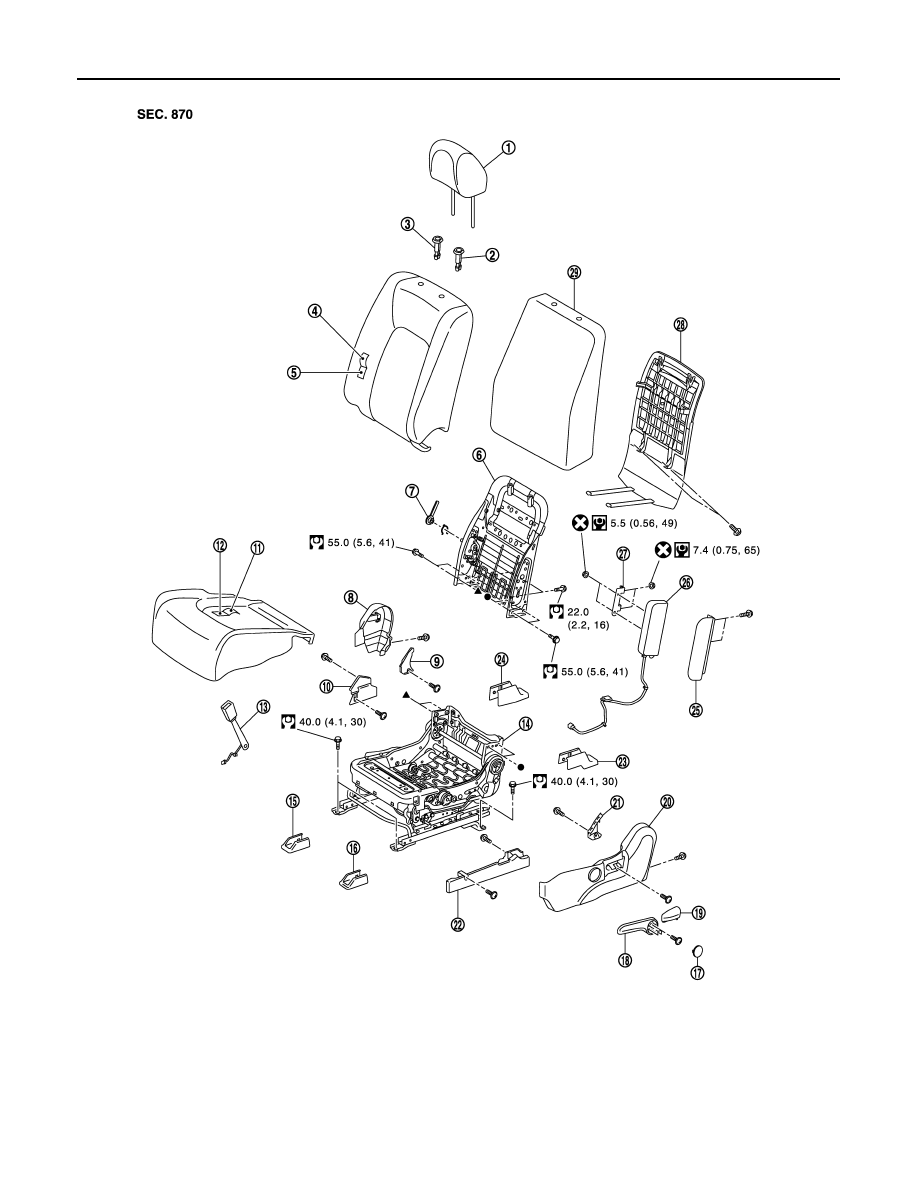

MANUAL SEAT

JMJIA1416GB

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Seatback frame

7.

Lumbar support lever

8.

Seat cushion inner finisher outside

9.

Seat cushion inner finisher inside
(right)

10. Seat slide inner cover

11.

Seat cushion trim

12. Seat cushion pad

13. Seat belt buckle

14. Seat cushion frame

15. Front inner slide cover
