RF-104

< REMOVAL AND INSTALLATION >

SUNSHADE MOTOR ASSEMBLY

SUNSHADE MOTOR ASSEMBLY

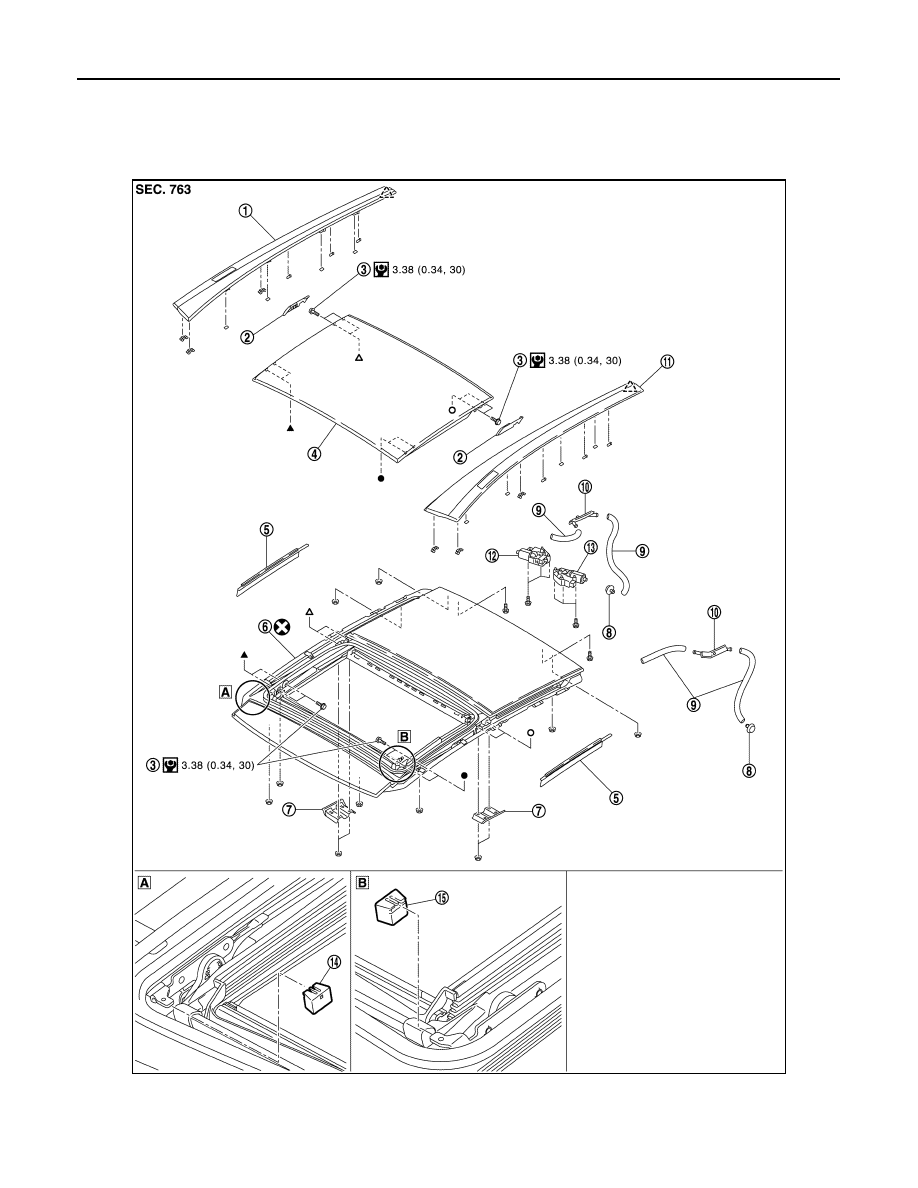

Exploded View

INFOID:0000000009719694

FOR STANDARD SPECIFICATION

JMKIA6375GB

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Inner blind

6.

Sunroof unit assembly

SUNSHADE MOTOR ASSEMBLY

RF-105

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

7.

Sunroof bracket

8.

Drain plug

9.

Drain hose

10. Drain connector

11.

Roof side finisher LH

12. Sunroof motor assembly

13. Sunshade motor assembly

14. Deflector knock RH

15. Deflector knock LH

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

,

,

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

RF-106

< REMOVAL AND INSTALLATION >

SUNSHADE MOTOR ASSEMBLY

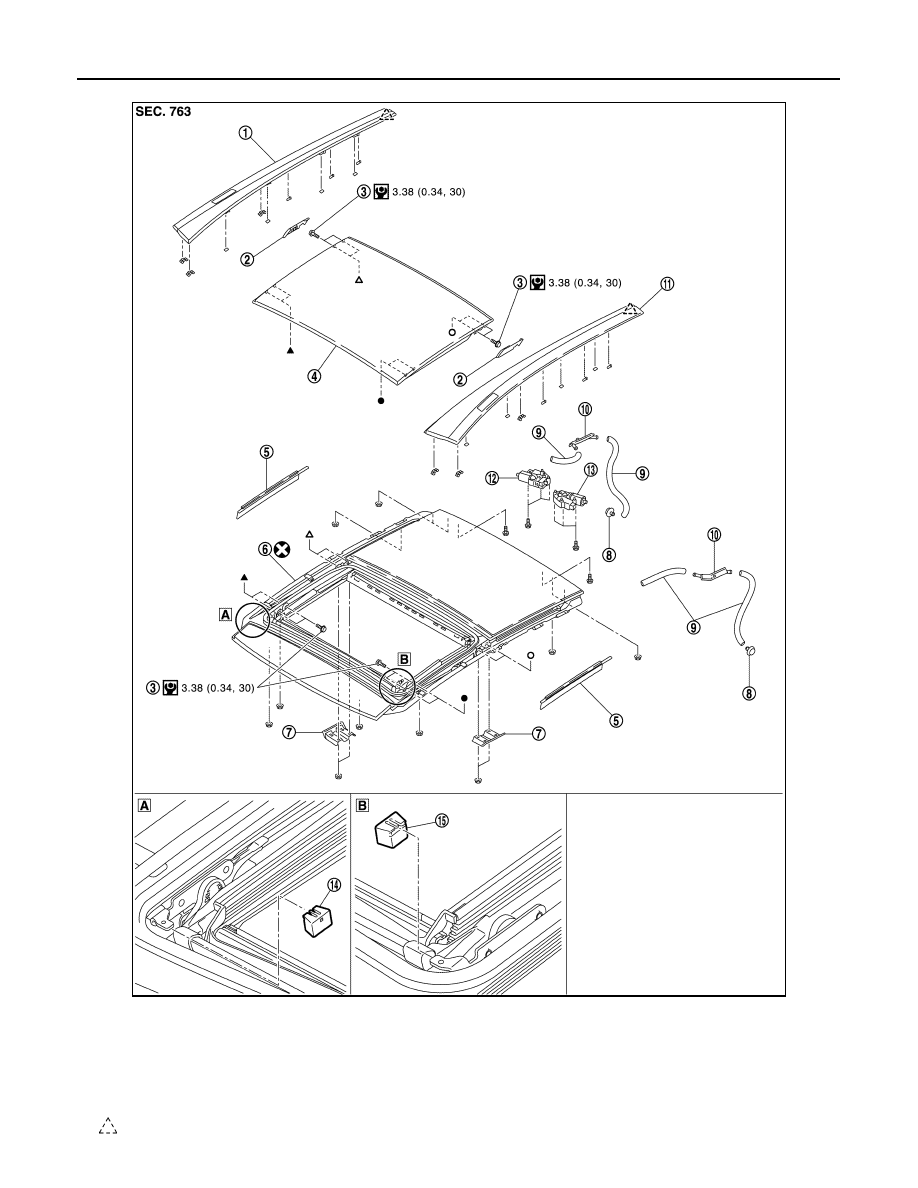

FOR HIGH DURABILITY SPECIFICATION

JMKIA6509GB

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Inner blind

6.

Sunroof unit assembly

7.

Sunroof bracket

8.

Drain plug

9.

Drain hose

10. Drain connector

11.

Roof side finisher LH

12. Sunroof motor assembly

13. Sunshade motor assembly

14. Deflector knock RH

15. Deflector knock LH

: Pawl

SUNSHADE MOTOR ASSEMBLY

RF-107

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000009719695

REMOVAL

CAUTION:

• Before removing sunshade motor, check that glass lid is fully closed.
• After removing sunshade motor, never attempt to rotate sunshade motor assembly as a single unit.

1.

Remove the headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

2.

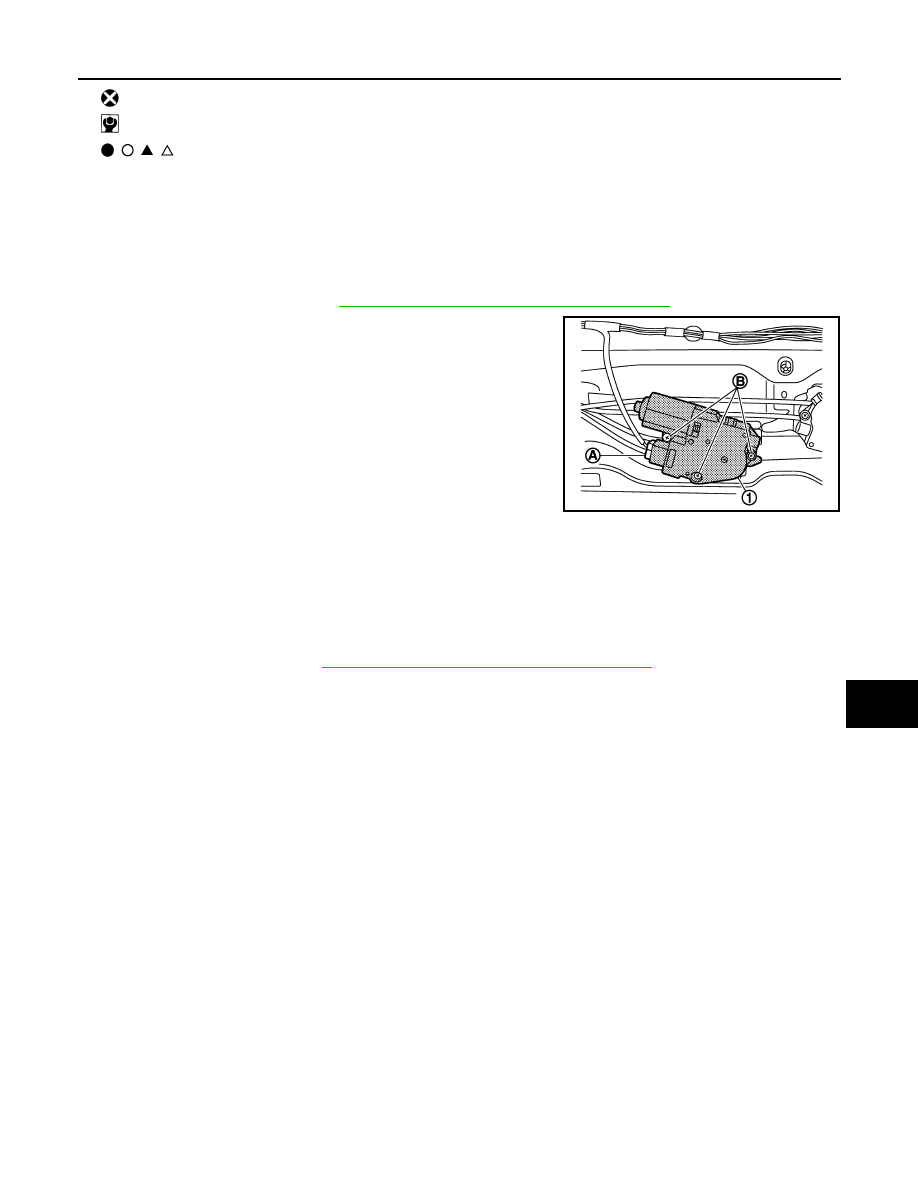

Disconnect connector (A) from sunshade motor assembly (1).
Remove sunshade motor assembly mounting screws (B), and
then remove sunshade motor assembly

INSTALLATION

CAUTION:

Before installing the sunshade motor assembly, be sure to the place the link and wire assembly in the
symmetrical and fully closed position.
1.

Move the sunshade motor assembly laterally by little so that the gear is completely engaged into the wire
on the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunshade motor
assembly with screws.

2.

Install the headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

,

,

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.
