RF-100

< REMOVAL AND INSTALLATION >

SUNROOF MOTOR ASSEMBLY

SUNROOF MOTOR ASSEMBLY

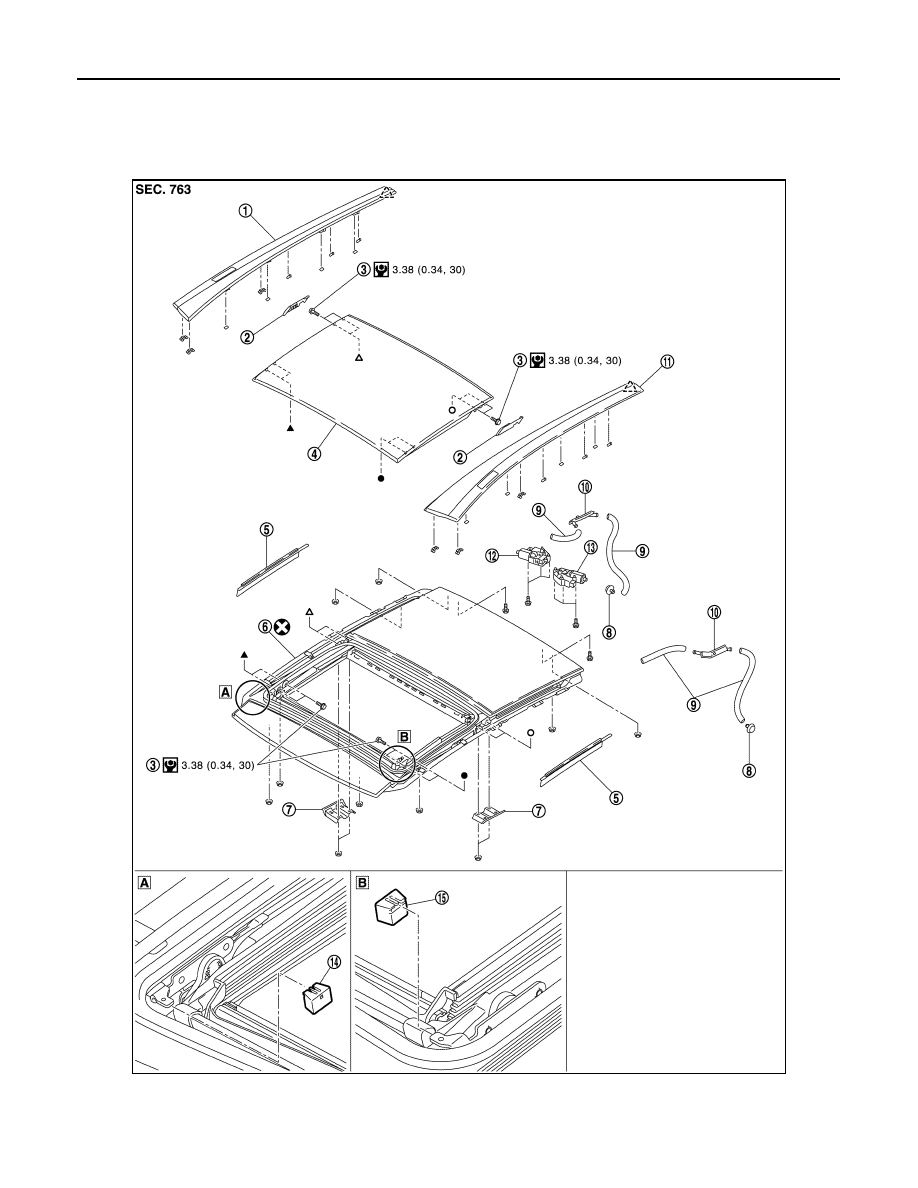

Exploded View

INFOID:0000000009719692

FOR STANDARD SPECIFICATION

JMKIA6375GB

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Inner blind

6.

Sunroof unit assembly

SUNROOF MOTOR ASSEMBLY

RF-101

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

7.

Sunroof bracket

8.

Drain plug

9.

Drain hose

10. Drain connector

11.

Roof side finisher LH

12. Sunroof motor assembly

13. Sunshade motor assembly

14. Deflector knock RH

15. Deflector knock LH

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

,

,

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

RF-102

< REMOVAL AND INSTALLATION >

SUNROOF MOTOR ASSEMBLY

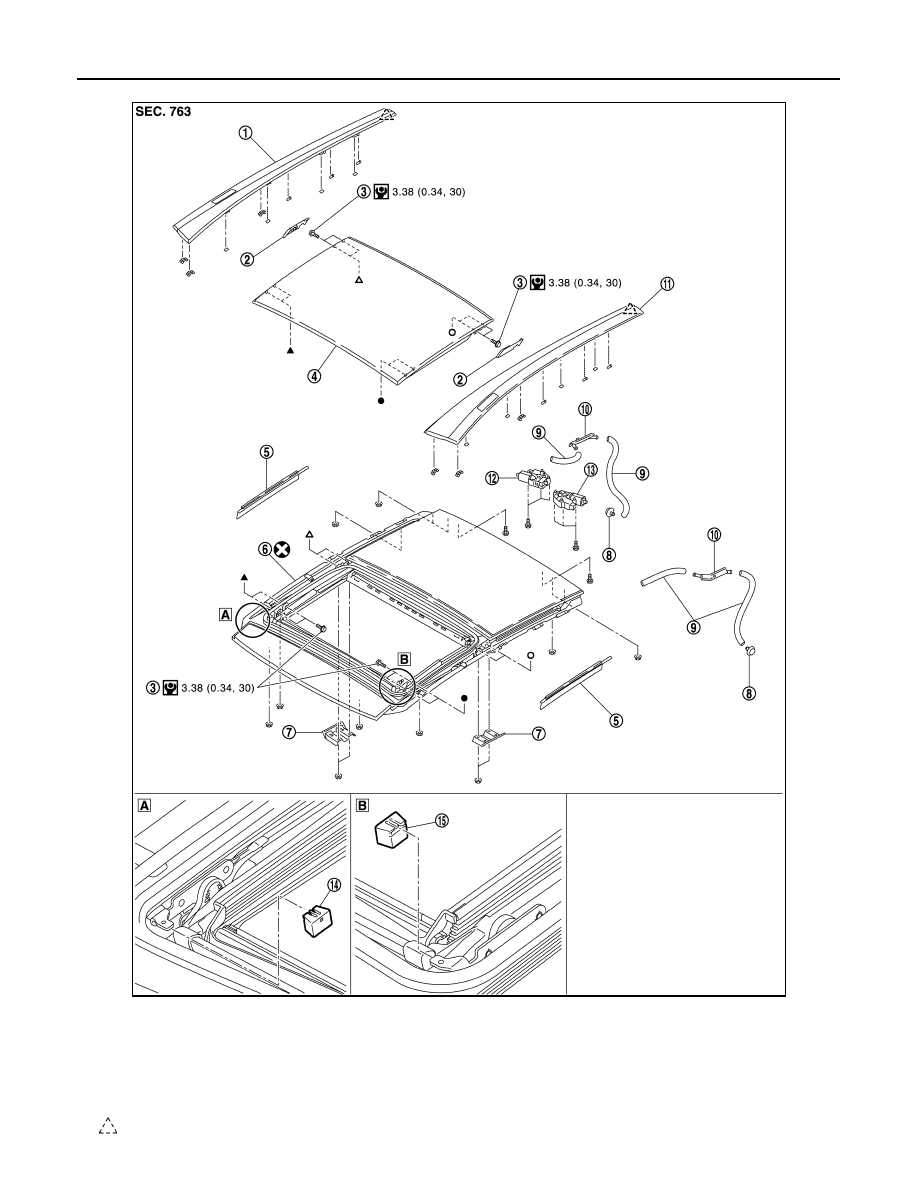

FOR HIGH DURABILITY SPECIFICATION

JMKIA6509GB

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Inner blind

6.

Sunroof unit assembly

7.

Sunroof bracket

8.

Drain plug

9.

Drain hose

10. Drain connector

11.

Roof side finisher LH

12. Sunroof motor assembly

13. Sunshade motor assembly

14. Deflector knock RH

15. Deflector knock LH

: Pawl

SUNROOF MOTOR ASSEMBLY

RF-103

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000009719693

REMOVAL

CAUTION:

• Before removing sunroof motor, check that glass lid is fully closed.
• After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.

1.

Remove the headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

2.

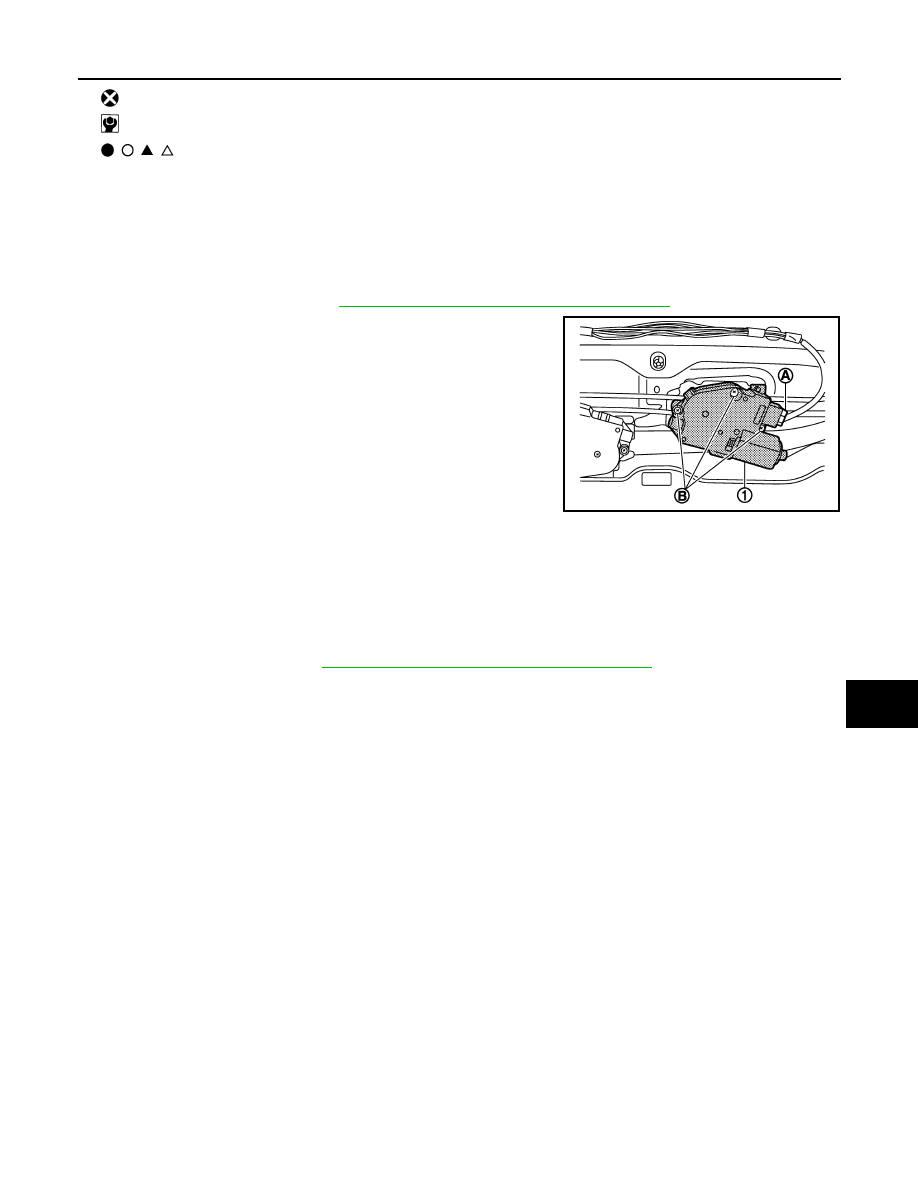

Disconnect connector (A) from sunroof motor assembly (1).
Remove sunroof motor assembly mounting screws (B), and then
remove sunroof motor assembly.

INSTALLATION

CAUTION:

Before installing the sunroof motor assembly, be sure to the place the link and wire assembly in the
symmetrical and fully closed position.
1.

Move the sunroof motor assembly laterally by little so that the gear is completely engaged into the wire on
the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunroof motor
assembly with screws.

2.

Install the headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

,

,

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA1908ZZ
