RF-96

< REMOVAL AND INSTALLATION >

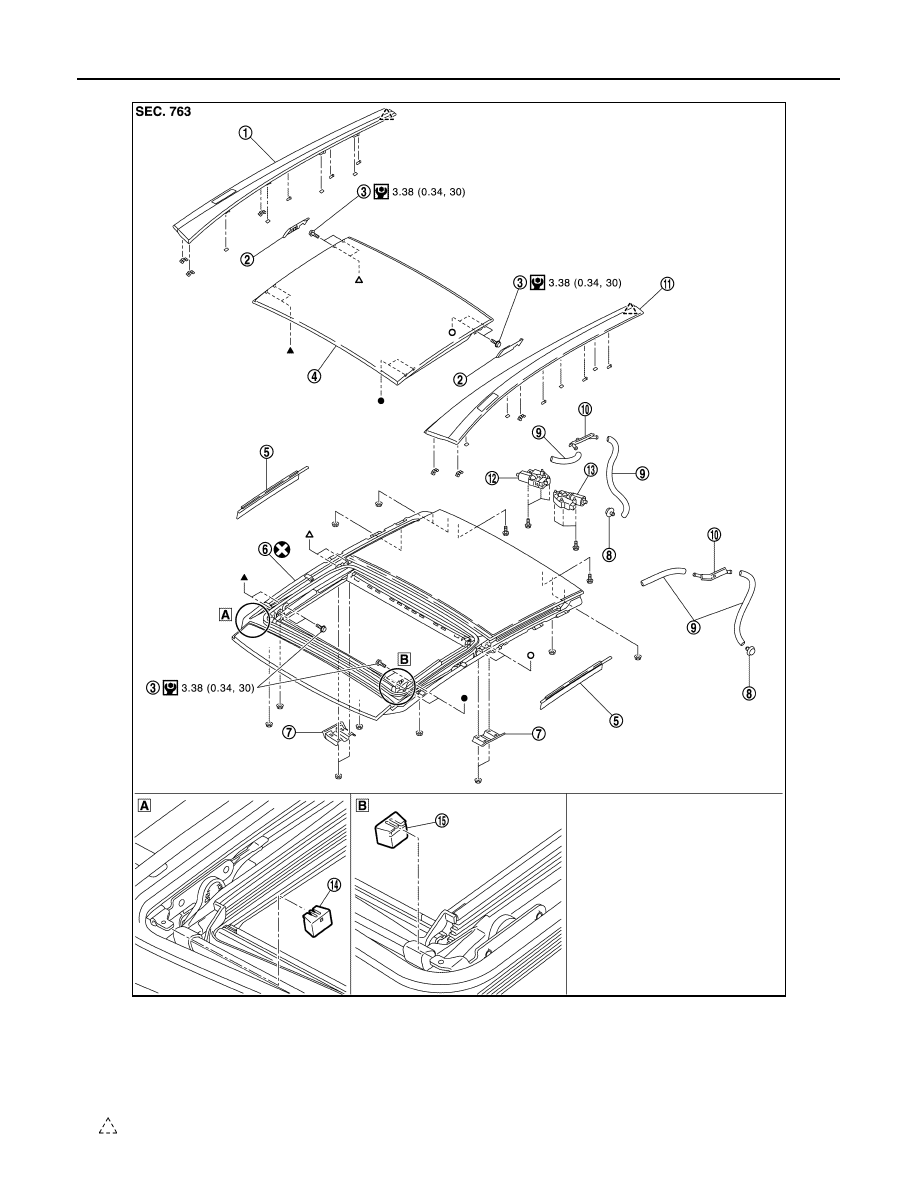

GLASS LID

FOR HIGH DURABILITY SPECIFICATION

JMKIA6509GB

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Inner blind

6.

Sunroof unit assembly

7.

Sunroof bracket

8.

Drain plug

9.

Drain hose

10. Drain connector

11.

Roof side finisher LH

12. Sunroof motor assembly

13. Sunshade motor assembly

14. Deflector knock RH

15. Deflector knock LH

: Pawl

GLASS LID

RF-97

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

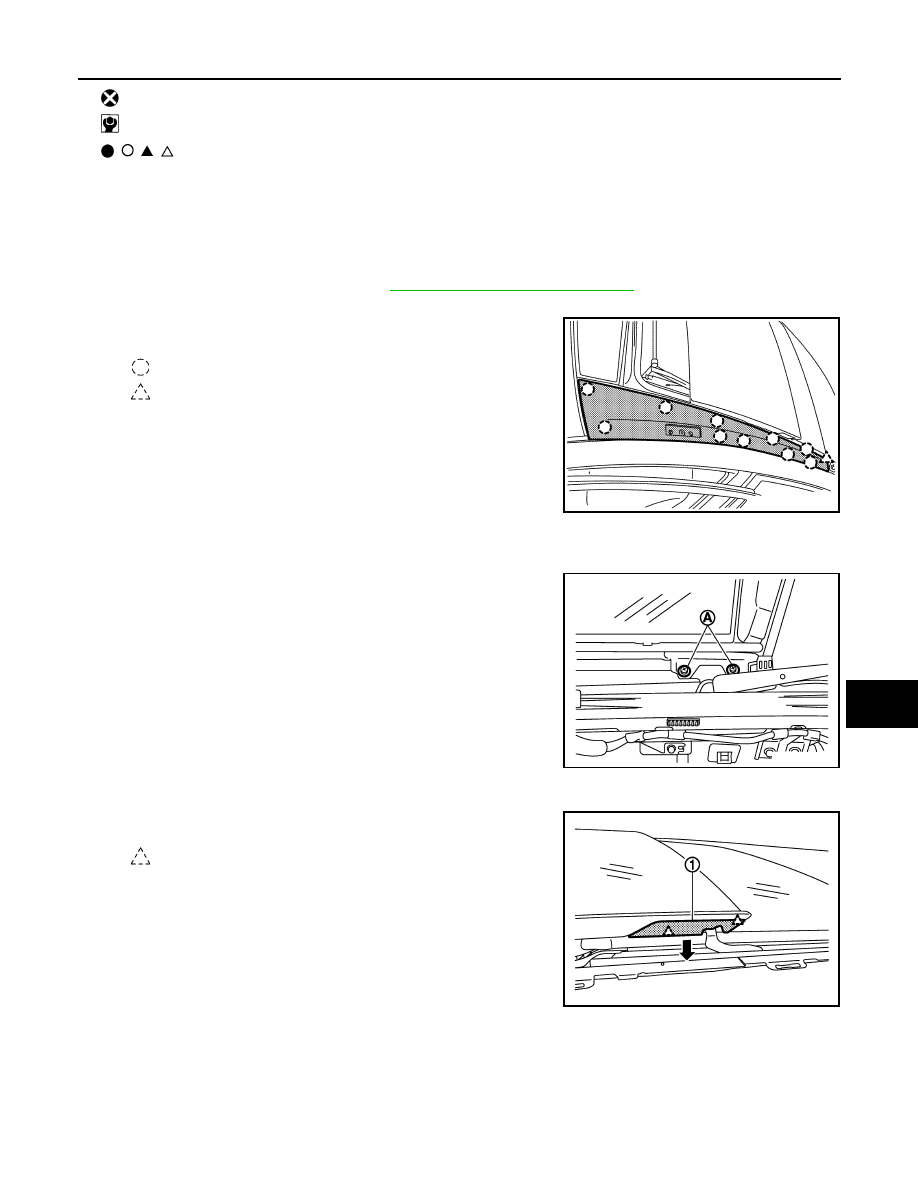

Removal and Installation

INFOID:0000000009719690

REMOVAL

CAUTION:

Always work with a helper.
1.

Remove the roof rail assembly. Refer to

EXT-31, "Removal and Installation"

.

2.

Remove the roof side finisher.
Remove the clips, and then pull out roof side finisher.

3.

Half open the glass lid.

4.

Remove the TORX bolts from inner side.
• Remove the inner blind.
• Remove the TORX bolts (A).

5.

Remove the TORX bolts from outer side.
• Remove the pawls, and then pull down rear link cover (1).

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

,

,

,

 : Indicates that the part is connected at points with same symbol in actual vehicle.

: Clip

: Pawl

JMKIA6378ZZ

JMKIA1905ZZ

: Pawl

JMKIA1906ZZ

RF-98

< REMOVAL AND INSTALLATION >

GLASS LID

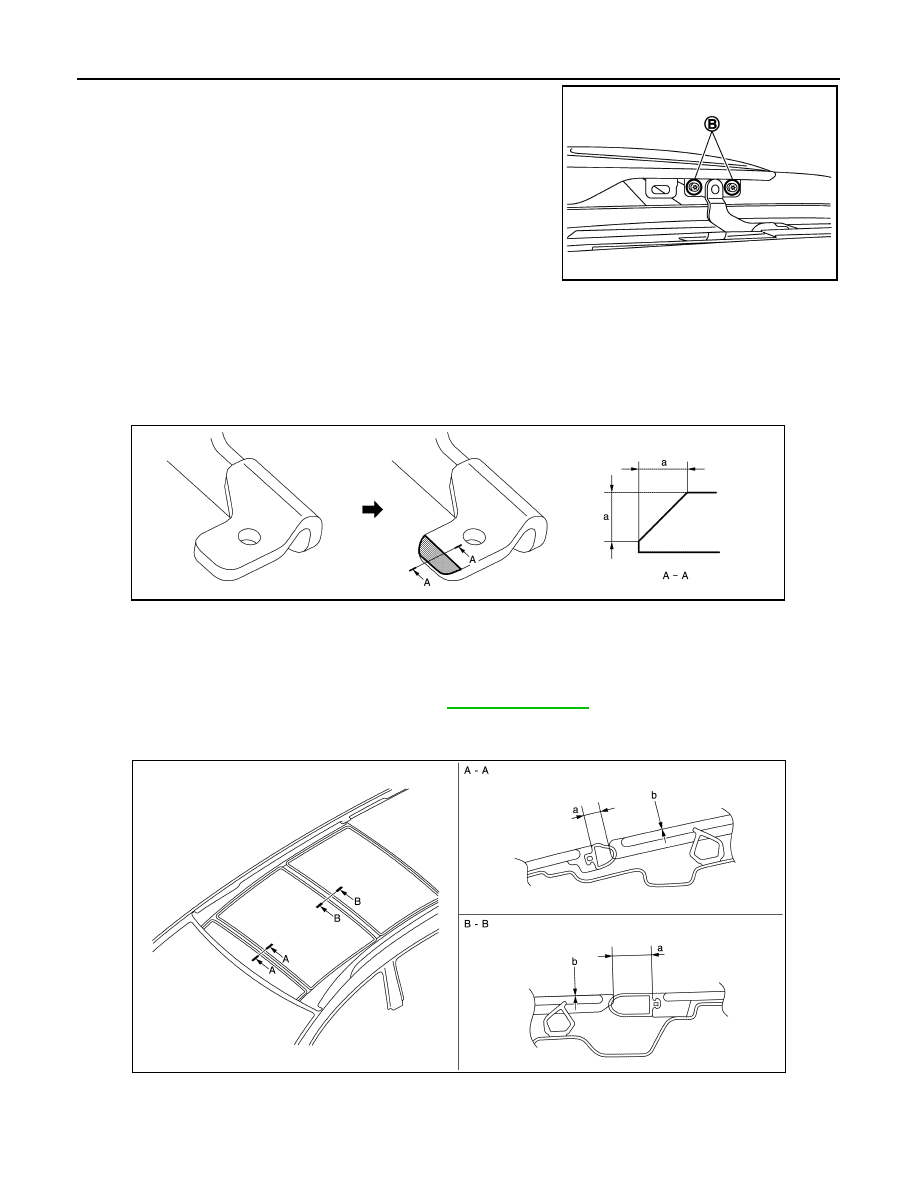

• Remove the TORX bolts (B).

6.

Remove the glass lid from the vehicle.

7.

Remove the deflector knock (LH and RH).

INSTALLATION

CAUTION:

• If deflector knock is not inserted smoothly, add chamfer to the end as shown in the figure. Always

apply anti-corrosion treatment.

• After installing the glass lid, perform the leak test and check that there is no malfunction.
NOTE:
After installation carry out fitting adjustment. Refer to

RF-98, "Adjustment"

.

Install in the reverse order of removal.

Adjustment

INFOID:0000000009719691

WEATHER-STRIP OVERLAP ADJUSTMENT AND SURFACE MISMATCH ADJUSTMENT

1.

Tilt up glass lid, and then remove inner blind and rear link cover.

JMKIA1907ZZ

a

: 1.5mm (0.06 in)

JMKIA6514ZZ

JMKIA6377ZZ

GLASS LID

RF-99

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

2.

After loosening glass lid from TORX bolts (left and right), tilt down glass lid.

3.

Adjust glass lid from outside of vehicle so it resembles “ A – A” “B – B” as shown in the figure.

4.

To prevent glass lid from moving after adjustment, first tighten the TORX bolts of front left, and then
tighten the TORX bolts of rear right.

5.

Tighten remaining TORX bolts, being careful to prevent glass lid from moving.

6.

Tilt glass lid up and down several times to check that it moves smoothly.

NOTE:
After adjustment the sunroof unit assembly, perform additional service. Refer to

RF-4, "ADDITIONAL SER-

VICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

Portion

a (Clearance)

b (Surface height)

Glass lid front end

A – A

8.3 mm (0.327 in)

(

−

1.5) – (+1.5) mm

[(

−

0.059) – (+ 0.059) in]

Glass lid rear end

B – B

19.8 mm (0.780 in)

(

−

1.5) – (+1.5) mm

[(

−

0.059) – (+ 0.059) in]
