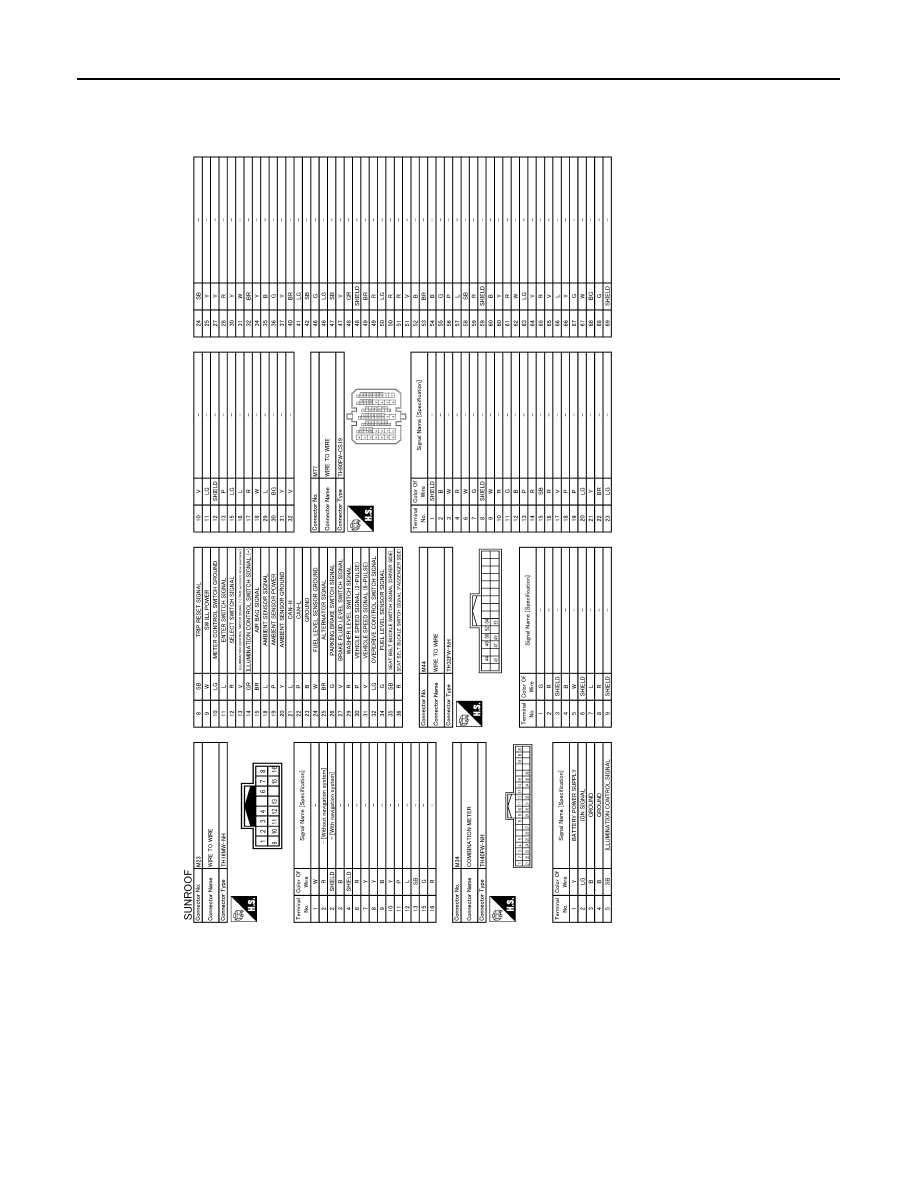

RF-68

< ECU DIAGNOSIS INFORMATION >

SUNROOF MOTOR ASSEMBLY

JRKWC8142GB

SUNROOF MOTOR ASSEMBLY

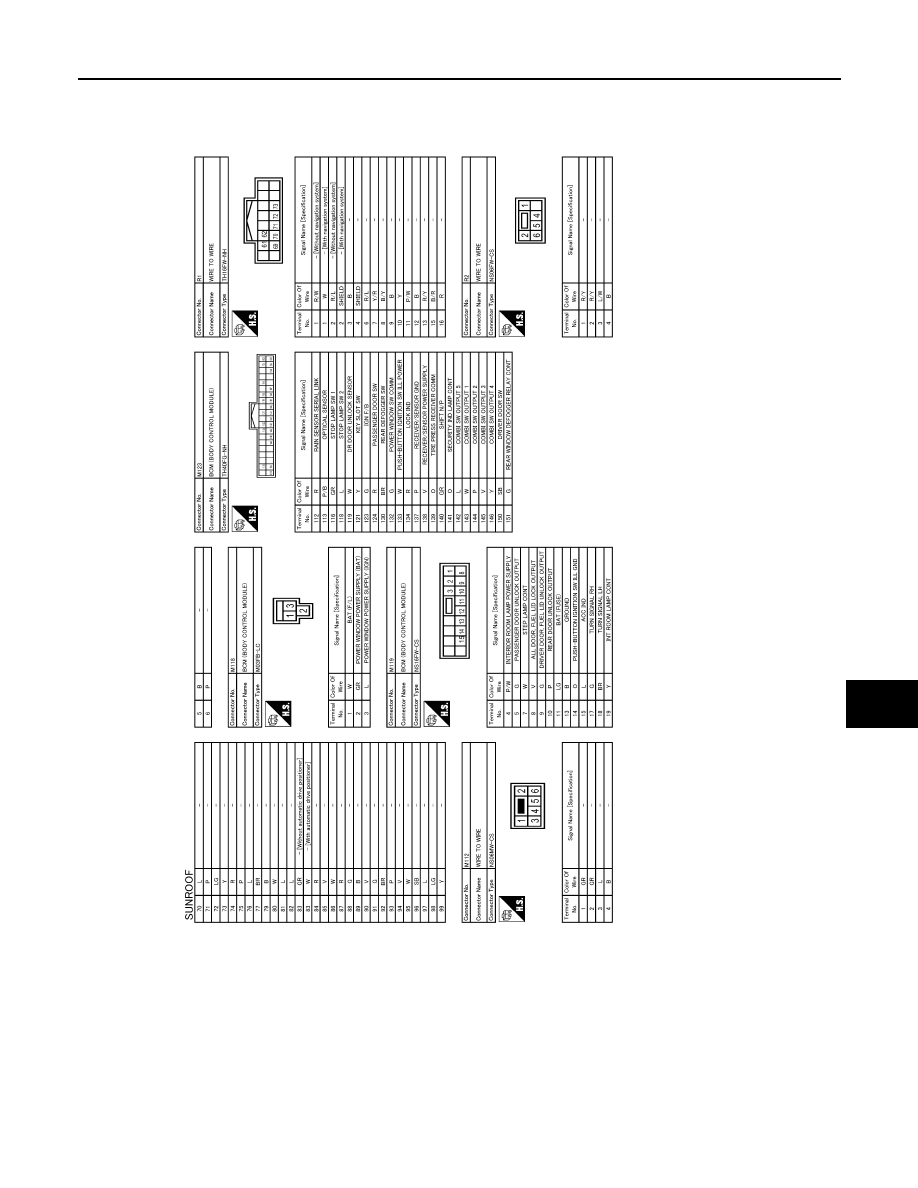

RF-69

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

JRKWC8143GB

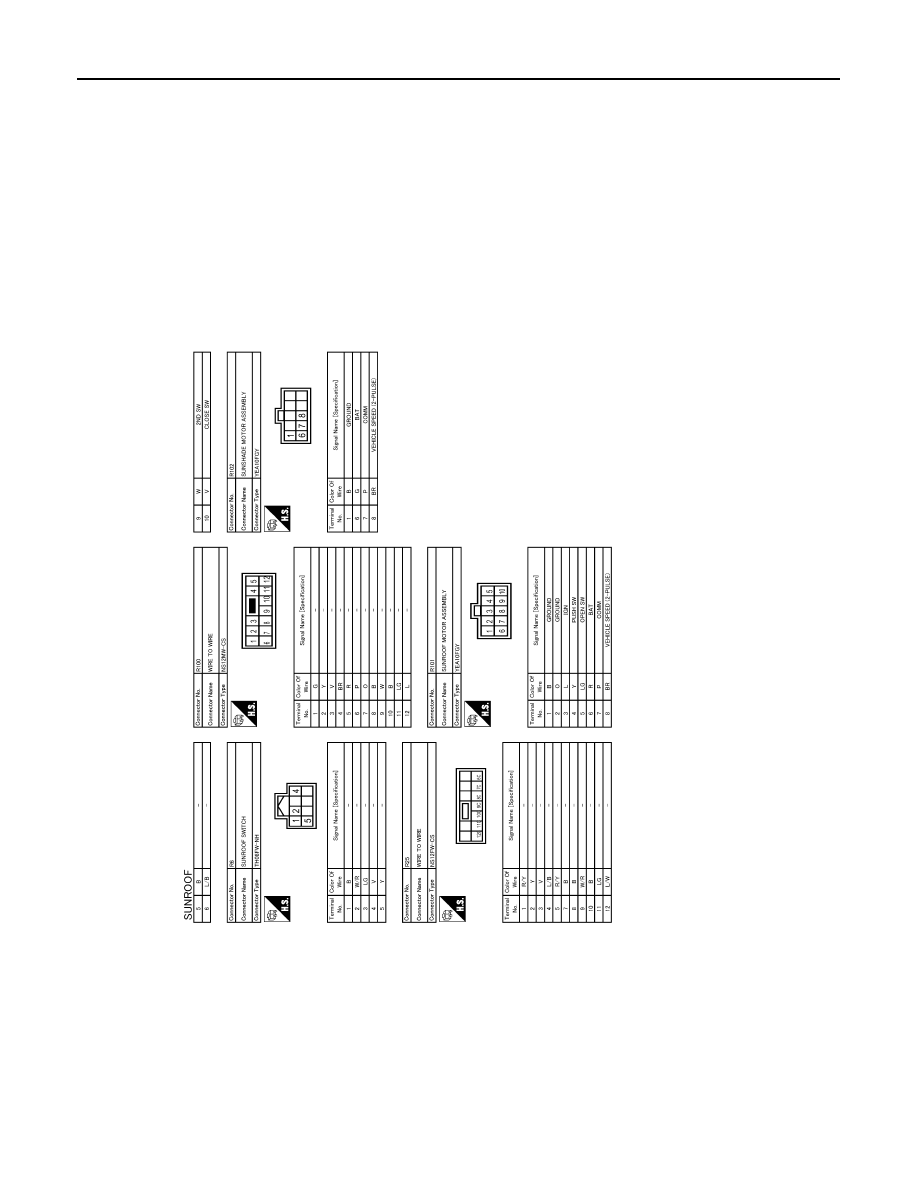

RF-70

< ECU DIAGNOSIS INFORMATION >

SUNROOF MOTOR ASSEMBLY

JRKWC8144GB

SUNSHADE MOTOR ASSEMBLY

RF-71

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

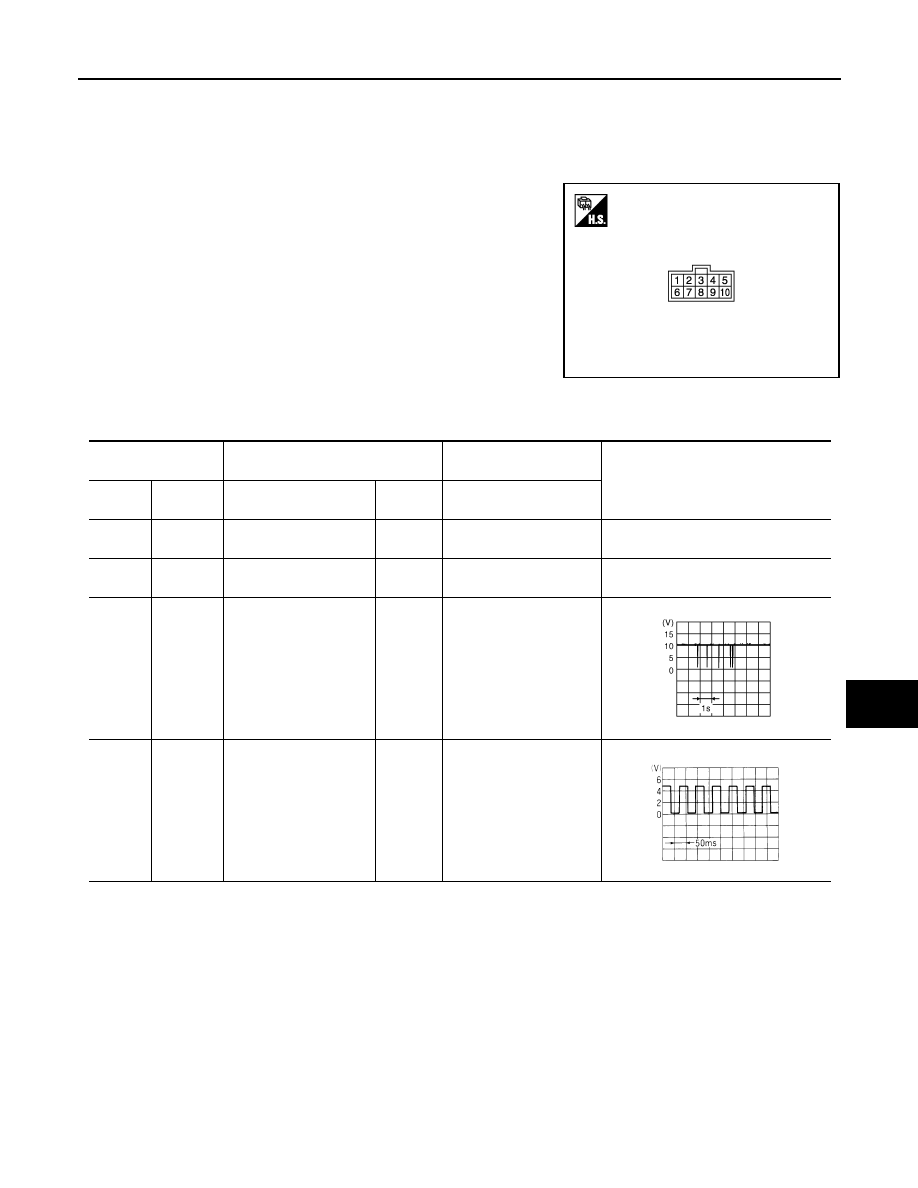

SUNSHADE MOTOR ASSEMBLY

Reference Value

INFOID:0000000009719671

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA2225ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

1

(B)

Ground

Ground

—

—

0

6

(G)

Ground

Battery voltage

—

—

Battery voltage

7

(P)

Ground

Communication line

Input/

Output

Ignition switch ON

8

(BR)

Ground

Vehicle speed signal (2-
pulse)

Input

Speed meter operated
[When vehicle speed is
approx. 40km/h (25MPH)]

JMKIA1869ZZ

ELF1080D
