RF-60

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

DTC Index

INFOID:0000000010101262

NOTE:
The details of time display are as follows.
• CRNT: A malfunction is detected now.
• PAST: A malfunction was detected in the past.
IGN counter is displayed on Freeze Frame Data. For details of Freeze Frame Data, refer to

RF-9, "COMMON

ITEM : CONSULT Function (BCM - COMMON ITEM)"

.

Priority

DTC

1

B2562: LOW VOLTAGE

2

• U1000: CAN COMM
• U1010: CONTROL UNIT(CAN)

3

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2195: ANTI SCANNING

4

• B2553: IGNITION RELAY
• B2555: STOP LAMP
• B2556: PUSH-BTN IGN SW
• B2557: VEHICLE SPEED
• B2560: STARTER CONT RELAY
• B2601: SHIFT POSITION
• B2602: SHIFT POSITION
• B2603: SHIFT POSI STATUS
• B2604: PNP SW
• B2605: PNP SW
• B2608: STARTER RELAY
• B260A: IGNITION RELAY
• B260F: ENG STATE SIG LOST
• B2614: ACC RELAY CIRC
• B2615: BLOWER RELAY CIRC
• B2616: IGN RELAY CIRC
• B2617: STARTER RELAY CIRC
• B2618: BCM
• B261A: PUSH-BTN IGN SW
• B261E: VEHICLE TYPE
• B26EA: KEY REGISTRATION
• C1729: VHCL SPEED SIG ERR
• U0415: VEHICLE SPEED SIG

5

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1734: CONTROL UNIT

6

• B2622: INSIDE ANTENNA
• B2623: INSIDE ANTENNA

BCM (BODY CONTROL MODULE)

RF-61

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

CONSULT display

Fail-safe

Freeze Frame

Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condi-

tion

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference

No DTC is detected.
further testing
may be required.

—

—

—

—

—

U1000: CAN COMM

—

—

—

—

BCS-42

U1010: CONTROL UNIT(CAN)

—

—

—

—

BCS-43

U0415: VEHICLE SPEED SIG

—

—

—

—

BCS-44

B2190: NATS ANTENNA AMP

×

—

—

—

SEC-42

B2191: DIFFERENCE OF KEY

×

—

—

—

SEC-45

B2192: ID DISCORD BCM-ECM

×

—

—

—

SEC-46

B2193: CHAIN OF BCM-ECM

×

—

—

—

SEC-48

B2195: ANTI SCANNING

×

—

—

—

SEC-49

B2553: IGNITION RELAY

—

×

—

—

PCS-50

B2555: STOP LAMP

—

×

—

—

SEC-50

B2556: PUSH-BTN IGN SW

—

×

×

—

SEC-52

B2557: VEHICLE SPEED

×

×

×

—

SEC-54

B2560: STARTER CONT RELAY

×

×

×

—

SEC-55

B2562: LOW VOLTAGE

—

×

—

—

BCS-45

B2601: SHIFT POSITION

×

×

×

—

SEC-56

B2602: SHIFT POSITION

×

×

×

—

SEC-59

B2603: SHIFT POSI STATUS

×

×

×

—

SEC-61

B2604: PNP SW

×

×

×

—

SEC-64

B2605: PNP SW

×

×

×

—

SEC-66

B2608: STARTER RELAY

×

×

×

—

SEC-68

B260A: IGNITION RELAY

×

×

×

—

PCS-52

B260F: ENG STATE SIG LOST

×

×

×

—

SEC-70

B2614: ACC RELAY CIRC

—

×

×

—

PCS-54

B2615: BLOWER RELAY CIRC

—

×

×

—

PCS-57

B2616: IGN RELAY CIRC

—

×

×

—

PCS-60

B2617: STARTER RELAY CIRC

×

×

×

—

SEC-72

B2618: BCM

×

×

×

—

PCS-63

B261A: PUSH-BTN IGN SW

—

×

×

—

SEC-75

B261E: VEHICLE TYPE

×

×

×

 (Turn ON for 15

seconds)

—

SEC-78

B2622: INSIDE ANTENNA

—

×

—

—

DLK-91

B2623: INSIDE ANTENNA

—

×

—

—

DLK-93

B26EA: KEY REGISTRATION

—

×

×

 (Turn ON for 15

seconds)

—

SEC-71

C1704: LOW PRESSURE FL

—

—

—

×

WT-23

C1705: LOW PRESSURE FR

—

—

—

×

C1706: LOW PRESSURE RR

—

—

—

×

C1707: LOW PRESSURE RL

—

—

—

×

RF-62

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

C1708: [NO DATA] FL

—

—

—

×

WT-25

C1709: [NO DATA] FR

—

—

—

×

C1710: [NO DATA] RR

—

—

—

×

C1711: [NO DATA] RL

—

—

—

×

C1716: [PRESSDATA ERR] FL

—

—

—

×

WT-28

C1717: [PRESSDATA ERR] FR

—

—

—

×

C1718: [PRESSDATA ERR] RR

—

—

—

×

C1719: [PRESSDATA ERR] RL

—

—

—

×

C1729: VHCL SPEED SIG ERR

—

—

—

×

WT-29

C1734: CONTROL UNIT

—

—

—

×

WT-30

CONSULT display

Fail-safe

Freeze Frame

Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condi-

tion

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference

SUNROOF MOTOR ASSEMBLY

RF-63

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

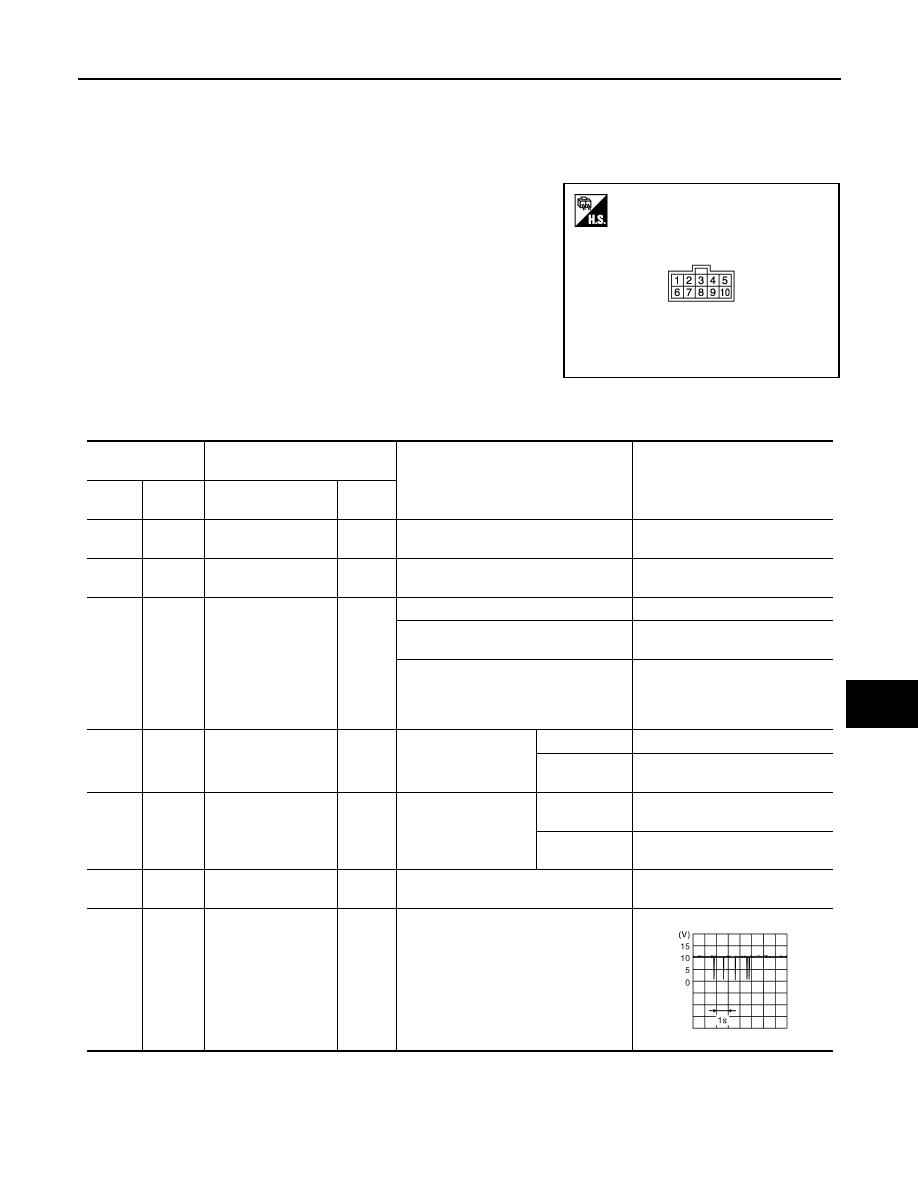

SUNROOF MOTOR ASSEMBLY

Reference Value

INFOID:0000000009719669

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA2225ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

1

(B)

Ground

Ground

—

—

0

2

(O)

Ground

Ground

—

—

0

3

(L)

Ground

RAP signal

Input

Ignition switch ON

Battery voltage

Within 45 second after ignition switch is
turned to OFF.

Battery voltage

When driver side or passenger side door
is opened during retained power opera-
tion or retained power operation is fin-
ished.

0

4

(Y)

Ground

Sunroof switch signal
(PUSH)

Input

Sunroof switch

PUSH

0

Other than
above

Battery voltage

5

(LG)

Ground

Sunroof switch signal
(OPEN)

Input

Sunroof switch

OPEN
(1st and 2nd)

0

Other than
above

Battery voltage

6

(R)

Ground

Battery voltage

—

—

Battery voltage

7

(P)

Ground

Communication line

Input/

Output

Ignition switch ON
