AV-198

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

120

(G)

124

(B)

Satellite radio sound signal
LH

Input

Ignition

switch

ON

When satellite radio mode
is selected.

121
(W)

125

(R)

Satellite radio sound signal
RH

Output

Ignition

switch

ON

When satellite radio mode
is selected

122

(B)

Ground

Communication signal
(CONT

→

SAT)

Output

Ignition

switch

ON

When satellite radio mode
is selected.

126

—

Shield

—

—

—

—

127

—

Shield

—

—

—

—

129

(R)

Ground

Request signal
(SAT

→

CONT)

Input

Ignition

switch

ON

When satellite radio mode
is selected.

130
(W)

Ground

Communication signal
(SAT

→

CONT)

Input

Ignition

switch

ON

When satellite radio mode
is selected.

132

(G)

—

USB ground

—

—

—

—

133
(W)

—

USB D

−

 signal

—

—

—

—

134

(R)

—

V BUS signal

—

—

—

—

135

(L)

—

USB D+ signal

—

—

—

—

136

—

Shield

—

—

—

—

137

—

FM sub

Input

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

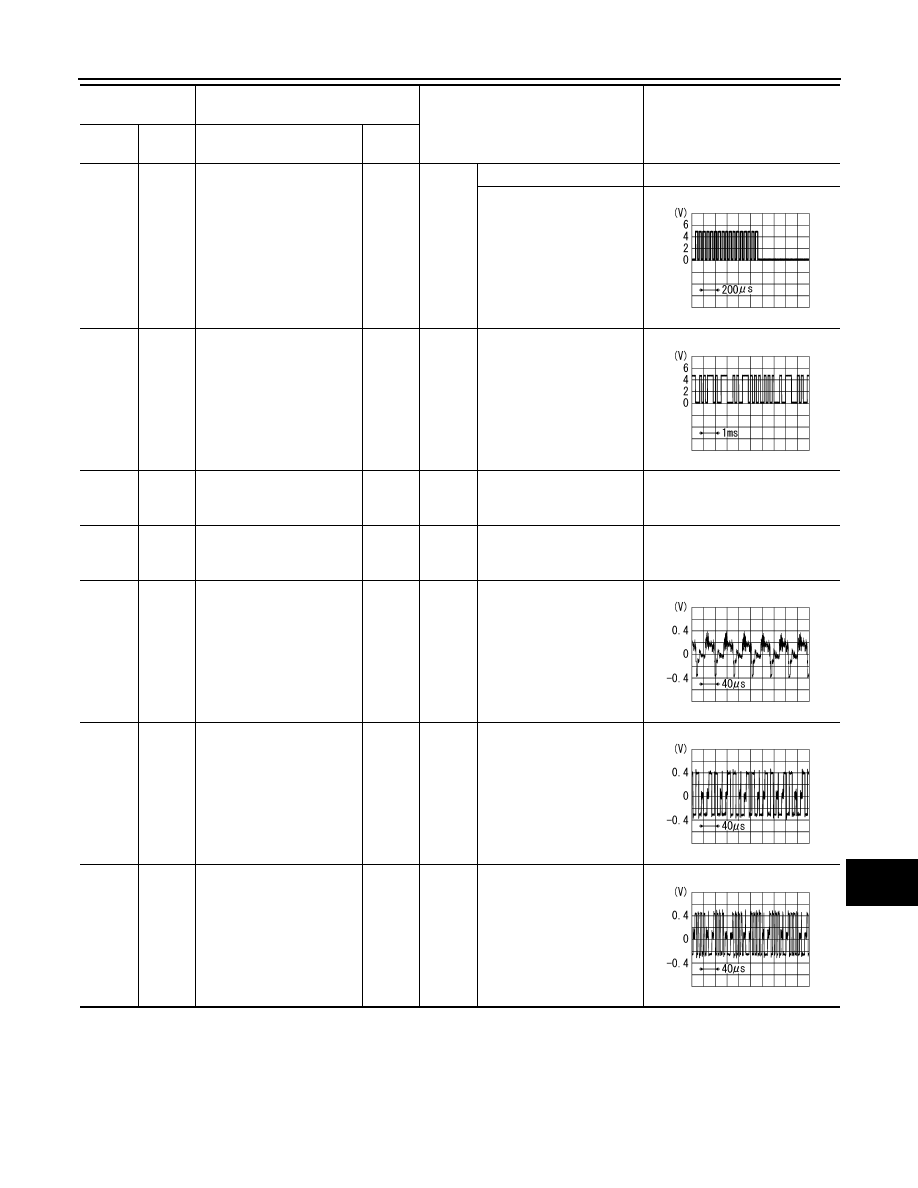

SKIB3609E

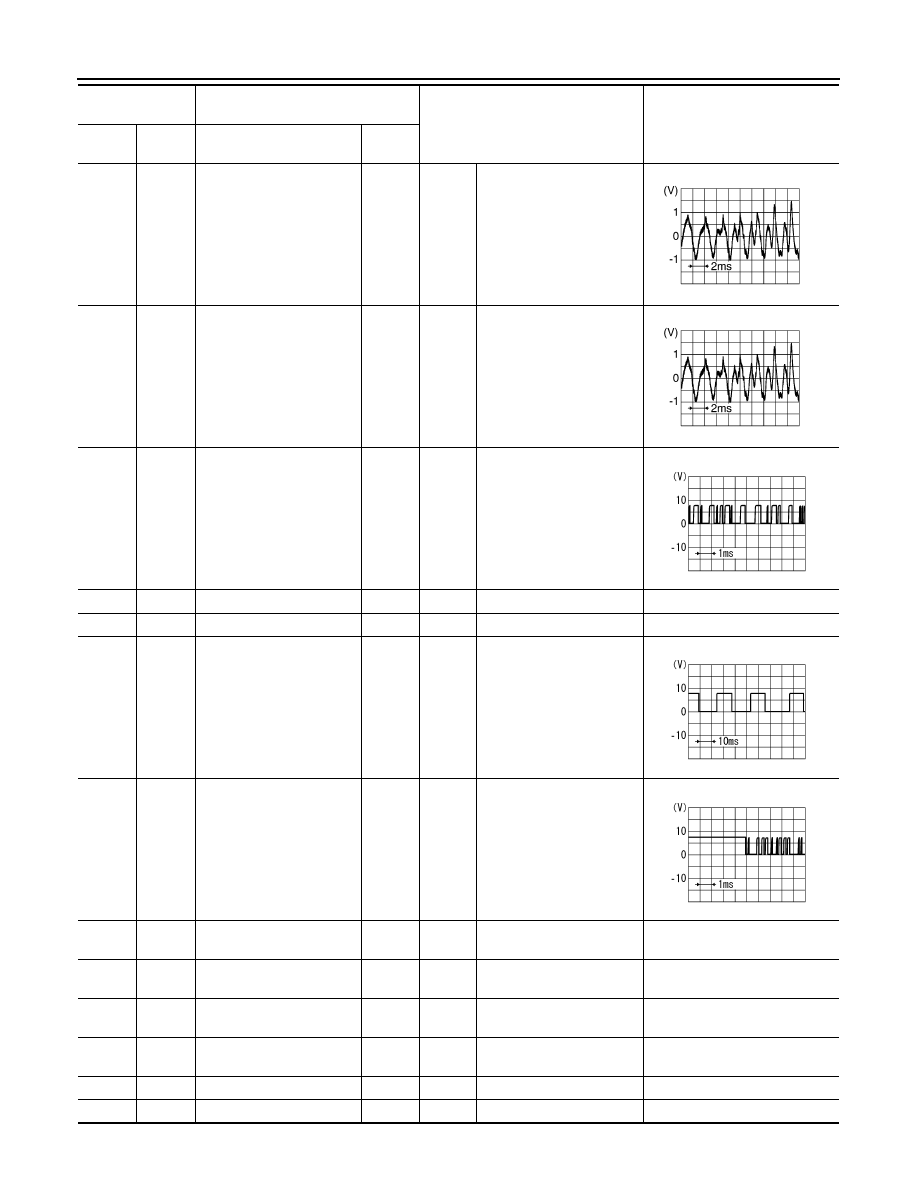

SKIB3609E

SKIA9300J

SKIA9299J

SKIA9301J

AV

AV CONTROL UNIT

AV-199

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000009721725

SELF-DIAGNOSIS RESULTS DISPLAY ITEM

138

—

AM - FM main

Input

—

—

—

139

—

Antenna amp. ON signal

Output

Ignition

switch

ON

—

12.0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

DTC

Display item

Refer to

U1000

CAN COMM CIRCUIT [U1000]

AV-233, "Diagnosis Procedure"

U1010

CONTROL UNIT (CAN) [1010]

AV-234, "DTC Logic"

U1200

Cont Unit [U1200]

AV-235, "DTC Logic"

U1216

CAN CONT [U1216]

AV-236, "DTC Logic"

U1232

ST ANGLE SEN CALIB [1232]

AV-237, "Diagnosis Procedure"

U1243

FRONT DISP CONN [U1243]

AV-238, "Diagnosis Procedure"

U1255

SAT CONN [U1255]

AV-240, "Diagnosis Procedure"

U1310

CONTROL UNIT (AV) [U1310]

AV-243, "DTC Logic"

U1300
U1240

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]

AV-242, "Description"

U1300
U1256

• AV COMM CIRCUIT [U1300]
• HAND FREE CONN [U1256]

U1300
U1240
U1256

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]
• HAND FREE CONN [U1256]

AV-200

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

DISPLAY UNIT

Reference Value

INFOID:0000000009721726

TERMINAL LAYOUT

PHYSICAL VALUES

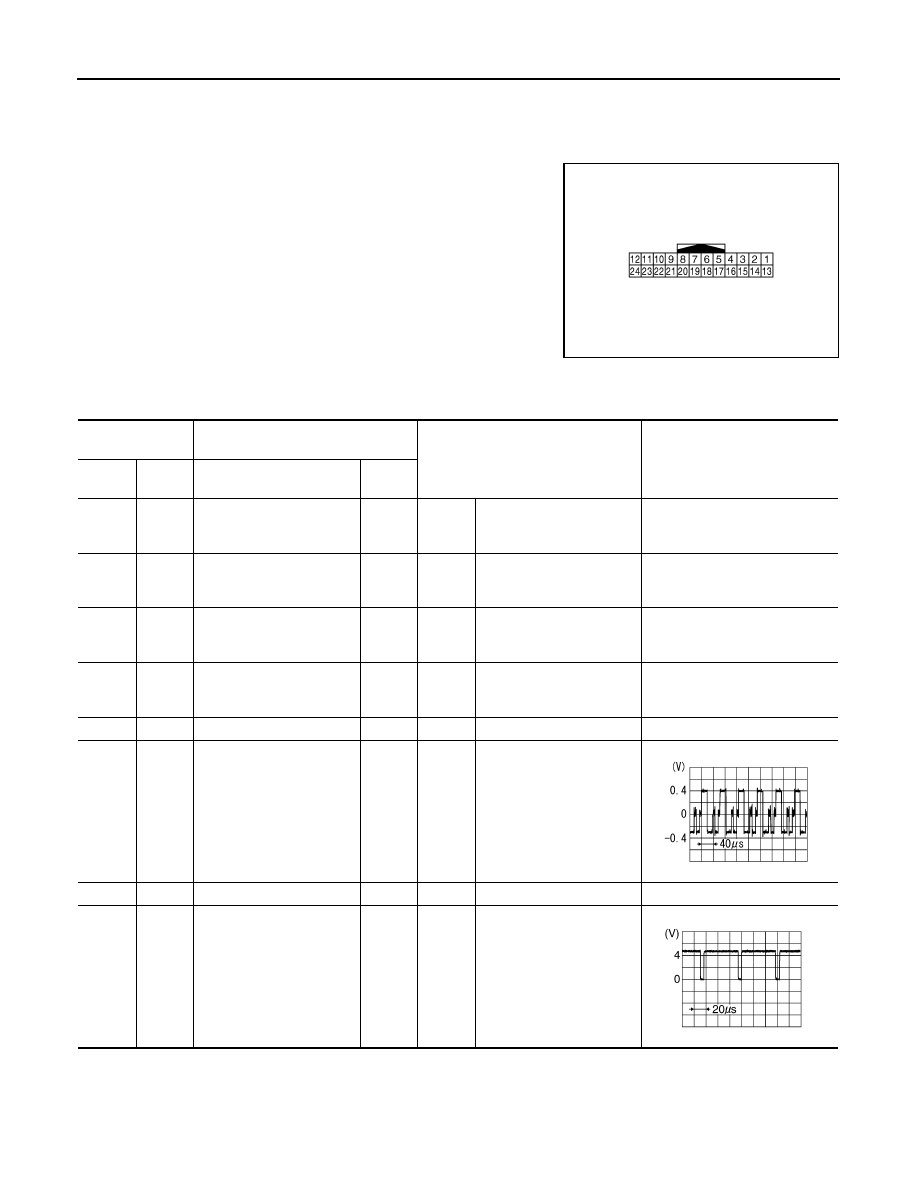

JPNIA0006ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

2

(Y)

Ground

Inverter VCC

Input

Ignition

switch

ACC

—

9.0 V

3

(GR)

Ground

Signal VCC

Input

Ignition

switch

ACC

—

9.0 V

4

(V)

Ground

Composite image signal
ground

—

Ignition

switch

ON

—

0  V

5

—

Shield

—

—

—

—

6

(L)

Ground

RGB signal (G: green)

Input

Ignition

switch

ON

Start Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
Display Diagnosis screen.

7

—

Shield

—

—

—

—

8

(G)

Ground

Horizontal synchronizing
(HP) signal

Output

Ignition

switch

ON

—

SKIB2236J

SKIB3601E

AV

DISPLAY UNIT

AV-201

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

9

(W)

Ground

RGB area (YS) signal

Input

Ignition

switch

ON

At RGB image is displayed.

5.0 V

At AUX image is displayed.

11

(P)

Ground

Communication signal
(CONT

→

DISP)

Input

Ignition

switch

ON

When adjusting display
brightness.

13

(BR)

Ground

Inverter ground

—

Ignition

switch

ON

—

0  V

14

(SB)

Ground

Signal ground

—

Ignition

switch

ON

—

0  V

15

(LG)

Ground

Composite image signal

Input

Ignition

switch

ON

At camera image is dis-
played.

17

(G)

Ground

RGB signal (R: red)

Input

Ignition

switch

ON

Start Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
Display Diagnosis screen.

18

(Y)

Ground

RGB signal (B: blue)

Input

Ignition

switch

ON

Start Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
Display Diagnosis screen.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

PKIB4948J

PKIB5039J

SKIB2251J

SKIB2238J
