Nissan Murano. Manual - part 1013

MIR-30

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

DRIVER SEAT CONTROL UNIT

30

(BR)

Ground

Tilt sensor signal

Input

Tilt

Operate

Other than above

0 or 5

31

(BR/W)

Ground

Telescopic sensor signal

Input

Telescopic

Operate

Other than above

0 or 5

32

(W/L)

Ground

UART communication
(TX/RX)

Input

Ignition switch ON

33

(W)

Ground

Sensor power supply

Output

—

Battery voltage

Terminal No.

(wire color)

Description

Condition

Voltage (V)

(Approx)

+

-

Signal name

Input/

Output

JMJIA0119ZZ

JMJIA1391ZZ

DRIVER SEAT CONTROL UNIT

MIR-31

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

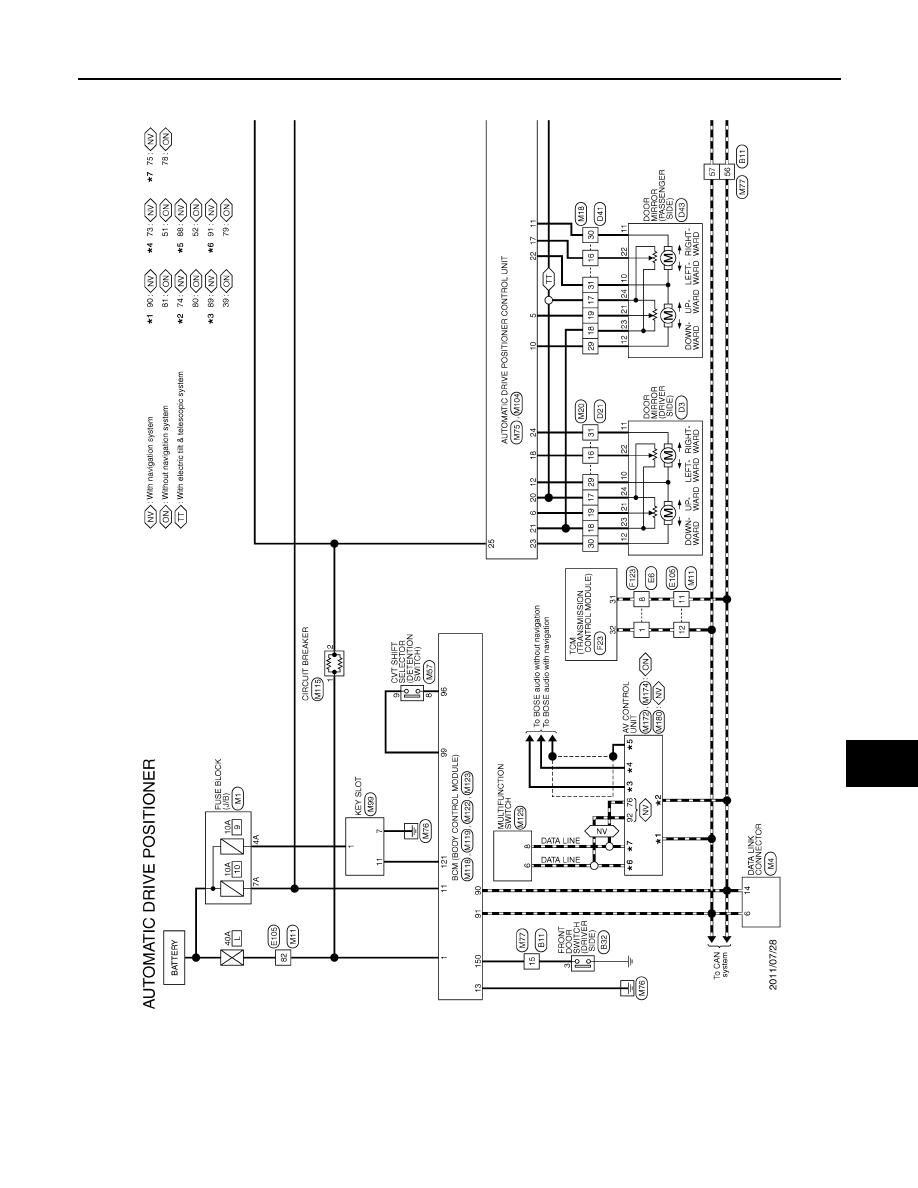

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -

INFOID:0000000010103349

JRJWC0297GB

MIR-32

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

DRIVER SEAT CONTROL UNIT

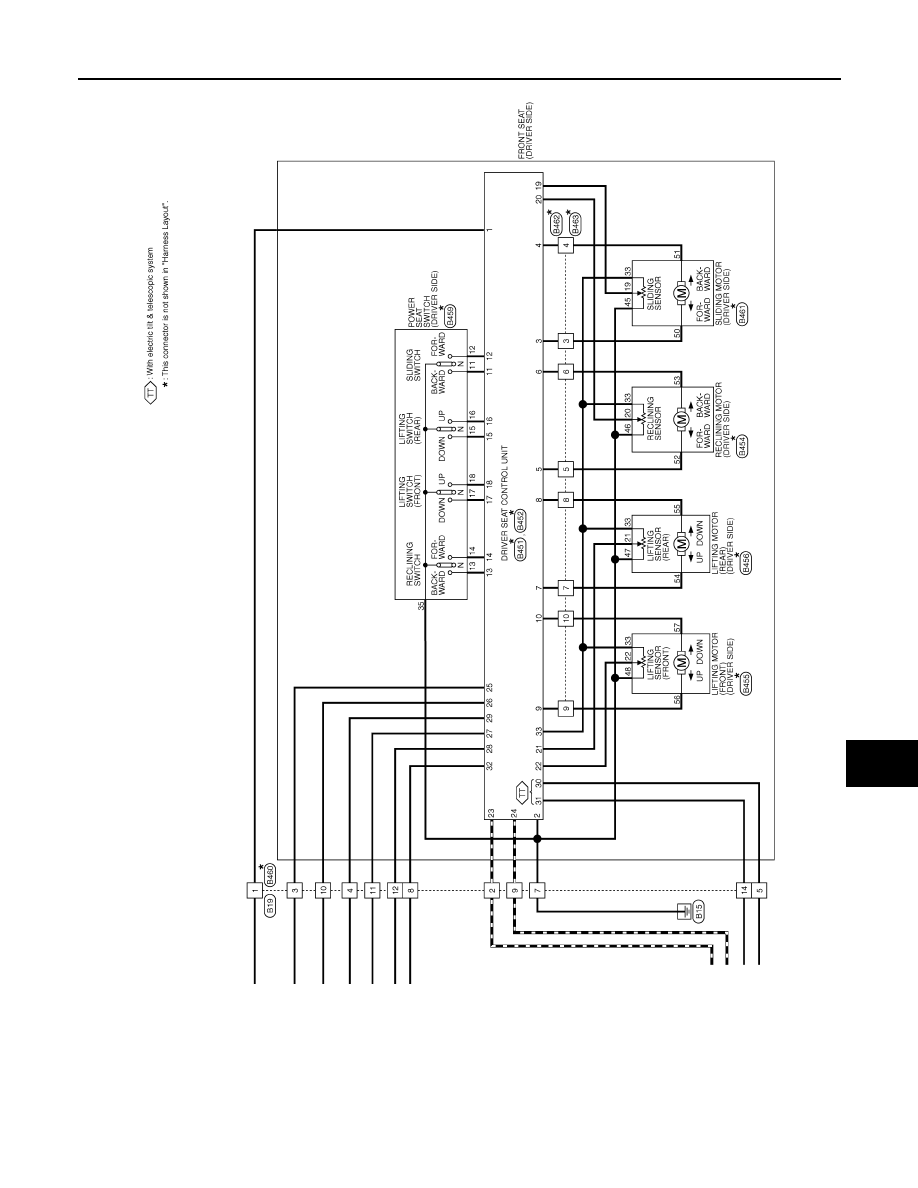

JRJWC0298GB

DRIVER SEAT CONTROL UNIT

MIR-33

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

JRJWC0299GB
