AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

Wiring Diagram - INSIDE MIRROR SYSTEM -

INFOID:0000000009719331

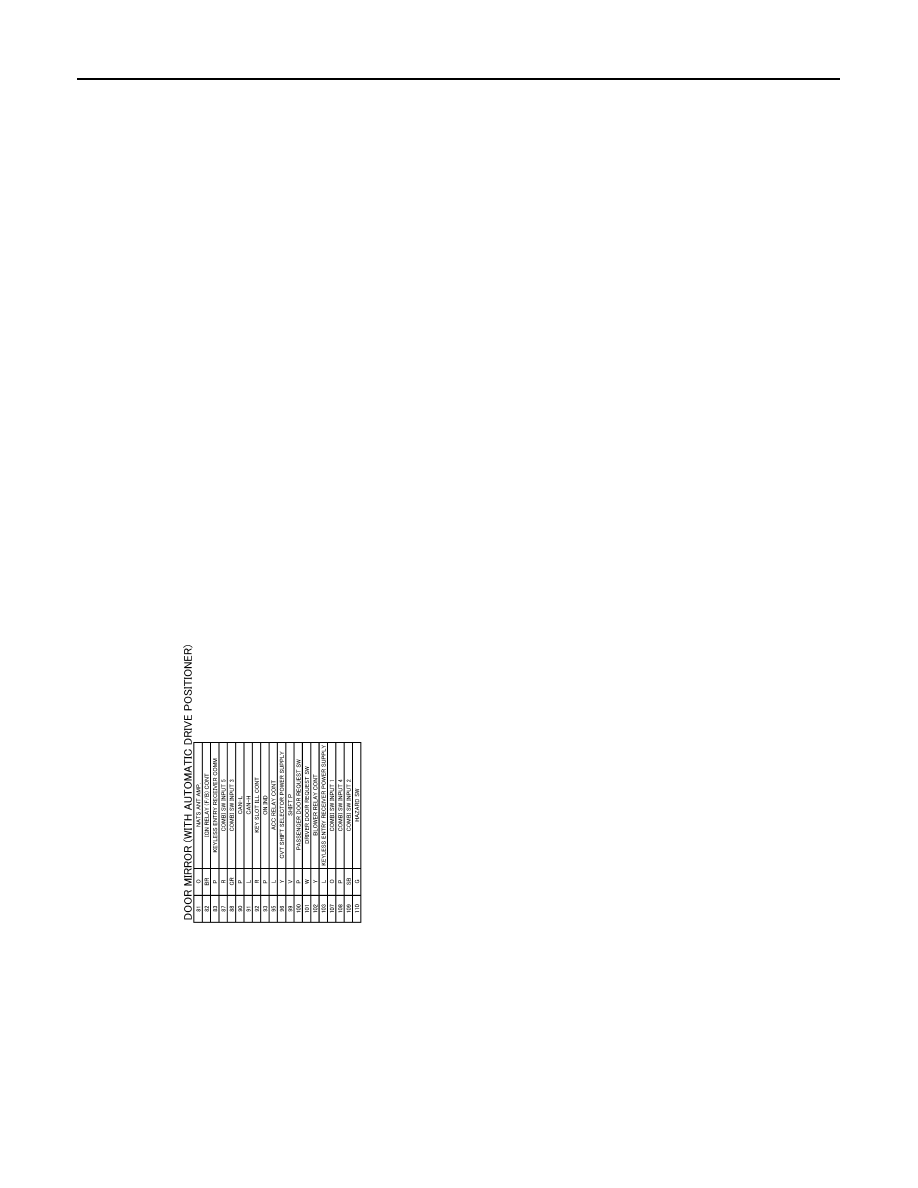

JCLWM6099GB

MIR-24

< DTC/CIRCUIT DIAGNOSIS >

[WITH ADP]

AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

JRLWC9411GB

DRIVER SEAT CONTROL UNIT

MIR-25

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

ECU DIAGNOSIS INFORMATION

DRIVER SEAT CONTROL UNIT

Reference Value

INFOID:0000000010103348

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT MONITOR ITEM

Monitor Item

Condition

Value/Status

SET SW

Set switch

Push

ON

Release

OFF

MEMORY SW1

Memory switch 1

Push

ON

Release

OFF

MEMORY SW2

Memory switch 2

Push

ON

Release

OFF

SLIDE SW–FR

Sliding switch (forward)

Operate

ON

Release

OFF

SLIDE SW–RR

Sliding switch (backward)

Operate

ON

Release

OFF

RECLN SW–FR

Reclining switch (forward)

Operate

ON

Release

OFF

RECLN SW–RR

Reclining switch (back-
ward)

Operate

ON

Release

OFF

LIFT FR SW–UP

Lifting switch front (up)

Operate

ON

Release

OFF

LIFT FR SW–DN

Lifting switch front (down)

Operate

ON

Release

OFF

LIFT RR SW–UP

Lifting switch rear (up)

Operate

ON

Release

OFF

LIFT RR SW–DN

Lifting switch rear (down)

Operate

ON

Release

OFF

MIR CON SW–UP

Mirror switch

Up

ON

Other than above

OFF

MIR CON SW–DN

Mirror switch

Down

ON

Other than above

OFF

MIR CON SW–RH

Mirror switch

Right

ON

Other than above

OFF

MIR CON SW–LH

Mirror switch

Left

ON

Other than above

OFF

MIR CHNG SW–R

Changeover switch

Right

ON

Other than above

OFF

MIR CHNG SW–L

Changeover switch

Left

ON

Other than above

OFF
