AV-22

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

AUDIO UNIT

8

(SB)

9

(R)

Illumination control signal

Output

Ignition

switch

ON

• Lighting switch 1ST
• When meter illumination

is maximum

• Lighting switch 1ST
• When meter illumination

is minimum

11

(BR)

12

(W)

Sound signal front RH

Output

Ignition

switch

ON

Sound output.

13

(GR)

14

(P)

Sound signal rear RH

Output

Ignition

switch

ON

Sound output.

19

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

33

(G)

Ground

AV communication signal
(L)

Input/

Output

—

—

—

34

(R)

Ground

AV communication signal
(H)

Input/

Output

—

—

—

35

—

FM sub

Input

—

—

—

36

—

AM-FM main

Input

—

—

—

37

Ground

Antenna amp. ON signal

Output

Ignition

switch

ACC

—

12.0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JPNIA0828GB

JPNIA0827GB

SKIB3609E

SKIB3609E

AV

AUDIO DISPLAY UNIT

AV-23

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO DISPLAY UNIT

Reference Value

INFOID:0000000009721564

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA3801ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(R)

Ground

AV communication signal
(L)

Input/

Output

—

—

—

2

(G)

Ground

AV communication signal
(H)

Input/

Output

—

—

—

3

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

8

(R)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

9

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

10

(R)

11

(SB)

Illumination control signal

Output

Ignition

switch

ON

• Lighting switch 1ST
• When meter illumination

is maximum

• Lighting switch 1ST
• When meter illumination

is minimum

JPNIA0828GB

JPNIA0827GB

AV-24

< WIRING DIAGRAM >

[BASE AUDIO WITHOUT COLOR DISPLAY]

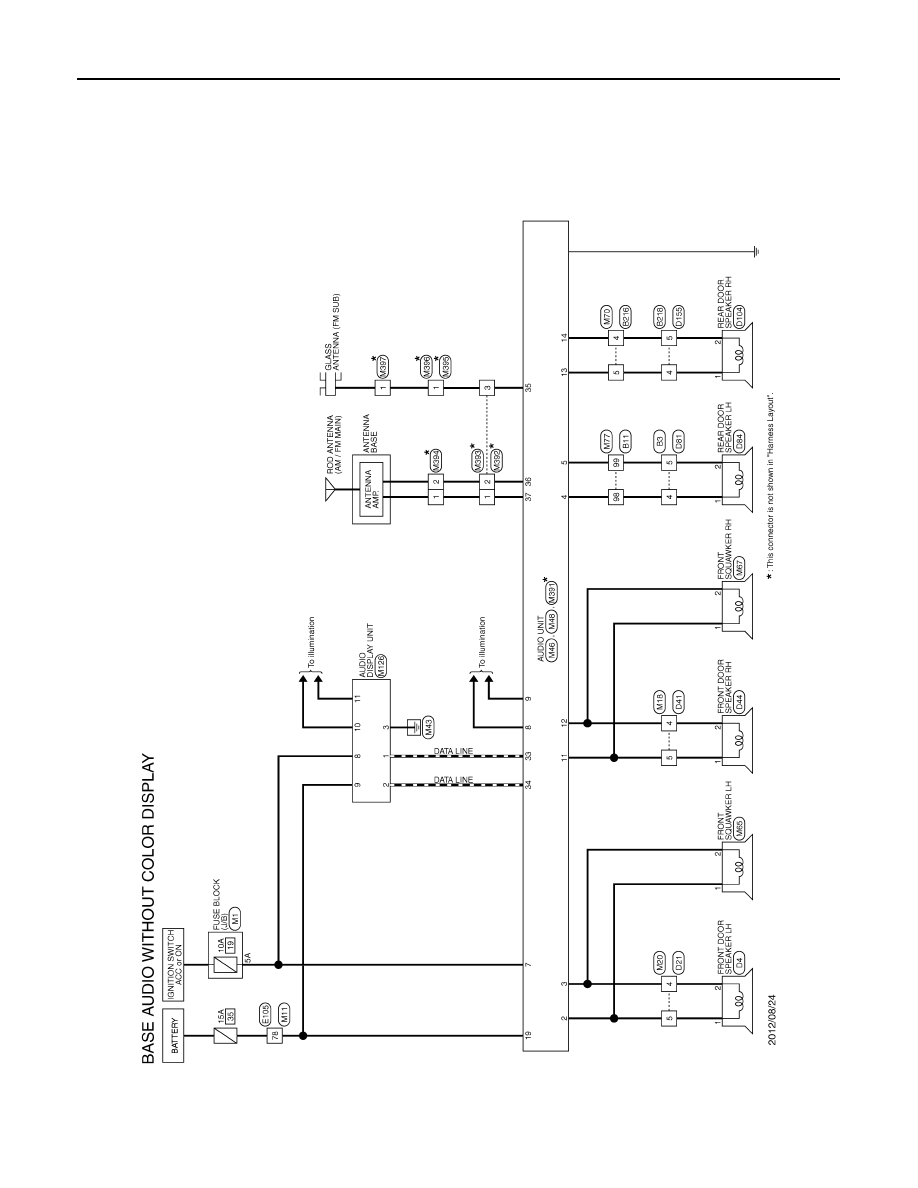

BASE AUDIO WITHOUT COLOR DISPLAY

WIRING DIAGRAM

BASE AUDIO WITHOUT COLOR DISPLAY

Wiring Diagram

INFOID:0000000009721565

JRNWC2802GB

AV

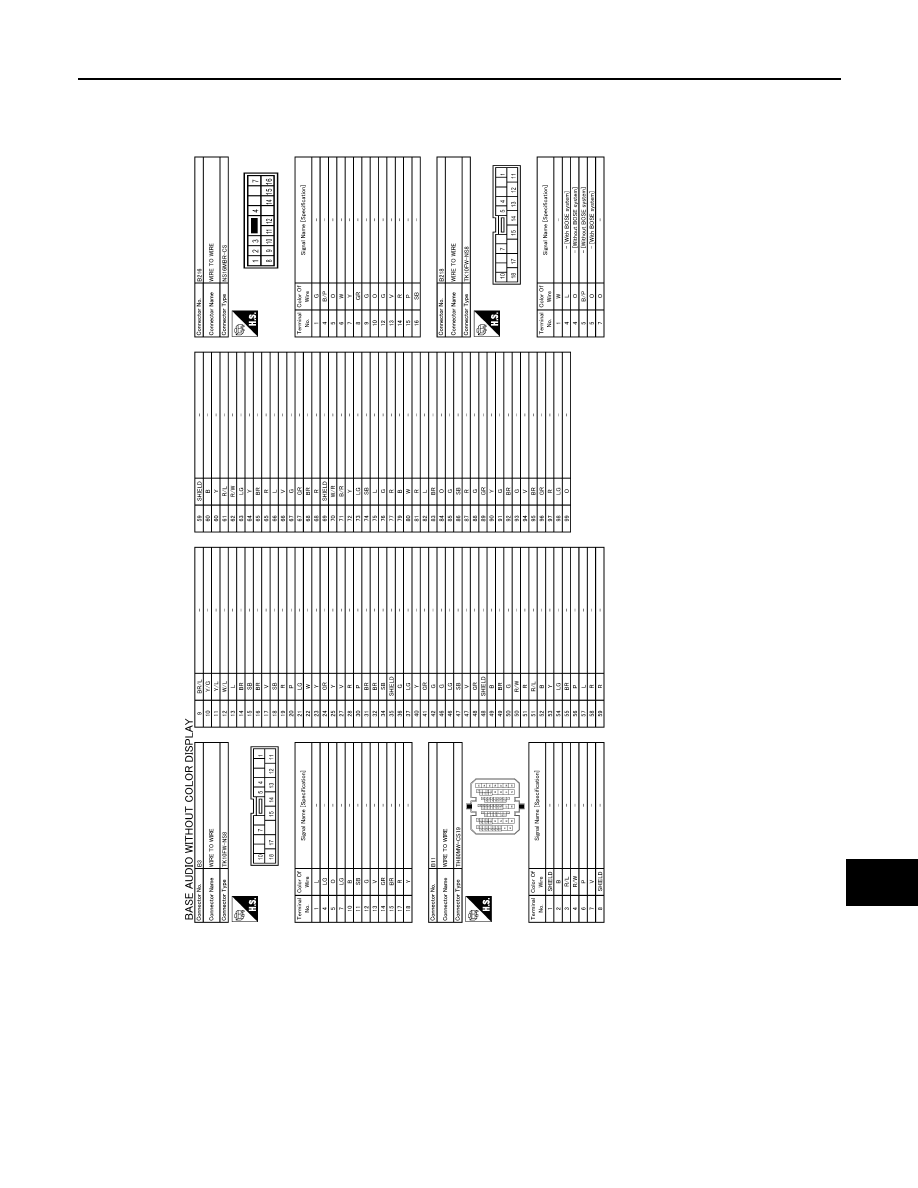

BASE AUDIO WITHOUT COLOR DISPLAY

AV-25

< WIRING DIAGRAM >

[BASE AUDIO WITHOUT COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC8919GB
