Nissan Murano. Manual - part 5





ADP-12

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

SYSTEM DESCRIPTION

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM

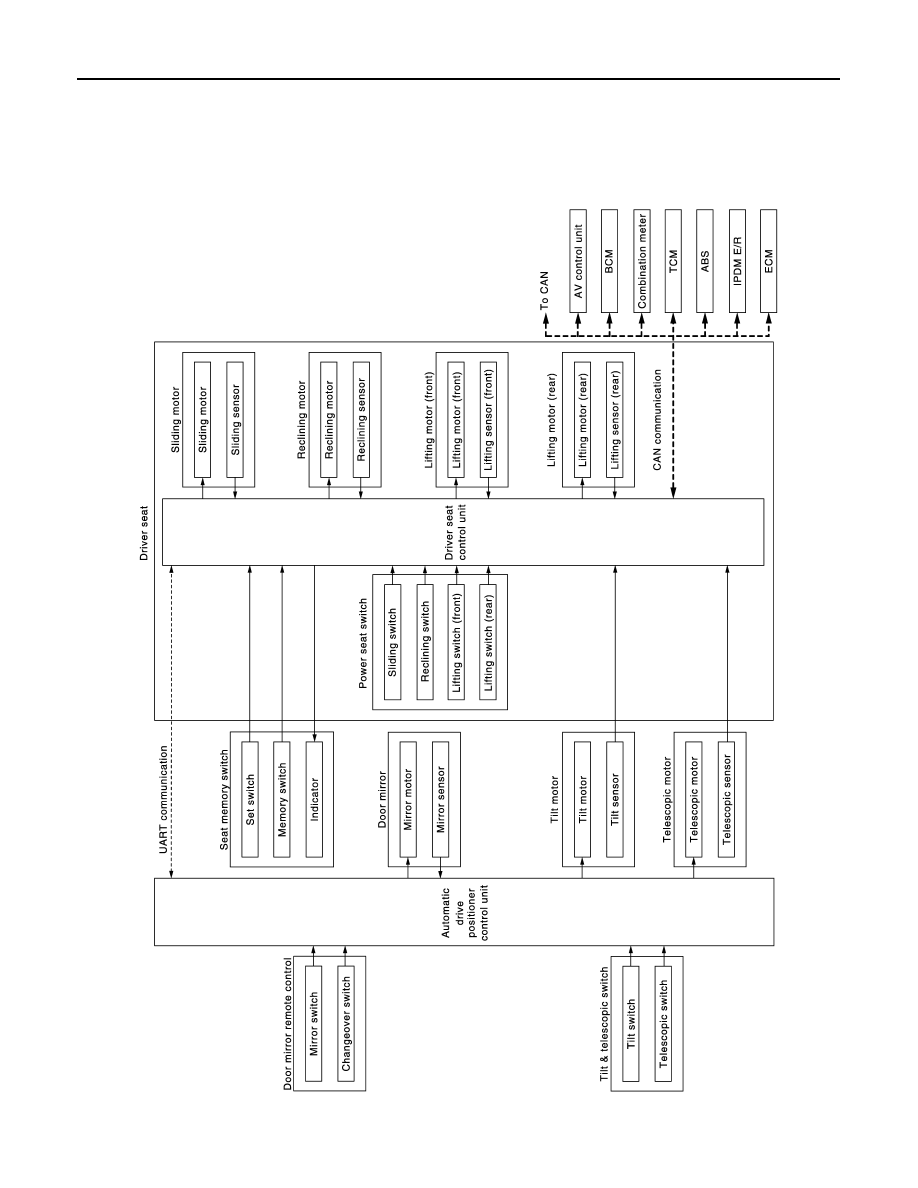

AUTOMATIC DRIVE POSITIONER SYSTEM : System Diagram

INFOID:0000000009720630

JMJIA1459GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

AUTOMATIC DRIVE POSITIONER SYSTEM : System Description

INFOID:0000000009720631

OUTLINE

The system automatically moves the driver seat, steering column and door mirror position by the driver seat
control unit and the automatic drive positioner control unit. The driver seat control unit corresponds with the
automatic drive positioner control unit by UART communication.

NOTE:
The lumbar support system and the side support system are controlled independently with no link to the auto-
matic drive positioner system.

Function Description

Manual function

The driving position (seat, steering column and door mirror position) can be adjusted
by using the power seat switch, tilt & telescopic switch or door mirror remote control
switch.

Memory function

The seat, steering column and door mirror move to the stored driving position by
pressing seat memory switch (1 or 2).

Entry/Exit assist function

Exit

On exit, the seat moves backward and the steering column moves upward.

Entry

On entry, the seat and steering column returns from exiting position to the previous
driving position.

Intelligent Key interlock function

Perform memory operation, exiting operation and entry operation by Intelligent Key
unlock operation or driver side door request switch unlock operation.

ADP-14

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

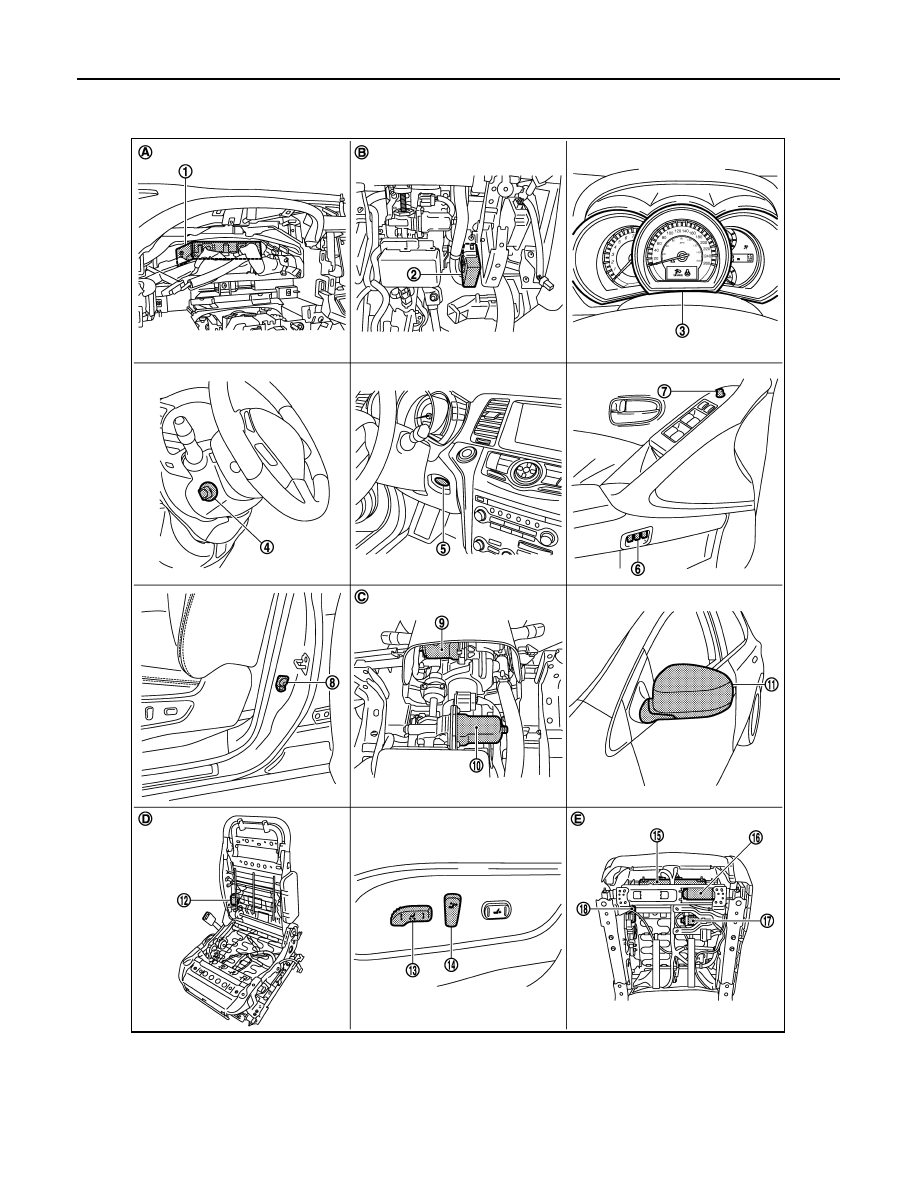

AUTOMATIC DRIVE POSITIONER SYSTEM : Component Parts Location

INFOID:0000000009720632

1.

BCM M118, M119, M122, M123

2.

Automatic drive positioner control unit
M75, M104

3.

Combination meter

4.

Tilt & telescopic switch M102

5.

Key slot M99

6.

Seat memory switch D13

7.

Door mirror remote control switch
D14

8.

Front door switch (driver side) B34

9.

Tilt motor  M116

JMJIA1409ZZ

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

AUTOMATIC DRIVE POSITIONER SYSTEM : Component Description

INFOID:0000000009720633

CONTROL UNITS

INPUT PARTS

Switches

10. Telescopic motor M117

11.

Door mirror (driver side) D3

12. Reclining motor B461

13. Sliding, Lifting switch

(Power seat switch B459)

14. Reclining switch

(Power seat switch B459)

15. Driver seat control unit B451,B452

16. Sliding motor B461

17. Lifting motor (front) B455

18. Lifting motor (rear) B456

A.

Behind the combination meter

B.

View with instrument driver lower
panel removed

C.

View with instrument driver lower
panel removed

D.

View with seat cushion and seatback
pad removed

E.

Backside of the seat cushion

Item

Function

Driver seat control unit

• Main units of automatic drive positioner system
• It is connected to the CAN.
• It communicates with the automatic drive positioner control via UART communi-

cation.

Automatic drive positioner control unit

• It communicates with the driver seat control unit via UART communication.
• Perform various controls with the instructions of driver seat control unit.
• Perform the controls of the tilt & telescopic, door mirror switch.

BCM

Transmit the following status to the driver seat control unit via CAN communication.
• Driver door: OPEN/CLOSE
• Ignition switch position: ACC/ON
• Door lock: UNLOCK (with Intelligent Key or driver side door request switch oper-

ation)

• Key ID
• Key switch: Insert/Pull out Intelligent Key
• Starter: CRANKING/OTHER
• Handle position : LHD

Combination meter / ABS

Transmit the vehicle speed signal to the driver seat control unit via CAN communi-
cation.

TCM

Transmit the shift position signal (P range) to the driver seat control unit via CAN
communication.

Item

Function

Key slot

The key switch is installed to detect the key inserted/removed status.

Front door switch (driver side)

Detect front door (driver side) open/close status.

CVT shift selector (detention switch)

Detect the P range position of selector lever.

Set switch

The registration and system setting can be performed with its operation.

Memory switch 1/2

The registration and operation can be performed with its operation.

Power seat switch

The following switch is installed.
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch
The specific parts can be operated with the operation of each switch.
