Nissan Murano. Manual - part 6

ADP-16

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

Sensors

OUTPUT PARTS

MANUAL FUNCTION

Tilt & telescopic switch

The following switch is installed.
• Tilt switch
• Telescopic switch
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Item

Function

Door mirror sensor
(driver side/passenger side)

Detect the up/down and left/right position of outside mirror face.

Tilt and telescopic sensor

Detect the up/down and left/right position of steering column.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor
(driver side/passenger side)

Move the outside mirror face upward/downward and leftward/rightward.

Tilt and telescopic motor

Move the steering column upward/downward and frontward/rearward.

Lifting motor (front)

Move the seat lifting (front) upward/downward.

Lifting motor (rear)

Move the seat lifting (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat frontward/rearward.

Memory indicator

Illuminates or flashes according to the registration/operation status.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

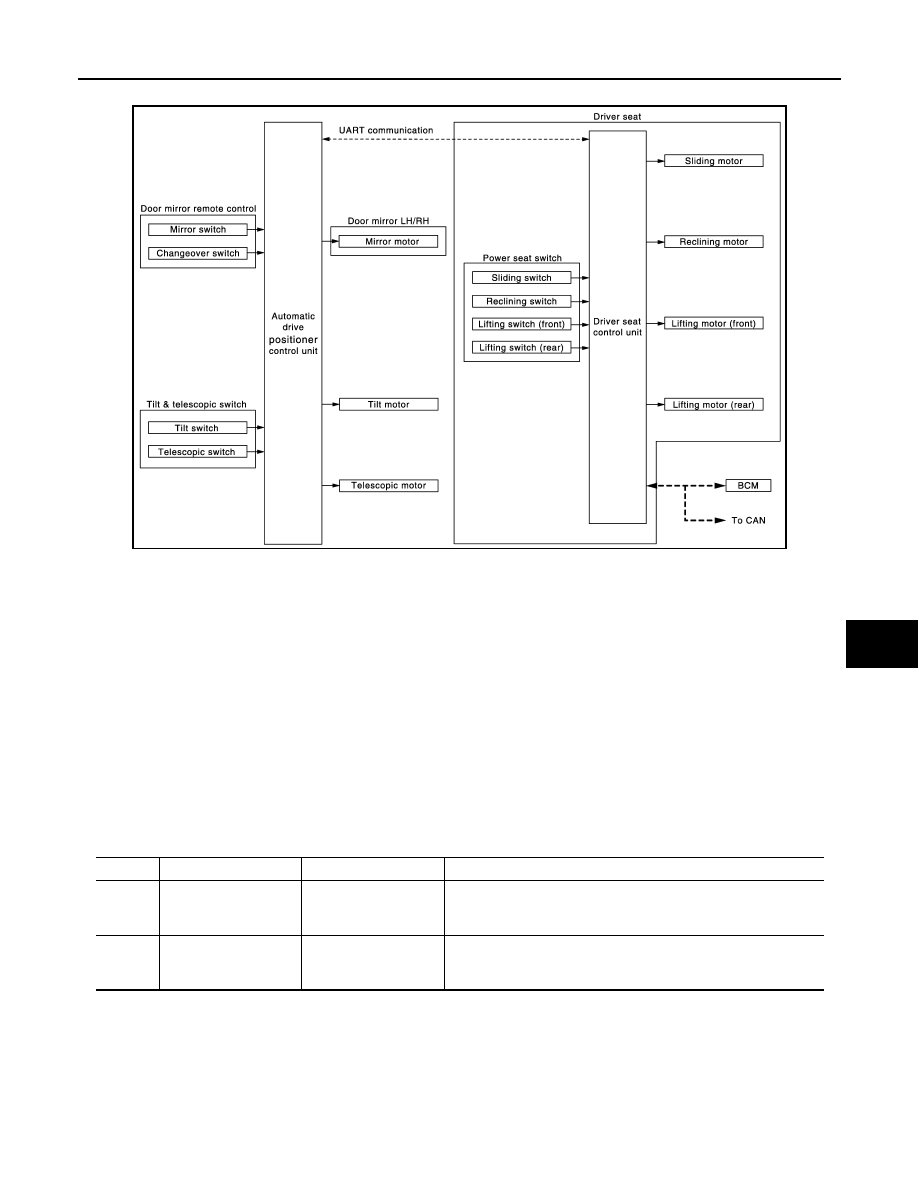

MANUAL FUNCTION : System Diagram

INFOID:0000000009720634

MANUAL FUNCTION : System Description

INFOID:0000000009720635

OUTLINE

The driving position (seat, steering column and door mirror position) can be adjusted manually with power seat
switch, tilt & telescopic switch and door mirror remote control switch.

OPERATION PROCEDURE

1.

Turn ignition switch ON.

2.

Operate power seat switch, tilt & telescopic switch or door mirror remote control switch.

3.

The driver seat, steering column or door mirror operates according to the operation of each switch.

NOTE:
Seat operates only up to two places at the same time.

DETAIL FLOW

Seat

Tilt & Telescopic

JMJIA1460GB

Order

Input

Output

Control unit condition

1

Power seat switch
(sliding, lifting, reclin-
ing)

—

The power seat switch signal is inputted to the driver seat control
unit when the power seat switch is operated.

2

—

Motors
(sliding, lifting, reclin-
ing)

The driver seat control unit outputs signals to each motor accord-
ing to the power seat switch input signal.

ADP-18

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

Door Mirror

NOTE:
The door mirrors can be operated manually when ignition switch is in either ACC or ON position. The ignition
switch signal (ACC/ON) is transmitted from BCM to the driver seat control unit via CAN communication and
from the driver seat control unit to the automatic drive positioner control unit via UART communication.
UART communication line malfunction and CAN communication line malfunction are detected, the door mirror
cannot be operated.

Order

Input

Output

Control unit condition

1

Tilt & telescopic switch

—

The tilt & telescopic switch signal is inputted to the automatic
drive positioner control unit when the tilt & telescopic switch is op-
erated.

2

—

Motors
(Tilt, telescopic)

The automatic drive positioner control unit actuates each motor
according to the operation of the tilt & telescopic switch.

Order

Input

Output

Control unit condition

1

Door mirror remote
control switch

—

The door mirror remote control switch signal is inputted to the au-
tomatic drive positioner control unit when the door mirror remote
control switch is operated.

2

—

Motors
(Door mirror motor)

The automatic drive positioner control unit actuates each motor
according to the operation of the door mirror remote control switch.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

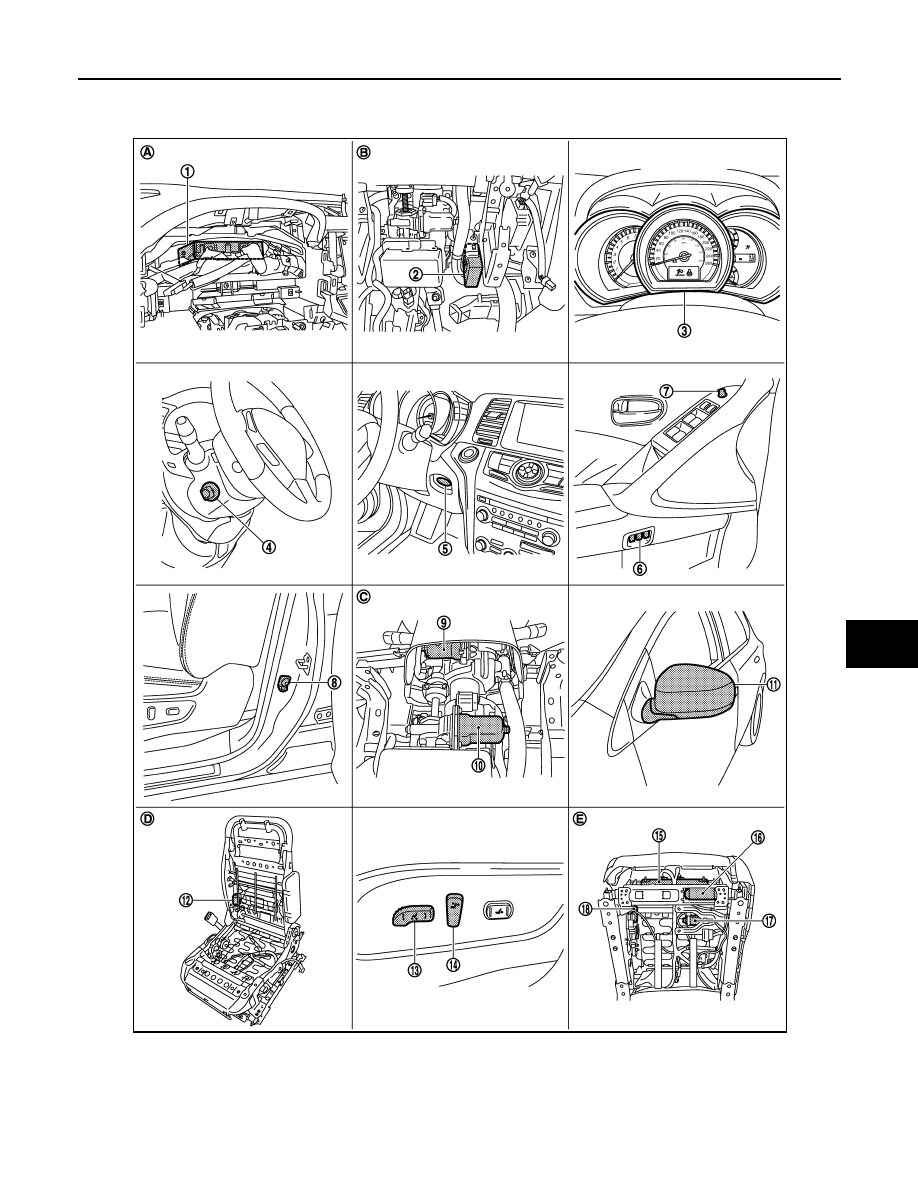

MANUAL FUNCTION : Component Parts Location

INFOID:0000000009720636

1.

BCM  M118,  M119,  M122,  M123

2.

Automatic drive positioner control unit
M75, M104

3.

Combination meter

4.

Tilt & telescopic switch M102

5.

Key slot M99

6.

Seat memory switch D13

7.

Door mirror remote control switch
D14

8.

Front door switch (driver side) B34

9.

Tilt motor  M116

JMJIA1409ZZ
